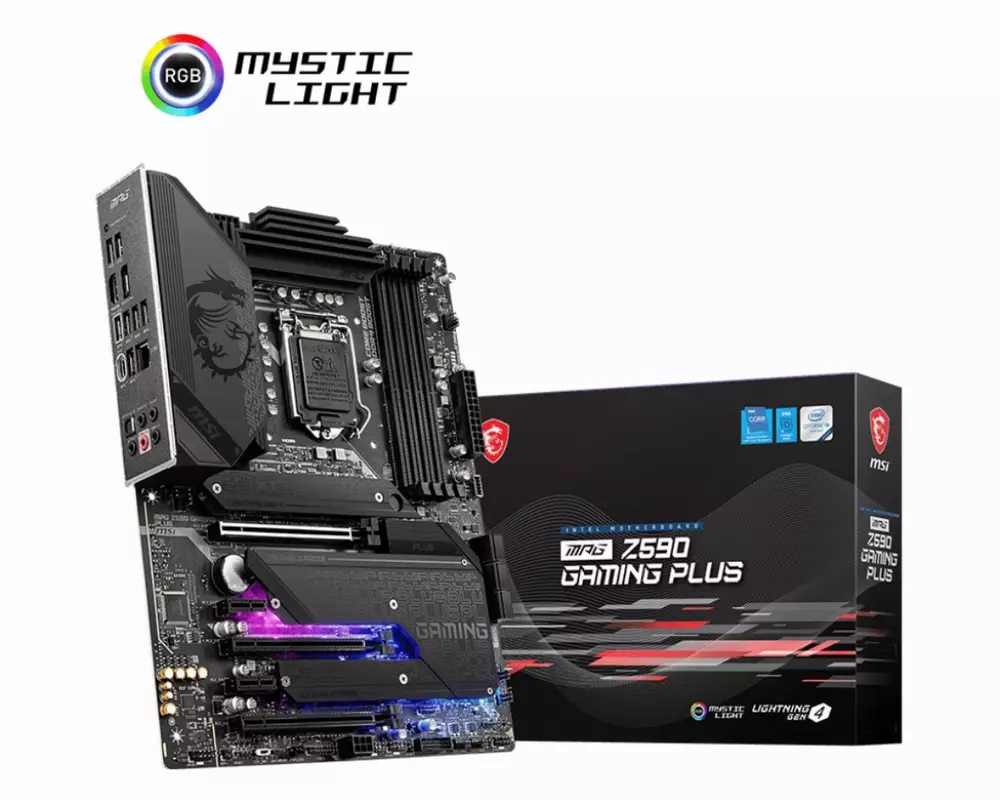

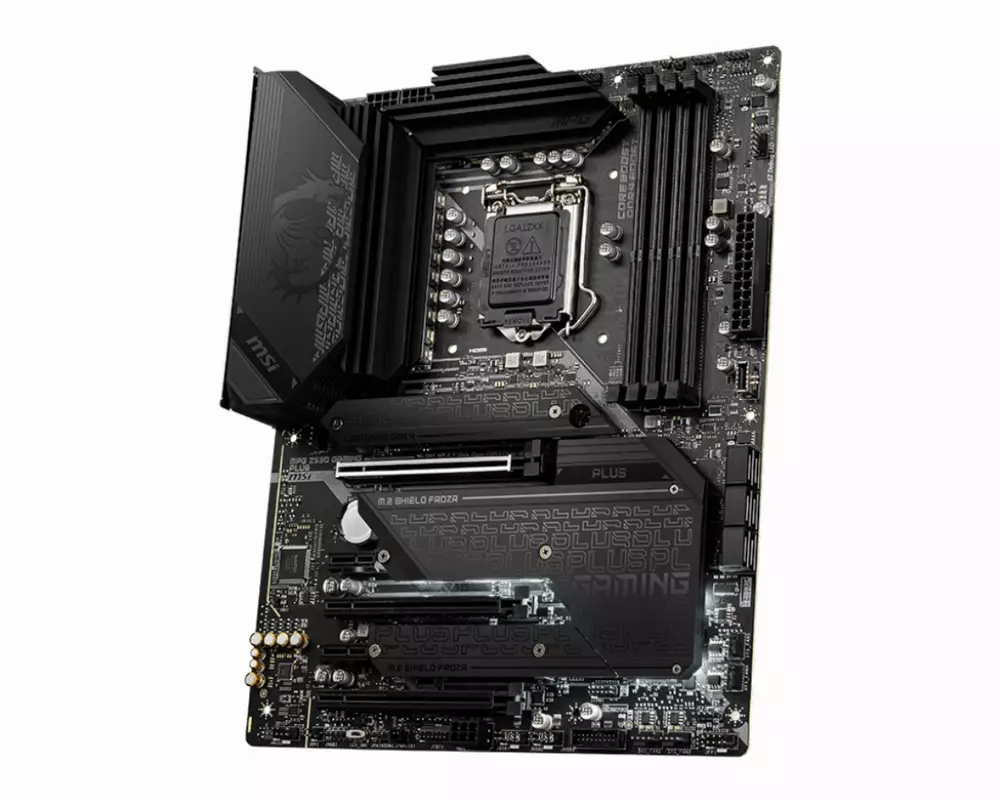

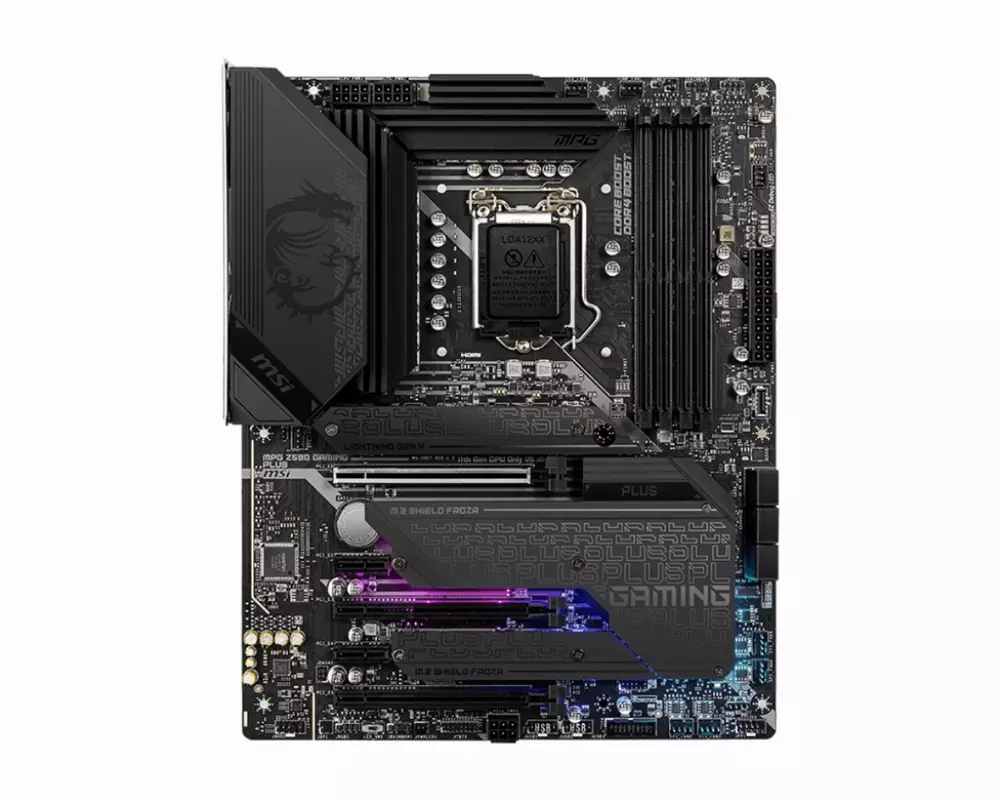

Дънна палтка MSI MPG Z590 GAMING PLUS
| Производител | MSI |
| Продуктов код | MPG_Z590_GAMING_PLUS |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel Z590 |
| Форм фактор | ATX |
| Поддържани процесори | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel ® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC4080 Codec 7.1-Channel High Definition Audio |
| Вграден LAN | 1 х Intel I225-V 2.5Gb Ethernet |
| Интерфейс SATA | 6 x SATA2 3.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slots (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core ™ processors PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Разширителни слотове | 3x PCIe x16 slots Support x16/x4/x4 PCI_E1 (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E31 & PCI_E5 (From Z590 chipset) Support up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset) PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. |
| Конектор захранване | 1 x 24-pin 2 x 8-pin 1 х 6-pin |
| USB портове | Intel® Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors) |

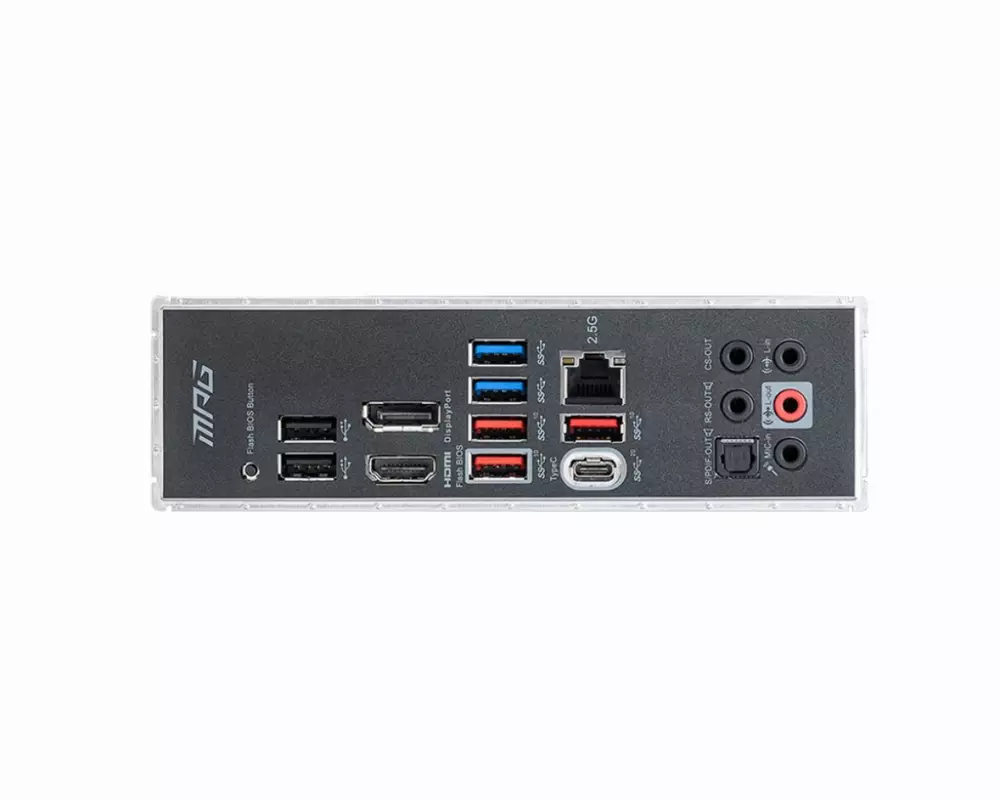

| Заден I/O панел | DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out |
| Мулти GPU технология | AMD 2-Way CrossFireX Technology |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | 10-то поколение 11-то поколение |
| Гаранция | 36 месеца |
