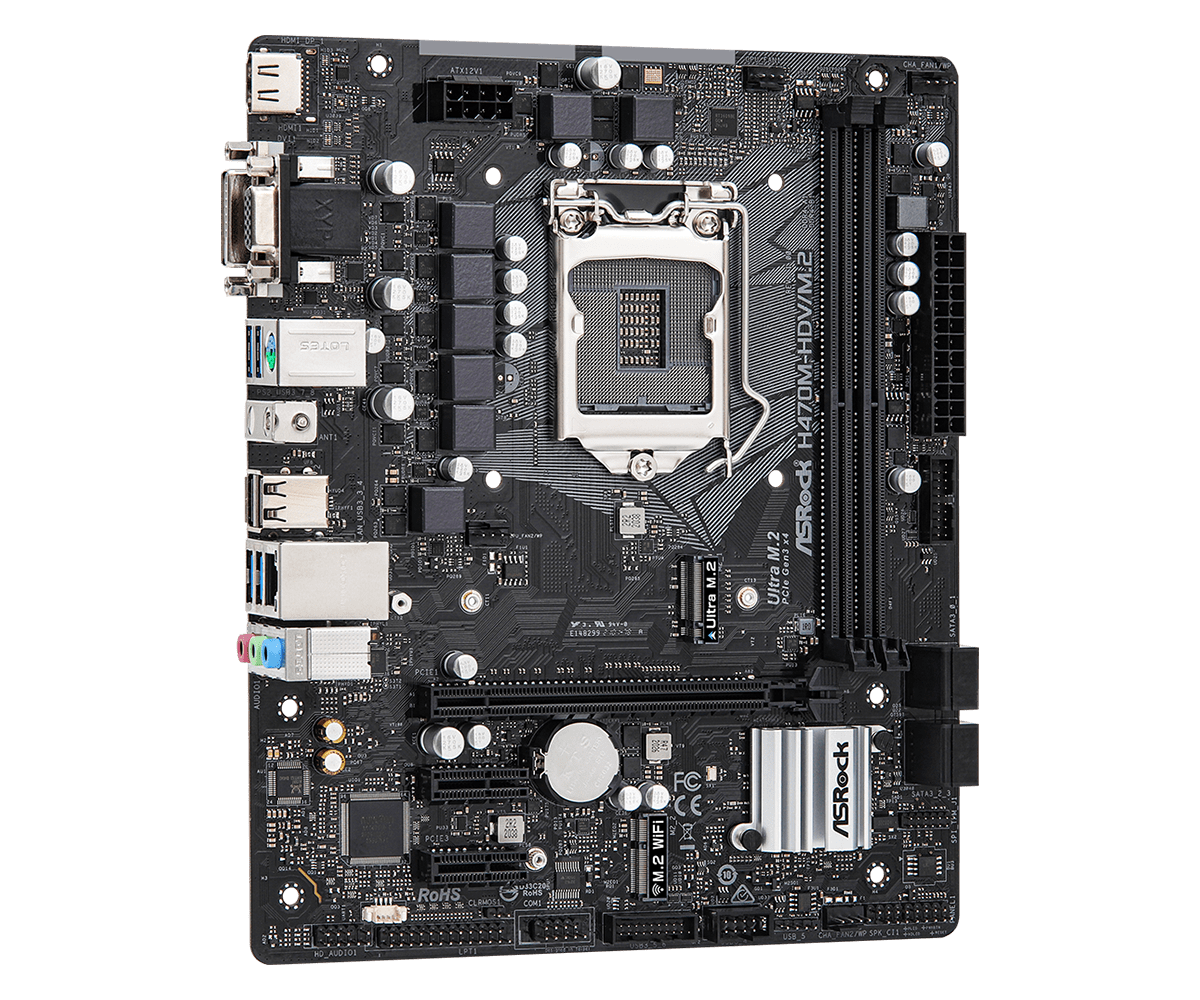

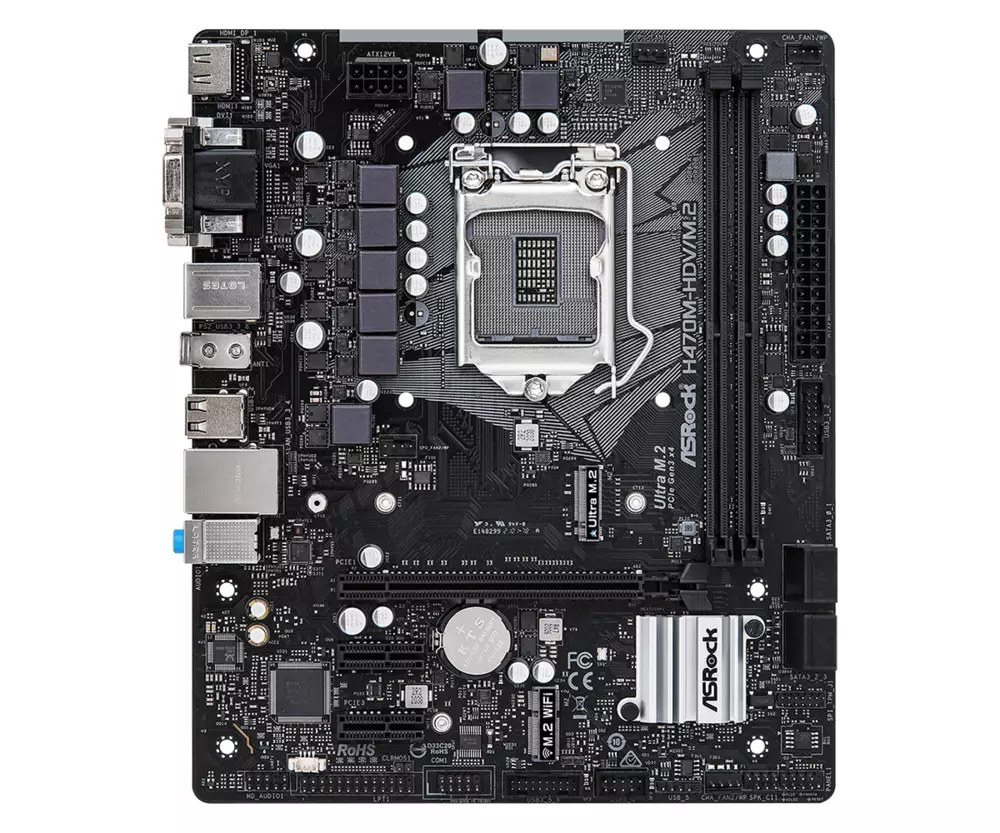

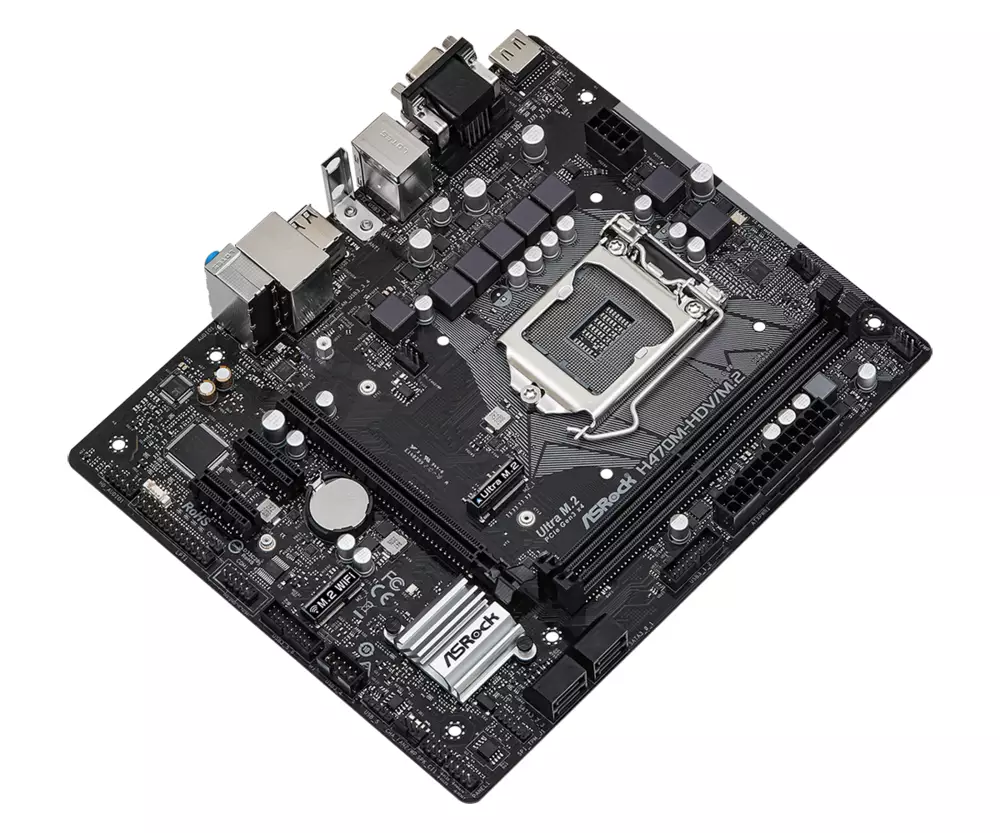

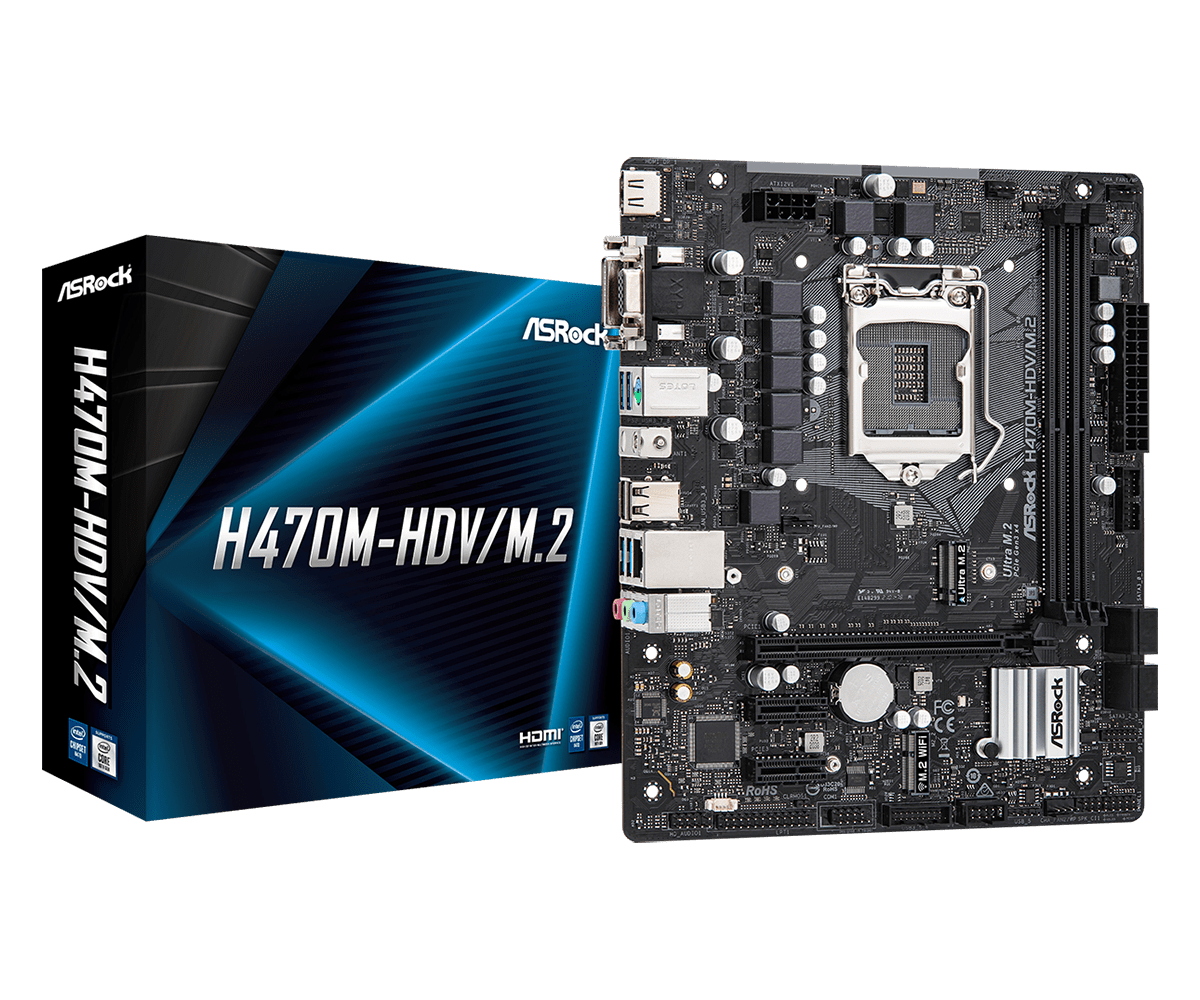

Motherboard Asrock H470M-HDV/M.2
Code: 22448
60.33 €
Earn 60 points
Out of stock
Notify me when available
We will send you an email as soon as the product is back in stock.
✅ Done! We will write to you as soon as it is available.
- CPU socket
- LGA 1200
- Chipset (MB)
- Intel H470 MB
- Form factor
- Micro ATX
- Supported memory
- DDR4
- Number of memory slots
- 2
Full specifications
- Manufacturer
-
Asrock
- Product Code
- H470M-HDV/M.2
- CPU socket
-
LGA 1200
- Chipset (MB)
- Intel H470
- Form factor
- Micro ATX
- Supported processors
-
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
- Supported memory
-
DDR4
- Number of memory slots
- 2
- Maximum RAM capacity
- 64 GB
- Memory frequency (MHz)
-
2933266624002133
- Support for dual-channel memory
- Yes
- Built-in audio
-
Realtek ALC897 Codec7.1-Channel High Definition Audio
- Built-in LAN
-
Intel I219V (10/100/1000 Mbit)
- SATA interface
- 4 x SATA3 6.0 Gb/s
- RAID support
- 0, 1, 5, 10
- M2 slot
-
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4
- Expansion slots
-
- 1 x PCI Express 3.0 x16 Slot*- 2 x PCI Express 3.0 x1 Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disks
- Power connector
-
1 x 24-pin1 x 8-pin
- USB ports
-
4
- Graphics
-
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc- Dual graphics output: support HDMI and D-Sub ports by independent display controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)- Supports HDCP 2.3 with HDMI 1.4 Port- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
- BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support;ACPI 6.0 Compliant wake up events;SMBIOS 2.7 Support;DRAM, PCH 1.05V Voltage Multi-adjustment
- Dimensions
- 22.6 cm x 18.8 cm
- Processor generation
-
10th generation
- Warranty
- 36 months

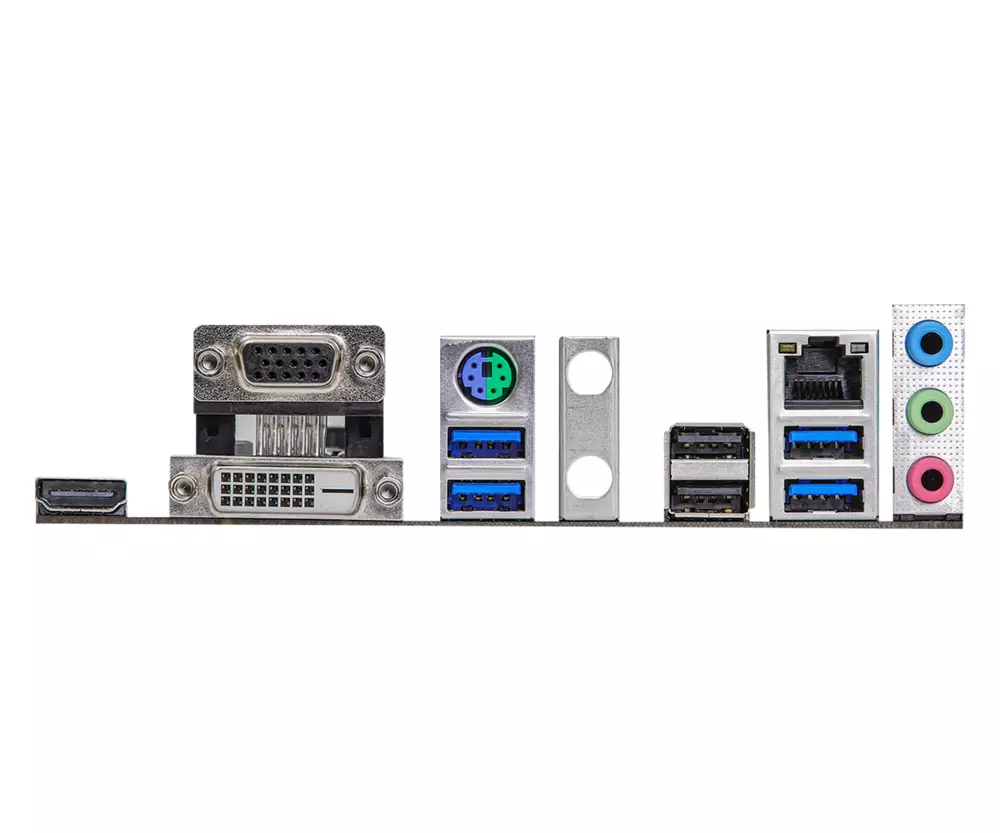

- Rear I/O panel
-
1 x Antenna Bracket1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x DVI-D Port1 x HDMI Port2 x USB 2.0 Ports (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
