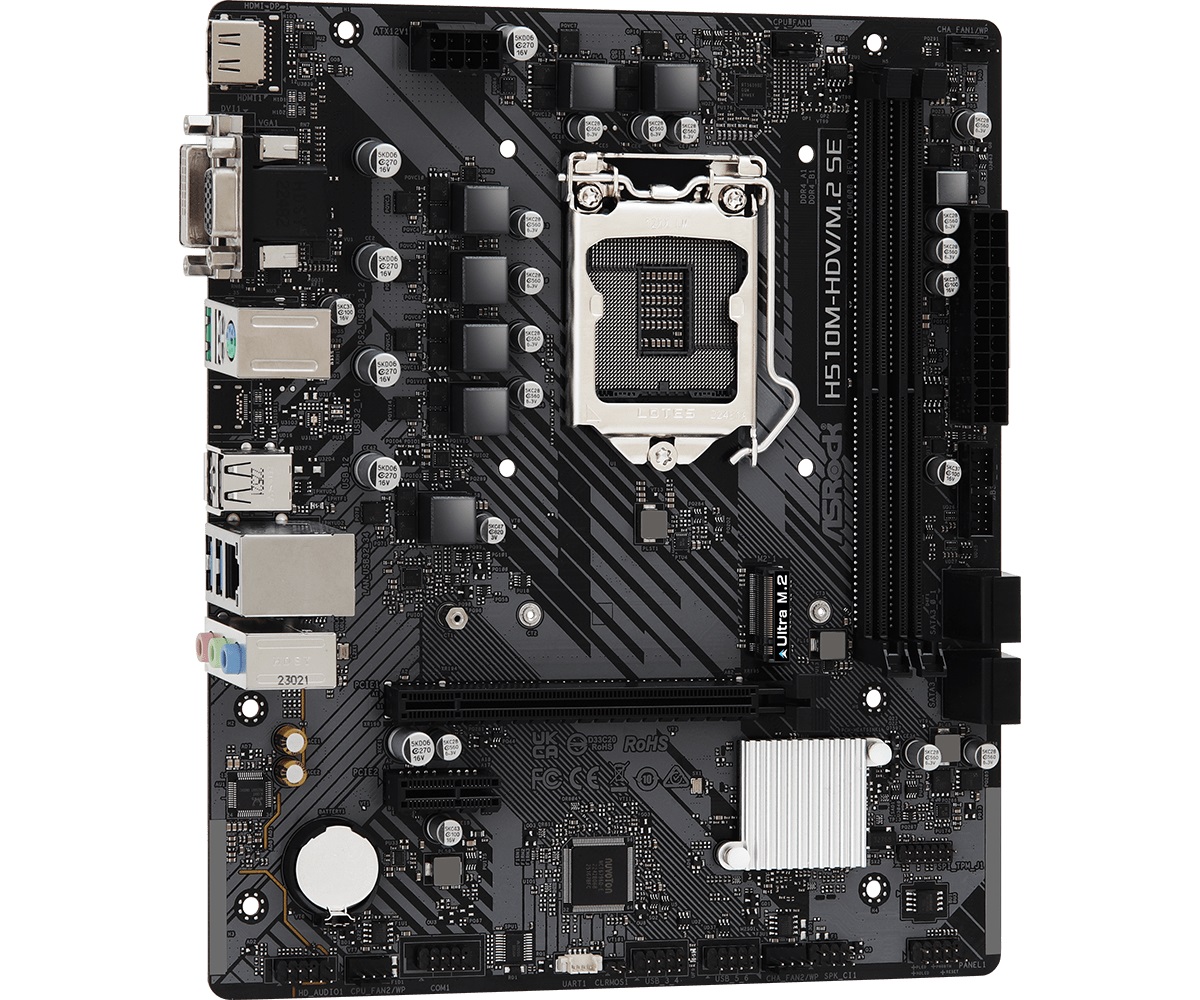

Asrock H510M-HDV/M.2 SE LGA1200 Motherboard
Code: 37366
63.43 €
Earn 63 points
Out of stock
Notify me when available
We will send you an email as soon as the product is back in stock.
✅ Done! We will write to you as soon as it is available.
- CPU socket
- LGA 1200
- Chipset (MB)
- Intel H510 MB
- Form factor
- Micro ATX
- Supported memory
- DDR4
- Number of memory slots
- 2
Full specifications
- Manufacturer
-
Asrock
- CPU socket
-
LGA 1200
- Chipset (MB)
- Intel H510
- Form factor
- Micro ATX
- Supported processors
-
Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
- Supported memory
-
DDR4
- Number of memory slots
- 2
- Maximum RAM capacity
- 64 GB
- Support for dual-channel memory
- Yes
- Built-in audio
-
Realtek ALC897 Codec7.1-Channel High Definition Audio
- Built-in Wi-Fi
-
No
- Bluetooth version
- No
- Built-in LAN
-
Realtek GbE LAN chip(10/100/1000 Mbit)
- SATA interface
- 4 x SATA3 6.0 Gb/s
- RAID support
- 0, 1, 5, 10
- M2 slot
-
1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- Expansion slots
-
1 x PCIe 4.0 x16 Slot (PCIE1)1 x PCIe 3.0 x1 Slot (PCIE2)Intel 11th Gen Processors support PCIe 4.0 x16Intel 10th Gen Processors support PCIe 3.0 x16
- Power connector
-
1 x 24-pin1 x 8-pin
- USB ports
-
6 x USB 3.2 Gen1 (4 Rear, 2 Front)6 x USB 2.0 (2 Rear, 4 Front)
- Graphics
-
1 x HDMI1 x DVI-D1 x D-Sub
- Processor generation
-
10th generation11th generation
- Warranty
- 36 months
- OS
-
Microsoft Windows 10, Microsoft Windows 11
- Memory frequency (MHz)
-
2933+(OC)2800(OC)2400(OC)2133(OC)1866(OC)160013331066

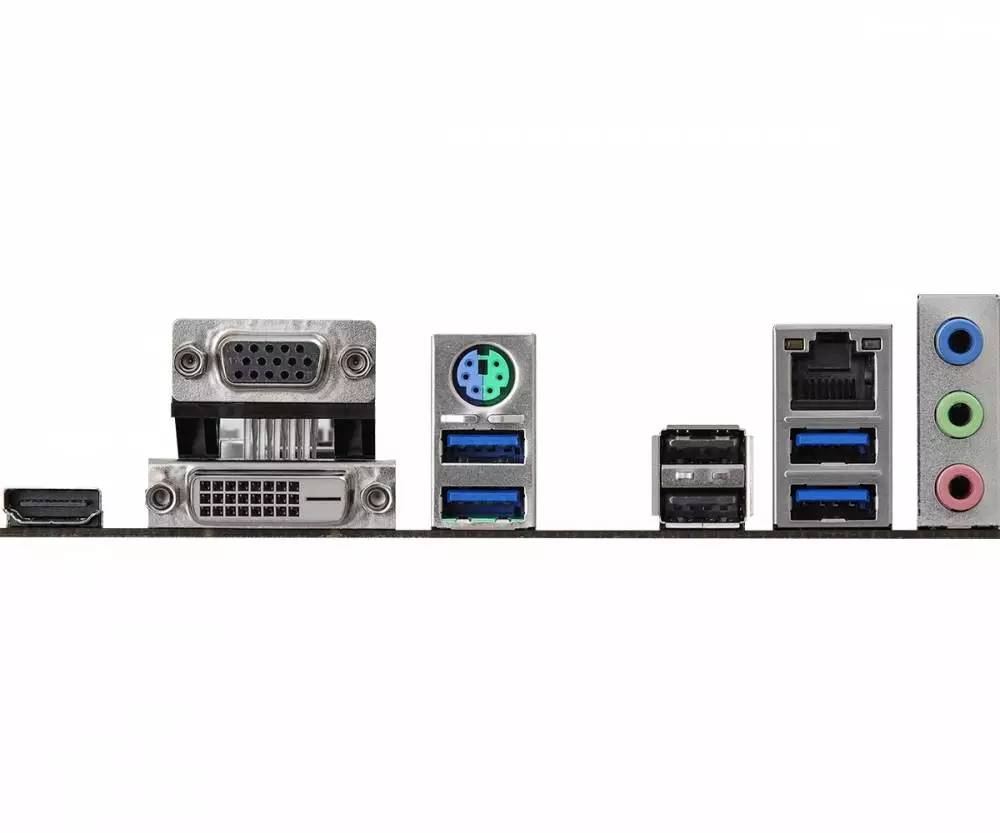

- Rear I/O panel
-
1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x DVI-D Port1 x HDMI Port2 x USB 2.0 Ports4 x USB 3.2 Gen1 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone
