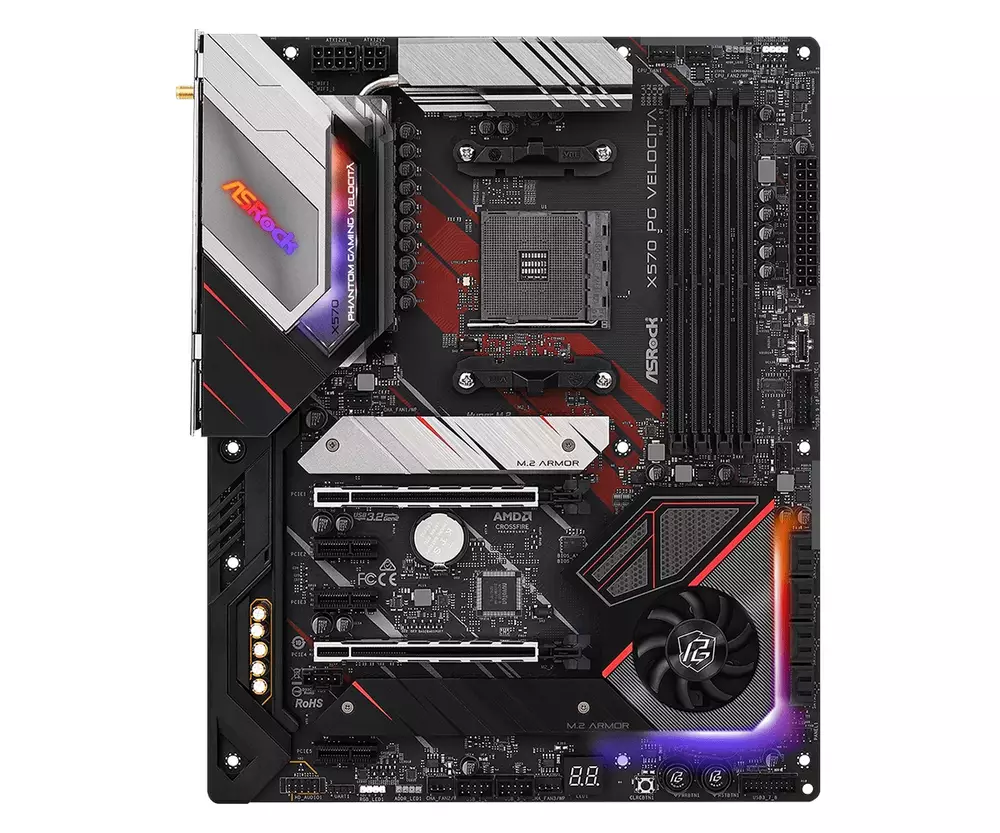

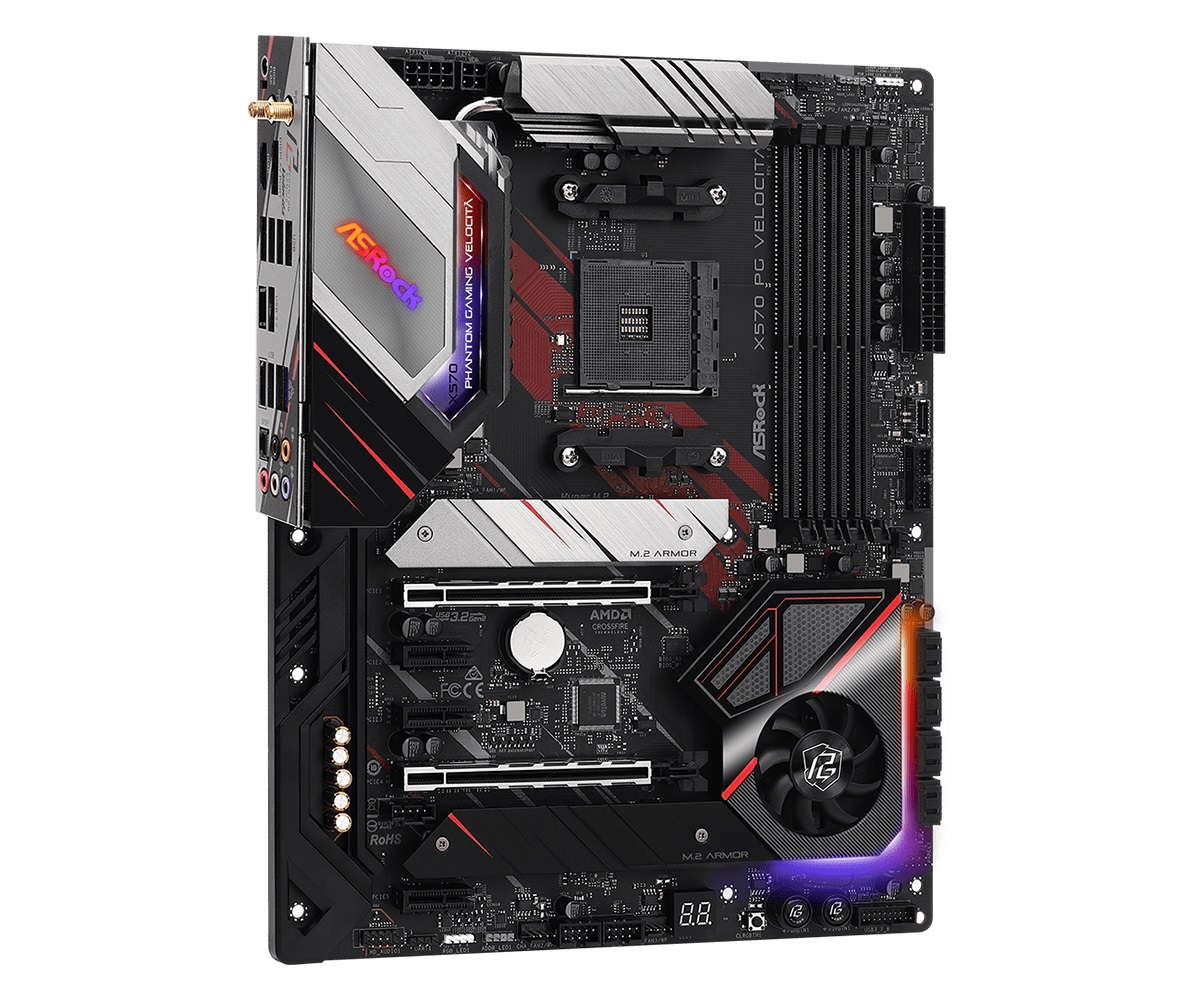

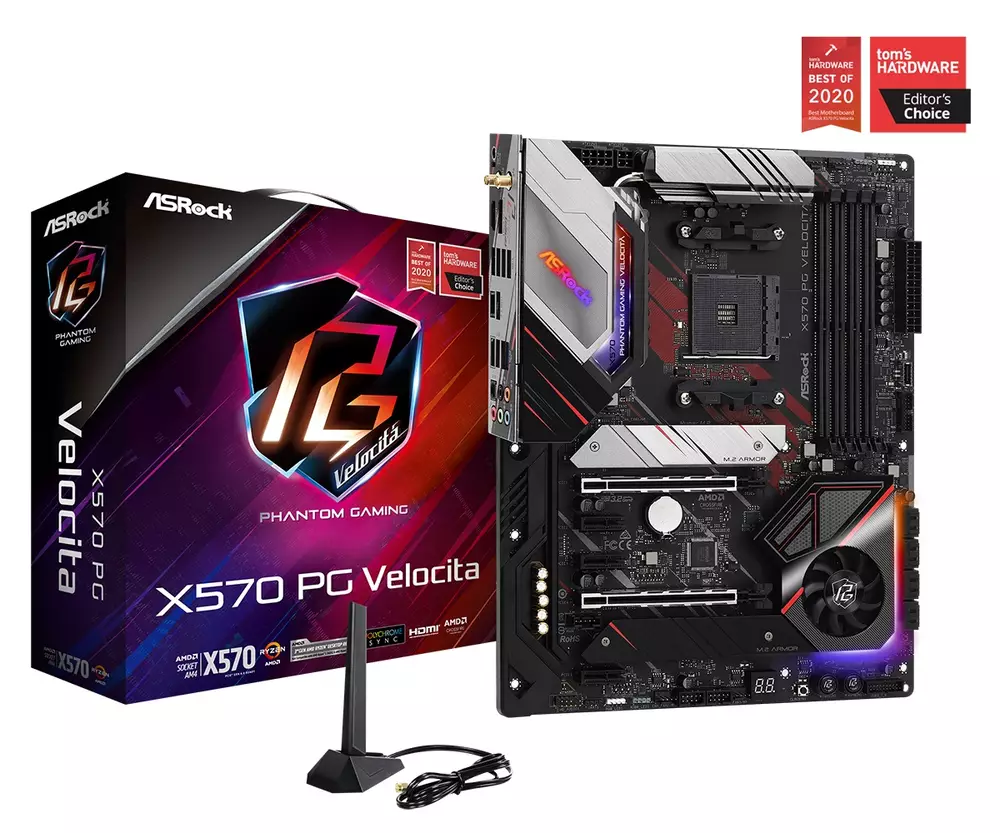

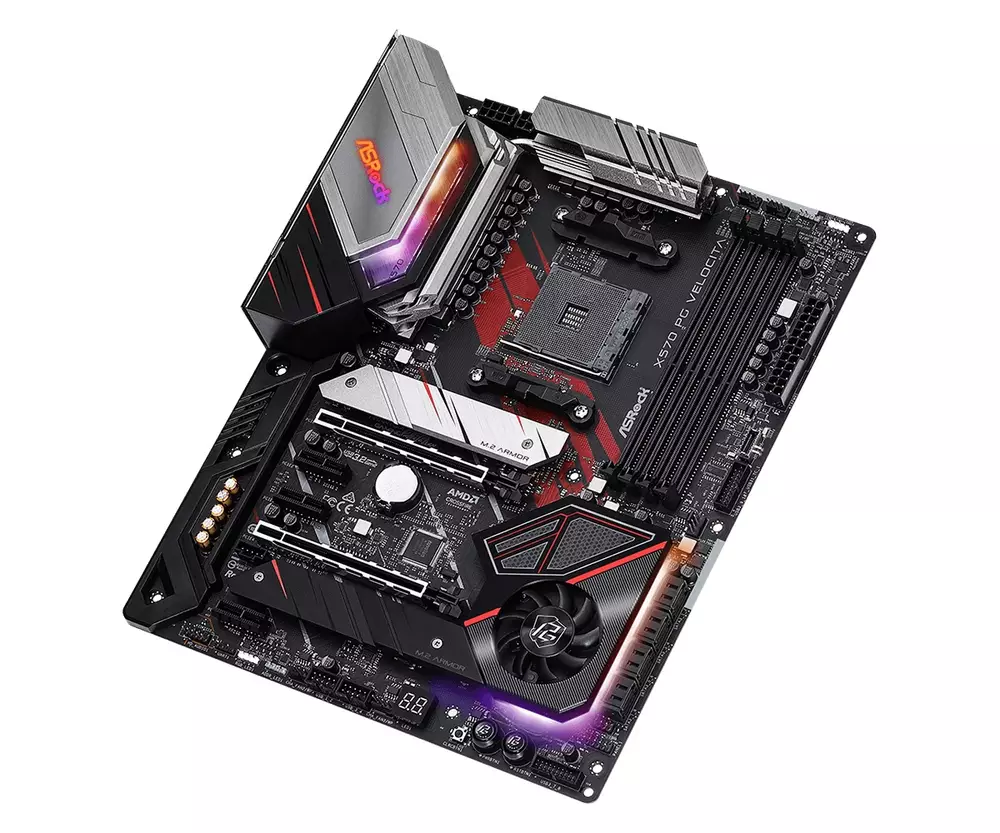

Дънна платка ASROCK X570 PG VELOCITA

Name: Дънна платка ASROCK X570 PG VELOCITA
Brand: Asrock
SKU: 23178
Price: 257.94 EUR
Availability: OutOfStock

Код: 23178

☆☆☆☆☆ 0 ревюта

257.94 €

Спечели 257 точки

Изчерпан

Уведоми ме при наличност

Ще ти изпратим имейл веднага щом продуктът е отново наличен.

✅ Готово! Ще ти пишем, щом е наличен.

CPU сокет: AM4
Чипсет (MB): AMD X570 MB
Форм фактор: ATX
Поддържана памет: DDR4
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: Asrock
Продуктов код: X570 PG VELOCITA
CPU сокет: AM4
Чипсет (MB): AMD X570
Форм фактор: ATX
Поддържани процесори: Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
Поддържана памет: DDR4
Брой слотове за памет: 4
Максимален капацитет RAM памет: 128 GB
Честота памет (MHz): до 5000+(O.C.)
Поддръжка на двуканална памет: Да
Вградено аудио: Realtek ALC1220
Вграден Wi-Fi: Wi-Fi 6
Bluetooth версия: Bluetooth V5.1
Вграден LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
Интерфейс SATA: 8 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0,1,10
М2 слот: 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)
1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
Разширителни слотове: AMD Ryzen series CPUs (Vermeer, Matisse)
- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1)
dual at x16 (PCIE1) / x4 (PCIE4))
AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1)
dual at x16 (PCIE1) / x4 (PCIE4))
AMD Ryzen series APUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1)
dual at x8 (PCIE1) / x4 (PCIE4))
- 3 x PCI Express 4.0 x1 Slots
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
Конектор захранване: 1 x 24-pin
1 x 8-pin
1 x 4-pin
BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Размери: 30.5 cm x 24.4 cm
Поколение процесор: 2-ро поколение
3-то поколение
4-то поколение
5-то поколение
Гаранция: 36 месеца
ОС: Microsoft Windows 10 64-bit
USB портове: Integrated in the CPU:
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+Intel® Thunderbolt™ 3 Controller:
2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

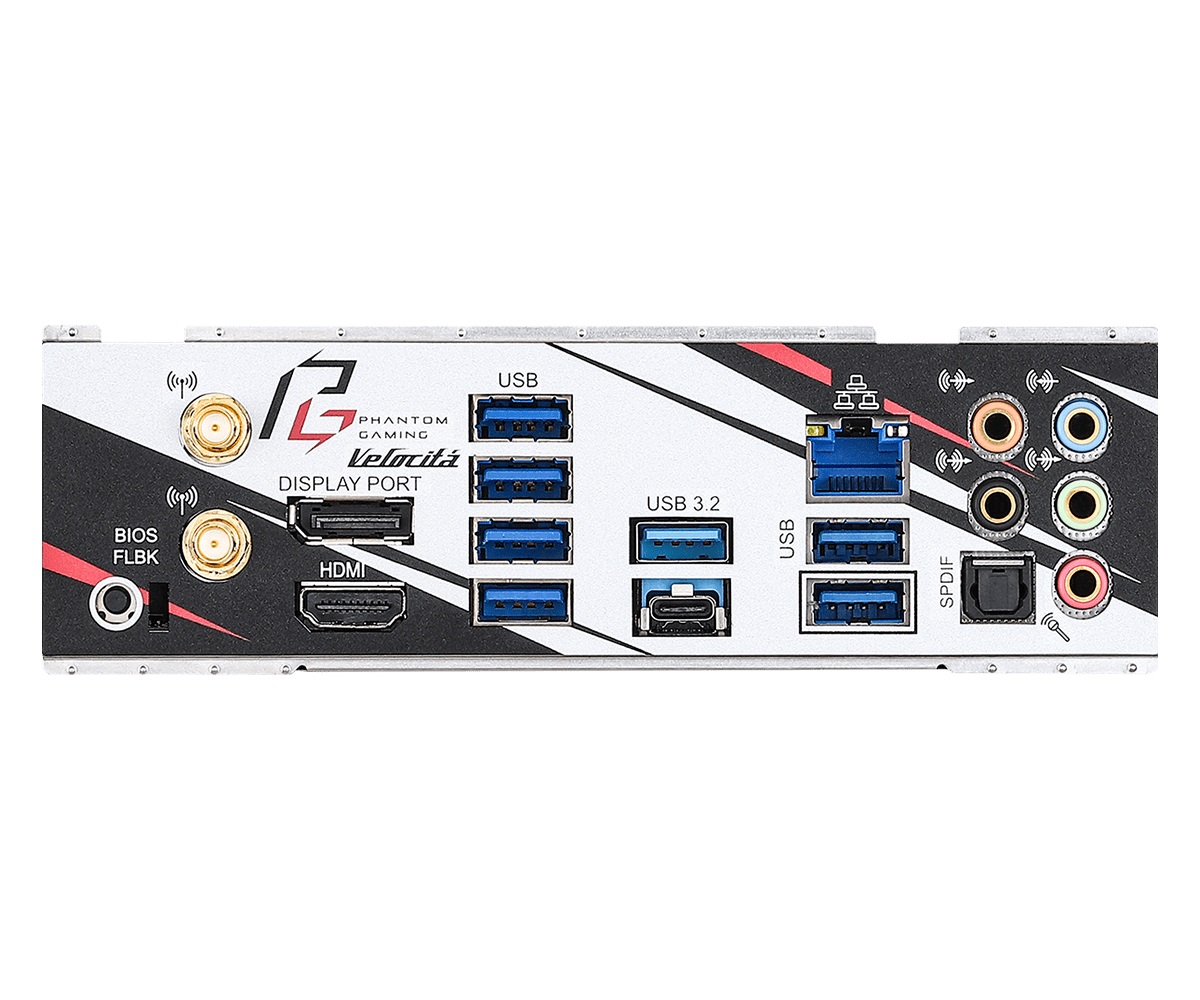

Заден I/O панел: 2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Button with LED
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
