Дънна платка ASROCK X570M PRO4

Name: Дънна платка ASROCK X570M PRO4
Brand: Asrock
SKU: 15436
Price: 183.01 EUR
Availability: OutOfStock

Код: 15436

☆☆☆☆☆ 0 ревюта

183.01 €

Спечели 183 точки

Изчерпан

Уведоми ме при наличност

Ще ти изпратим имейл веднага щом продуктът е отново наличен.

✅ Готово! Ще ти пишем, щом е наличен.

CPU сокет: AM4
Чипсет (MB): AMD X570 MB
Форм фактор: Micro ATX
Поддържана памет: DDR4
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: Asrock
CPU сокет: AM4
Чипсет (MB): AMD X570
Форм фактор: Micro ATX
Поддържани процесори: - Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors*
- Digi Power design
- 10 Power Phase design
Поддържана памет: DDR4
Брой слотове за памет: 4
Максимален капацитет RAM памет: 128 GB
Честота памет (MHz): до 4200MHz (O.C.)
Поддръжка на двуканална памет: Да
Вградено аудио: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Вграден LAN: Giga PHY Intel I211AT Gigabit LAN 10/100/1000 Mb/s
Интерфейс SATA: 8 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0,1,10
М2 слот: 1 x Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 x Hyper M.2 (PCIe Gen4 x4)
Разширителни слотове: 2 x PCIe 4.0 x16, 1 x PCIe 4.0 x1, 1 x M.2 (Key E) For WiFi
Конектор захранване: 1 x 24-pin
1 x 8-pin
Графика: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.0
- Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports Microsoft® PlayReady
Мулти GPU технология: AMD Quad-GPU CrossFireX Technology
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU VCORE, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Размери: 24.4 cm x 24.4 cm
Поколение процесор: 5-то поколение
3-то поколение
4-то поколение
2-ро поколение
Гаранция: 36 месеца
ОС: Microsoft Windows 10 64-bit
USB портове: 2 x USB 2.0 Front Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Front Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)

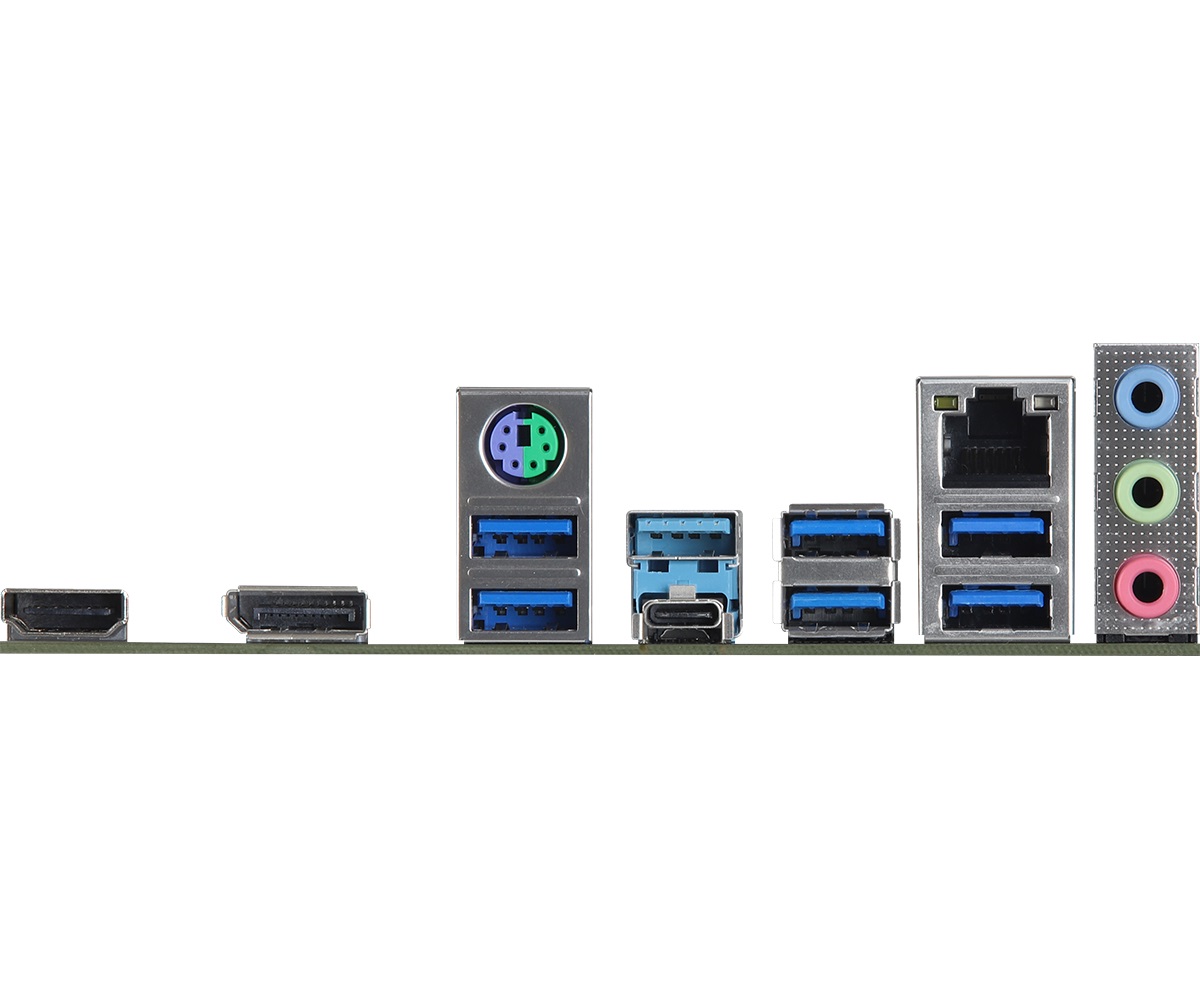

Заден I/O панел: 3 x Antenna Ports (on I/O Panel Shield)
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.2
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
