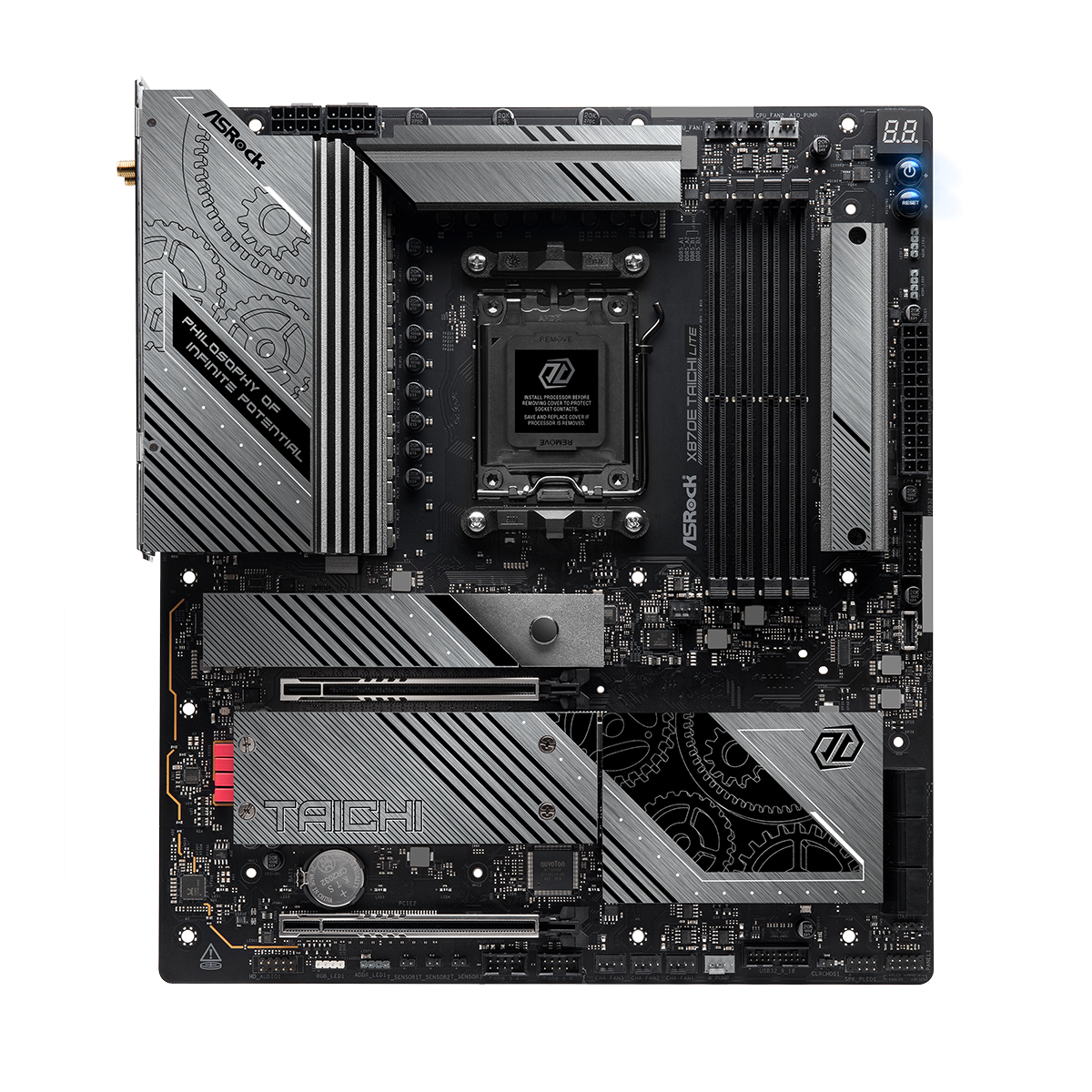

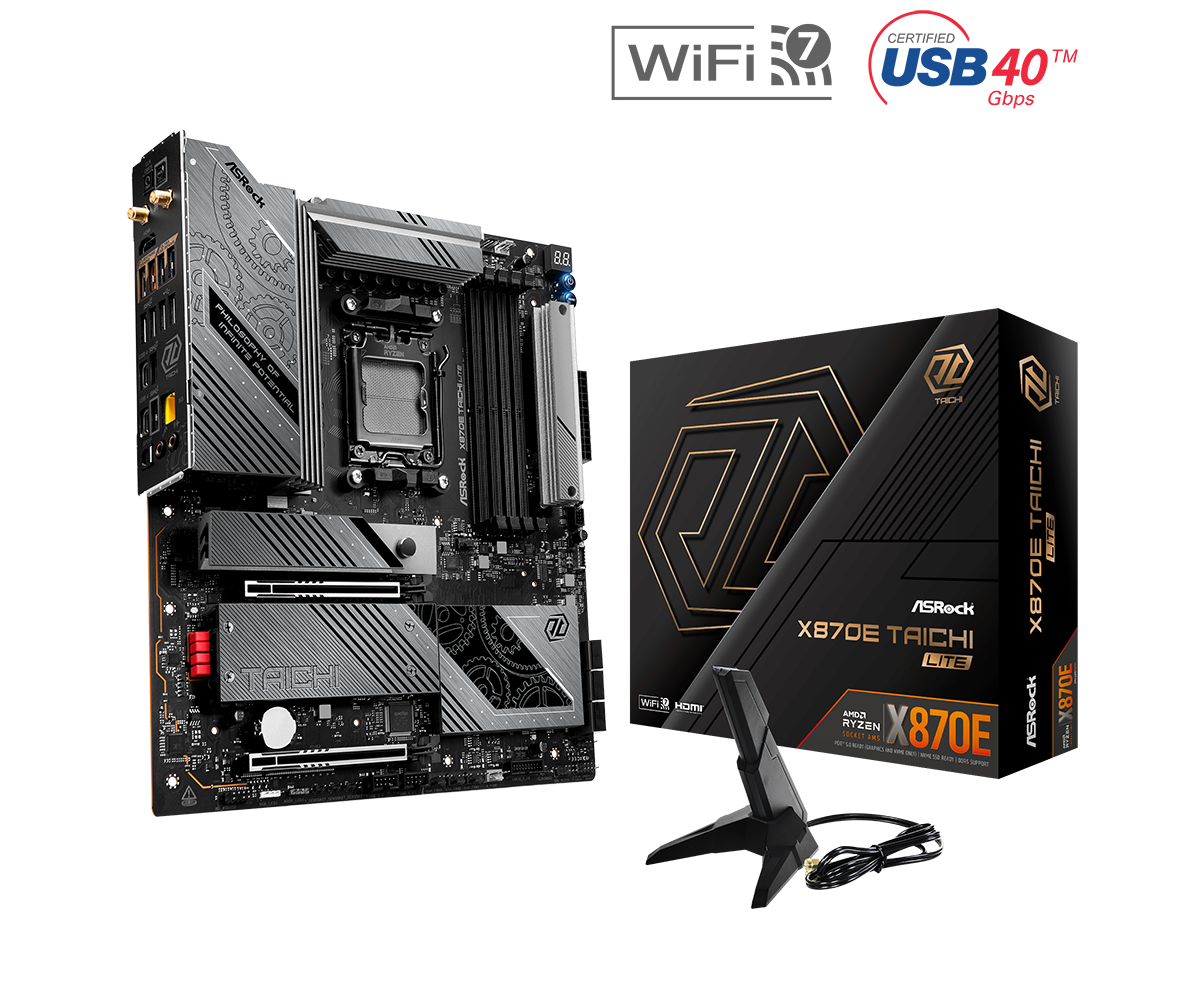

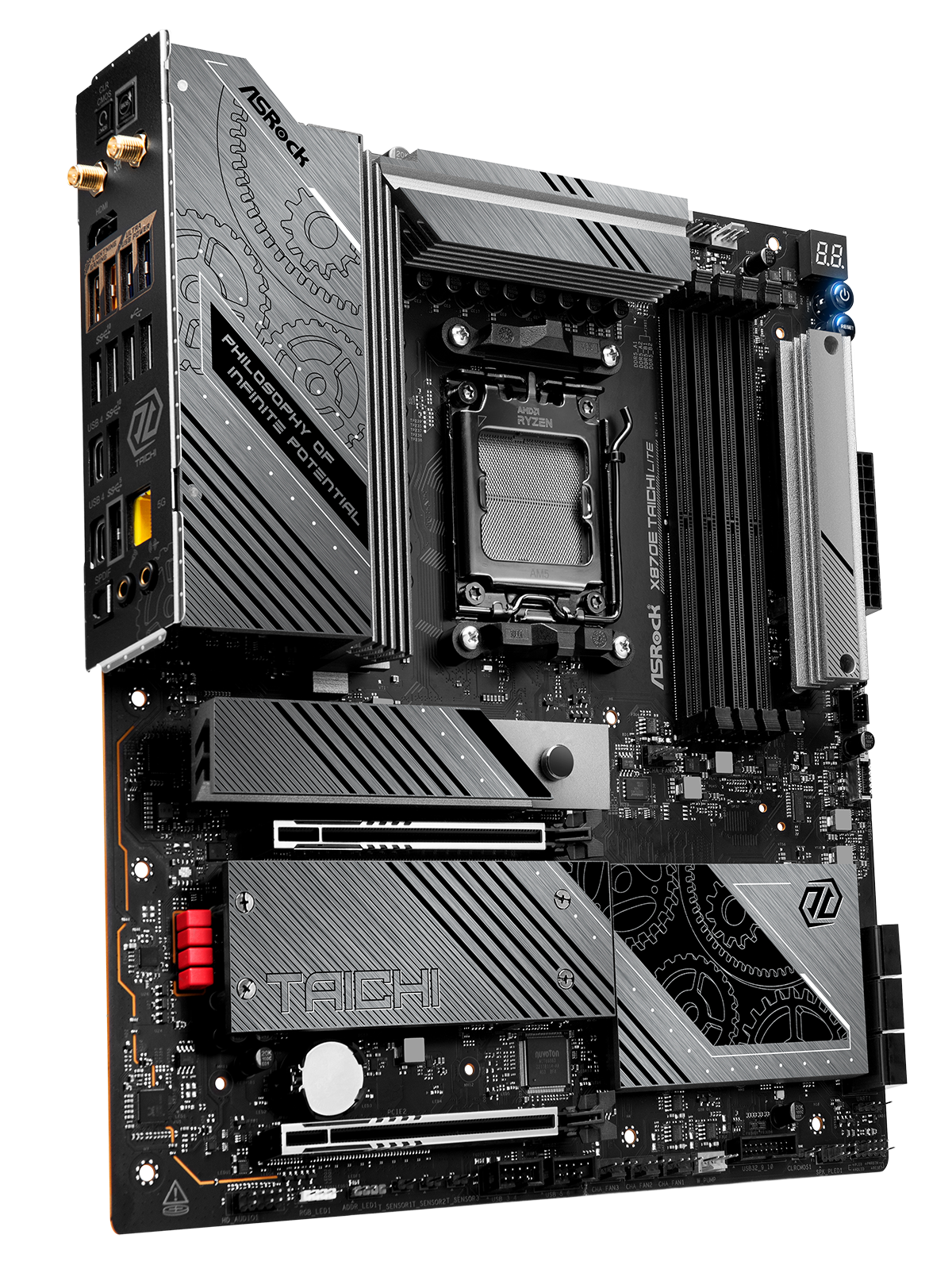

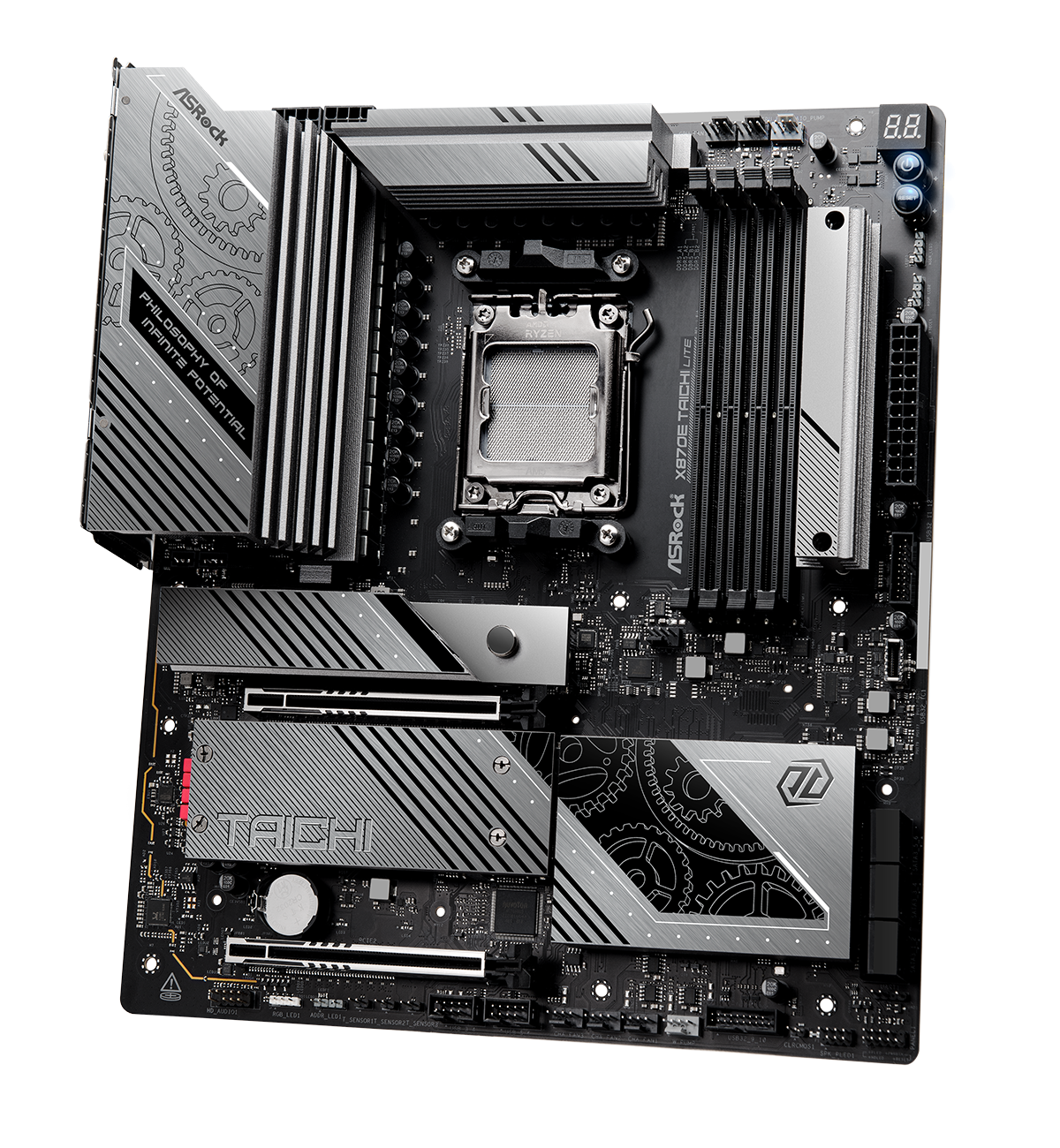

Asrock X870E TAICHI LITE AM5 Motherboard

Asrock X870E TAICHI LITE is a high-end AM5 motherboard for serious Ryzen configurations – from the 7000 to 9000 series. It combines a modern AMD X870E chipset, ATX form factor, and rich connectivity, so you don't have to compromise on CPU, GPU, or NVMe storage. You get a DDR5 platform with up to 256 GB RAM and aggressive frequencies up to 8200+ MHz (OC), plus PCIe 5.0 for future graphics cards and SSDs. This is a 'plug and forget' board – ready for heavy gaming, work, and plenty of peripherals.

What you get

The AM5 socket and AMD X870E chipset give you access to the latest Ryzen 7000, 8000, and 9000 series processors, so you have a clear upgrade path ahead. The four DDR5 slots supporting up to 256 GB of dual-channel memory and frequencies up to 8200+ MHz (OC) provide an excellent base for a combination of high FPS and heavy multitasking or productivity. For storage, you rely on 4 M.2 slots, including one Blazing PCIe Gen5x4, plus 6 x SATA3 with RAID 0/1/10 – you can easily separate system NVMe, gaming library, and array for archive/media. The built-in Realtek 5GbE LAN + Wi‑Fi 7 + Bluetooth 5.4 make your machine ready for a fast network, whether you connect a 5Gbit switch or rely on the latest generation wireless router. The audio with Realtek ALC4082, ESS SABRE9219 DAC, and support for up to 600 Ohm headphones is a serious plus if you use more demanding audio solutions.

• The AM5 socket with AMD X870E chipset ensures compatibility with Ryzen 9000, 8000, and 7000 and a stable base for long-term upgrades.
• 4 DDR5 slots with dual-channel mode, up to 256 GB, and frequencies up to 8200+ MHz (OC) provide space for both high-end gaming and heavy applications.
• Powerful network connectivity with Realtek 5GbE LAN (up to 5 Gbps) and Wi‑Fi 7 (802.11be) for maximum capacity and low latency online.
• 4 x M.2 slots – 1 x Blazing PCIe Gen5x4 (128 Gb/s) and 3 x PCIe Gen4x4 (64 Gb/s) – allow you to arrange a fast NVMe array without relying solely on SATA.
• 6 x SATA3 6.0 Gb/s with RAID 0/1/10 are convenient for large HDD/SSD arrays for gaming, media, or backup.
• 2 x PCIe 5.0 x16 slots with support for x16 or x8/x8 and AMD CrossFire provide flexibility for a powerful GPU and additional cards.

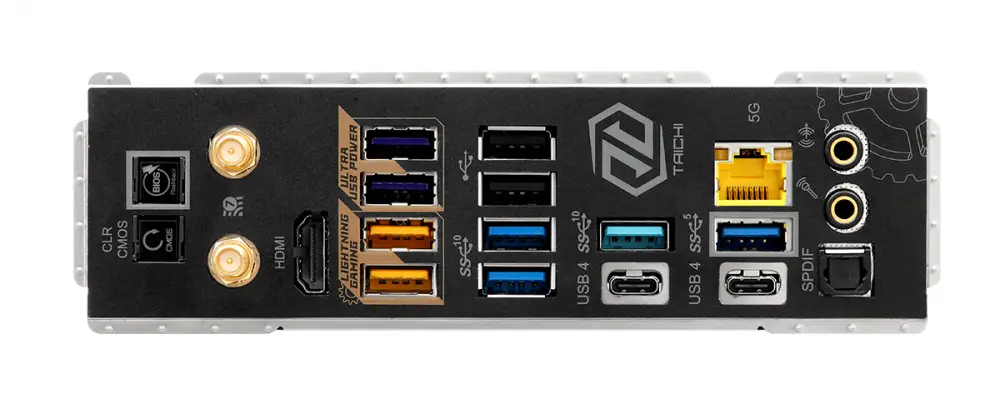

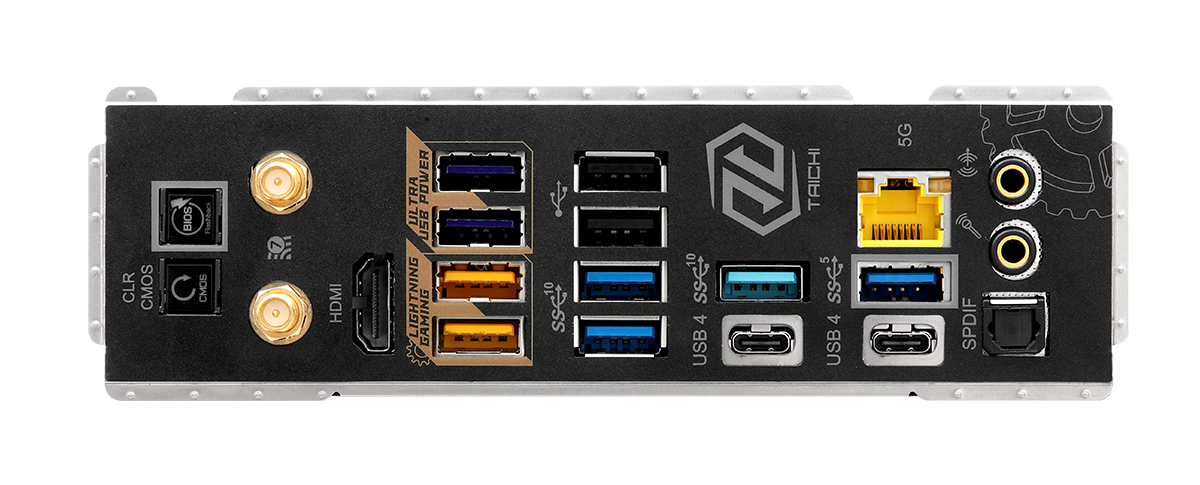

• Rich I/O: 2 x USB4 Type‑C (rear), USB 3.2 Gen2x2 Type‑C (front), multiple USB 3.2 Gen2/Gen1 and USB 2.0 ports for all peripherals.
• High-quality audio with Realtek ALC4082, ESS SABRE9219 DAC, Nahimic Audio, and support for headphones up to 600 Ohm for cleaner sound and detail.
• 2 x 8-pin +12V power connectors provide solid power delivery to the processor for more serious loads and overclocking.

Who it is suitable for

This board is for you if you are building a high-end AM5 configuration focused on gaming, streaming, and productivity and want PCIe 5.0, Gen5 NVMe, and serious networking. It is also suitable for working on large projects (rendering, video, 3D), where a lot of RAM and fast storage matter. If you are looking for the cheapest possible AM5 solution without the need for Wi‑Fi 7, USB4, and Gen5 SSD, this is probably beyond your budget.

The strongest point of the Asrock X870E TAICHI LITE is the combination of a modern AM5 platform, Gen5 ecosystem (PCIe and M.2), fast 5GbE + Wi‑Fi 7 connectivity, and quality audio – everything needed for a serious, long-term configuration.
