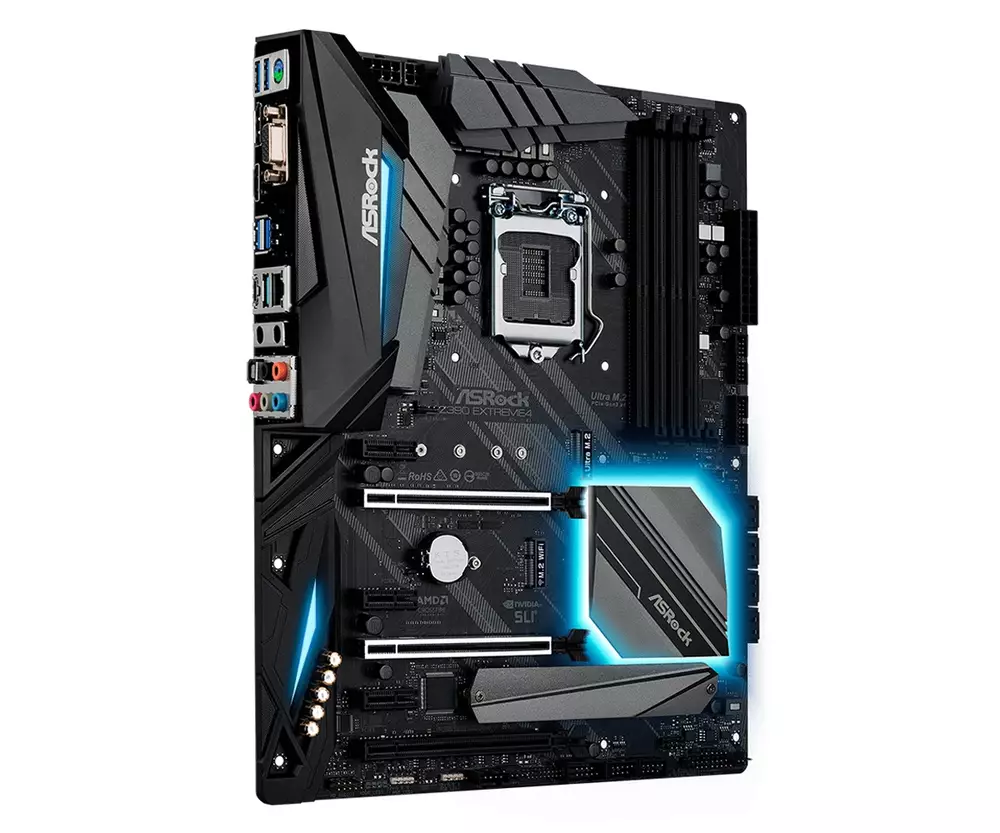

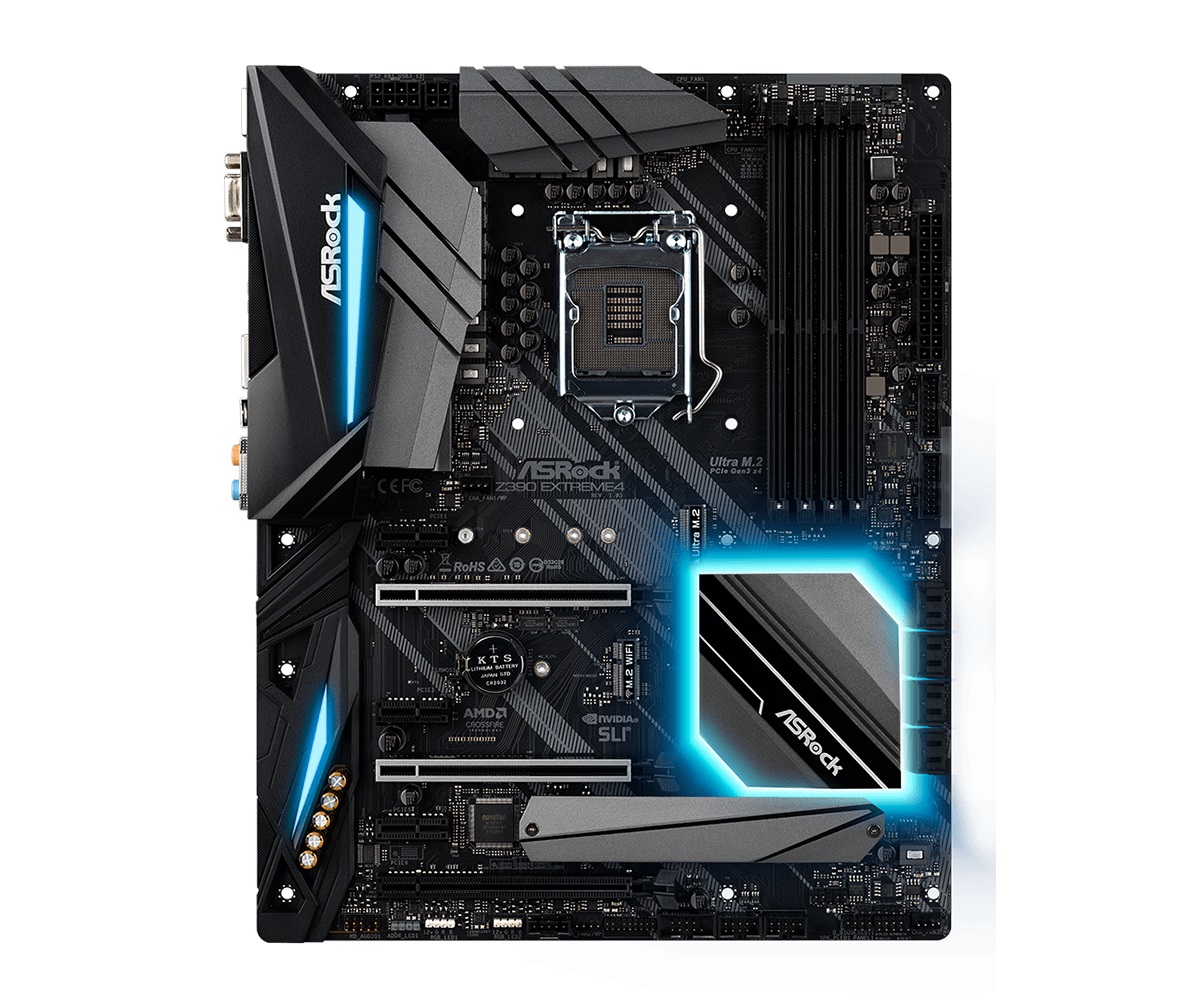

Дънна платка ASROCK Z390 EXTREME4

Name: Дънна платка ASROCK Z390 EXTREME4
Brand: Asrock
SKU: 14712
Price: 174.95 EUR
Availability: OutOfStock

Код: 14712

☆☆☆☆☆ 0 ревюта

174.95 €

Спечели 174 точки

Изчерпан

Уведоми ме при наличност

Ще ти изпратим имейл веднага щом продуктът е отново наличен.

✅ Готово! Ще ти пишем, щом е наличен.

CPU сокет: LGA 1151
Чипсет (MB): Intel Z390 MB
Форм фактор: ATX
Поддържана памет: DDR4
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: Asrock
CPU сокет: LGA 1151
Чипсет (MB): Intel Z390
Форм фактор: ATX
Поддържани процесори: - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- Digi Power
- 12 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking
Поддържана памет: DDR4
Брой слотове за памет: 4
Максимален капацитет RAM памет: 128 GB
Честота памет (MHz): до 4300MHz+ (OC)
Поддръжка на двуканална памет: Да
Вграден LAN: Intel I219V (10/100/1000 Mbit)
Интерфейс SATA: 8 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0, 1, 5, 10
М2 слот: 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Разширителни слотове: - 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2)
dual at x8 (PCIE2) / x8 (PCIE4)
triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*
- 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™
- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Конектор захранване: 1 x 24-pin
1 x 8-pin
1 x 4-pin
Графика: - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
- Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Мулти GPU технология: NVIDIA Quad-GPU SLI Technology;NVIDIA 2-Way SLI Technology;AMD Quad-GPU CrossFireX Technology;AMD 3-Way CrossFireX Technology
Размери: 30.5 cm x 24.4 cm
Поколение процесор: 8-мо поколение
9-то поколение
Гаранция: 36 месеца
ОС: Microsoft Windows 10 64-bit
Вградено аудио: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- 15μ Gold Audio Connector
- Supports DTS Connect
USB портове: 2 x USB 2.0 Front Headers (Support 4 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection)
2 x USB 3.2 Gen1 Front Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z390) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Intel® Z390) (Supports ESD Protection)

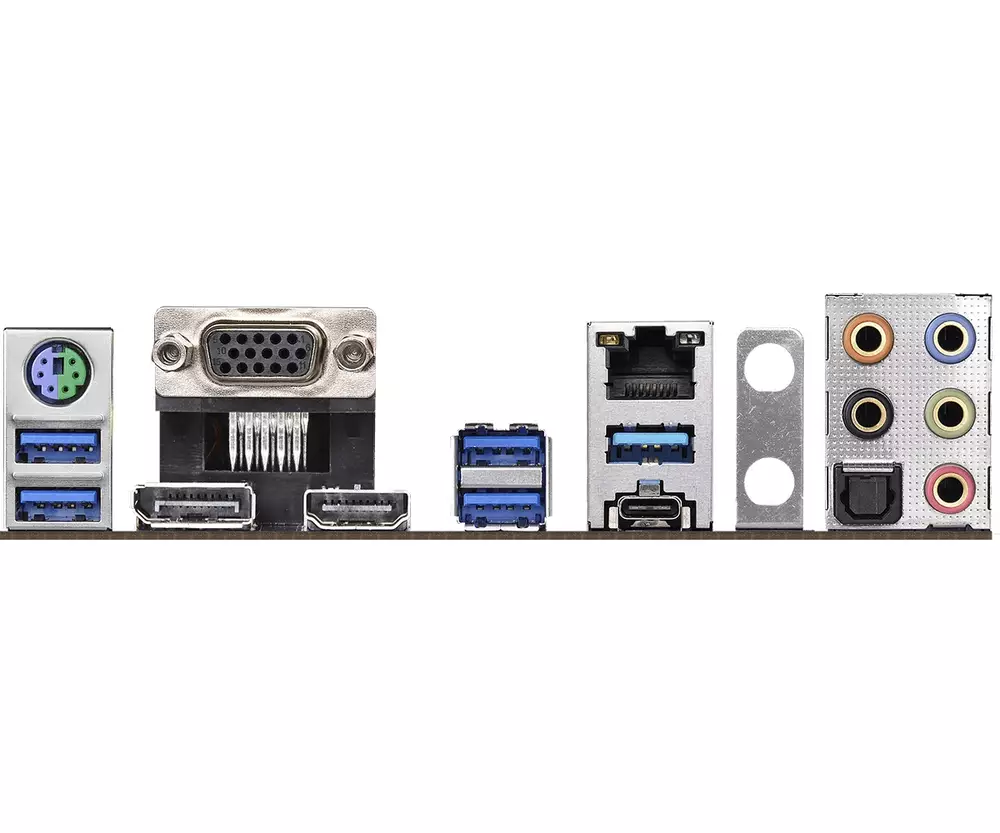

Заден I/O панел: - 1 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Intel® Z390) (Supports ESD Protection)*
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
