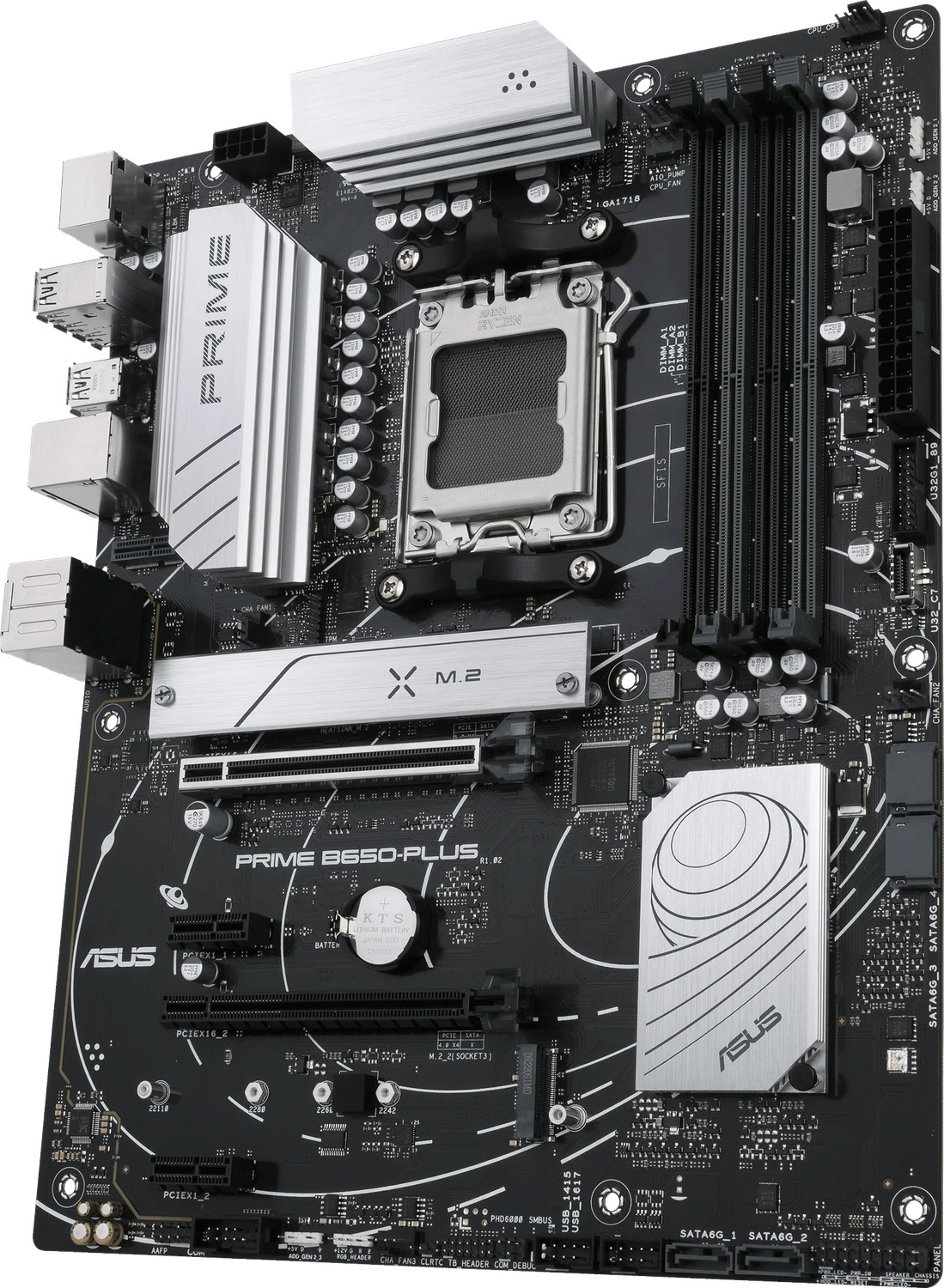

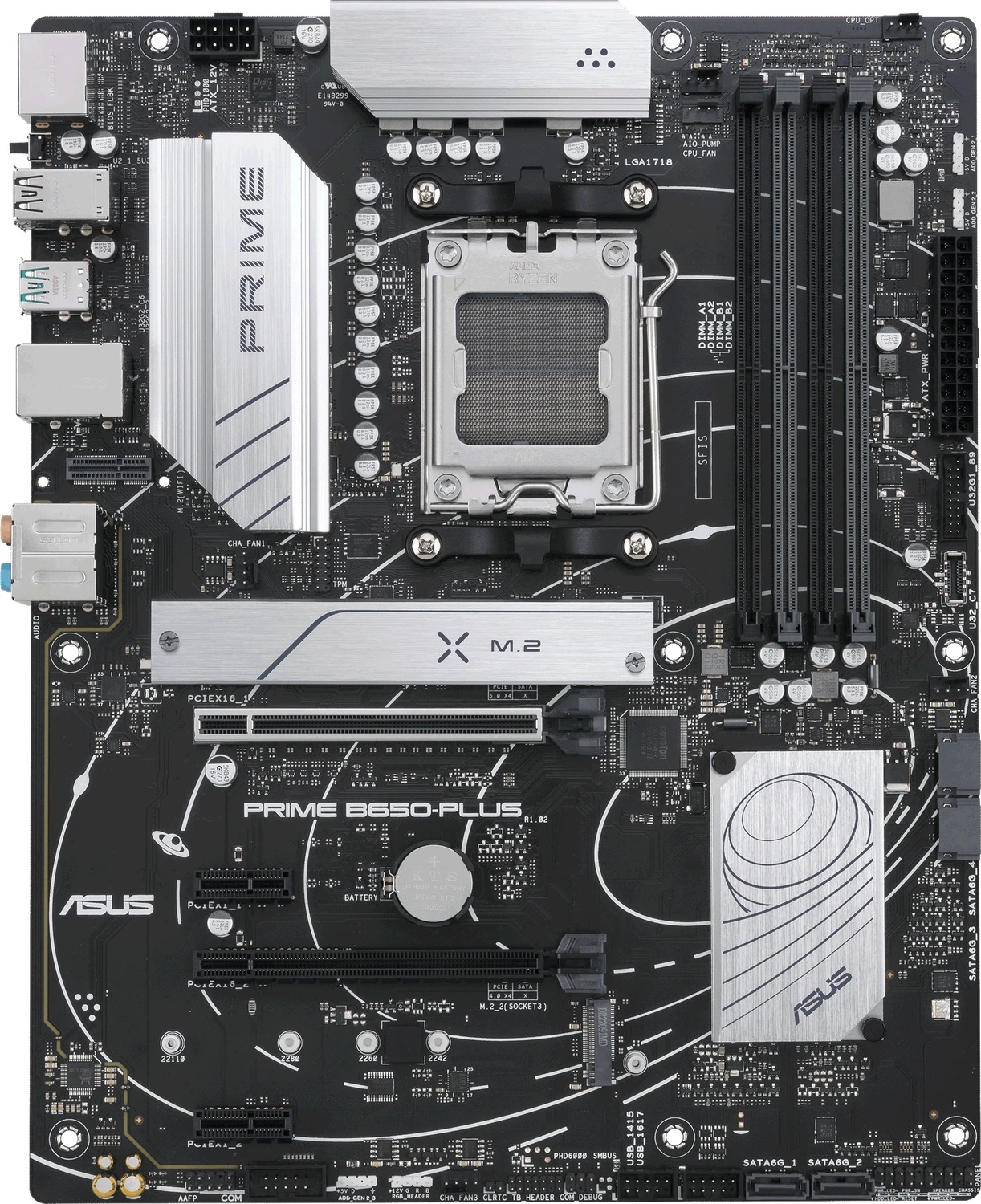

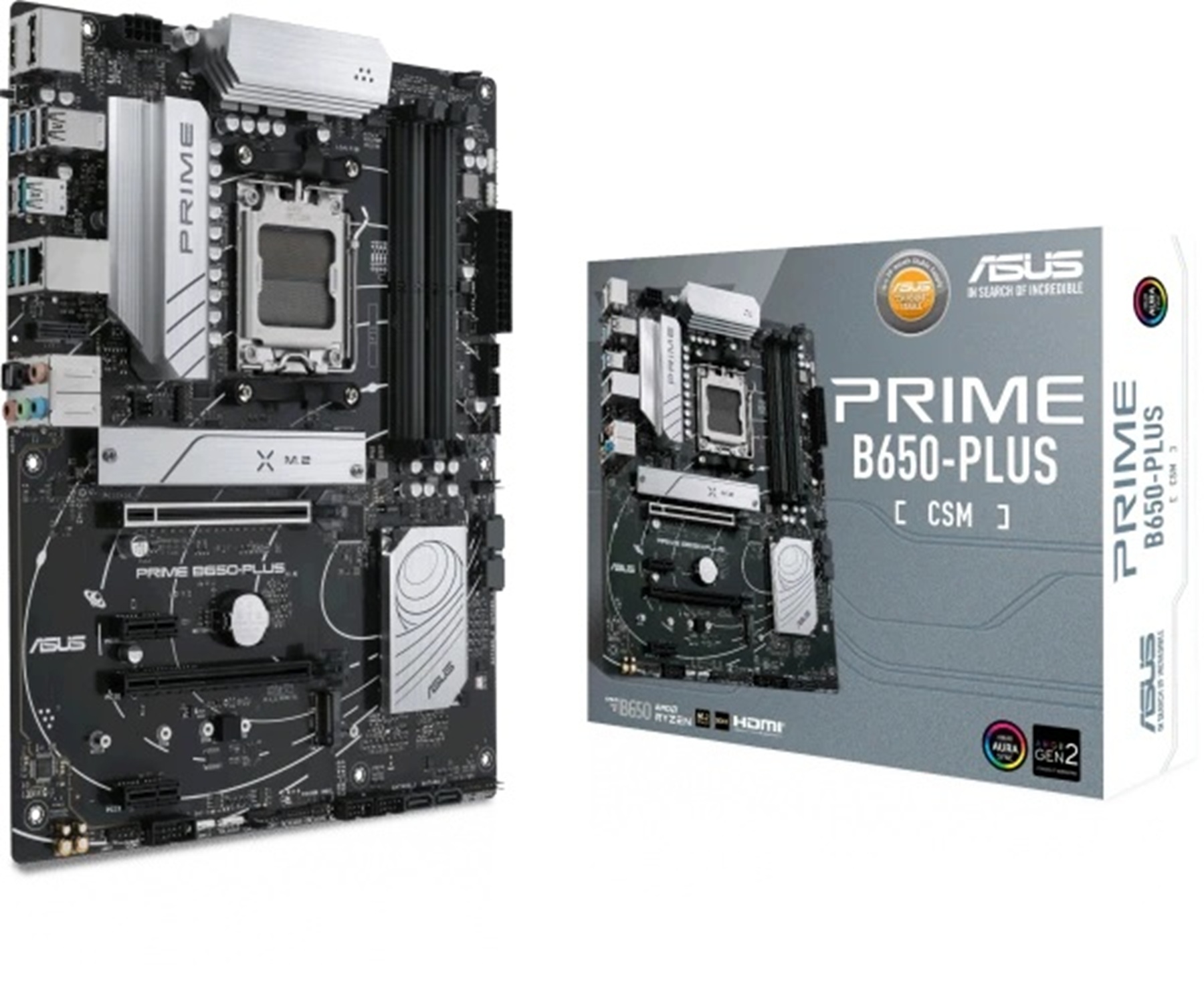

ASUS PRIME B650-PLUS-CSM AM5 - 90MB1BS0-M0EAYC Motherboard

ASUS PRIME B650-PLUS-CSM is an ATX motherboard for the AM5 socket, aimed at stable mid-range systems with a clear focus on long-term upgrades. It is based on the AMD B650 chipset and supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors. You get a modern DDR5 controller, M.2 slots with PCIe 5.0/4.0, and built-in 2.5Gb LAN plus WiFi 6, so you are not tied only to the cable. The combination of many slots and high compatibility makes it a good backbone for gaming, work, and future-proof systems.

What you get

The board comes with 4 DDR5 slots and support for up to 192 GB RAM, and you can overclock the memory up to 7600 MHz (OC) – important if you want to squeeze the maximum out of Ryzen 7000/8000/9000. The dual-channel configuration gives you higher bandwidth, which helps in gaming, rendering, and heavy multitasking loads. The two M.2 slots are directly connected to the processor and chipset and offer PCIe 5.0 x4 and 4.0 x4 (depending on the CPU series), so you can use super-fast NVMe drives for the OS and games, plus an additional one for work and projects. You also have 4 x SATA 6.0 Gb/s with RAID 0/1/10 for classic SSD/HDD arrays – convenient for large libraries of games or data. The built-in WiFi 6, Bluetooth 5.2, and 2.5Gb Ethernet give you flexibility – from fast wired internet for competitive gaming to stable wireless links in more complex network environments.

• Support for AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors, providing you with a direct path to the latest generations of AMD CPUs.
• 4 DDR5 memory slots with a capacity of up to 192 GB and frequencies up to 7600 MHz OC, suitable for heavy multitasking and fast gaming.
• A total of 2 x M.2 slots, with support for PCIe 5.0 x4 and PCIe 4.0 x4 (depending on the processor), allowing the use of the fastest NVMe SSDs for OS and applications.
• 4 x SATA 6.0 Gb/s ports with support for RAID 0/1/10, suitable for combining several SSD/HDD for speed or data redundancy.
• Expansion slots with PCIe 4.0 x16 for the main video card, plus an additional PCIe 4.0 x16 (x4) and 2 x PCIe 4.0 x1 for expansion cards.
• Built-in WiFi 6 (802.11ax) and Bluetooth 5.2, so you have ready wireless connectivity without a separate card.
• Realtek 2.5Gb Ethernet for faster and lower latency wired network compared to standard 1Gb LAN, plus Realtek High Definition Audio with 2/4/5.1/7.1-channel configuration.

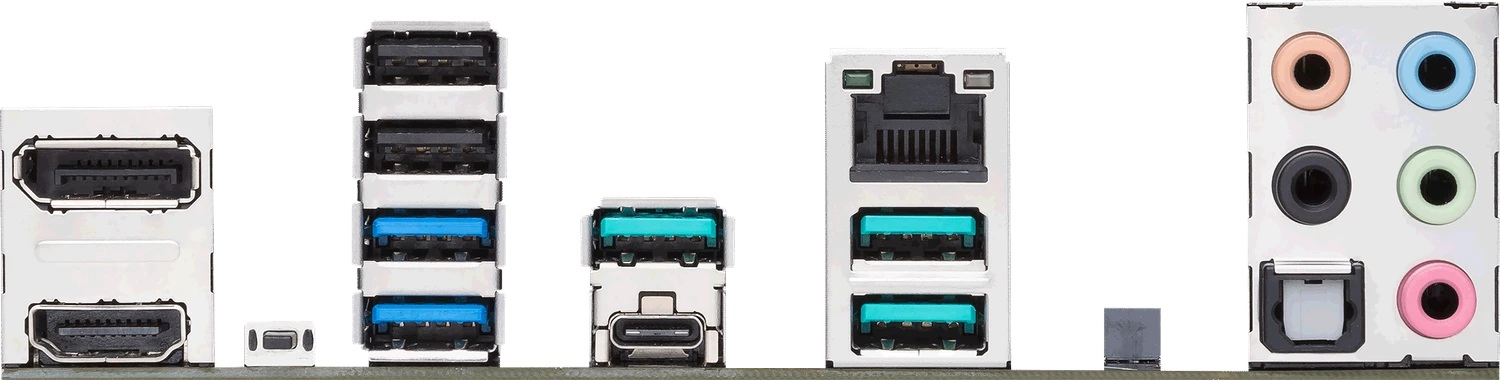

• DisplayPort and HDMI outputs, allowing you to use the integrated video of the supported CPU for office, media center, or temporarily without a separate GPU.

Who it is suitable for

This motherboard is a good choice for a gaming and productivity build on AM5, where you want a balance between price, capabilities, and upgrade options (more RAM, faster SSDs, future Ryzen 9000). It is also suitable for workstations needing a lot of storage and stable network connectivity. If you are looking for extreme overclocking or maximum RGB/enthusiast features, you may need higher-class X-series boards, but for a reasonable mid-range, this board covers many scenarios.

The most sensible aspect here is the combination of AM5 support for several generations of Ryzen, fast DDR5 and M.2 capabilities, plus 2.5Gb LAN and WiFi 6 in one ATX solution that can easily serve as a foundation for several upgrades ahead.
