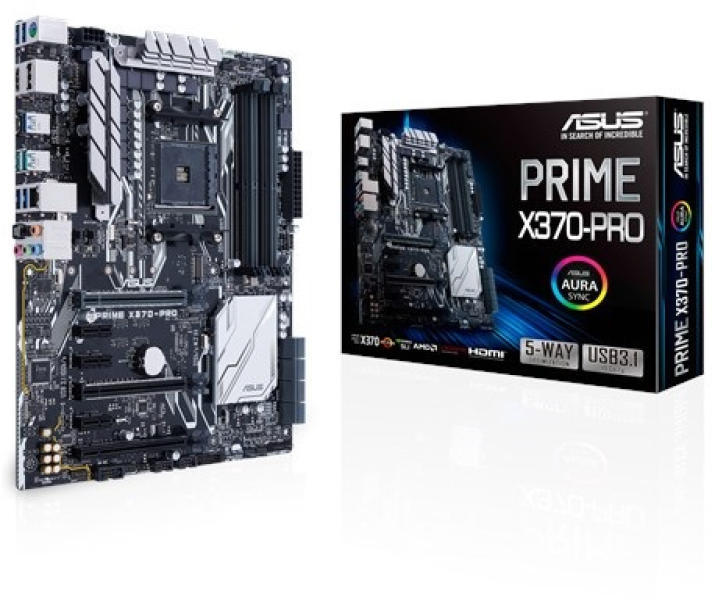

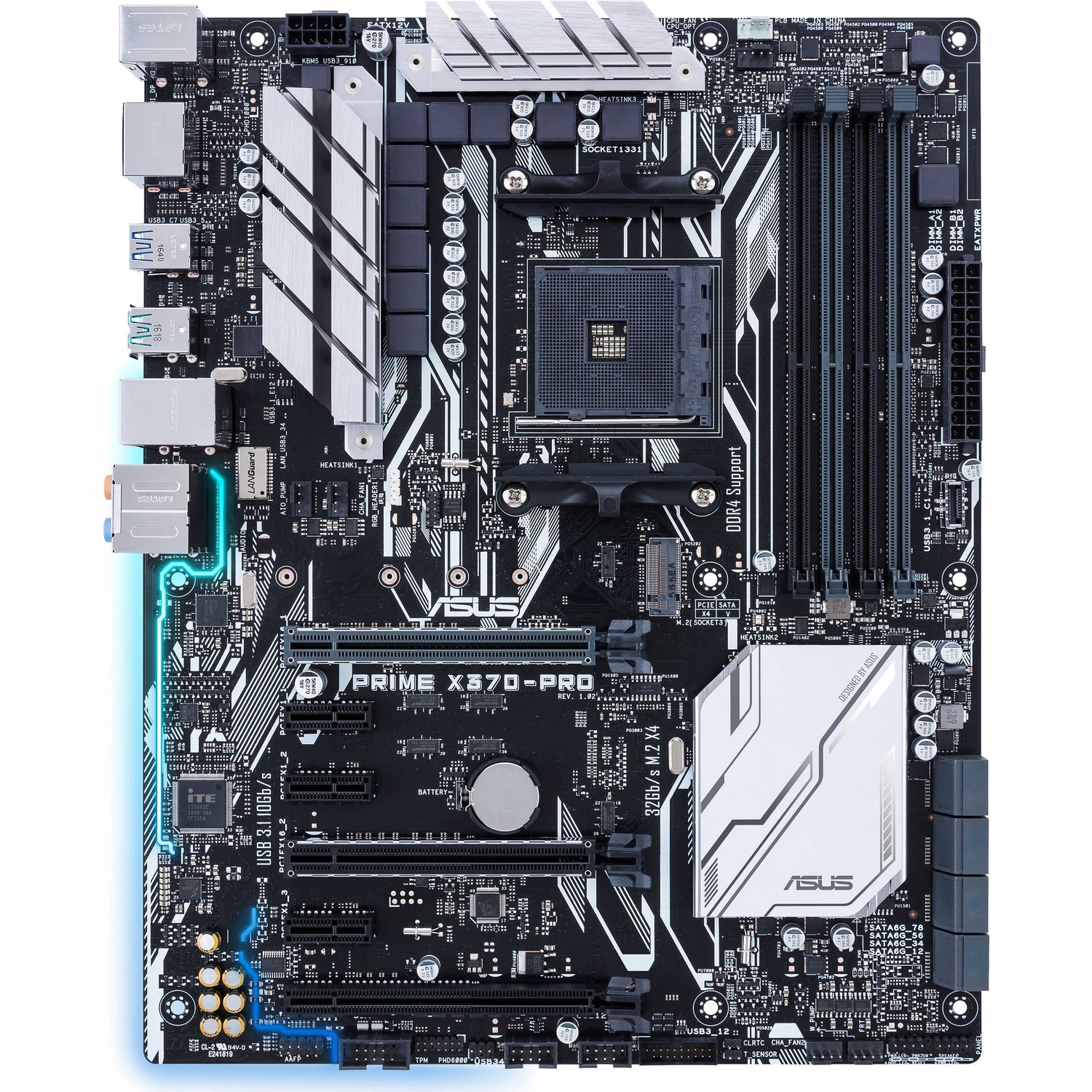

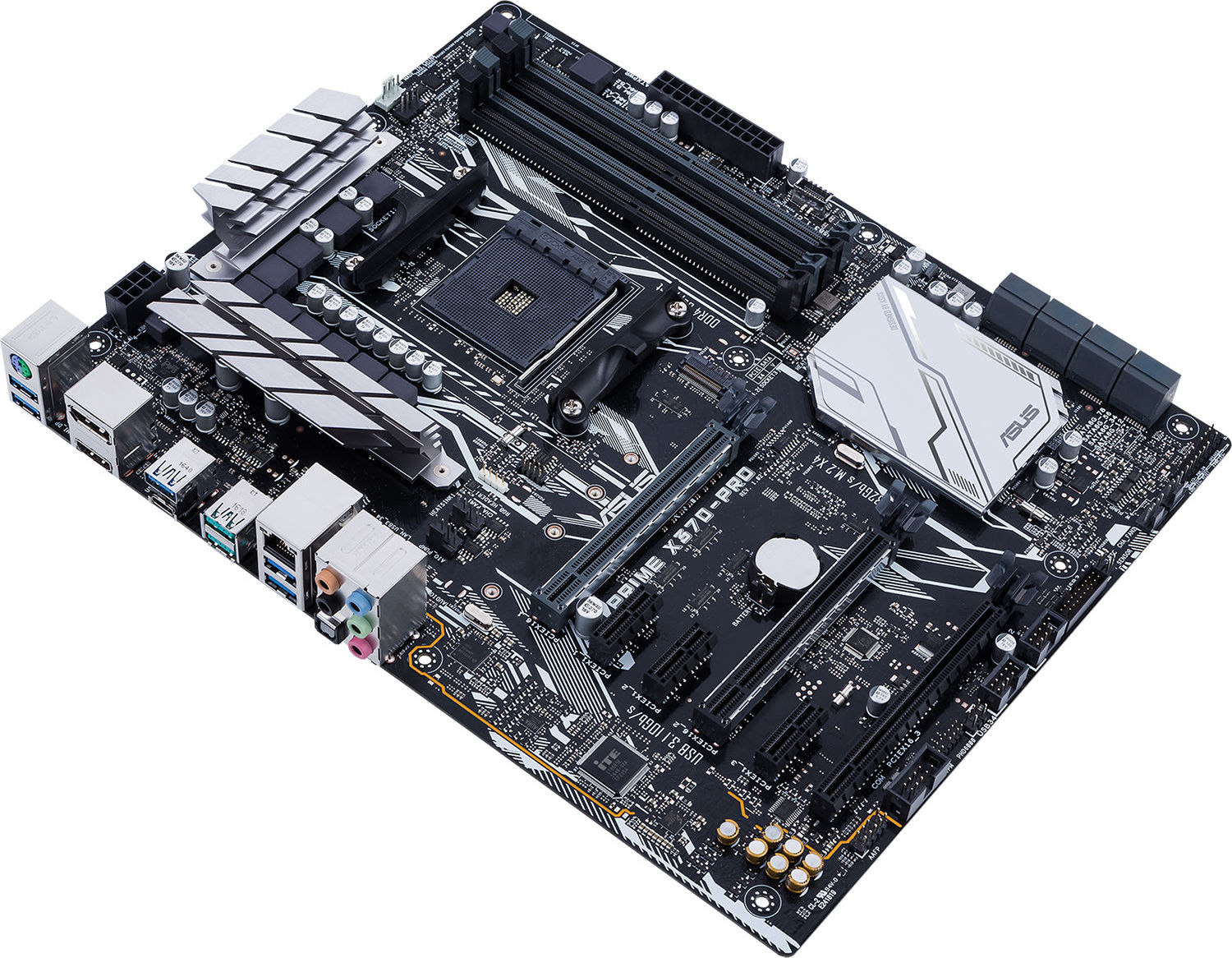

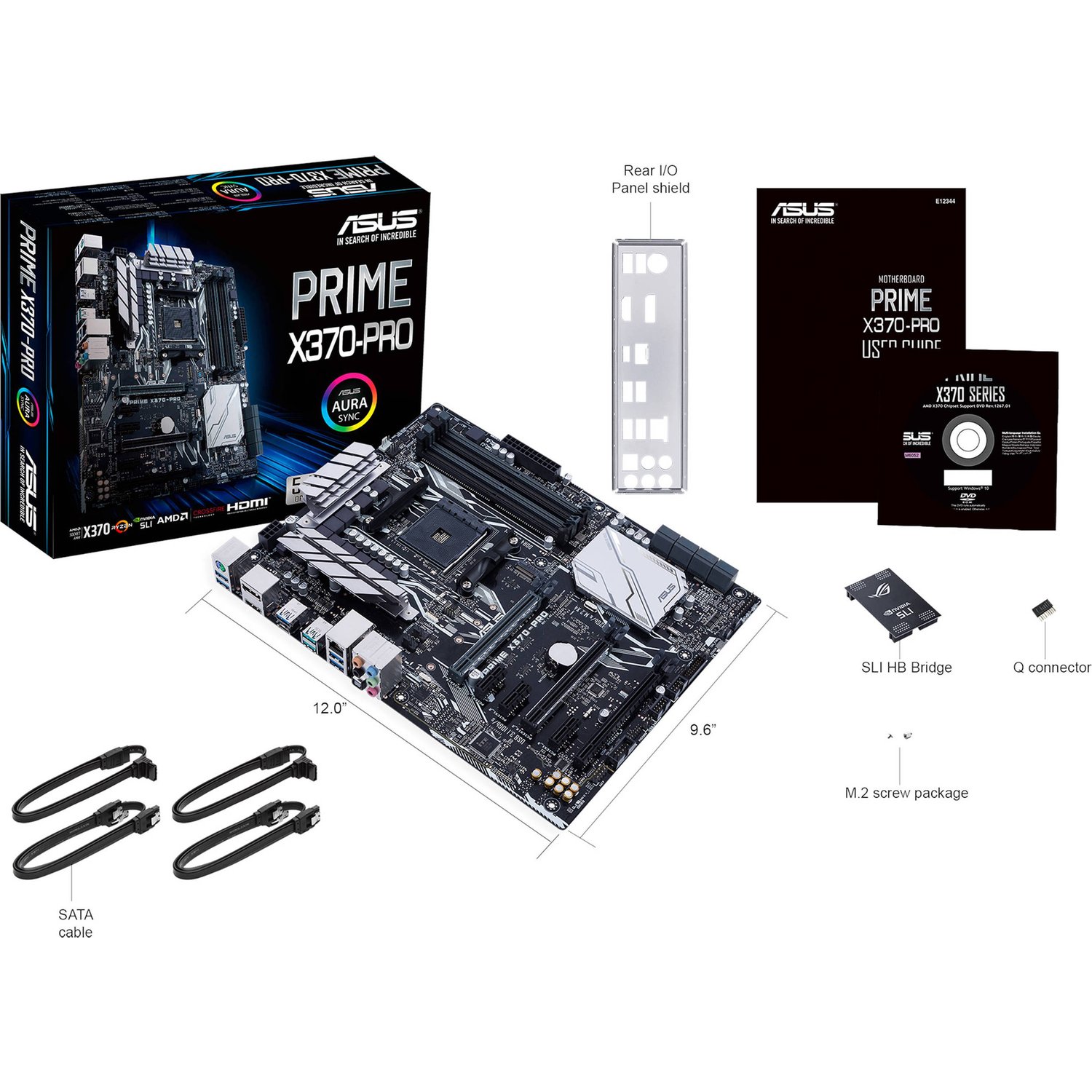

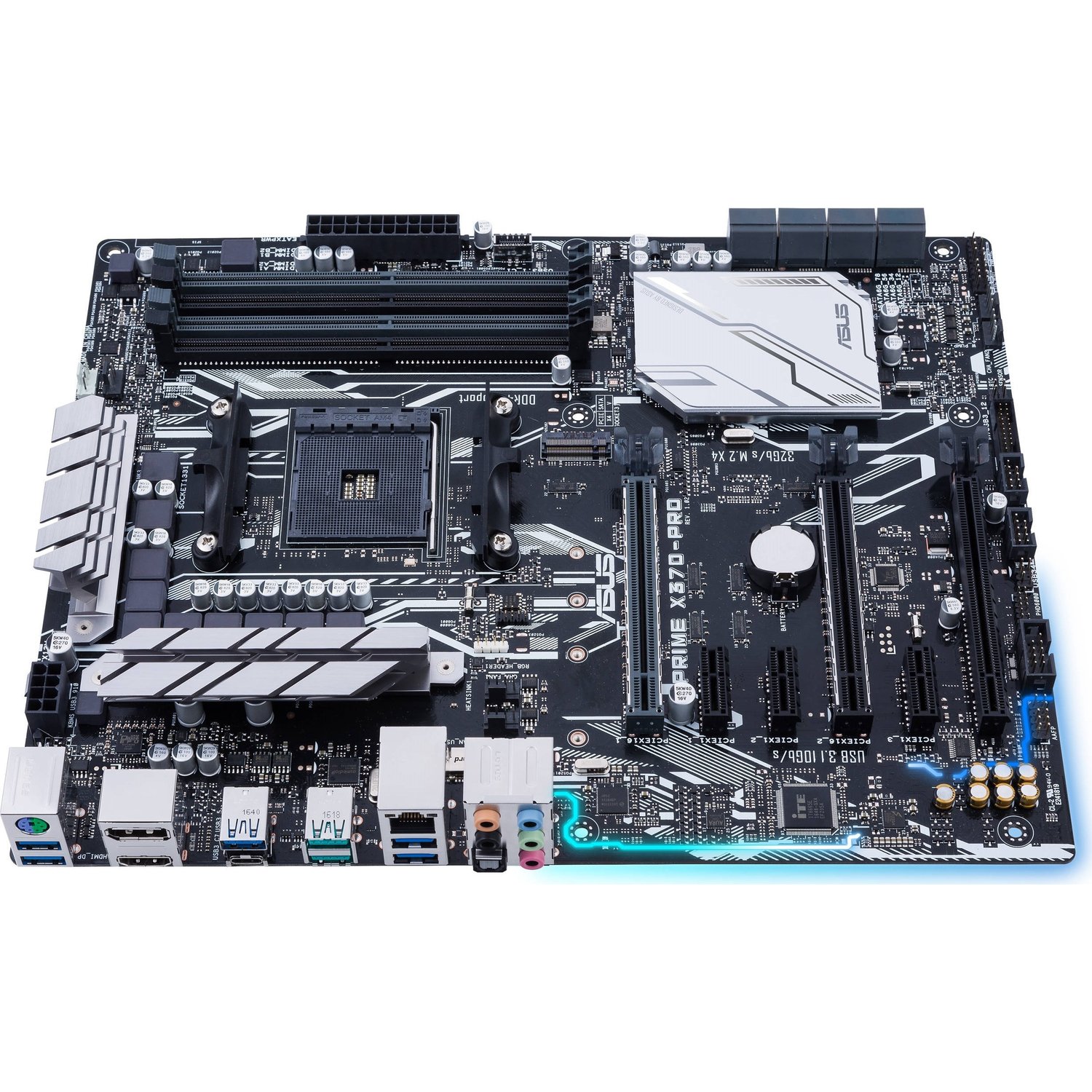

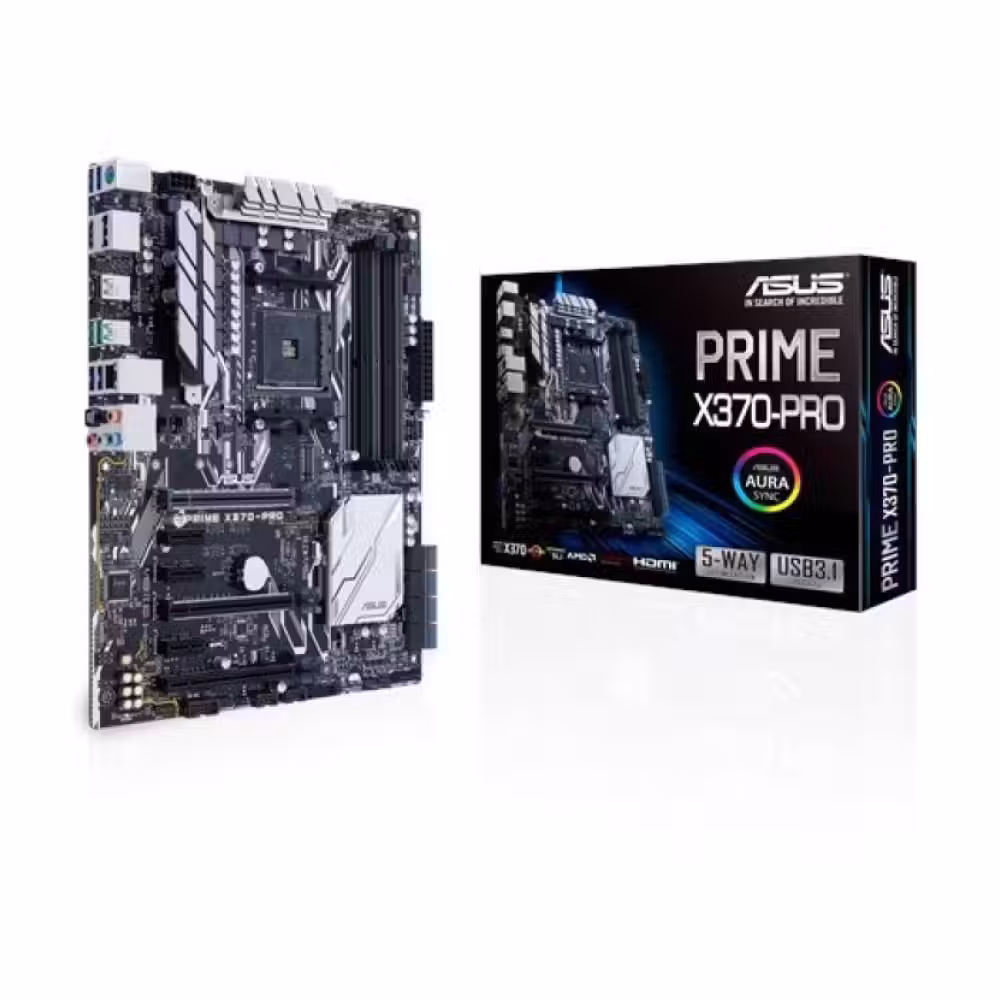

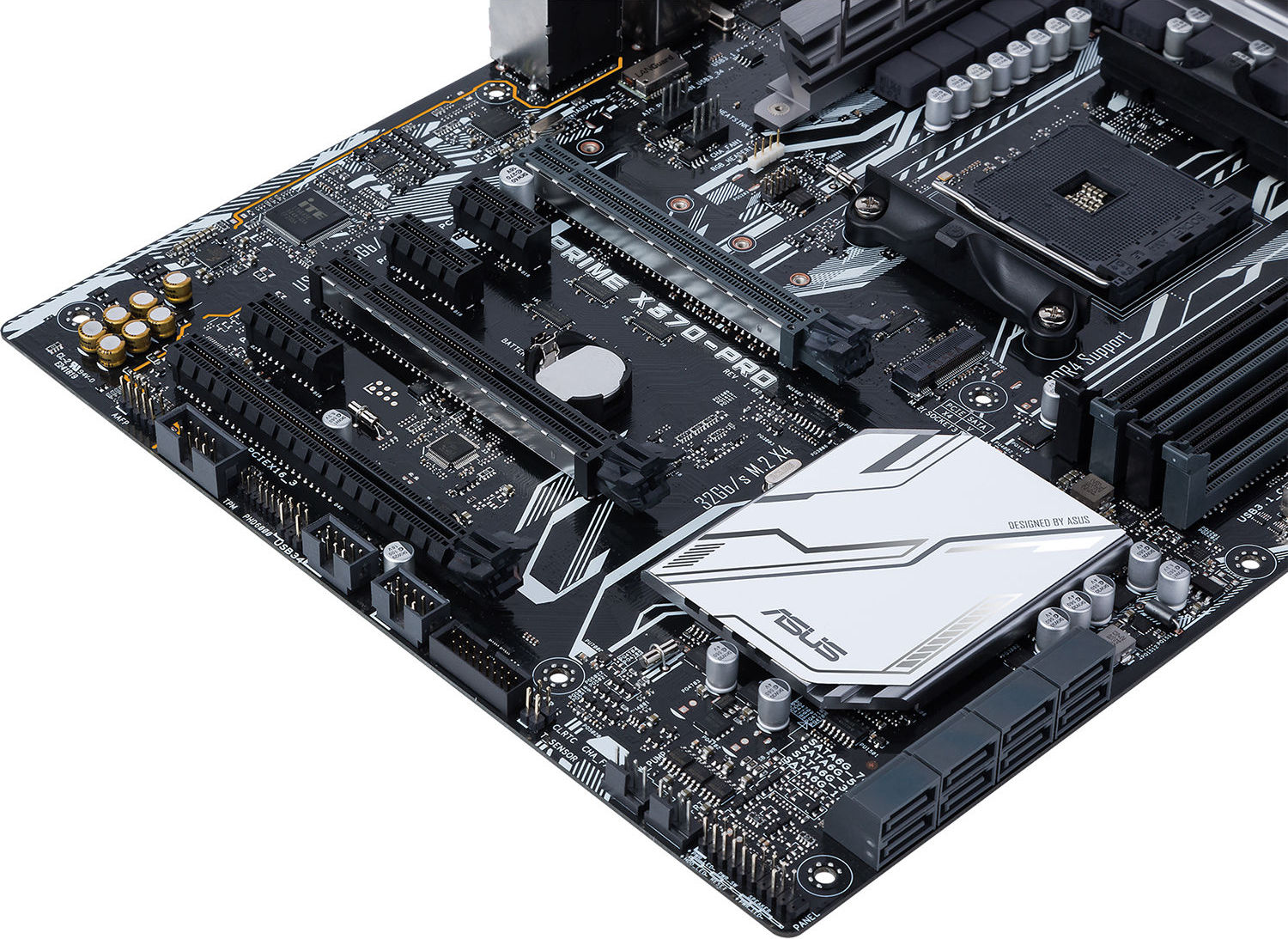

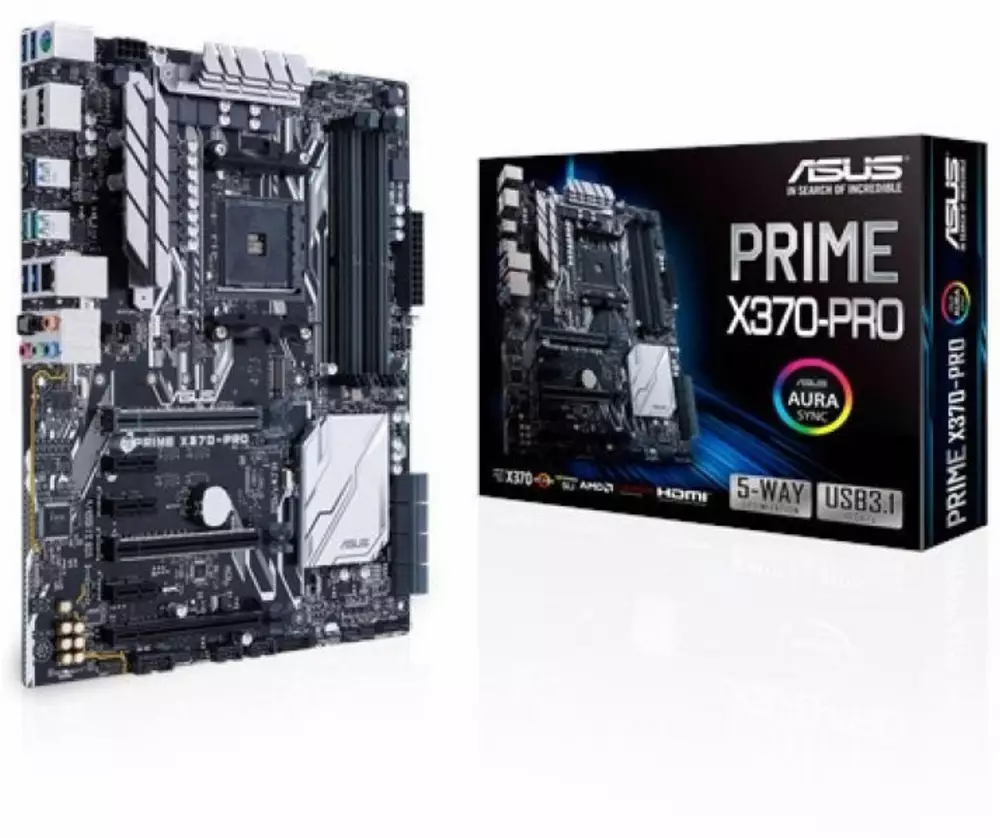

Дънна платка ASUS PRIME X370-PRO

Name: Дънна платка ASUS PRIME X370-PRO
Brand: ASUS
SKU: 15279
Price: 138.94 EUR
Availability: OutOfStock

Код: 15279

☆☆☆☆☆ 0 ревюта

138.94 €

Спечели 138 точки

Изчерпан

Уведоми ме при наличност

Ще ти изпратим имейл веднага щом продуктът е отново наличен.

✅ Готово! Ще ти пишем, щом е наличен.

CPU сокет: AM4
Чипсет (MB): AMD X370 MB
Форм фактор: ATX
Поддържана памет: DDR4
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: ASUS
Продуктов код: 90MB0TD0-M0EAY0
CPU сокет: AM4
Чипсет (MB): AMD X370
Форм фактор: ATX
Поддържани процесори: AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports AM4 Socket 14 nm CPU
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
Поддържана памет: DDR4
Брой слотове за памет: 4
Максимален капацитет RAM памет: 64 GB
Честота памет (MHz): до 3200+ (OC)
Поддръжка на двуканална памет: Да
Вградено аудио: Realtek S1220A 8-channel high definition audio CODEC
Вграден LAN: Intel® I211-AT, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard.
Интерфейс SATA: 8 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0,1,10
Разширителни слотове: AMD Ryzen™ Processors: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD 7th Generation A-series/Athlon™ Processors: 1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X370 chipset: 1 x PCIe 2.0 x16 (max at x4 mode) *1
AMD X370 chipset: 3 x PCIe 2.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3.
Конектор захранване: 1 x 24-pin
1 x 8-pin
Графика: Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support : HDMI/DisplayPort ports: - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB.
Мулти GPU технология: NVIDIA 2-Way SLI Technology;AMD CrossFireX Technology
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Размери: 30.5 cm x 24.4 cm
Гаранция: 36 месеца
ОС: Windows 10 64-bit
М2 слот: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/ Athlon™ X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 (SATA mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 (SATA mode)
USB портове: AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD X370 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1

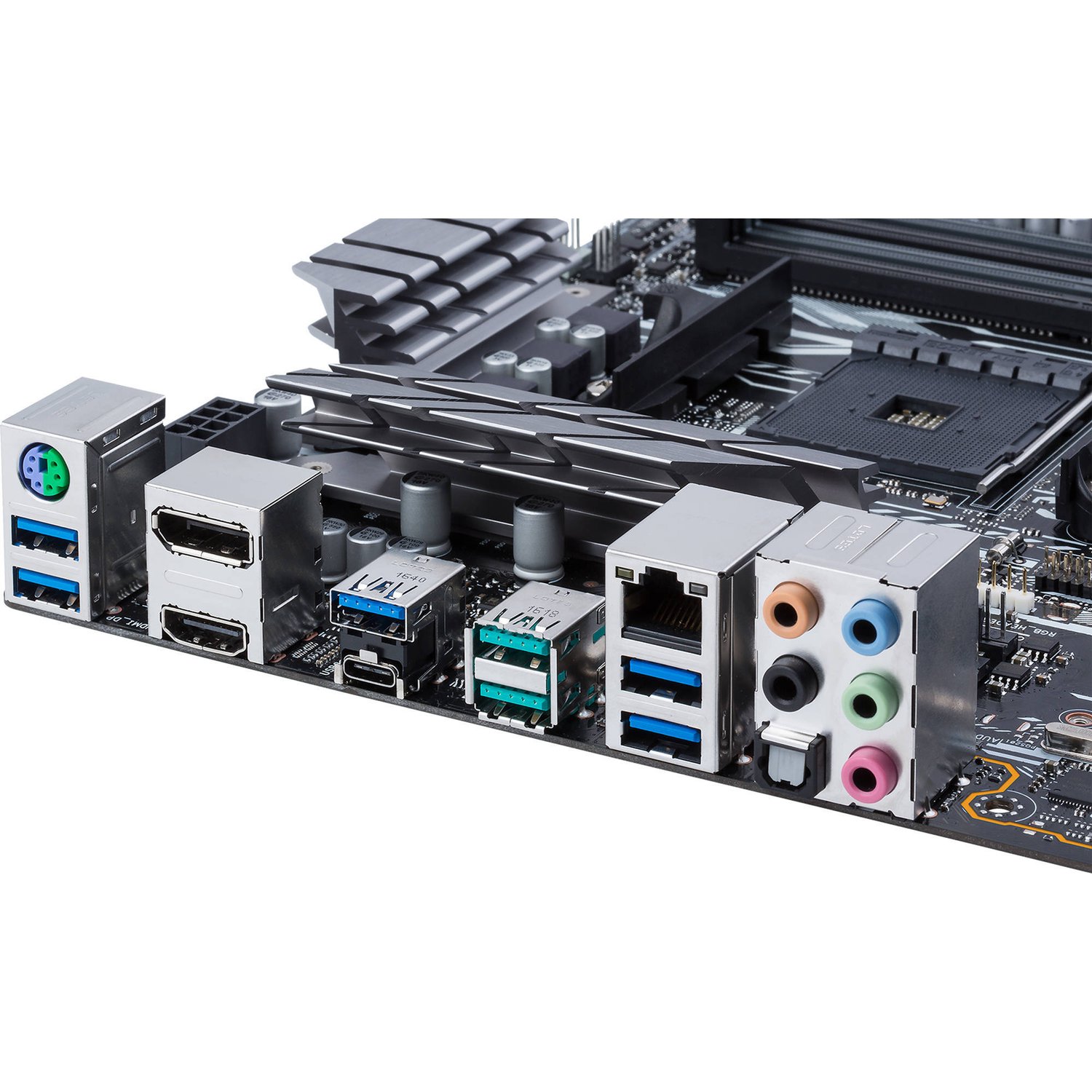

Заден I/O панел: 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)Type-A
1 x USB 3.0 Type-C
5 x USB 3.0
1 x Optical S/PDIF out
5 x Audio jack(s).
Други: Manageability:WfM 2.0, DMI 3.0, WOL by PME, PXE
USB Ports:AMD Ryzen™/7th Generation A-series/Athlon™ Processors : 4 x USB 3.0 port(s) (4 at back panel, , Type-A)
AMD X370 chipset : 1 x USB 3.1 front panel connector port(s)
AMD X370 chipset : 4 x USB 3.0 port(s) (2 at back panel, , Type-A + Type-C, 2 at mid-board)
AMD X370 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, teal blue, Type-A).
Поколение процесор: 3-то поколение
1-во поколение
2-ро поколение
4-то поколение
5-то поколение
