Motherboard ASUS X870 MAX GAMING WHITE WiFi7 AM5 DDR5

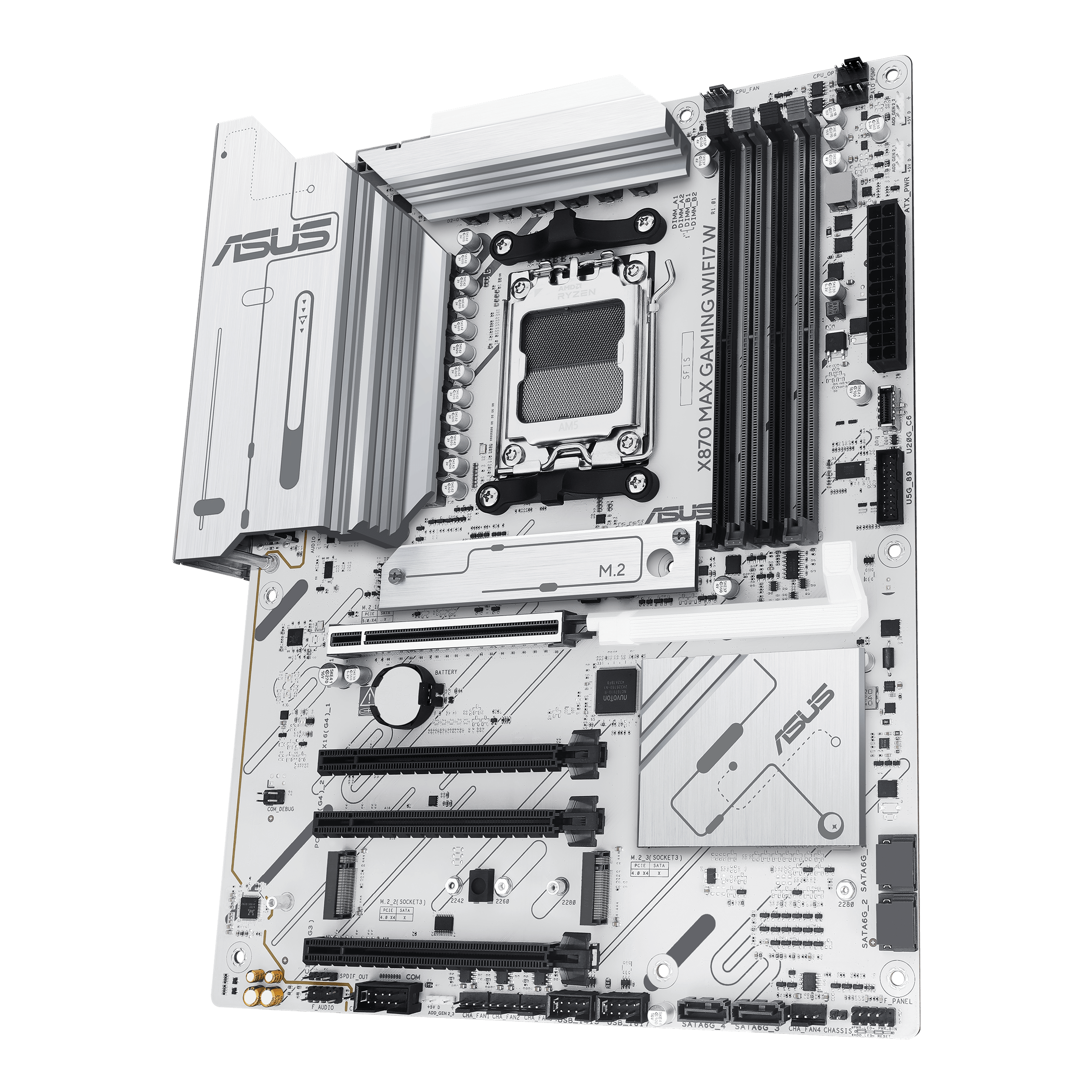

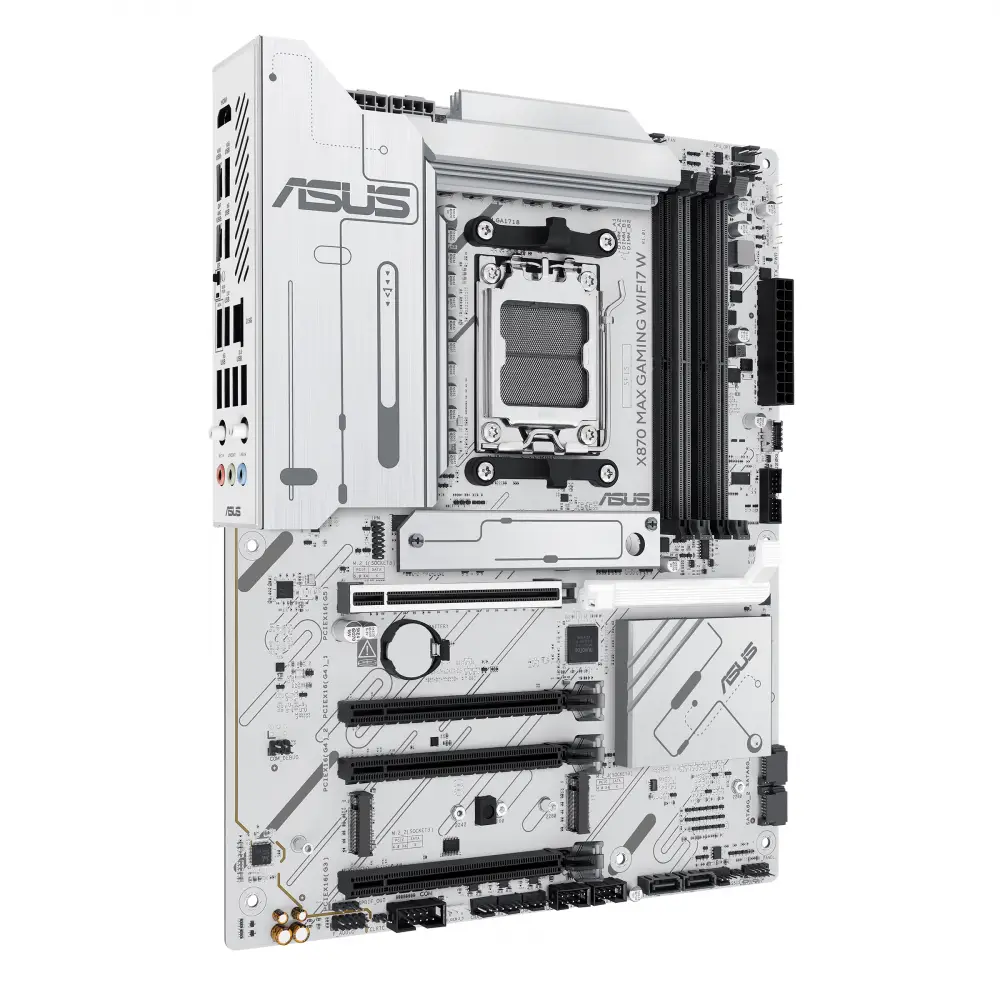

ASUS X870 MAX GAMING WHITE WiFi7 is an ATX motherboard for AM5, aimed at mid-to-high-end gaming and enthusiast builds. It combines the current chipset AMD X870 with support for Ryzen 9000, 8000, and 7000 series processors, so you have a clear upgrade path. It works with DDR5 memory and offers serious freedom for capacity and frequencies. The white design is a bonus if you are aiming for a clean, streamlined look for your setup.

What you get

The AM5 socket and AMD X870 chipset allow you to combine the latest Ryzen processors with a stable power section and a modern set of features. The four DDR5 slots support up to 256 GB RAM and frequencies up to 8000 MHz (OC), which is a serious plus for high refresh rate gaming and heavy multitasking. The expansion slots – PCIe 5.0 x16 for the main GPU and additional PCIe 4.0/3.0 – give you room for a graphics card, capture card, sound card, or other PCIe devices. For storage, you have a combination of 4 x SATA3 ports and several M.2 slots, including one PCIe 5.0 x4 for super-fast NVMe SSD. The built-in Wi-Fi 7, Bluetooth 5.4, and 2.5Gb LAN cover both wired and wireless internet at a level that won't bottleneck you during online gaming or work.

• The AM5 socket with support for Ryzen 9000, 8000, and 7000 series processors provides you with a current and future upgrade platform.
• The AMD X870 chipset offers a modern set of features and enough lanes for fast devices and expansion cards.
• Four DDR5 memory slots with a maximum of 256 GB and up to 8000 MHz (OC) are excellent for high-end gaming and productivity.
• One PCIe 5.0 x16 slot for GPU plus 2x PCIe 4.0 x16 (x1) and 1x PCIe 3.0 x16 (x1) allow you flexible configuration with additional cards.
• A combination of 1x M.2 PCIe 5.0 x4 and 2x M.2 PCIe 4.0 x4 slots (up to 2280) allows you to build a fast NVMe array for gaming and work.
• 4 x SATA3 6.0 Gb/s with support for RAID 0,1,10 are suitable for larger HDD/SSD arrays and backup.

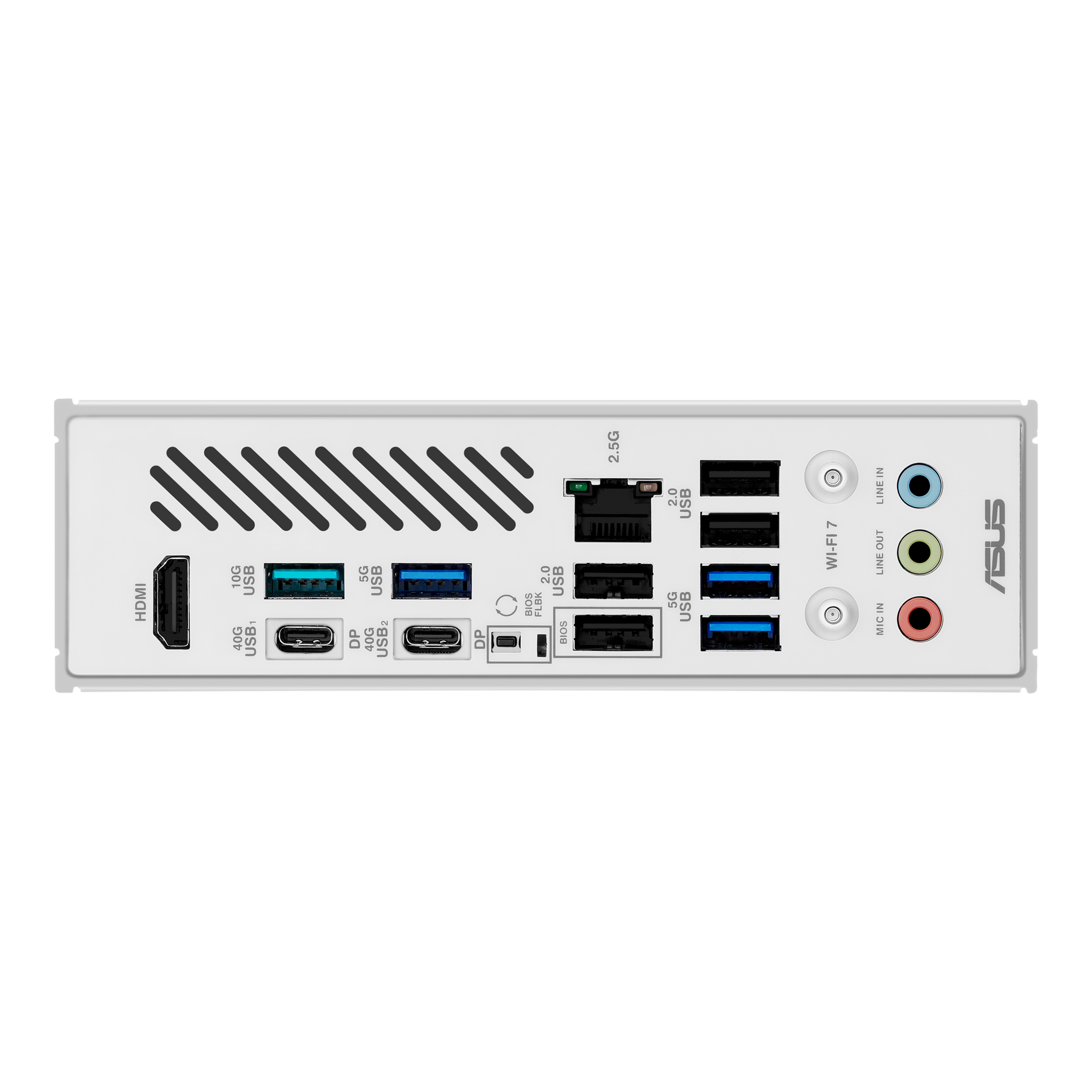

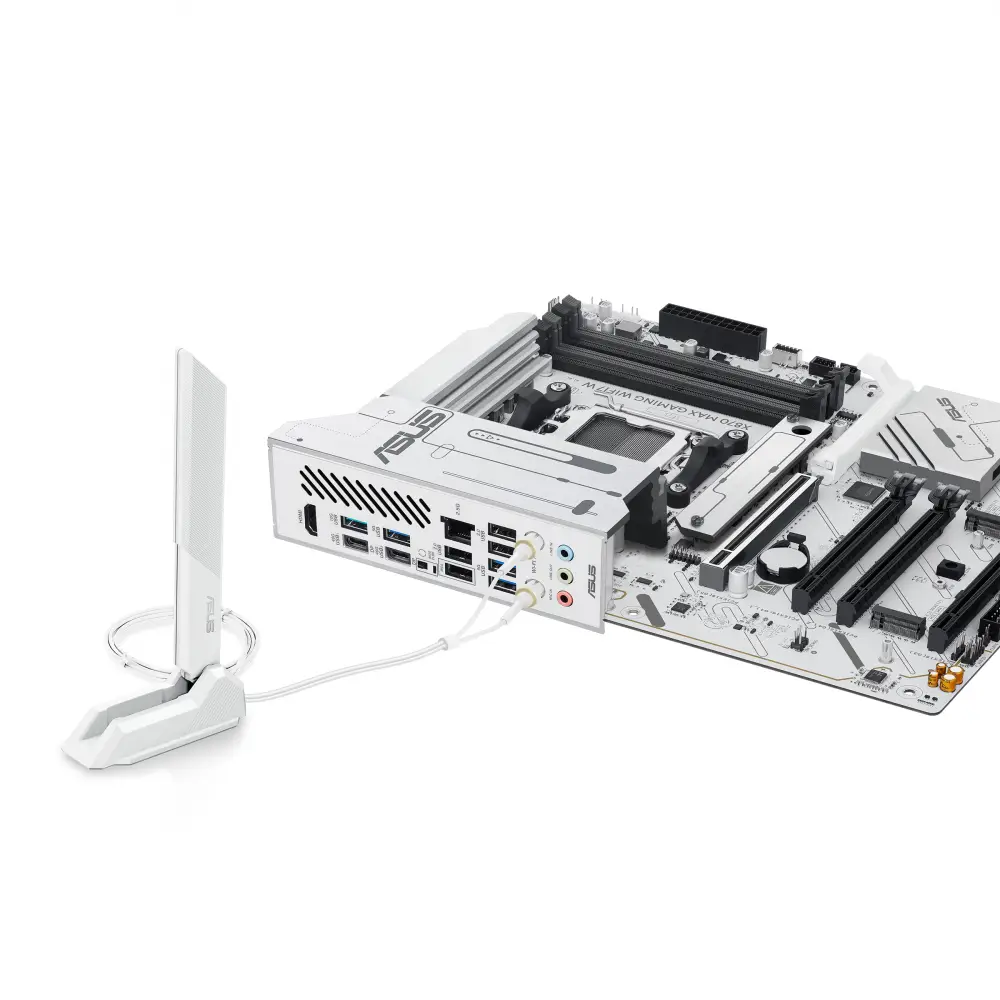

• Built-in Wi‑Fi 7 (802.11be) and Bluetooth 5.4, plus Realtek 2.5Gb Ethernet, provide fast and flexible network connectivity.
• The audio subsystem Realtek 7.1 Surround Sound High Definition Audio CODEC delivers decent multi-channel sound for gaming and multimedia without a separate sound card.
• Power connectors 1 x 24-pin ATX and 2 x 8-pin 12V (Hi-Density) ensure stable power delivery to the CPU and other components.
• Built-in M.2 E-Key (2230), occupied by the WiFi+BT module, saves the need for a separate card for wireless connectivity.

Who it is suitable for

This motherboard is suitable if you are building a modern gaming or productivity build on AM5 and want a combination of fast NVMe storage, high-speed DDR5, and current network connectivity. It is a good choice for 1440p/4K gaming configurations with a powerful GPU and future upgrades to Ryzen from newer series. If you are looking for an ultra-budget motherboard or do not need Wi‑Fi 7 and PCIe 5.0, you can probably get by with a lower-class chipset.

The most sensible thing here is the combination of AM5 + X870, PCIe 5.0 for GPU and storage, and Wi‑Fi 7/2.5Gb LAN in a well-equipped ATX board that easily handles both your current and future upgrades.
