Производител | Gigabyte |
CPU сокет | LGA 1700 |
Чипсет | Intel B760 |
Форм фактор | ATX |
Поддържани процесори | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
Поддържана памет | DDR4 |
Брой слотове за памет | 4 |
Максимален капацитет RAM памет | 128 GB |
Честота памет (MHz) | до 5333MHz (OC) |
Поддръжка на двуканална памет | Да |
Вградено аудио | Realtek® ALC1220-VB |
Вграден LAN | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
Вграден Wi-Fi | WiFi 6E (802.11ax) |
Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
Поддръжка на RAID | 0, 1, 5, 10 |
М2 слот | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) |
Bluetooth версия | Bluetooth V5.3 |
Разширителни слотове | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
Конектор захранване | 1 x 24-pin 1 x 8-pin |
USB портове | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel |

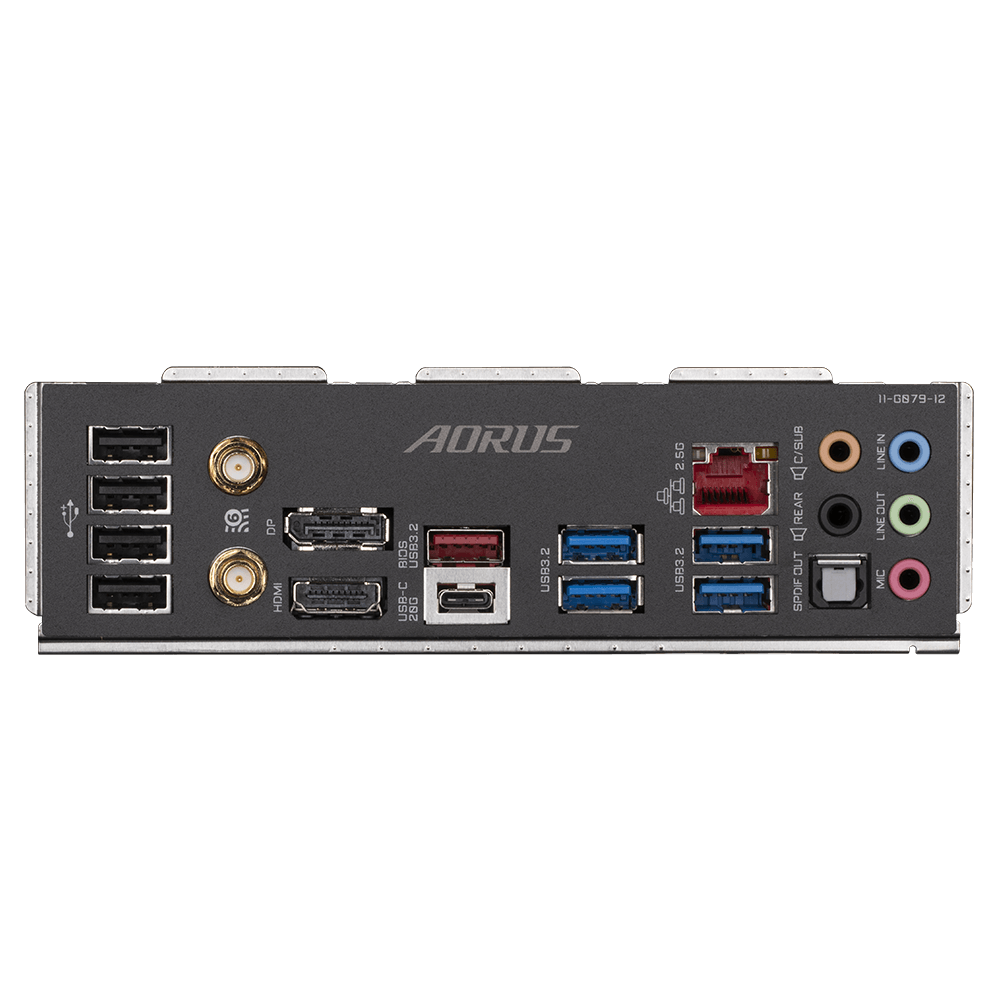

Заден I/O панел | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
Графика | 1 x DisplayPort 1.4 1 x HDMI 2.1 |
OS | Microsoft Windows 10, Microsoft Windows 11 |
Поколение процесор | 12-то поколение 13-то поколение |
Гаранция | 36 месеца |
