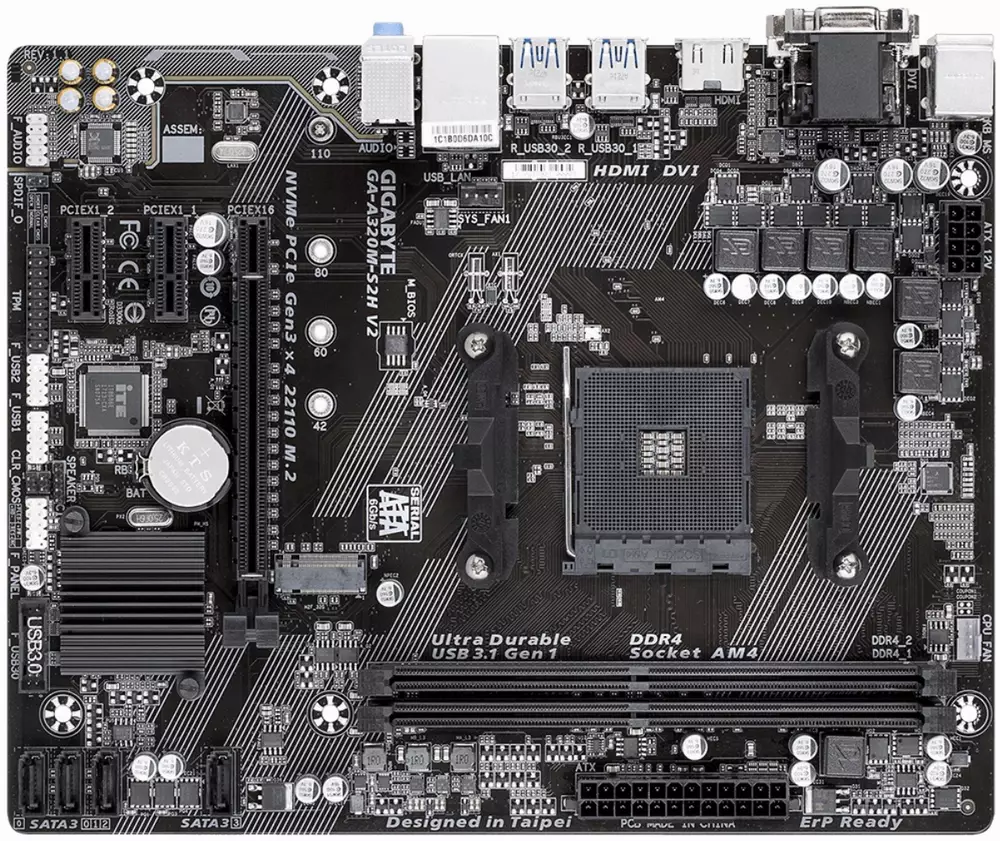

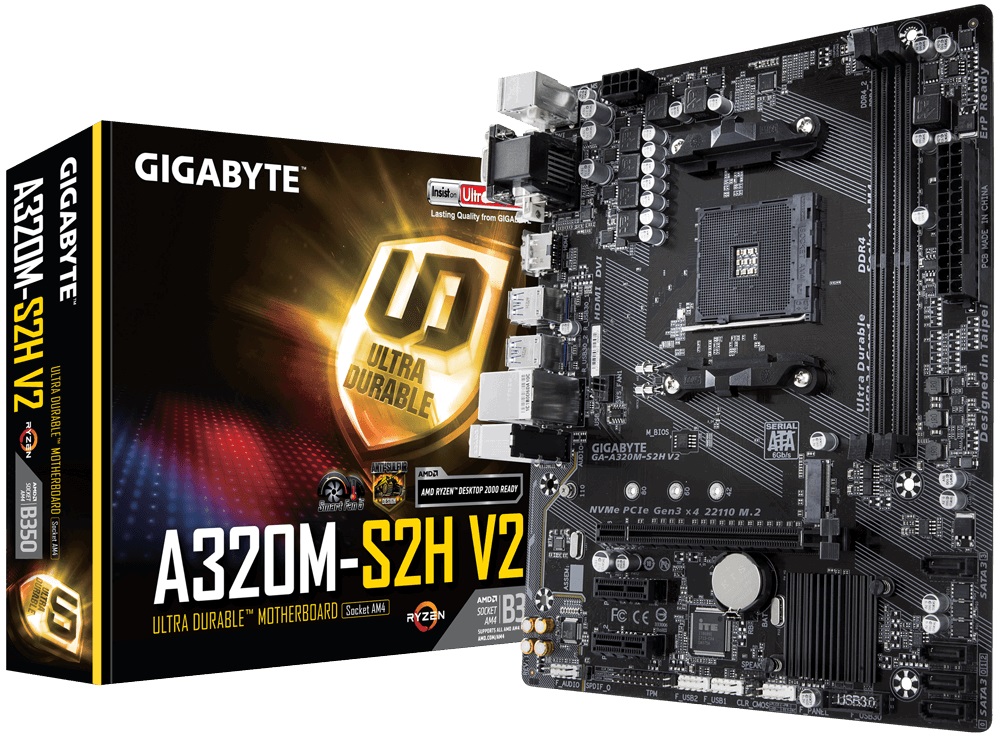

Дънна платка GIGABYTE A320M-S2H V2

53.20/ 104.05 лв.
Спечели 53 точки с тази покупка
Изчерпан
Код: 15012
Производител
Gigabyte
CPU сокет
AM4
Чипсет (MB) AMD B350
Форм фактор Micro ATX
Поддържани процесори
AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-series/ Athlon X4 Processors
Поддържана памет
DDR4
Брой слотове за памет 2
Максимален капацитет RAM памет 32 GB
Честота памет (MHz)
до 3200+ (OC)
Поддръжка на двуканална памет Да
Вградено аудио
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Вграден LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Интерфейс SATA 4 x SATA3 6.0 Gb/s
Поддръжка на RAID 0,1,10
М2 слот
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
Разширителни слотове
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Конектор захранване
1 x 24-pin
1 x 8-pin
USB портове
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Заден I/O панел
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Графика
Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 2 GB
Bios
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Размери 24.4cm x 19.5cm
OS
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Поколение процесор
1-во поколение
2-ро поколение
3-то поколение
4-то поколение
5-то поколение
Гаранция 36 месеца
