Производител | Gigabyte |
CPU сокет | AM5 |
Чипсет | AMD A620 |
Форм фактор | Micro ATX |
Поддържани процесори | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
Поддържана памет | DDR5 |
Брой слотове за памет | 4 |
Максимален капацитет RAM памет | 128 GB |
Честота памет (MHz) | до 6400MHz (OC) |
Поддръжка на двуканална памет | Да |
Вградено аудио | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
Вграден LAN | Realtek GbE LAN chip;(10/100/1000 Mbit) |
Вграден Wi-Fi | Не |
Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
Поддръжка на RAID | 0,1,10 |
М2 слот | 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) |
Bluetooth версия | Не |
Разширителни слотове | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Конектор захранване | 1 x 24-pin 1 x 8-pin |
USB портове | 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port on the back panel 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |

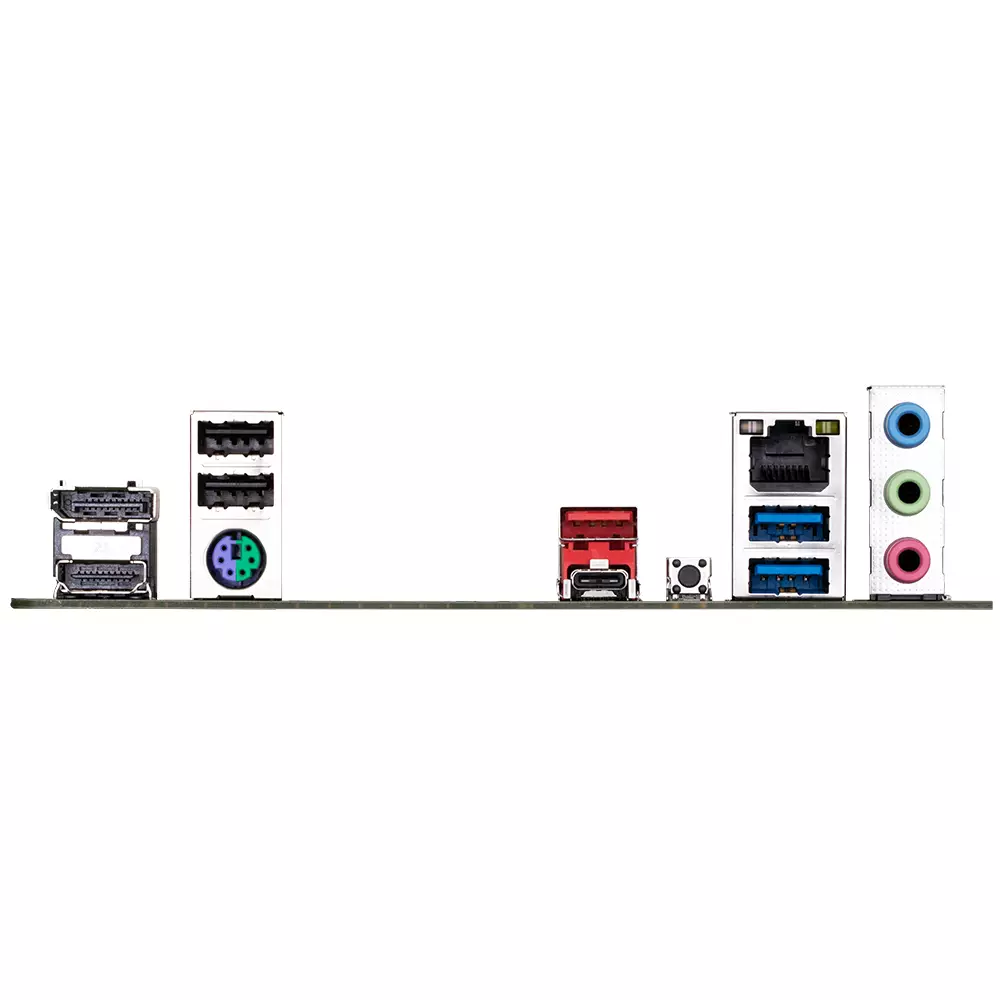

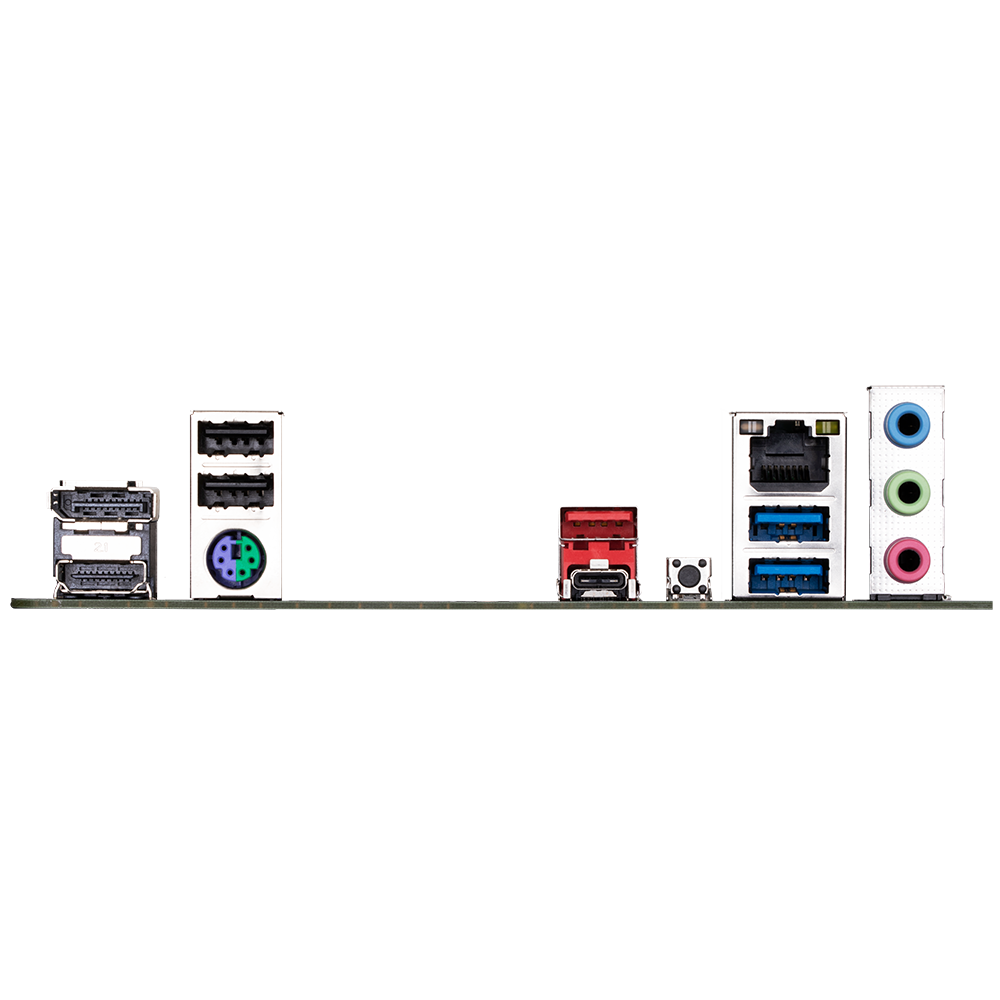

Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks |
Графика | 1 x DisplayPort; 1 x HDMI port |
Размери | 24.4 cm x 24.4 cm |
OS | Microsoft Windows 10, Microsoft Windows 11 |
Поколение процесор | 7-мо поколение |
Гаранция | 36 месеца |
