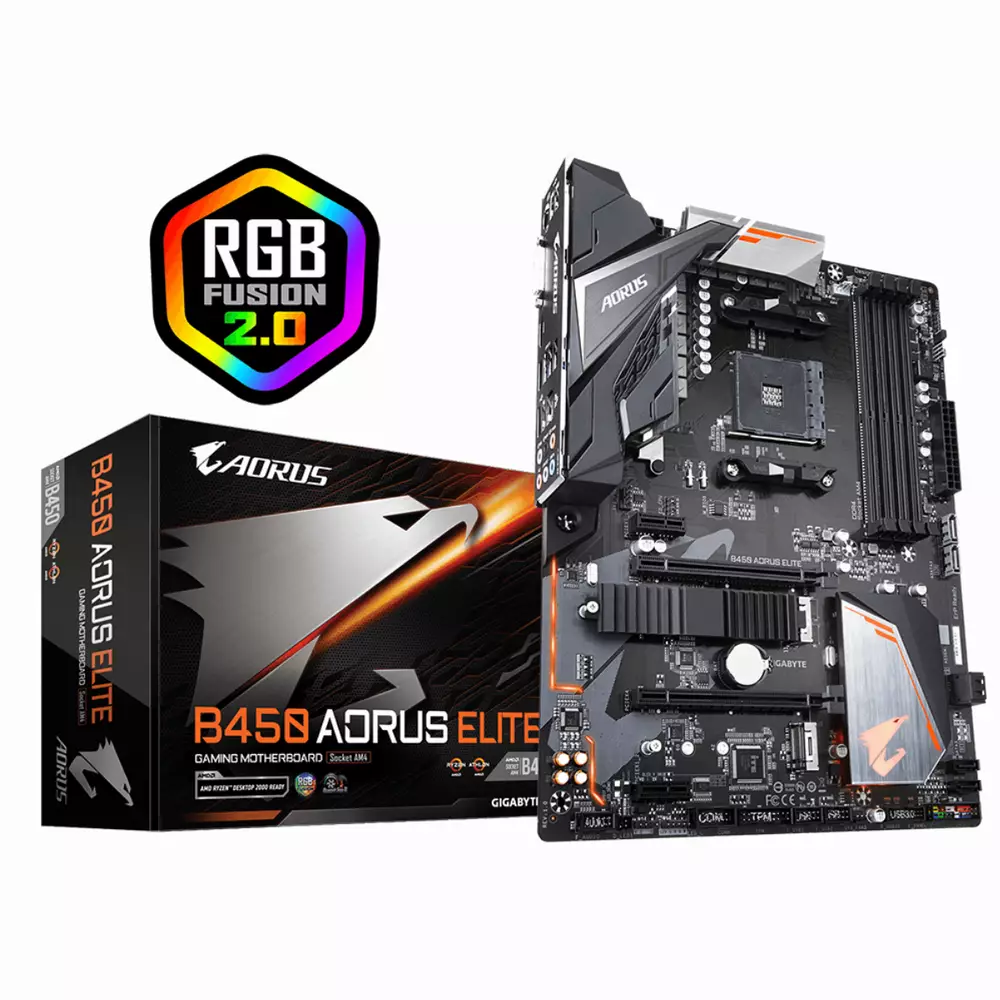

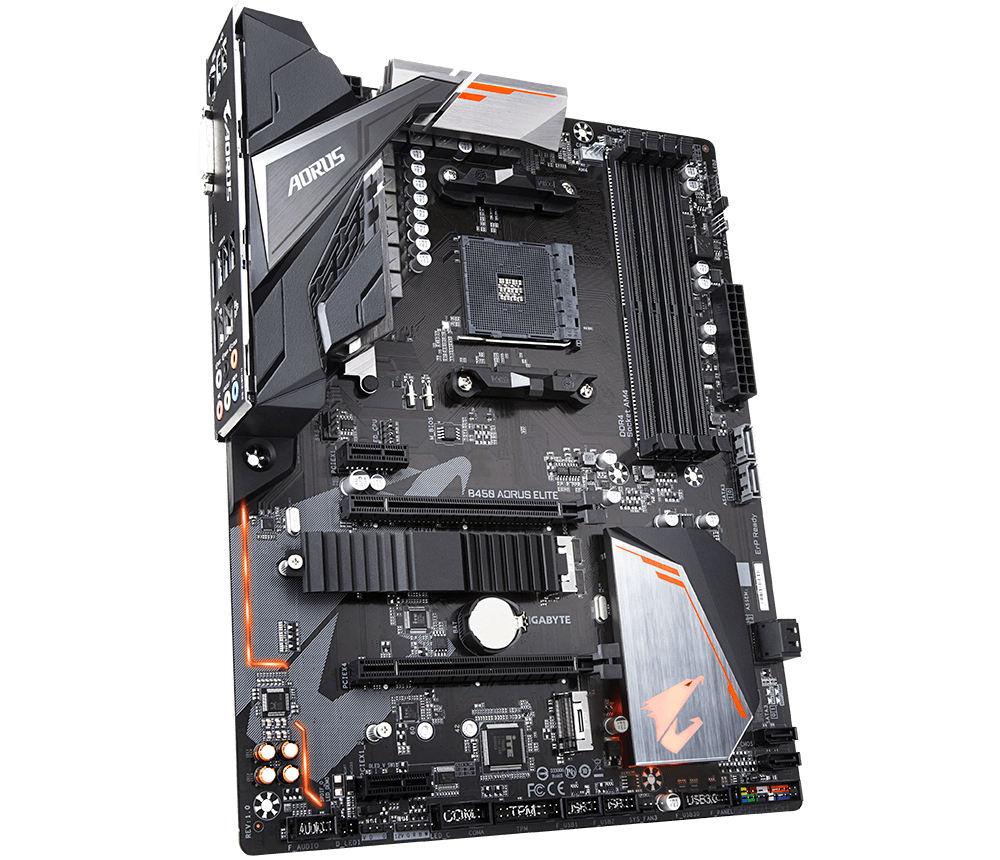

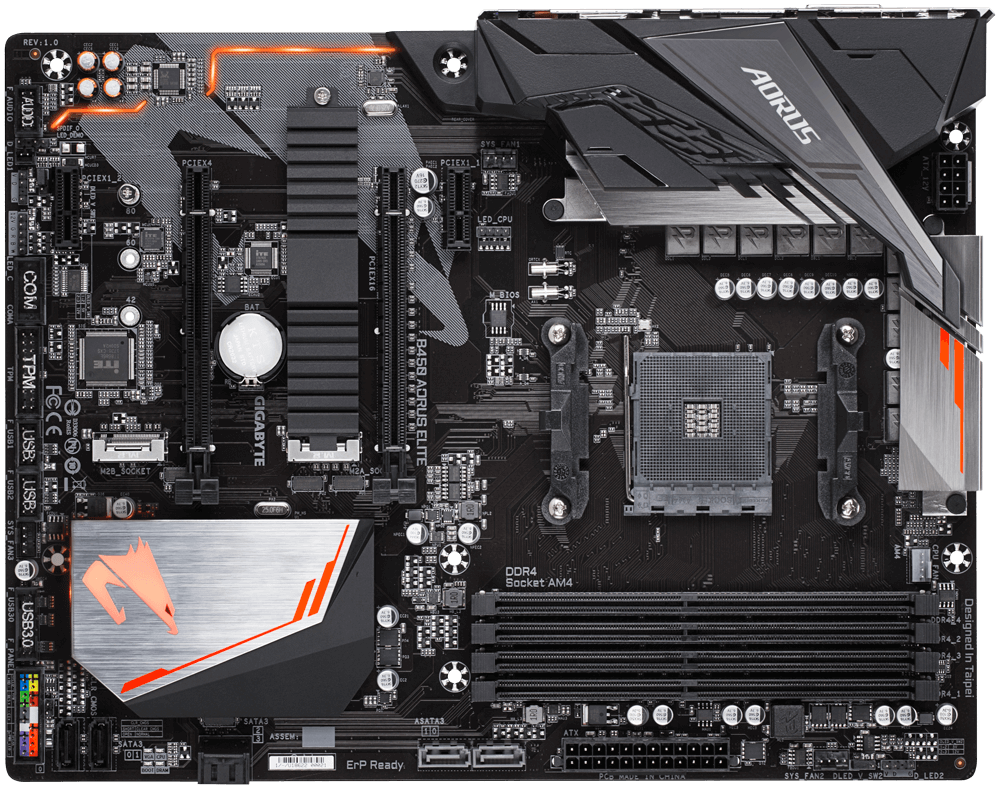

Дънна платка GIGABYTE B450 AORUS Elite Socket AM4, 4 x DDR4, RGB Fusion, (rev. 1.0)
| Производител | Gigabyte |
| Продуктов код | GA-MB-B450-AORUS-Elite |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD B450 |
| Форм фактор | ATX |
| Поддържани процесори | Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC892 |
| Вграден LAN | Intel GbE LAN chips (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE x2 mode) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | 4 |

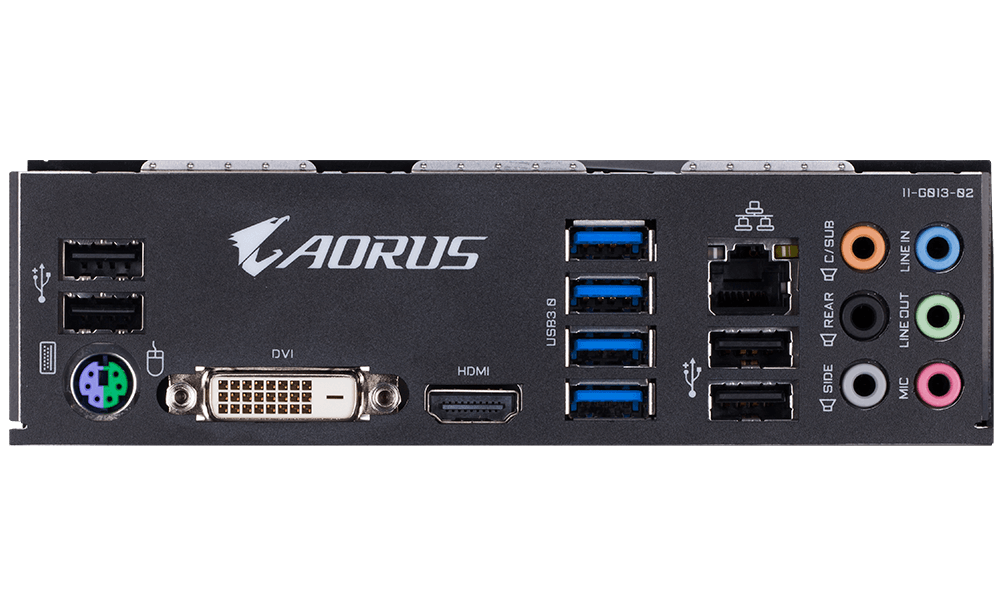

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| Графика | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU |
| Мулти GPU технология | AMD Quad-GPU CrossFireX Technology |
| Bios | BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Поколение процесор | 1-во поколение 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
Все още няма ревюта за този продукт. Бъди първи!
