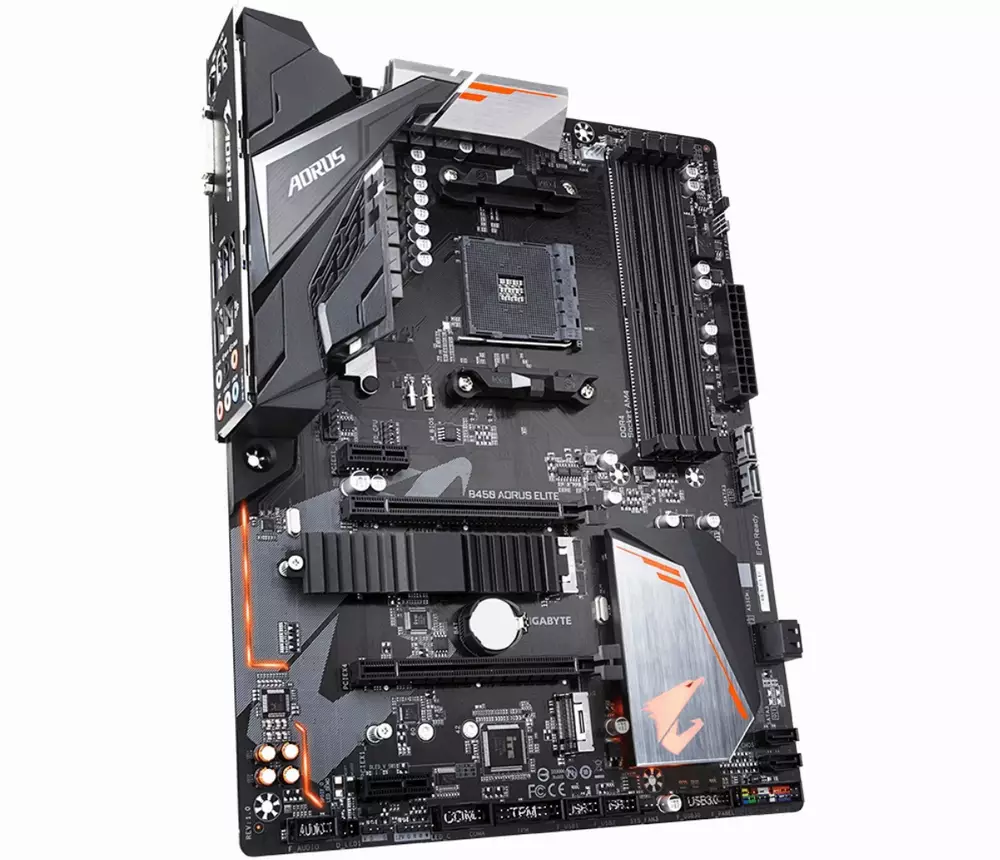

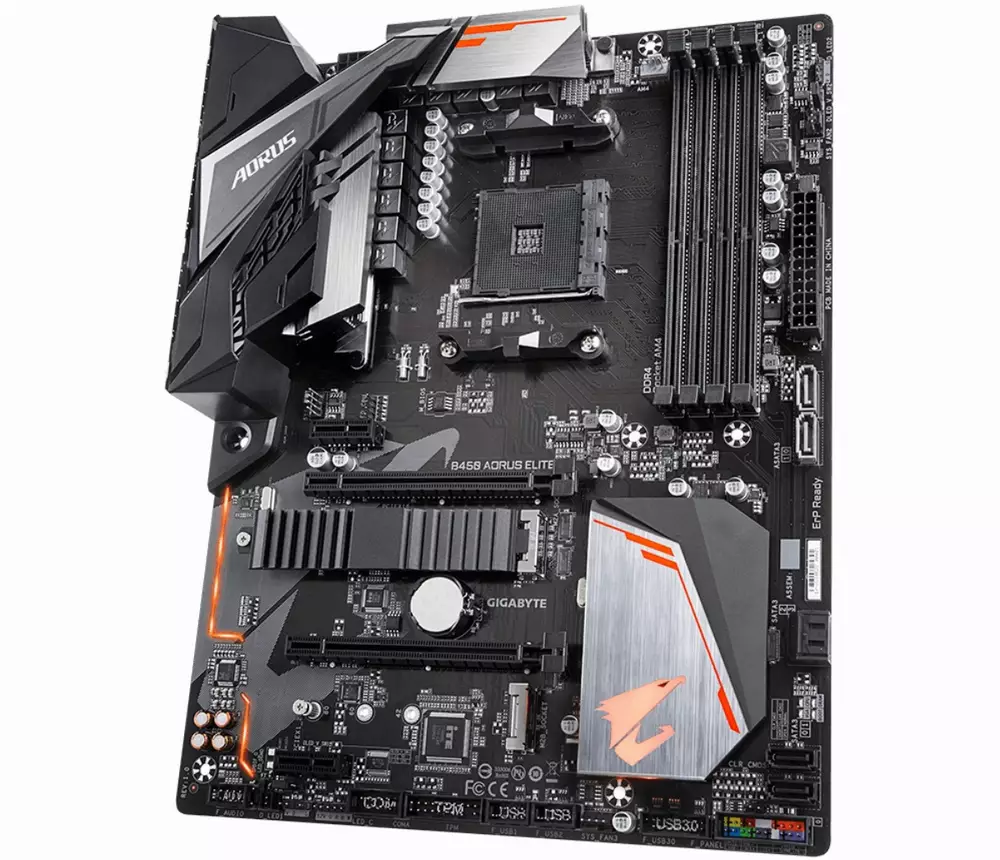

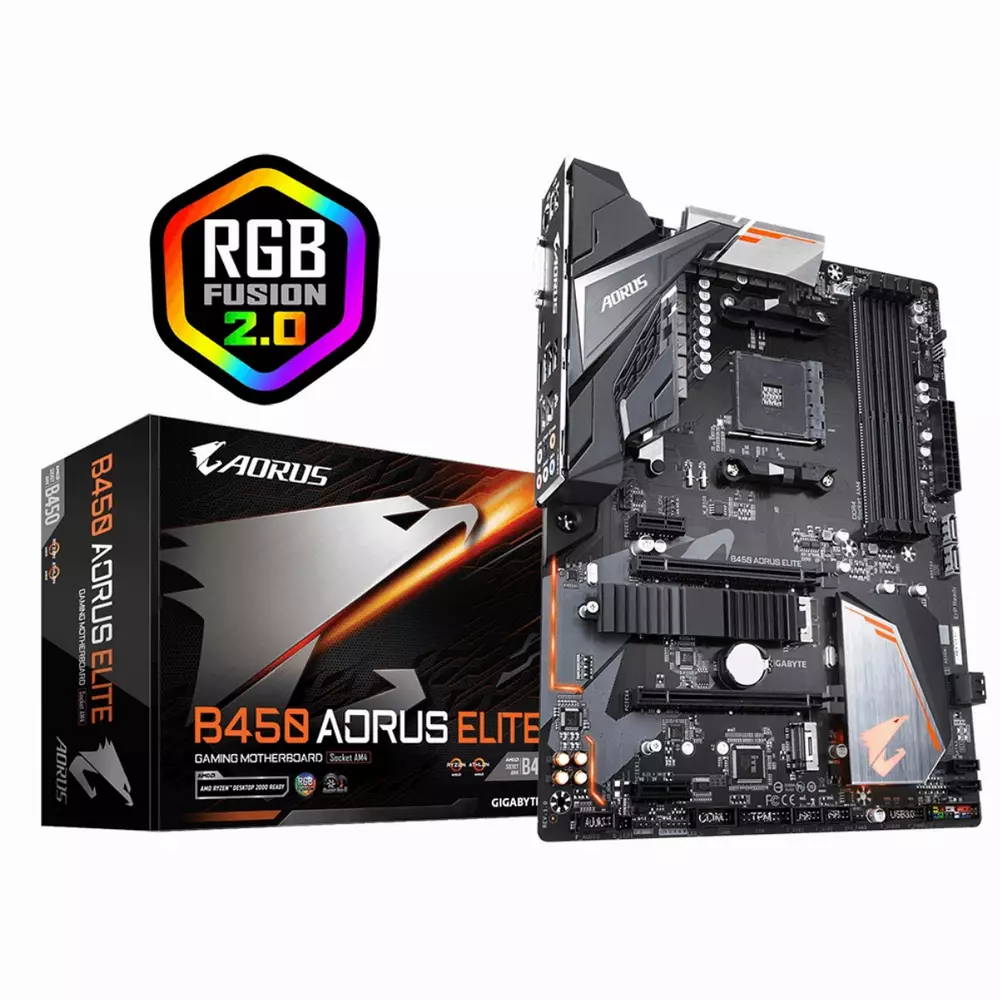

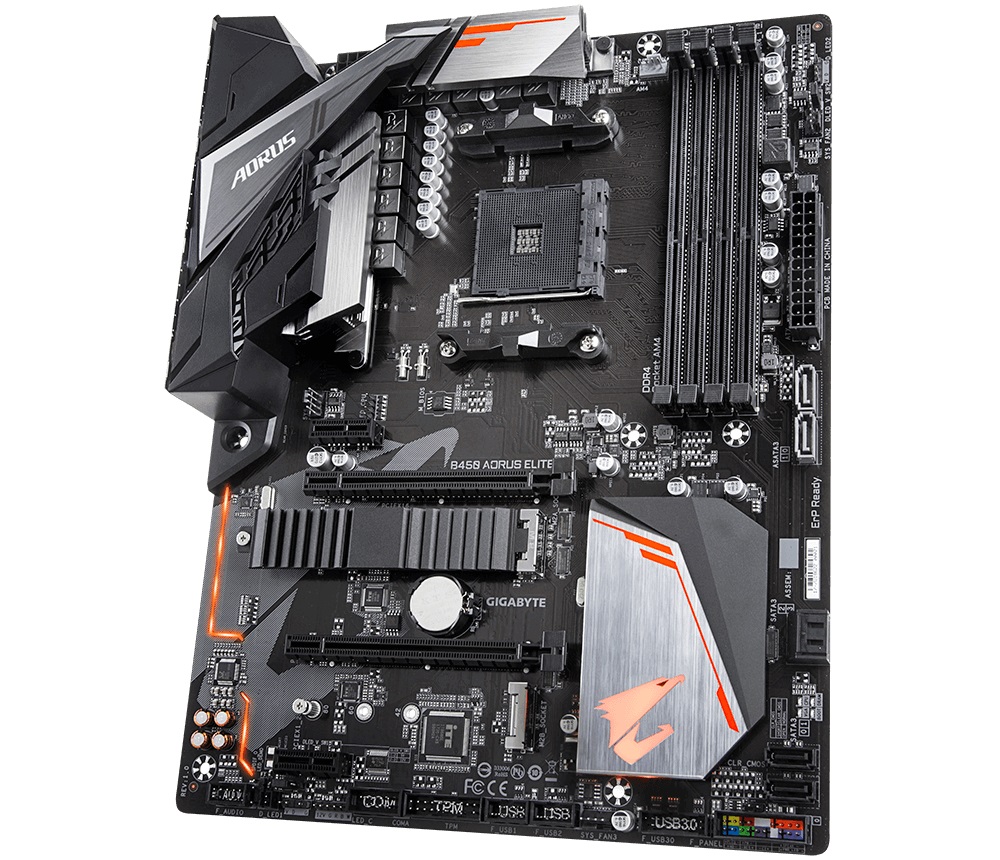

Дънна платка Gigabyte B450 AORUS ELITE V2

98.58/ 192.81 лв.
Спечели 98 точки с тази покупка
Изчерпан
Код: 16652
Производител
Gigabyte
Продуктов код B450 AORUS ELITE V2
CPU сокет
AM4
Чипсет (MB) AMD B450
Форм фактор ATX
Поддържани процесори
AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Поддържана памет
DDR4
Брой слотове за памет 4
Максимален капацитет RAM памет 64 GB
Честота памет (MHz)
до 3600MHz (O.C)
Поддръжка на двуканална памет Да
Вградено аудио
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Вграден LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Интерфейс SATA 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET); 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET); 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10; * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Поддръжка на RAID 0,1,10
М2 слот
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
Разширителни слотове
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. 2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Конектор захранване
1 x 24-pin
1 x 8-pin
USB портове
2 x USB 3.1 Gen 1 ports available through the internal USB header
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Integrated in the APU:
4 x USB 3.1 Gen 1 ports on the back panel

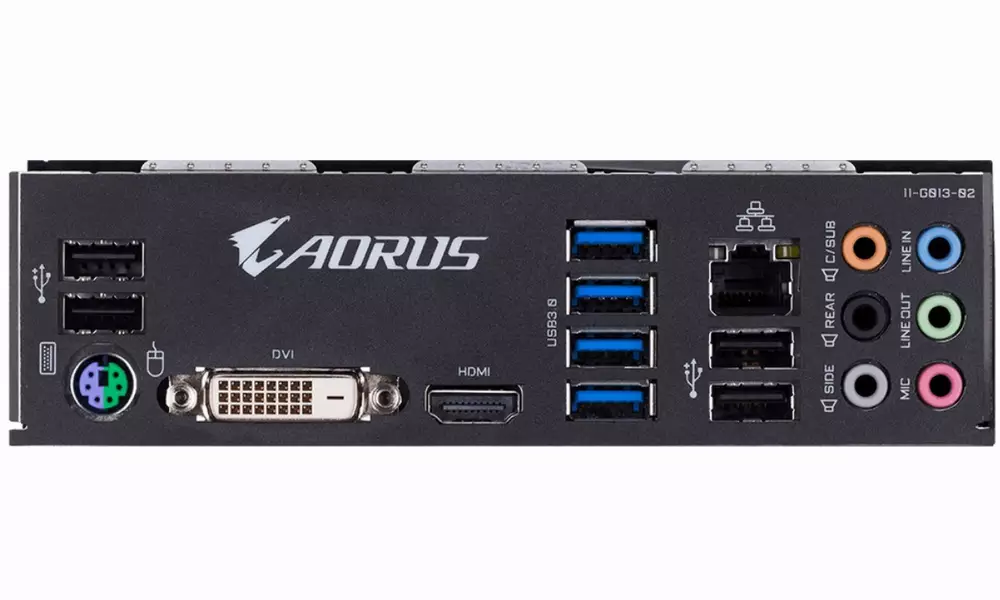

Заден I/O панел
1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Графика
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB
(Note) Actual support may vary by CPU.
Мулти GPU технология AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology
Bios
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Размери 30.5cm x 23.5cm
OS
Support for Windows 10 64-bit
Support for Windows 7 64-bit
Поколение процесор
1-во поколение
2-ро поколение
3-то поколение
4-то поколение
5-то поколение
Гаранция 36 месеца
