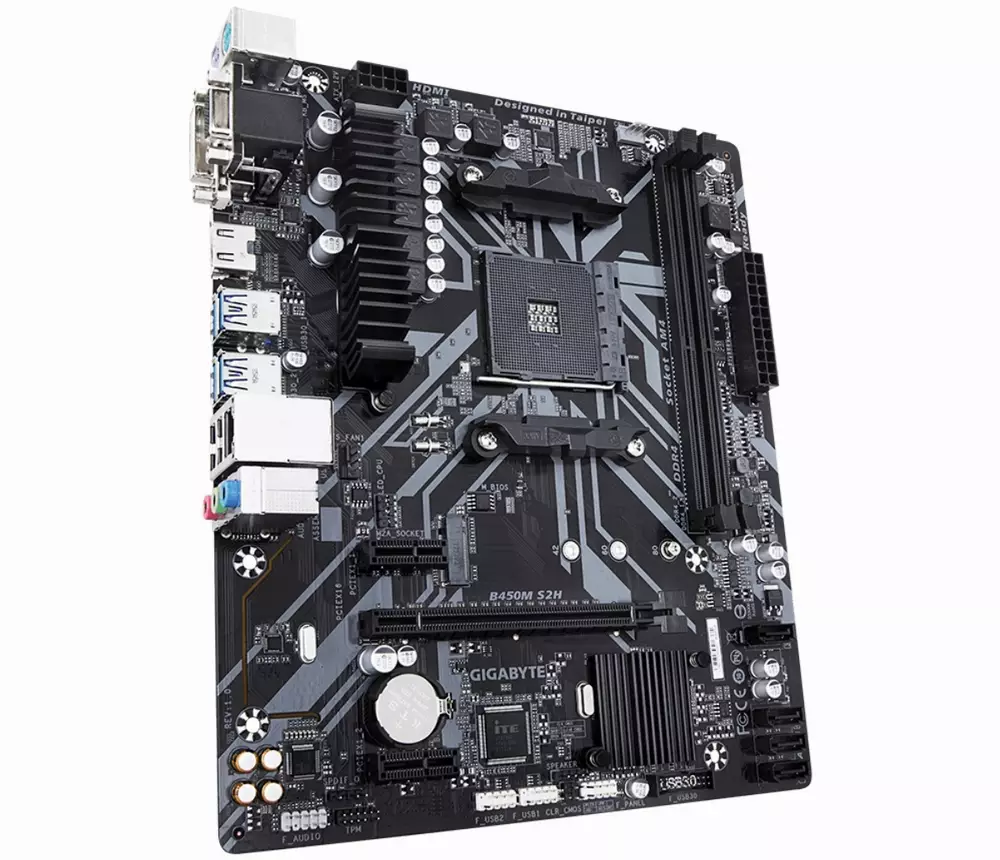

Дънна платка Gigabyte B450M S2H
| Производител | Gigabyte |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD B450 |
| Форм фактор | Micro ATX |
| Поддържани процесори | AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 2 |
| Максимален капацитет RAM памет | 32 GB |
| Честота памет (MHz) | до 3600MHz (O.C) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC887 |
| Вграден LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Интерфейс SATA | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support); * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.; 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10 |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 3.1 Gen 1 ports on the back panel |

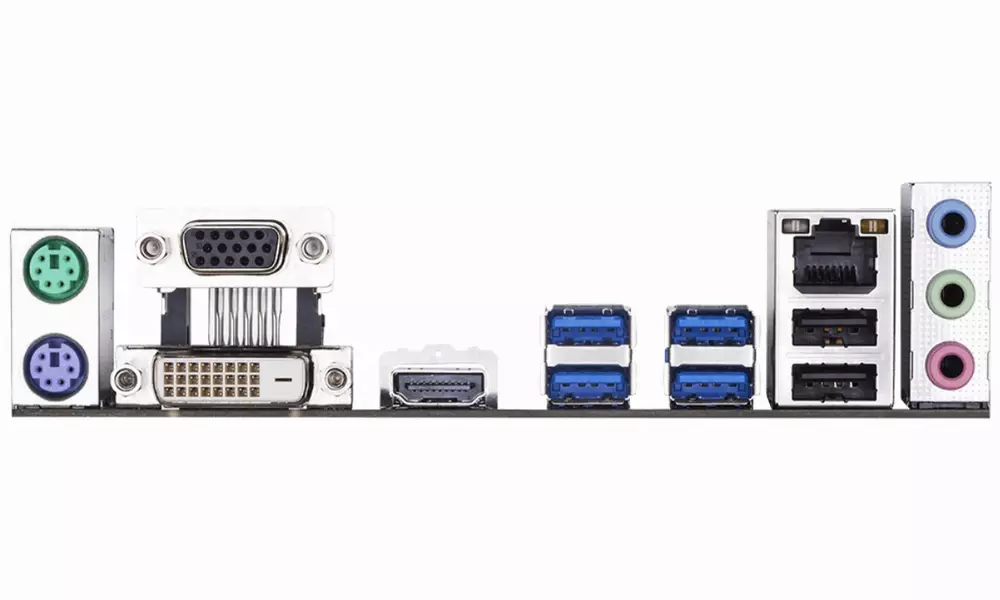

| Заден I/O панел | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Графика | Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 2 GB |
| Bios | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 24.4cm x 20.5cm |
| OS | Support for Windows 10 64-bit Support for Windows 7 64-bit |
| Поколение процесор | 1-во поколение 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
