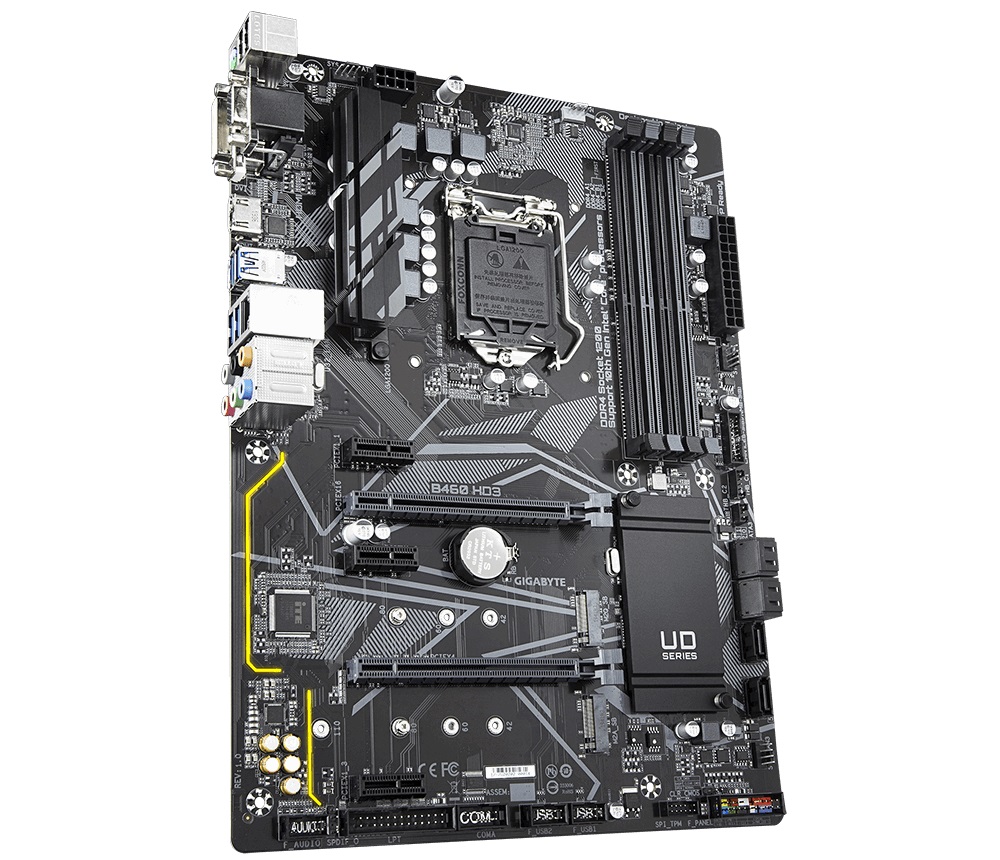

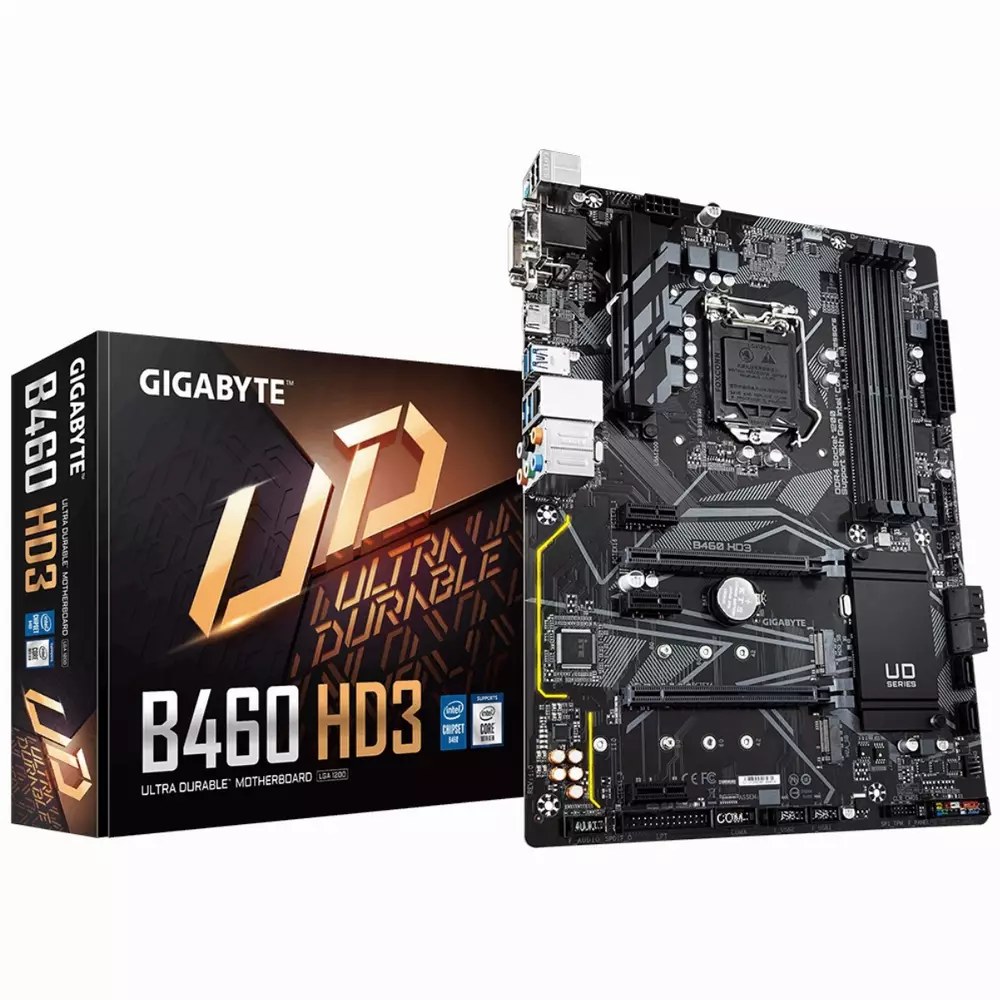

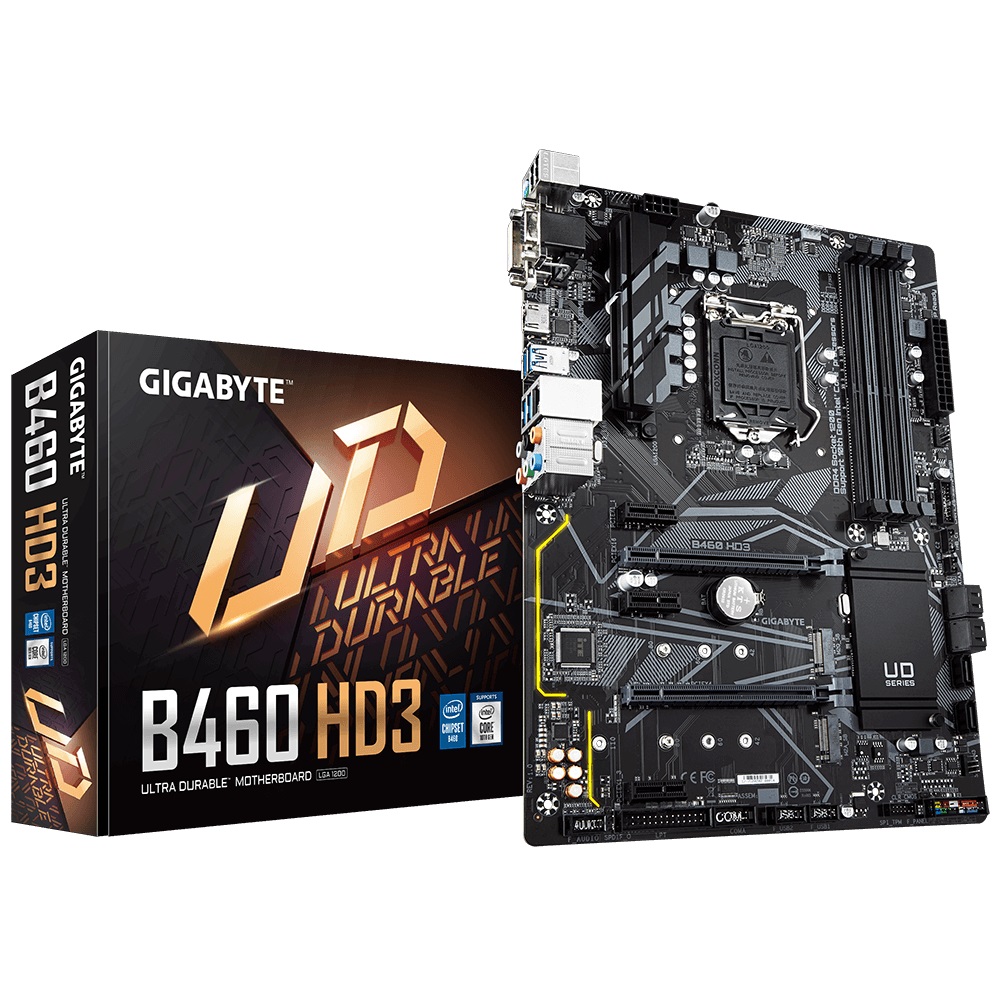

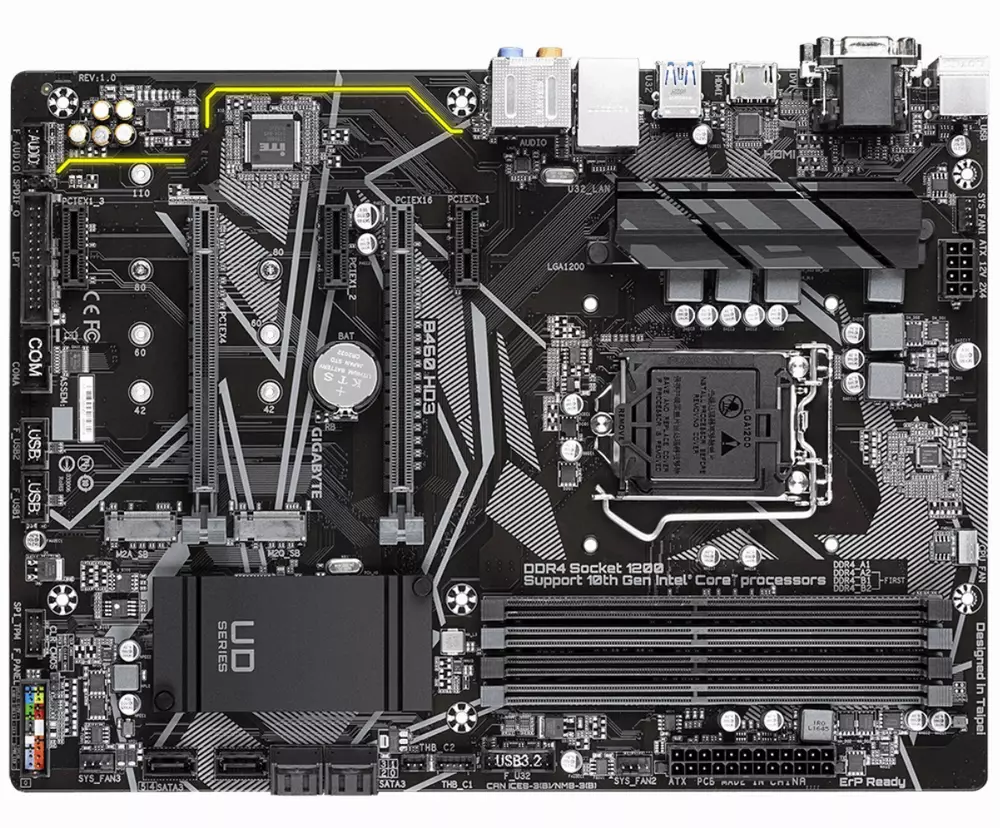

Дънна платка GIGABYTE B460 HD3
| Производител | Gigabyte |
| Продуктов код | B460 HD3 |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel B460 |
| Форм фактор | ATX |
| Поддържани процесори | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 2933MHz |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC1200 Audio Codec |
| Вграден LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2A_SB) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Supports up to ASPM L1.2 power management protocols. |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

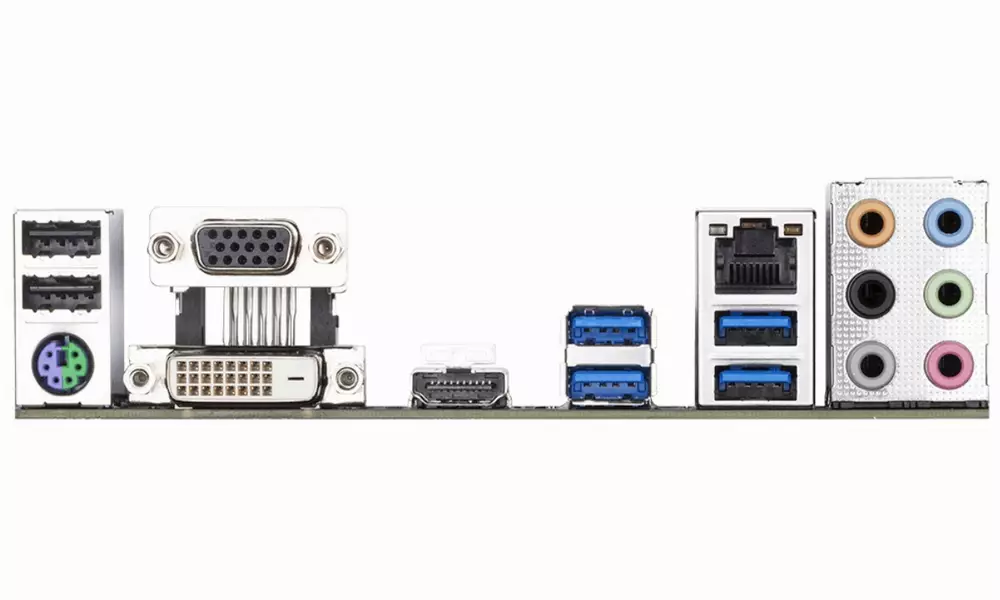

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB |
| Bios | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 30.5cm x 22.5cm |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 10-то поколение |
| Гаранция | 36 месеца |
