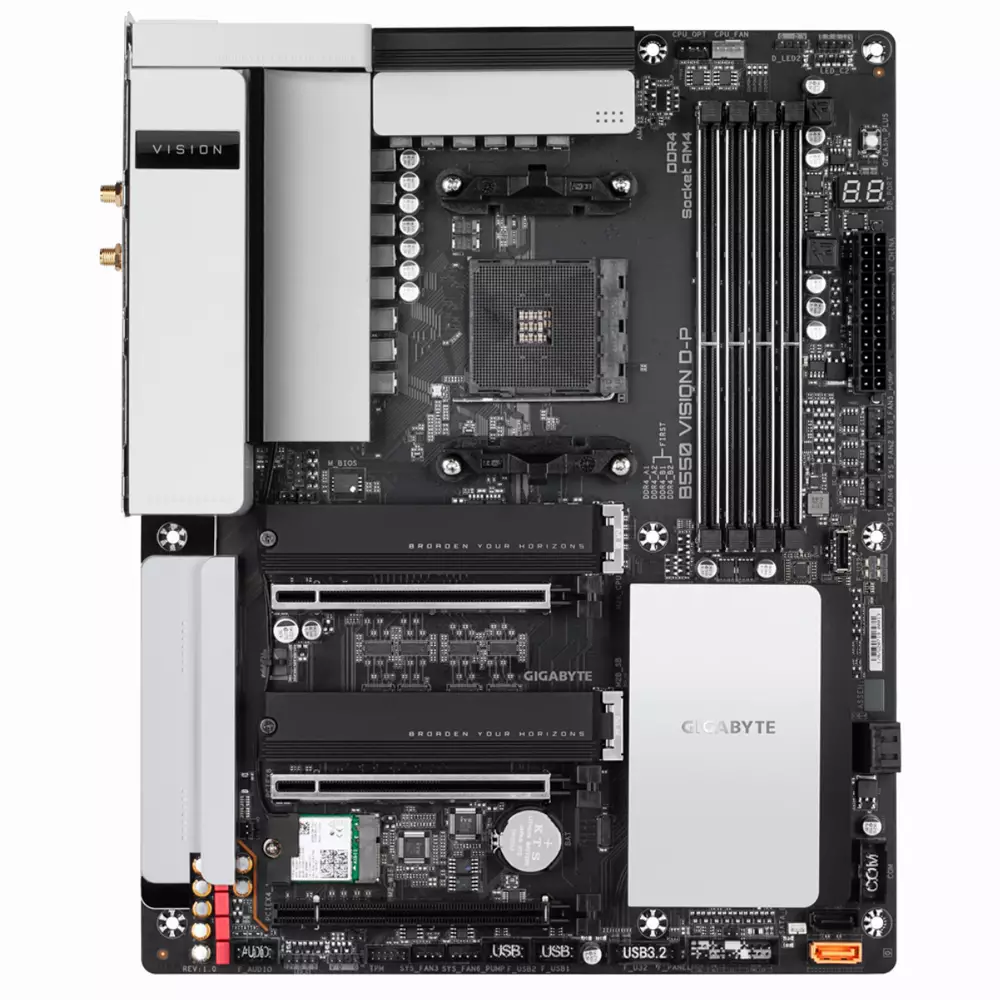

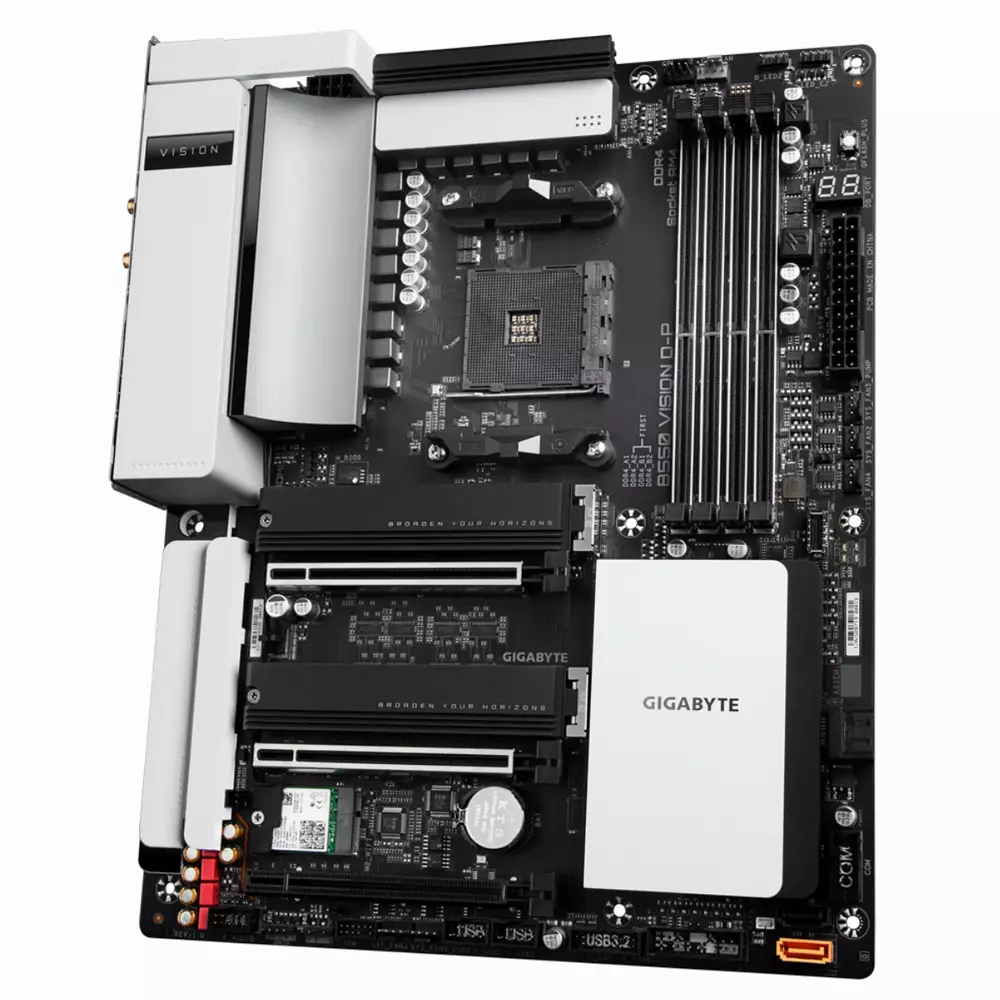

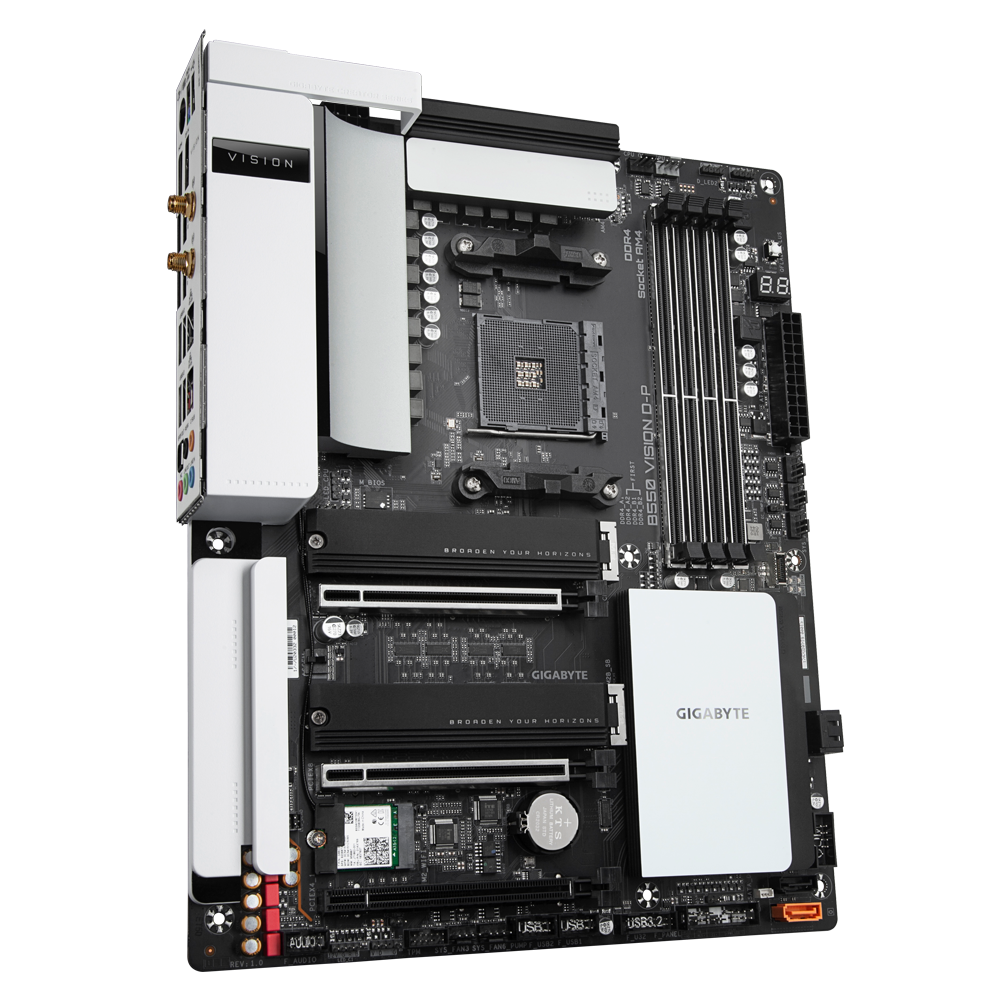

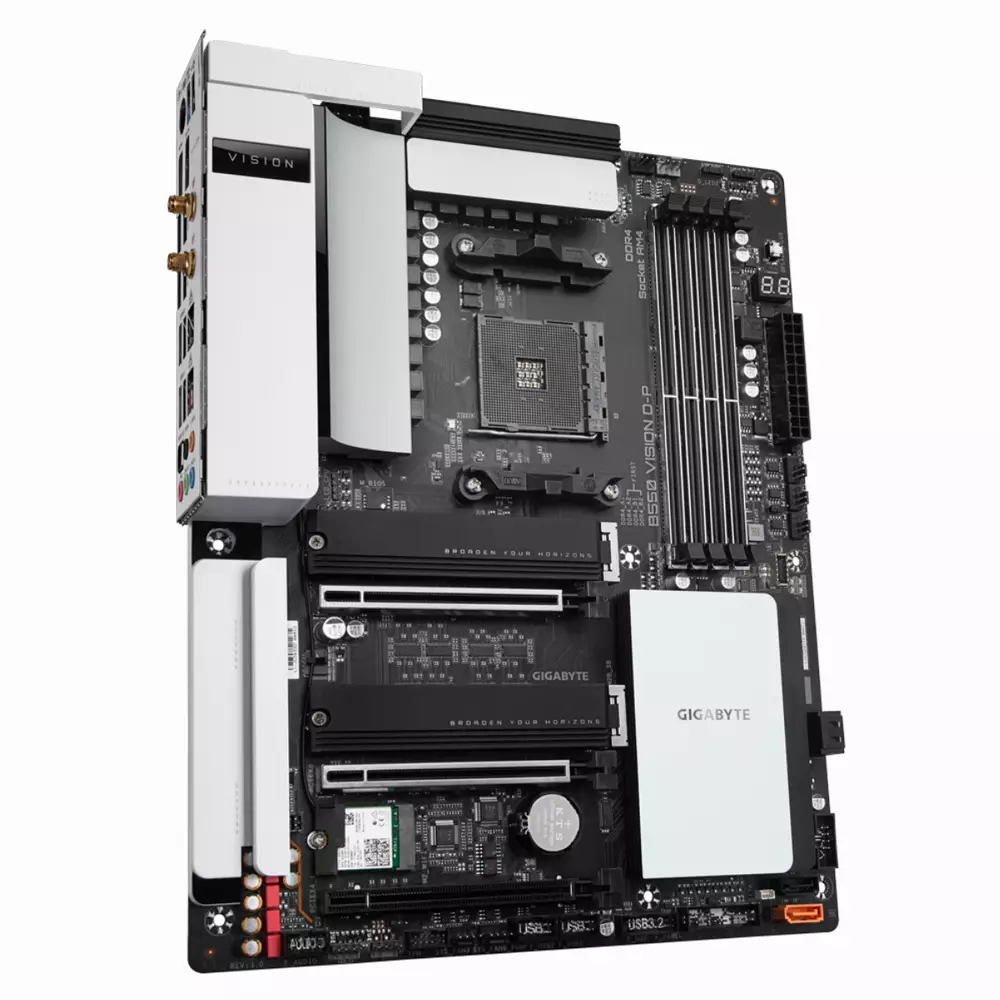

Дънна платка GIGABYTE B550 VISION D-P WI-FI 6

Дънна платка GIGABYTE B550 VISION D-P WI-FI 6

Name: Дънна платка GIGABYTE B550 VISION D-P WI-FI 6
Brand: Gigabyte
SKU: 23163
Price: 303.22 EUR
Availability: OutOfStock

Код: 23163

☆☆☆☆☆ 0 ревюта

303.22 €

Спечели 303 точки

Изчерпан

Уведоми ме при наличност

Ще ти изпратим имейл веднага щом продуктът е отново наличен.

✅ Готово! Ще ти пишем, щом е наличен.

CPU сокет: AM4
Чипсет (MB): AMD B550 MB
Форм фактор: ATX
Поддържана памет: DDR4
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: Gigabyte
Продуктов код: B550 VISION D-P
CPU сокет: AM4
Чипсет (MB): AMD B550
Форм фактор: ATX
Поддържани процесори: Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000
Поддържана памет: DDR4
Брой слотове за памет: 4
Максимален капацитет RAM памет: 128 GB
Честота памет (MHz): до 5100MHz (O.C.)
Поддръжка на двуканална памет: Да
Вградено аудио: Realtek® ALC1220-VB
Вграден Wi-Fi: Wi-Fi 6
Bluetooth версия: Bluetooth V4.2
Вграден LAN: 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
1 x Realtek 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
Интерфейс SATA: 4 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0,1,10
Разширителни слотове: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x8 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x8 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
* The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
Конектор захранване: 1 x 24-pin
1 x 8-pin
Мулти GPU технология: AMD Quad-GPU CrossFireX Technology
Размери: 30.5 cm x 24.4 cm
Поколение процесор: 5-то поколение
4-то поколение
3-то поколение
Гаранция: 36 месеца
ОС: Microsoft Windows 10 64-bit
М2 слот: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
USB портове: Integrated in the CPU:
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+Intel® Thunderbolt™ 3 Controller:
2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

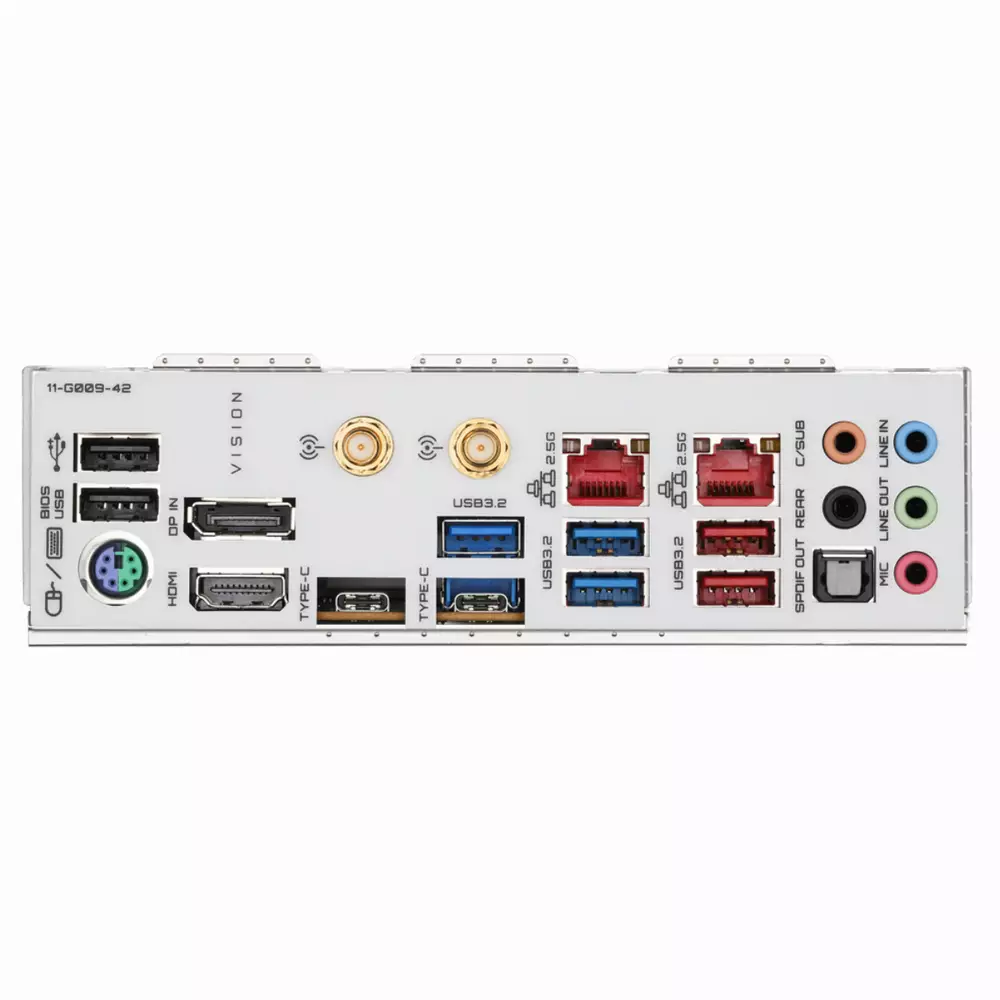

Заден I/O панел: 1 x PS/2 keyboard/mouse port
1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
