Производител | Gigabyte |
CPU сокет | AM4 |
Чипсет | AMD B550 |
Форм фактор | Micro ATX |
Поддържани процесори | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors |
Поддържана памет | DDR4 |
Брой слотове за памет | 4 |
Максимален капацитет RAM памет | 128 GB |
Честота памет (MHz) | до 4733+ (OC) |
Поддръжка на двуканална памет | Да |
Вградено аудио | Realtek ALC887 |
Вграден LAN | Realtek GbE LAN chip;(10/100/1000 Mbit) |
Вграден Wi-Fi | Intel Wi-Fi 3168, 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |
Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
Поддръжка на RAID | 0,1,10 |
М2 слот | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs |
Bluetooth версия | Bluetooth V4.2 |
Разширителни слотове | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Конектор захранване | 1 x 24-pin 1 x 8-pin |
USB портове | 4 x USB 3.2 Gen 1 ports on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |

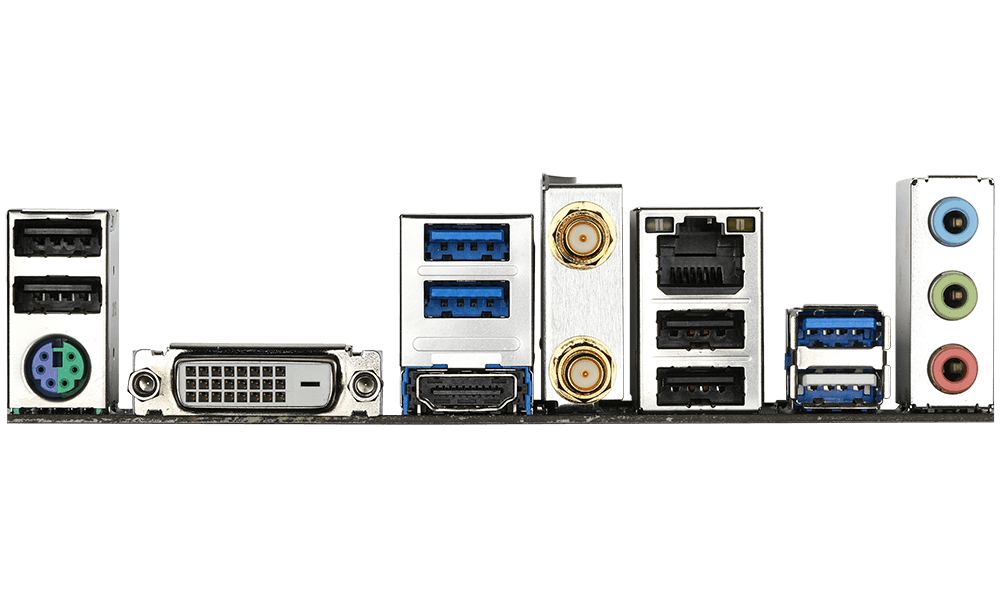

Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Мулти GPU технология | AMD Quad-GPU CrossFireX Technology |
OS | Microsoft Windows 10, Microsoft Windows 11 |
Поколение процесор | 3-то поколение 4-то поколение 5-то поколение |
Гаранция | 36 месеца |
