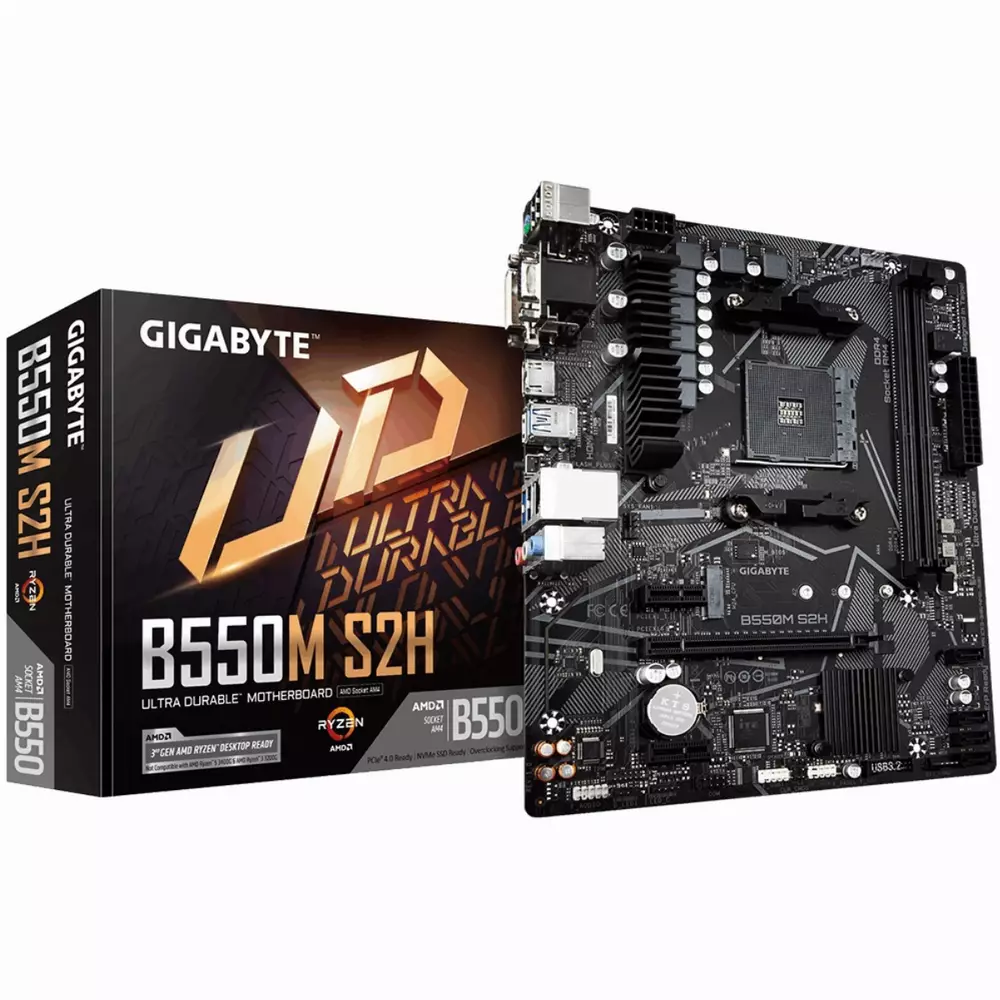

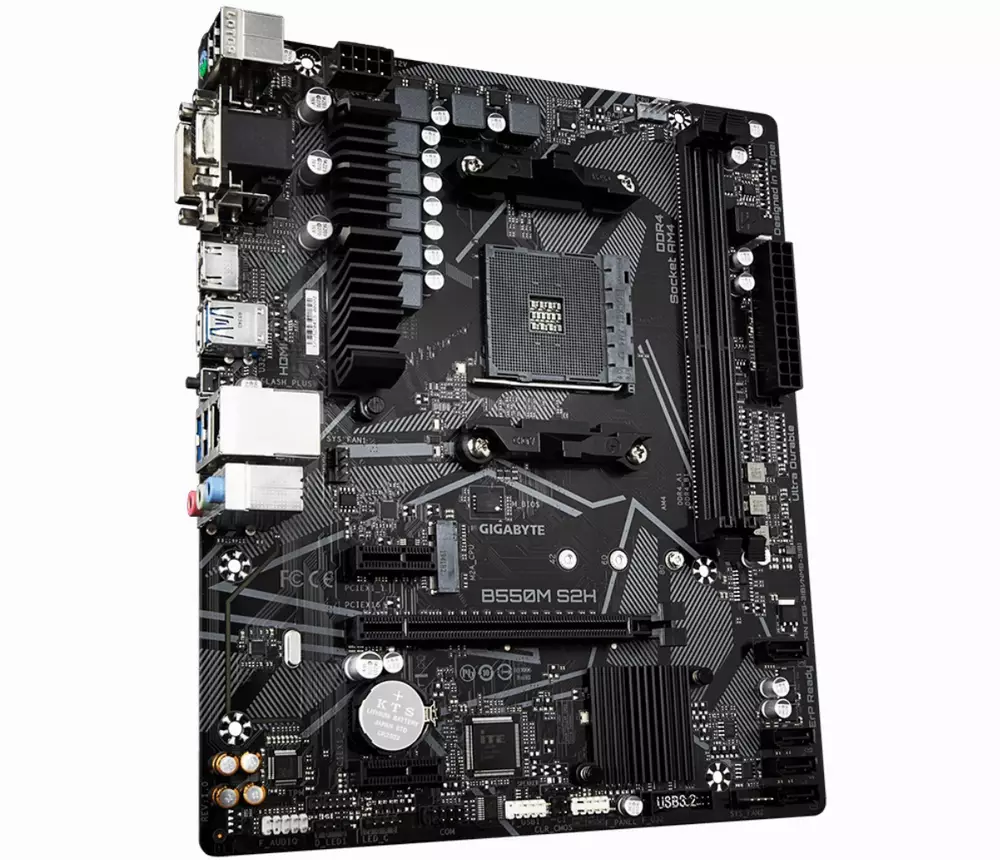

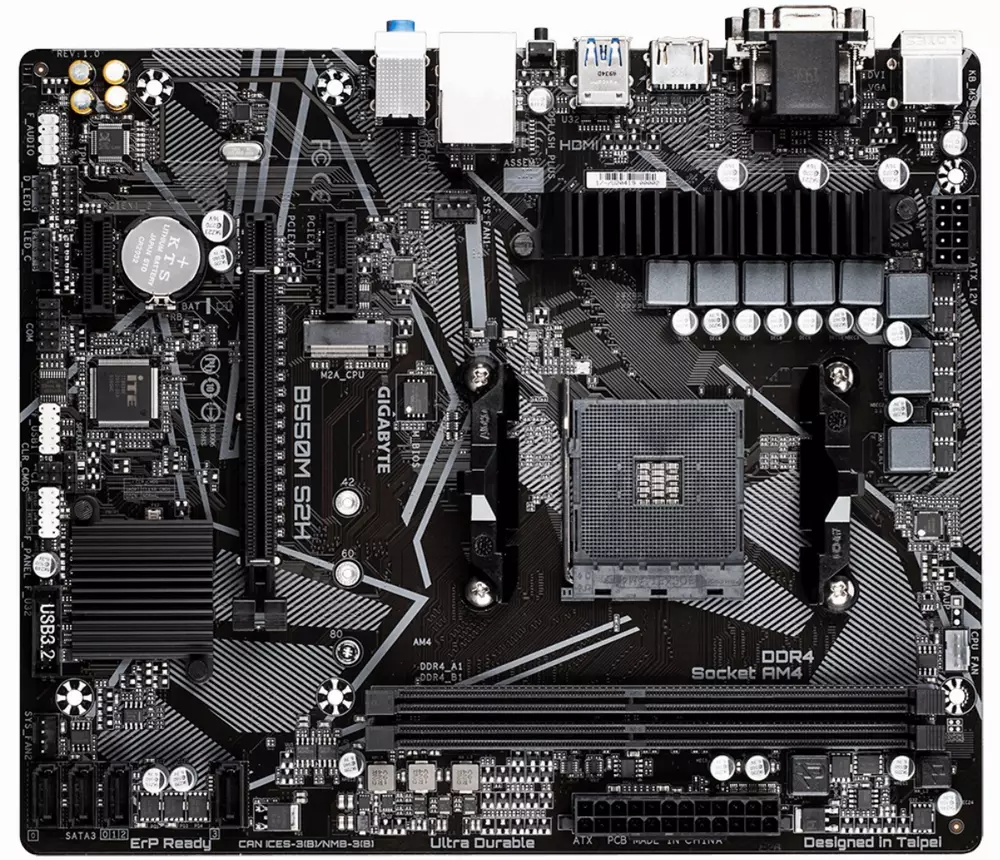

Дънна платка GIGABYTE B550M S2H
| Производител | Gigabyte |
| Продуктов код | B550M S2H |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD B550 |
| Форм фактор | Micro ATX |
| Поддържани процесори | Build in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 2 |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет (MHz) | до 5100MHz (O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC887 |
| Вграден LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs |
| Разширителни слотове | 1 x PCI Express x16 slot, integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers) |

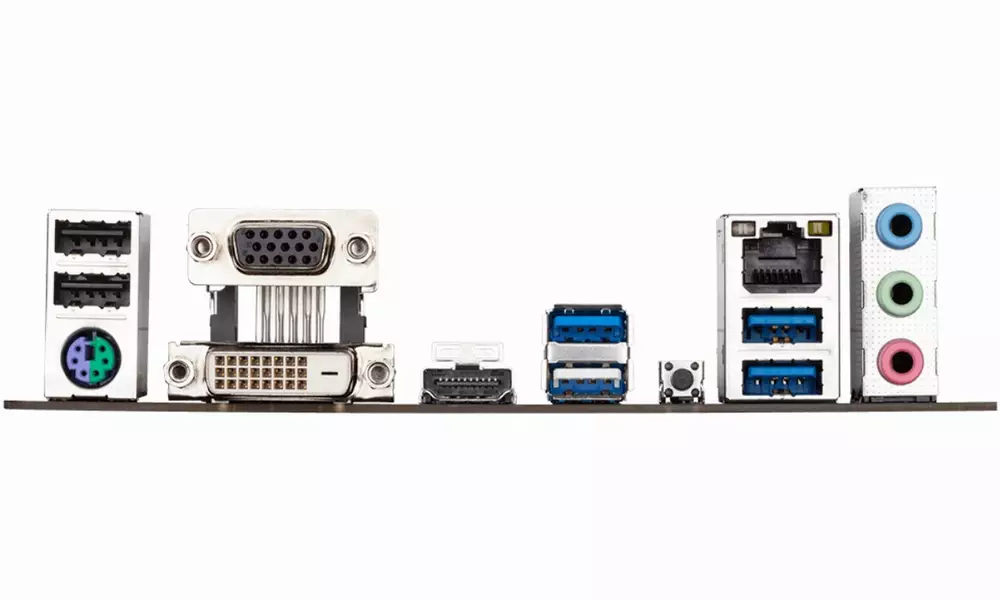

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Графика | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB |
| Размери | 24.4cm x 20.5cm |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
