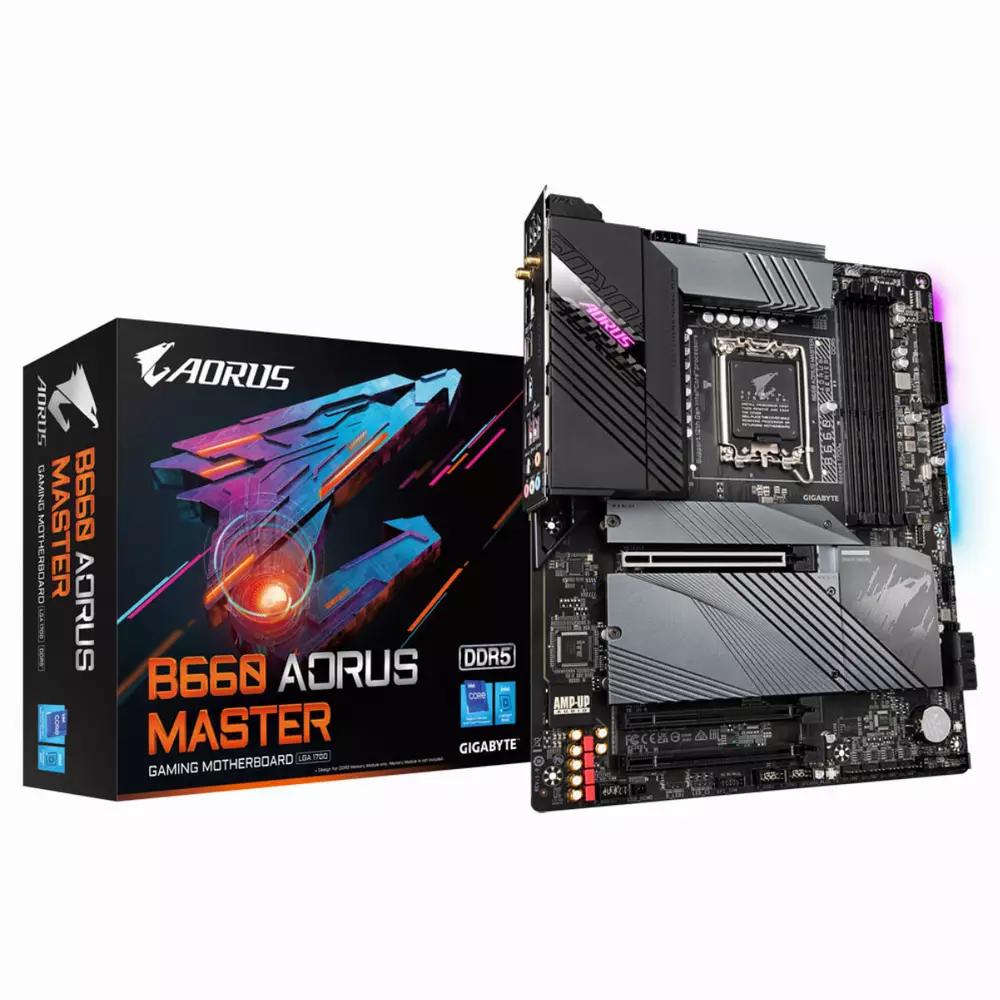

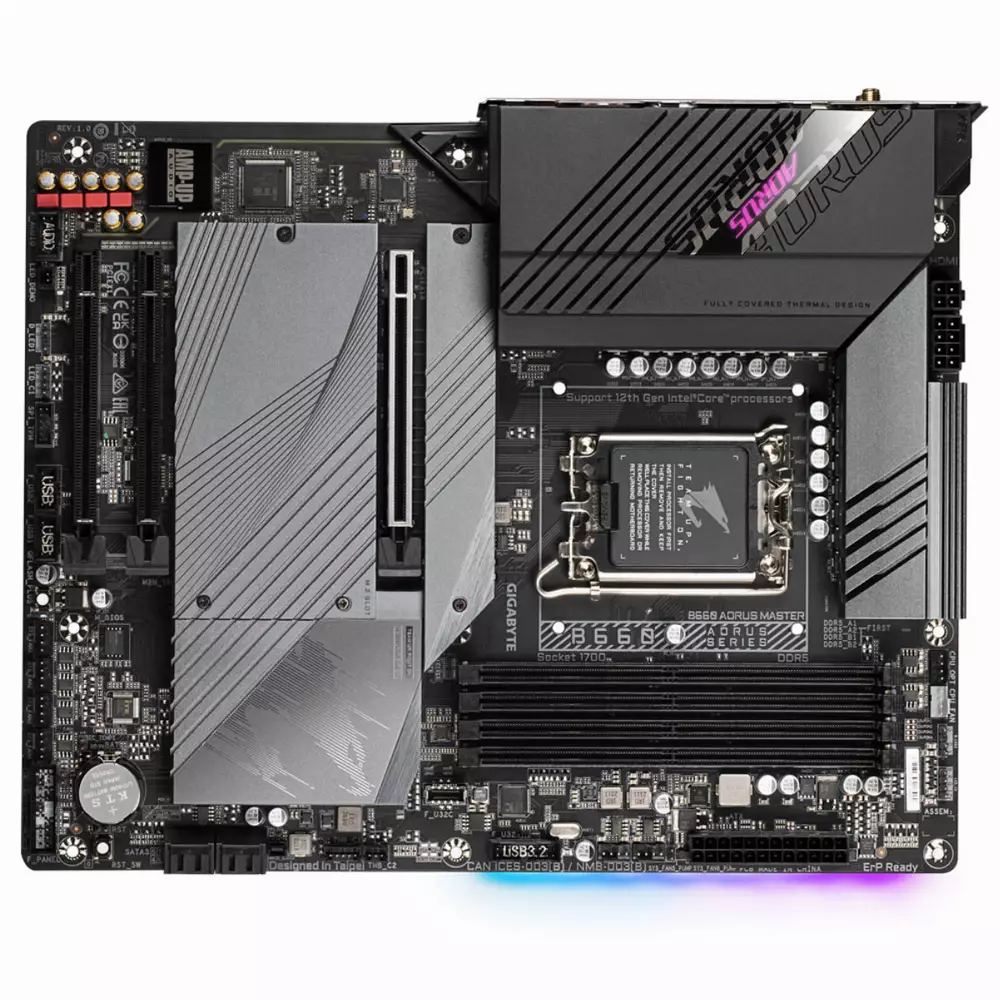

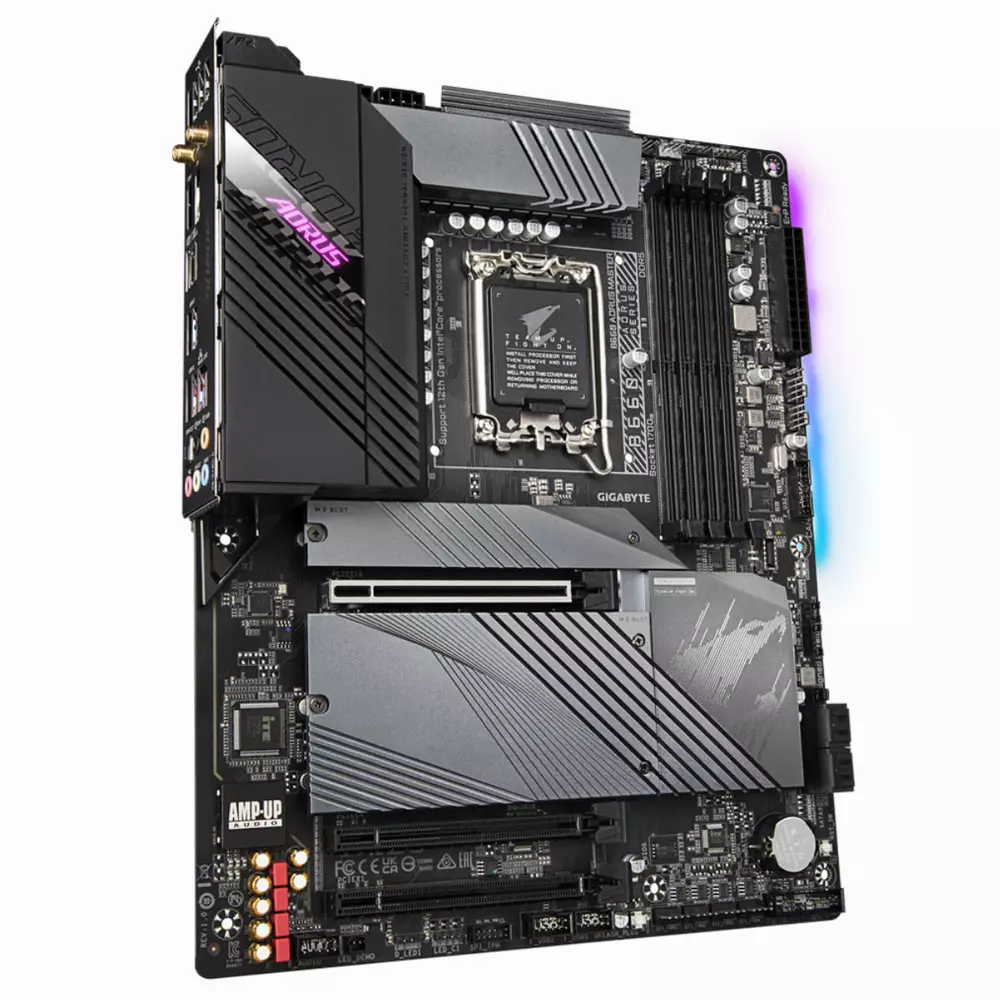

Дънна платка Gigabyte B660 AORUS MASTER DDR5 LGA1700
| Производител | Gigabyte |
| Продуктов код | B660 AORUS MASTER 1.0 |
| CPU сокет | LGA 1700 |
| Чипсет (MB) | Intel B660 |
| Форм фактор | ATX |
| Поддържани процесори | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Поддържана памет | DDR5 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 6000MHz OC |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1220-VB |
| Вграден Wi-Fi | WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band |
| Bluetooth версия | Bluetooth V5.2 |
| Вграден LAN | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel |
| Заден I/O панел | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI 2.0 port 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) |
| Мулти GPU технология | AMD Quad-GPU CrossFire and 2-Way AMD CrossFire |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10, Microsoft Windows 11 |
| Поколение процесор | 12-то поколение 13-то поколение 14-то поколение |
| Гаранция | 36 месеца |
