Gigabyte B760M DS3H WIFI6E GEN5 LGA1700 Motherboard

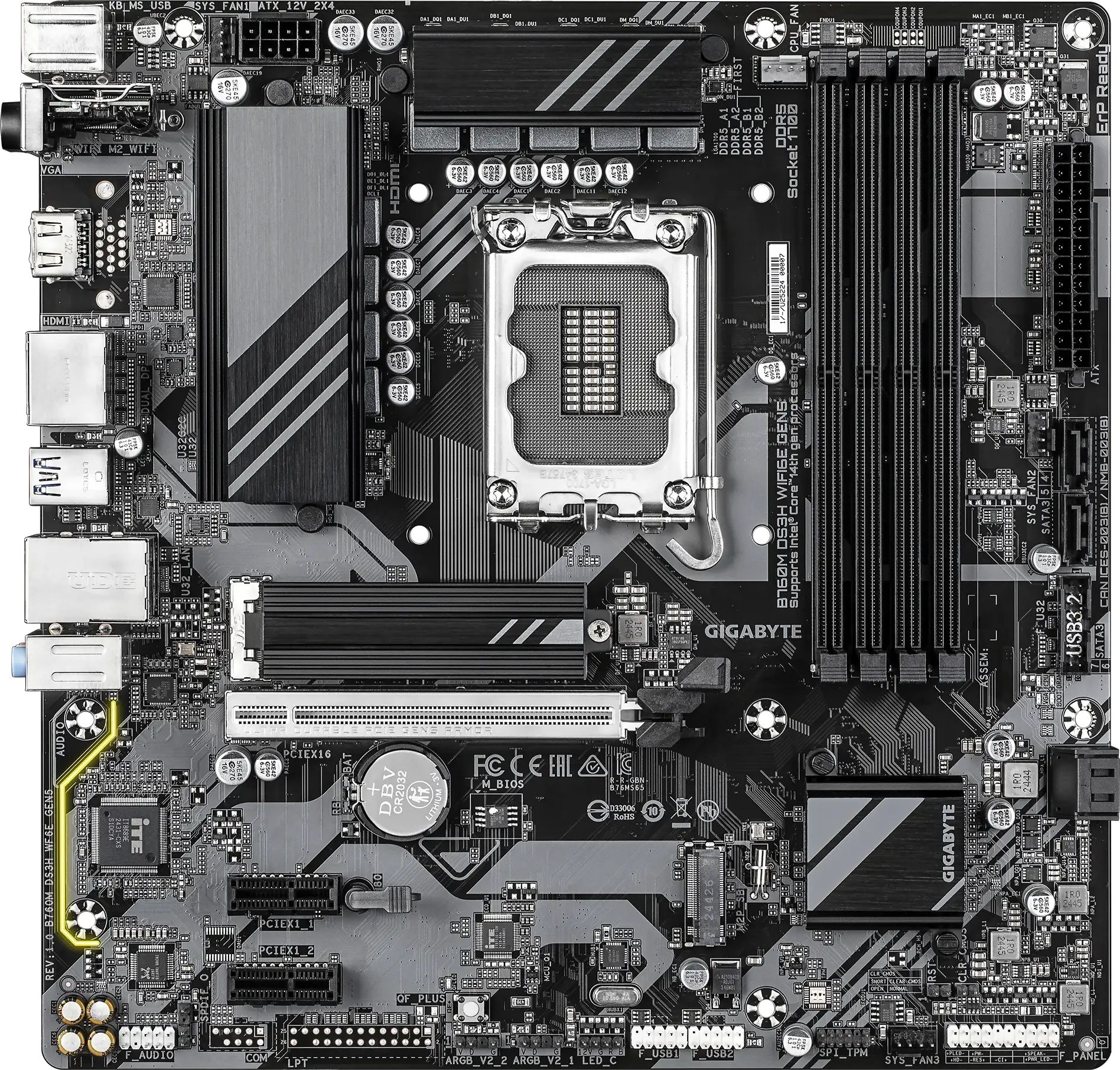

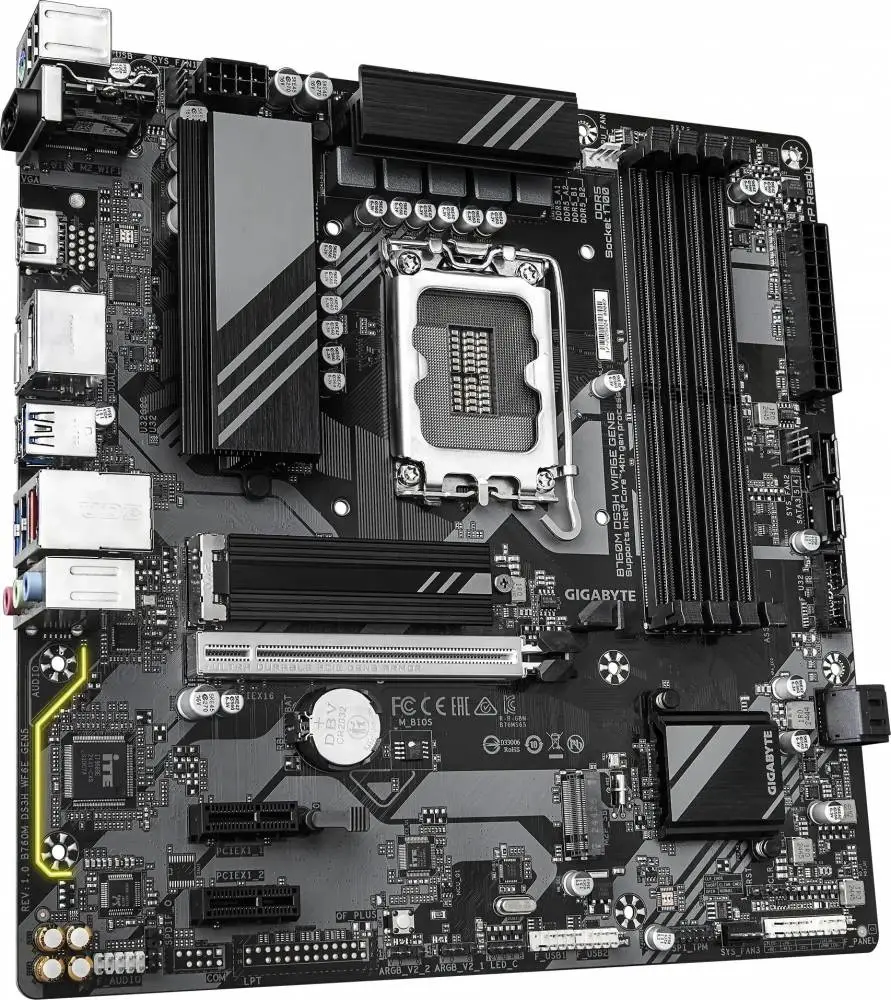

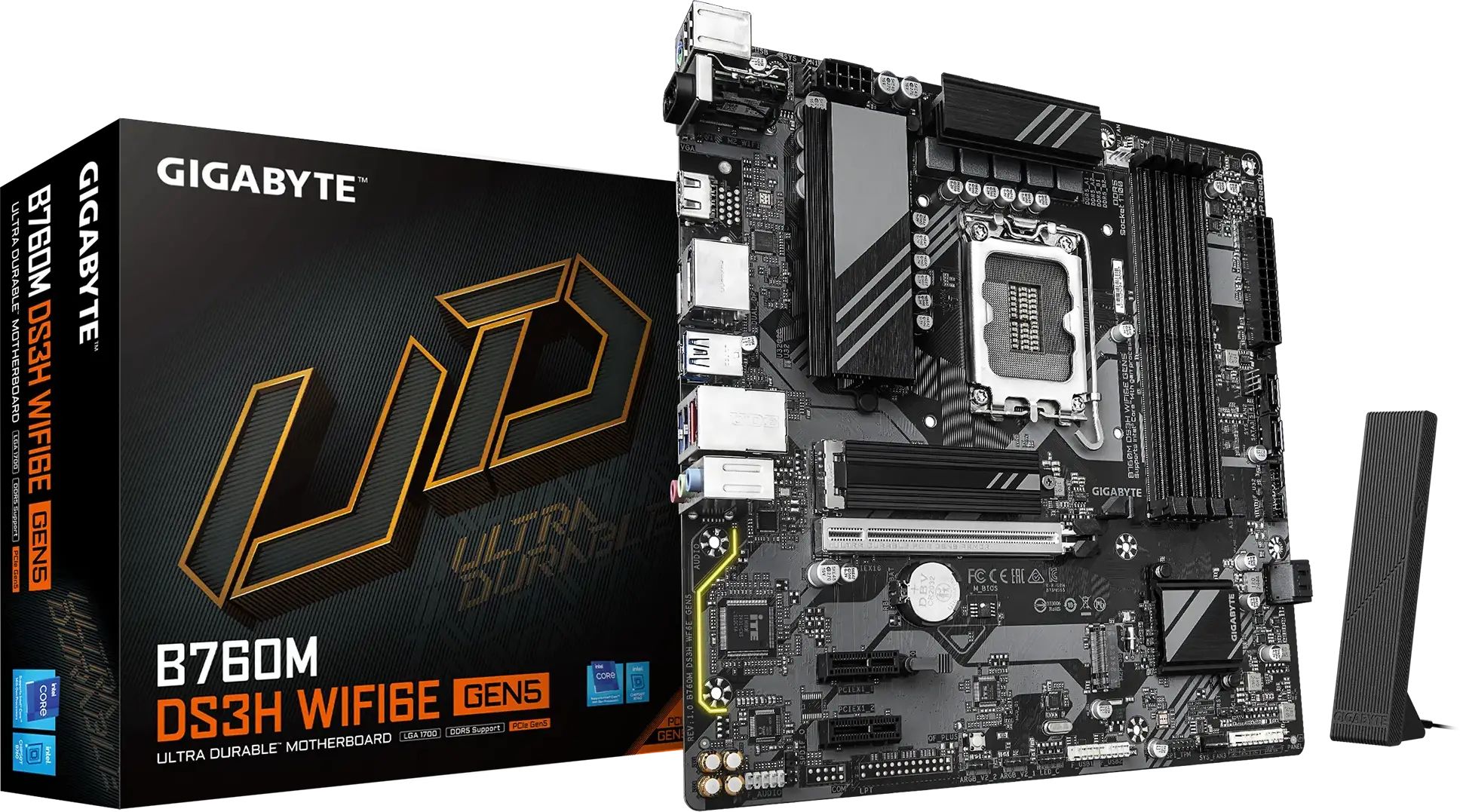

Gigabyte B760M DS3H WIFI6E GEN5 is a Micro ATX motherboard for LGA1700, aimed at stable mid-range gaming and productivity configurations. It is based on the Intel B760 chipset and supports DDR5 memory up to 7600 MHz (OC), giving you plenty of freedom for fast RAM and higher FPS in games that love frequency. It is compatible with 12th, 13th, and 14th Gen Intel Core processors, so you can start with a more affordable CPU and then upgrade without changing the motherboard. Add to that WiFi 6E, 2.5GbE LAN, and a PCIe 5.0 x16 slot, and you have a fully modern base for a current build.

What you get

The LGA 1700 socket and the Intel B760 chipset provide you with direct support for several generations of Intel Core, which is important if you plan upgrades in the coming years. The four DDR5 slots with a capacity of up to 256 GB and a frequency of up to 7600 MHz OC are more than enough for heavy multitasking, streaming, and working on large projects. The two M.2 slots (one to the CPU and one to the chipset) with PCIe 4.0 x4 support provide space for fast NVMe SSDs, so Windows and games load noticeably faster than classic SATA SSDs. The main PCIe 5.0 x16 slot allows you to install a current GPU and be assured that you won’t be bottlenecking it in terms of interface. The built-in WiFi 6E and 2.5GbE LAN cover both fast wireless and wired connections, which is golden for online gaming and large file transfers.

• Support for 14th, 13th, and 12th Gen Intel Core processors on the LGA 1700 socket gives you a wide choice of CPUs – from budget to high-end.
• DDR5 memory with up to 4 slots, total capacity up to 256 GB, and frequencies up to 7600 MHz OC, suitable for high fps gaming and serious multitasking.
• Dual-channel memory provides higher real bandwidth compared to single channel configurations.
• Main PCI Express x16 slot with PCIe 5.0 support for a video card or NVMe SSD, ensuring maximum bandwidth for future GPUs.
• Two M.2 slots (PCIe 4.0 x4/x2, 2280) – one to the CPU and one to the chipset, allowing fast NVMe SSDs for the operating system and games.
• 4 x SATA3 6.0 Gb/s ports for classic 2.5"/3.5" SSDs and hard drives, convenient for archiving, game library, and media.
• Built-in WiFi 6E (802.11ax) and Bluetooth 5.3, plus Realtek 2.5GbE LAN, so you are ready for fast internet and peripherals without additional cards.
• Built-in audio with Realtek Audio CODEC, providing decent sound for gaming, movies, and chat without the need for a separate sound card.
• Standard 24-pin + 8-pin power connectors, making the motherboard compatible with most modern ATX power supplies.
• Official support for Windows 11 64-bit, so you are covered for the current desktop platform from Microsoft.

Who is this motherboard suitable for?

This motherboard is a good choice for compact Micro ATX gaming and all-round configurations based on Intel 12/13/14 Gen – 1080p and 1440p gaming, streaming, office, and home studio. If you need a platform for serious overclocking or an extreme number of M.2/SATA devices, you might want to look at a higher-end chipset and larger form factor.

The most sensible aspect here is the combination of DDR5 support, PCIe 5.0 x16 slot, and built-in WiFi 6E + 2.5GbE in a compact Micro ATX body – you get a modern foundation for a current Intel build without unnecessary extras that you won’t use.
