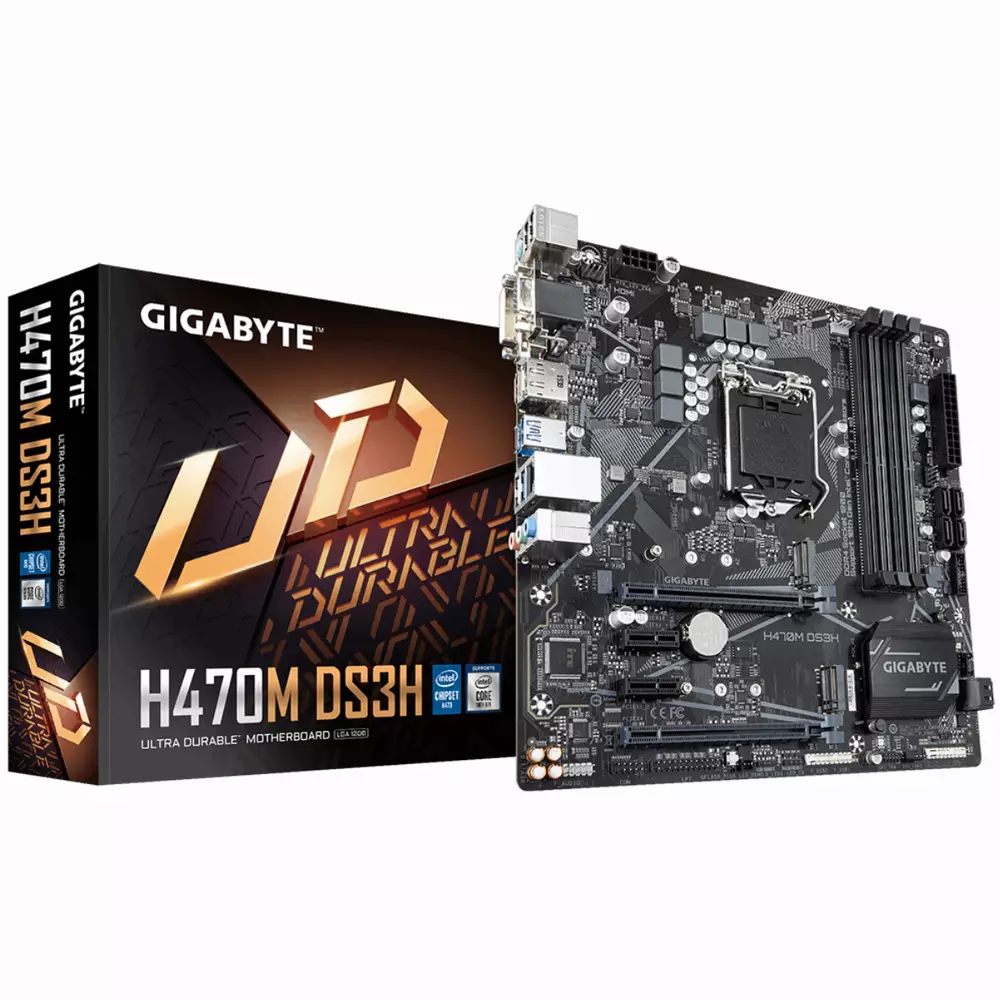

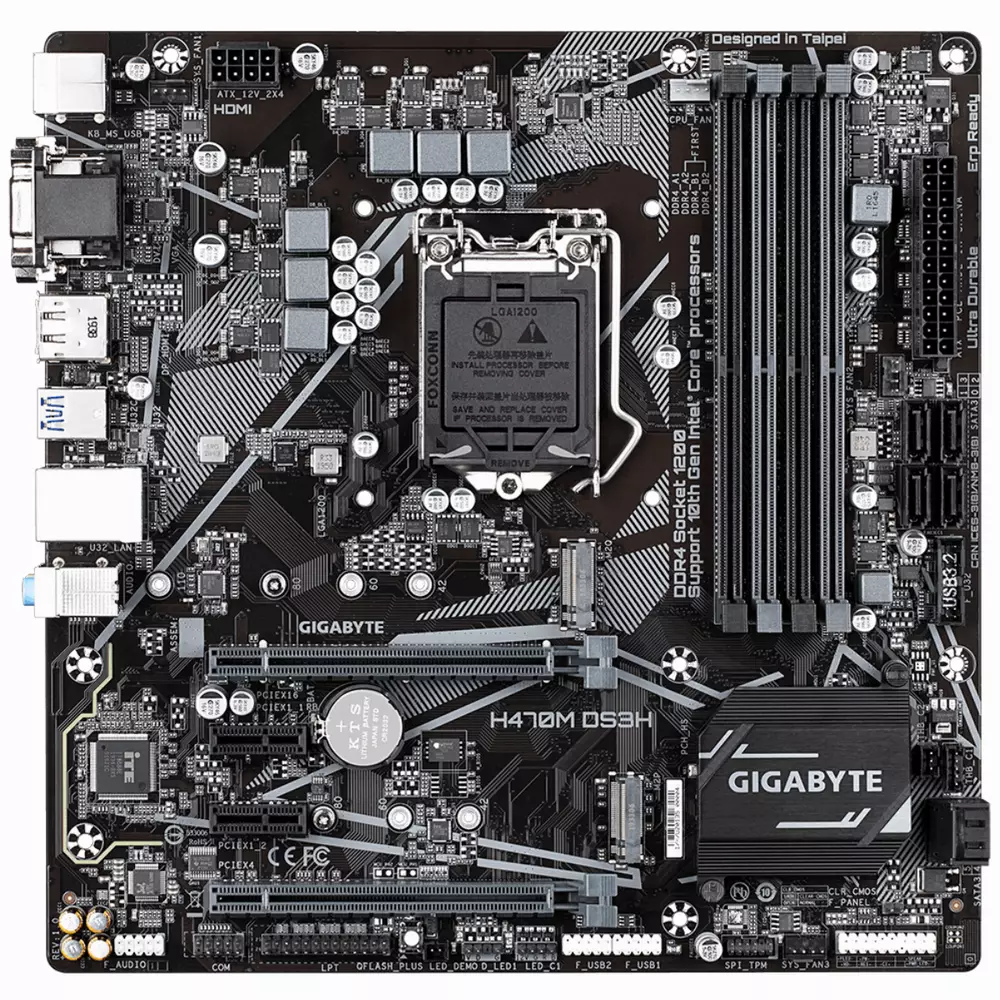

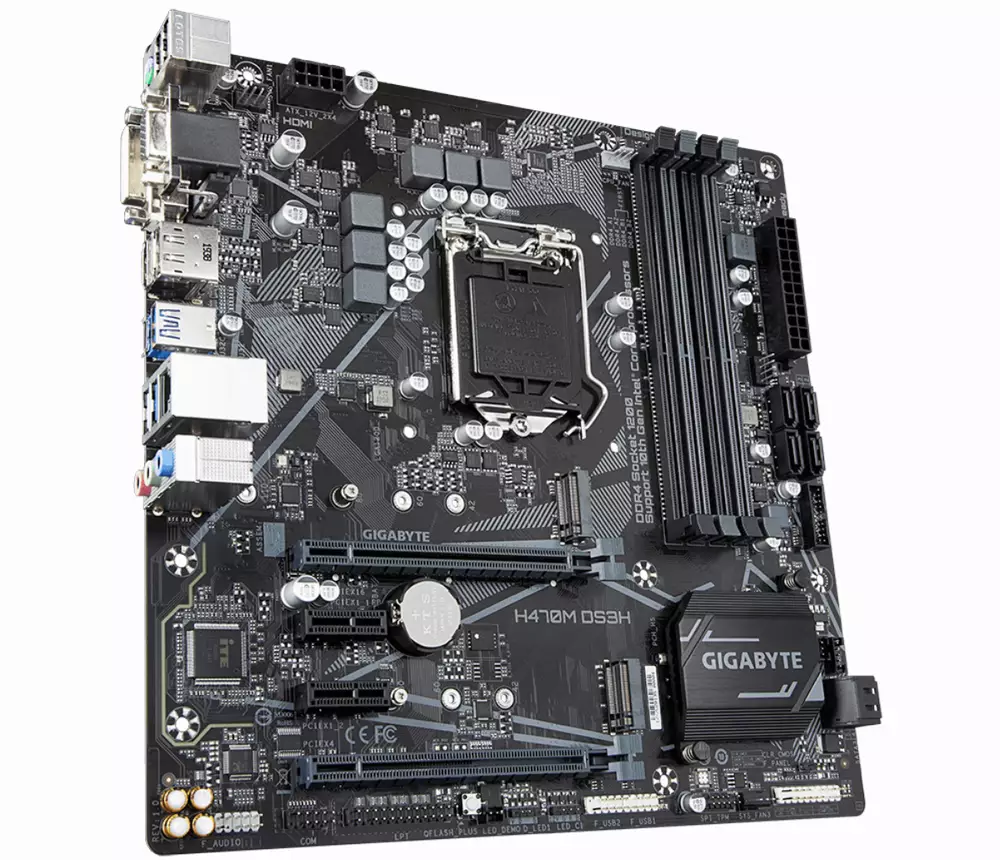

Дънна платка GIGABYTE H470M DS3H
| Производител | Gigabyte |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel H470 |
| Форм фактор | Micro ATX |
| Поддържани процесори | Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 2933 MHz |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC892 |
| Вграден LAN | Intel GbE LAN chips (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

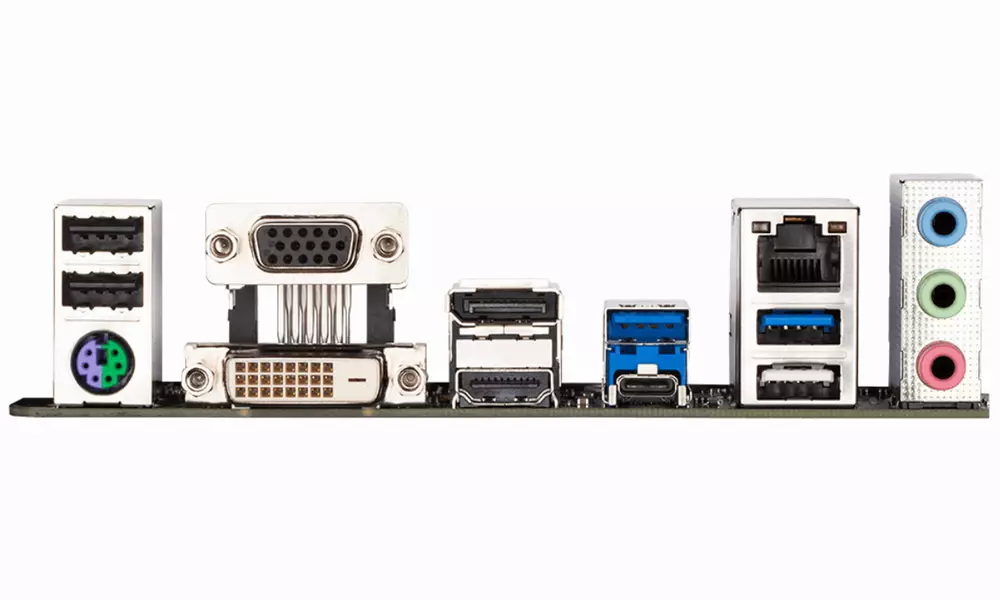

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 512 MB |
| Мулти GPU технология | AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology |
| Bios | BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 24.4 cm x 24.4 cm |
| Поколение процесор | 10-то поколение |
| Гаранция | 36 месеца |
