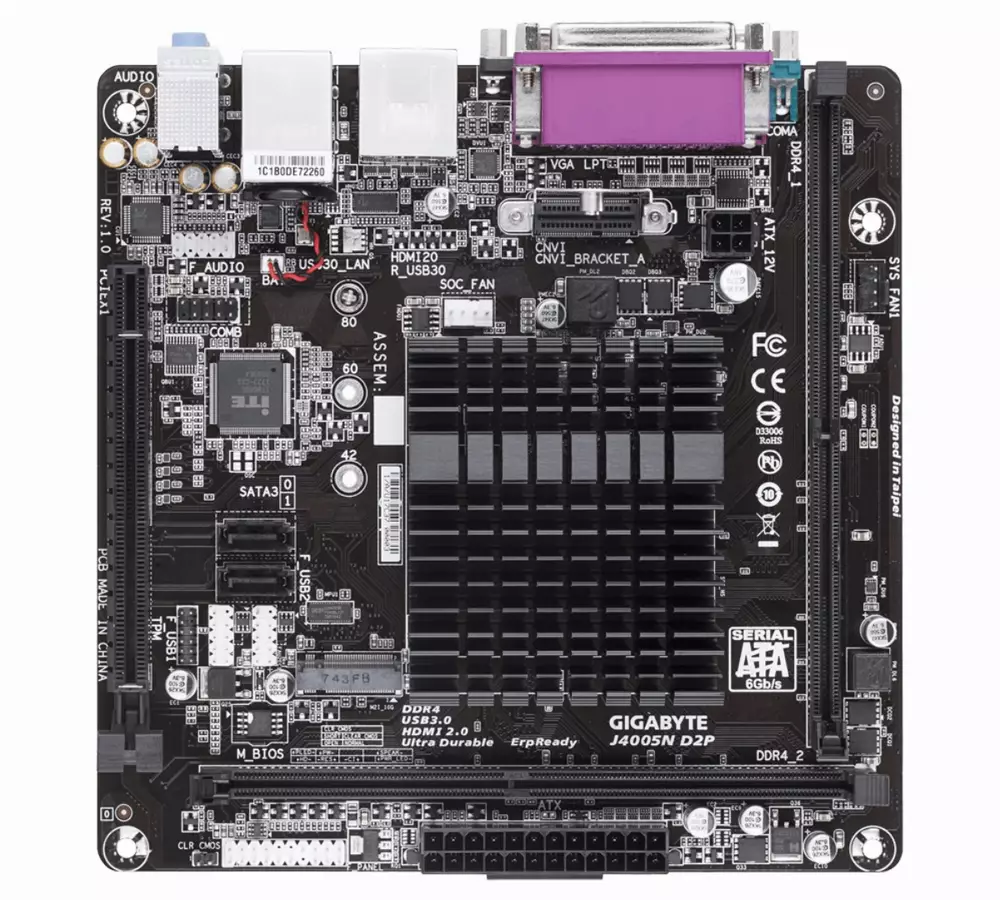

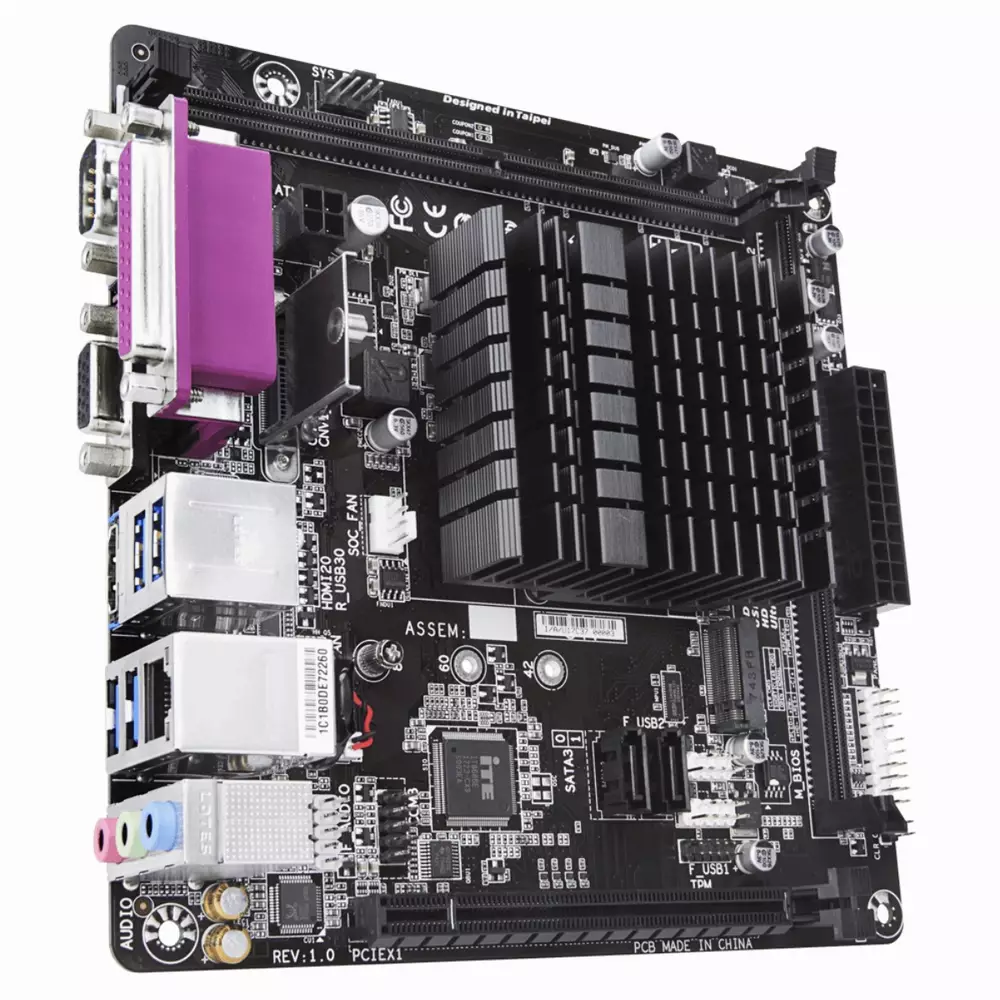

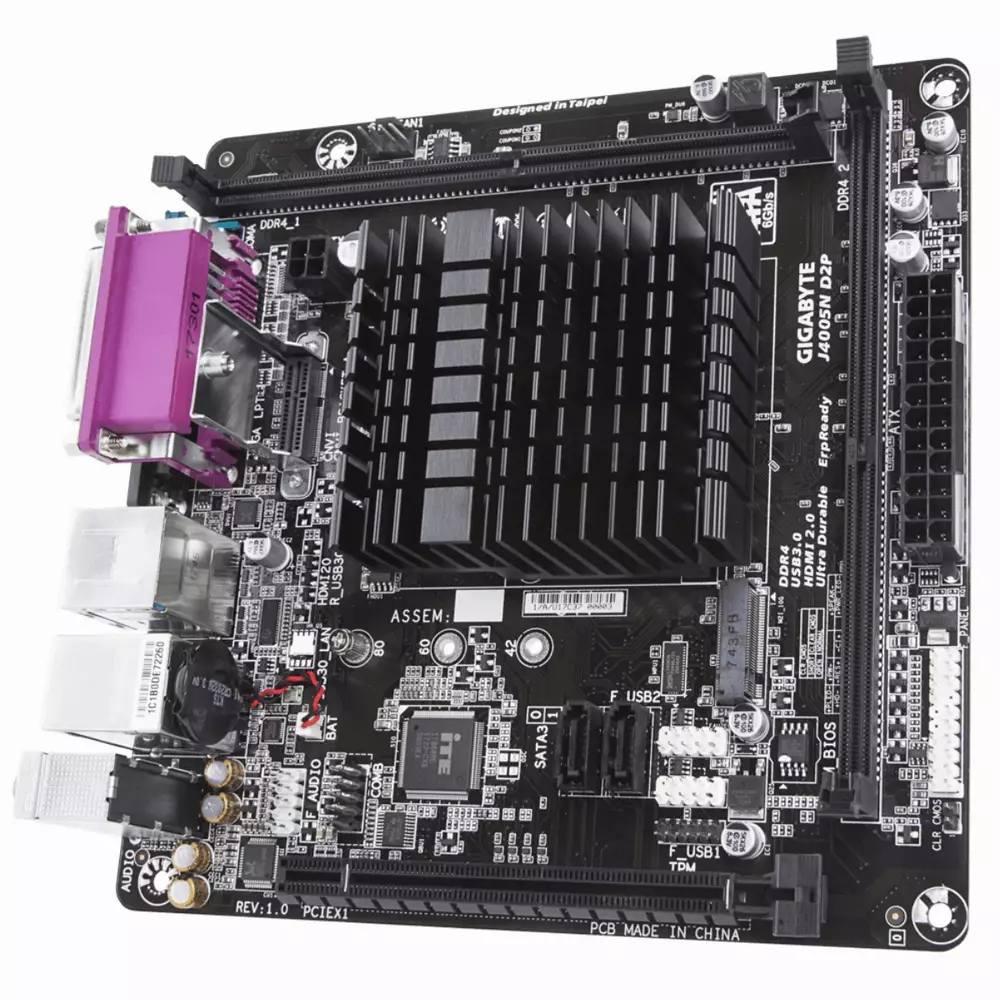

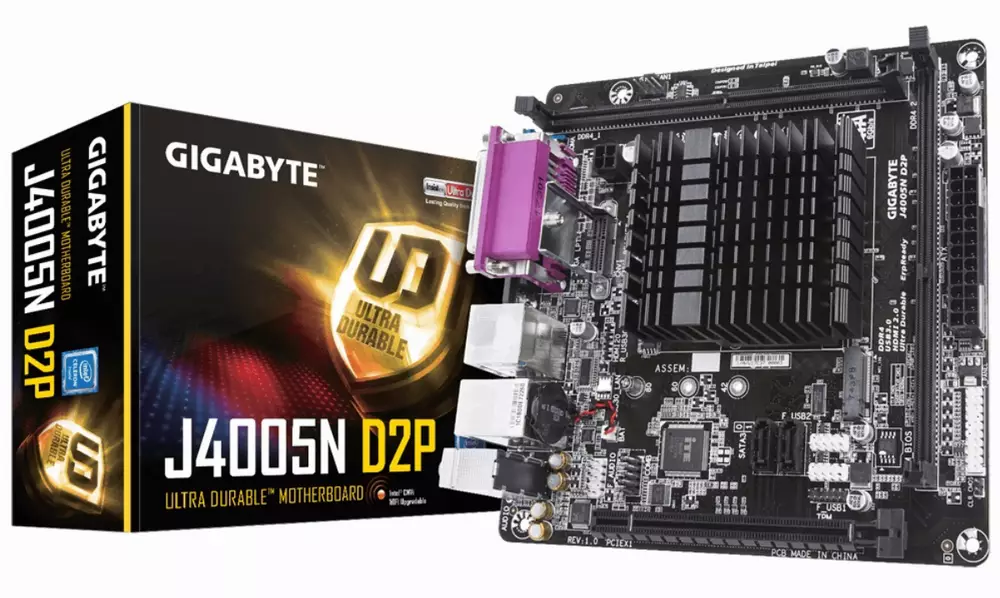

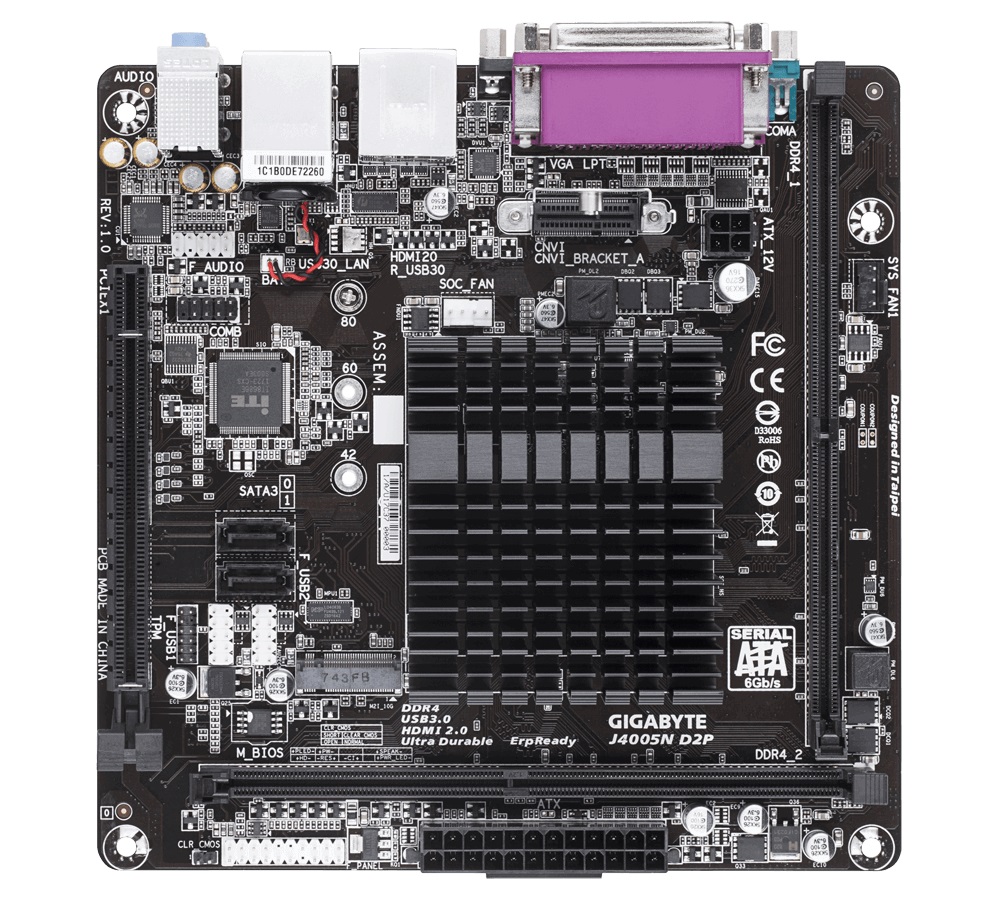

Дънна платка GIGABYTE J4005N D2P, Intel Dual-Core Celeron J4005 SoC
| Производител | Gigabyte |
| CPU сокет | SoC |
| Чипсет (MB) | Intel SoC |
| Форм фактор | Mini ITX |
| Поддържани процесори | Built in with an Intel® Dual-Core Celeron® J4005 SoC (2.7 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 4 MB Cache |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 2 |
| Максимален капацитет RAM памет | 16 GB |
| Честота памет (MHz) | 2400/2133 |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Вграден LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Интерфейс SATA | 2 x SATA3 6.0 Gb/s |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x1 (The PCIEX16 slot conforms to PCI Express 2.0 standard.) 1 x M.2 Socket 1 connector for the wireless communication module (CNVI WIFI-BRACKET) |
| Конектор захранване | 1 x 24 pin 1 x 4 pin |
| USB портове | Integrated in the SoC: 4 x USB 3.1 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB header |

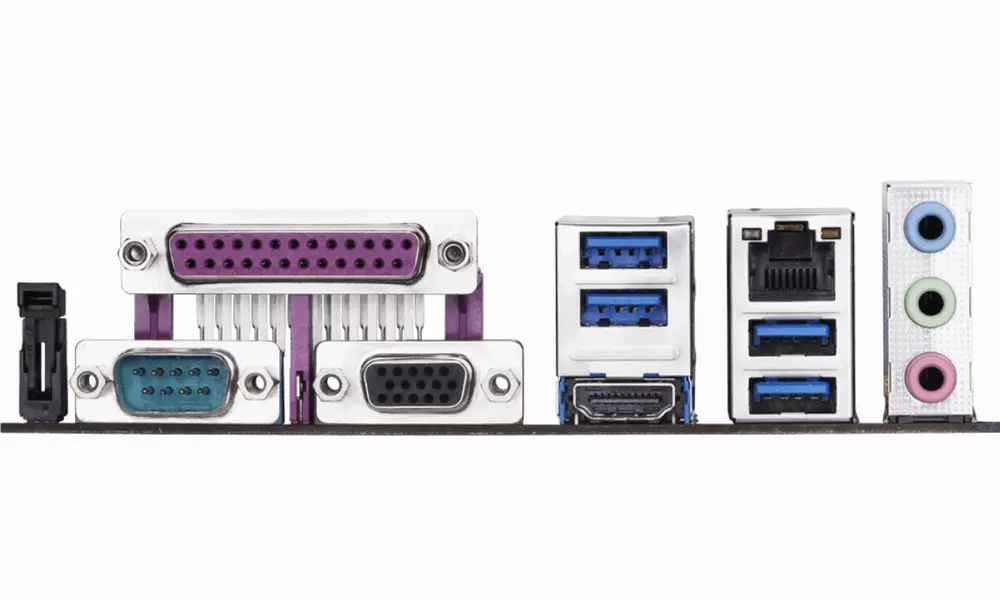

| Заден I/O панел | 1 x parallel port 1 x serial port 1 x D-Sub port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Графика | Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1080@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. |
| Bios | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 17.0cm x 17.0cm |
| OS | Support for Windows 10 64-bit |
| Гаранция | 36 месеца |
