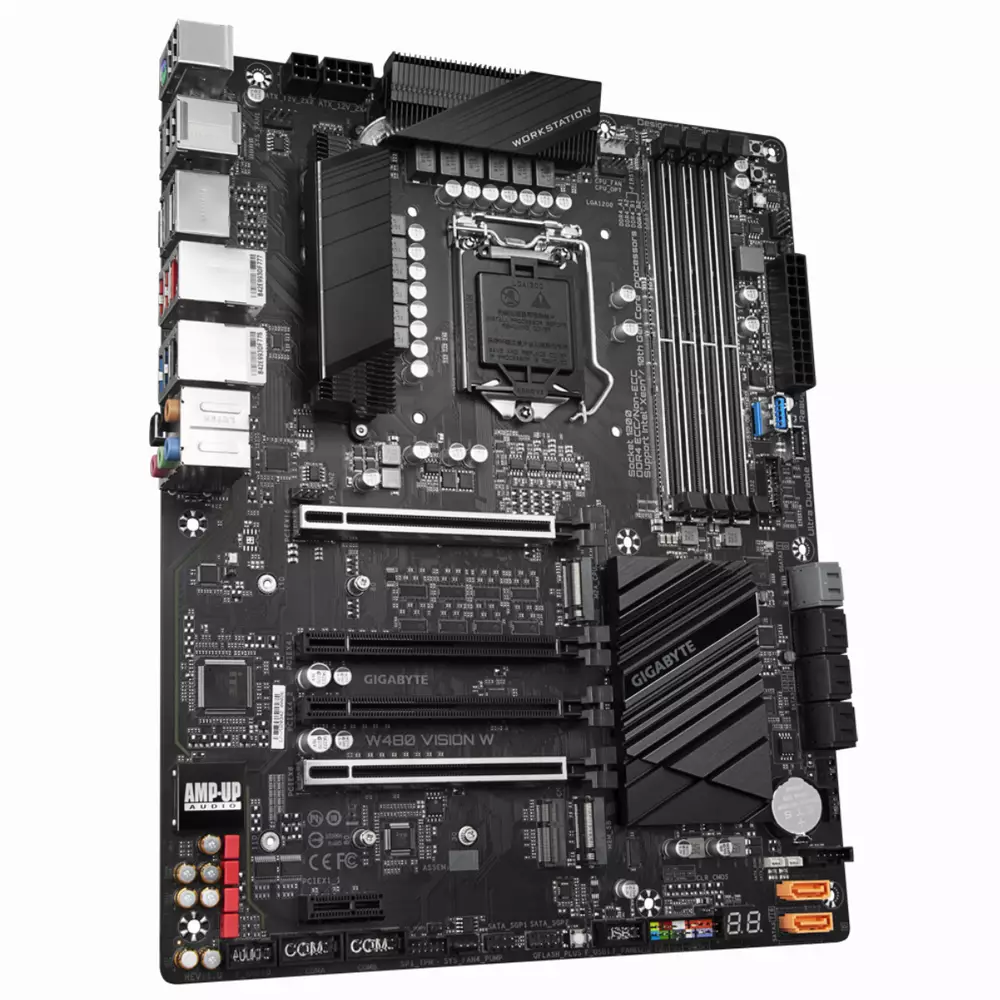

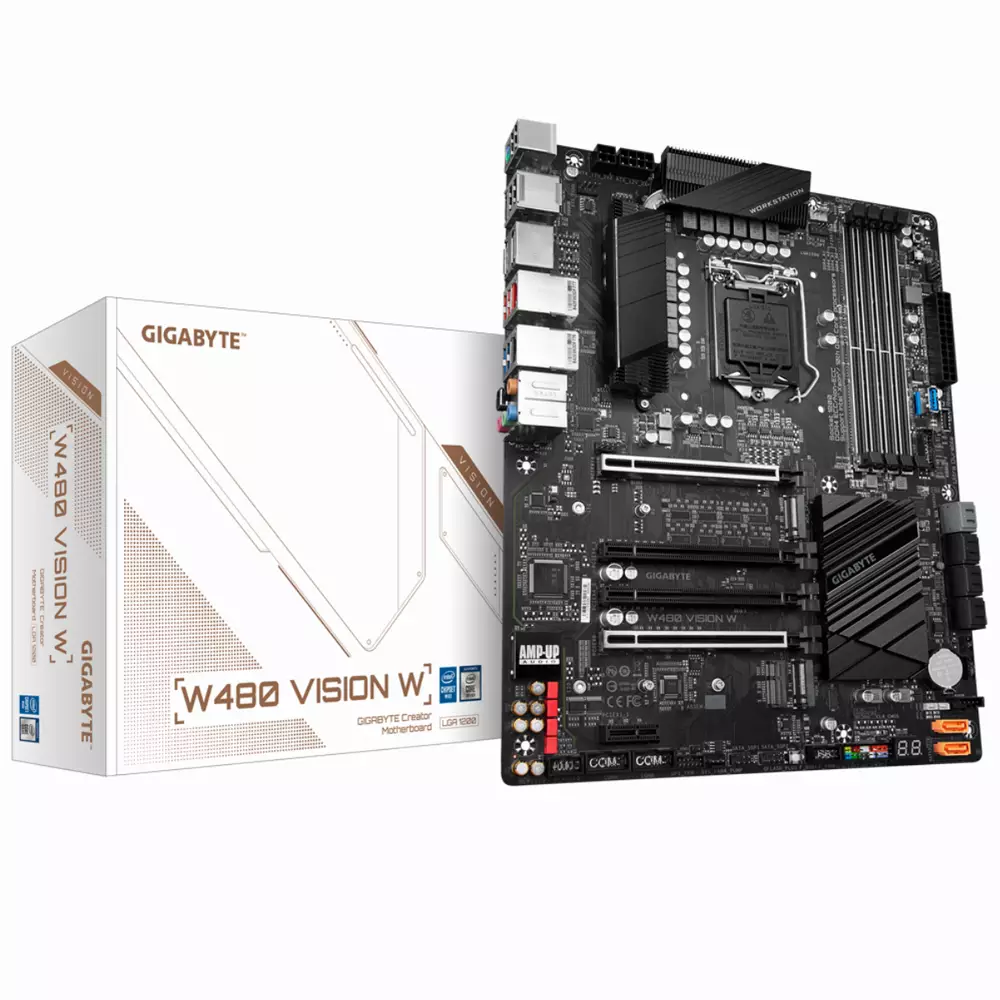

Дънна платка GIGABYTE W480 VISION W
| Производител | Gigabyte |
| Продуктов код | W480 VISION W |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | W480 |
| Форм фактор | ATX |
| Поддържани процесори | LGA1200 package: Intel® Xeon® W series processors 10th Generation Intel® Core™ processors/Intel® Pentium® processors/ Intel® Celeron® processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | До 4400(O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1220-VB |
| Bluetooth версия | Bluetooth V5.0 |
| Вграден LAN | 2 x Intel GbE LAN chips (10/100/1000 Mbit) |
| Интерфейс SATA | 8 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | Intel® Optane™ Memory Ready |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_2 slot shares bandwidth with the M2M_SB connector. The PCIEX4_2 slot becomes unavailable when a device is installed in the M2M_SB connector. 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) Supports up to ASPM L1.2 power management protocols. |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+1 USB 3.2 Hub: 3 x USB 3.2 Gen 1 ports (1 port onboard, 2 ports available through the internal USB header) |

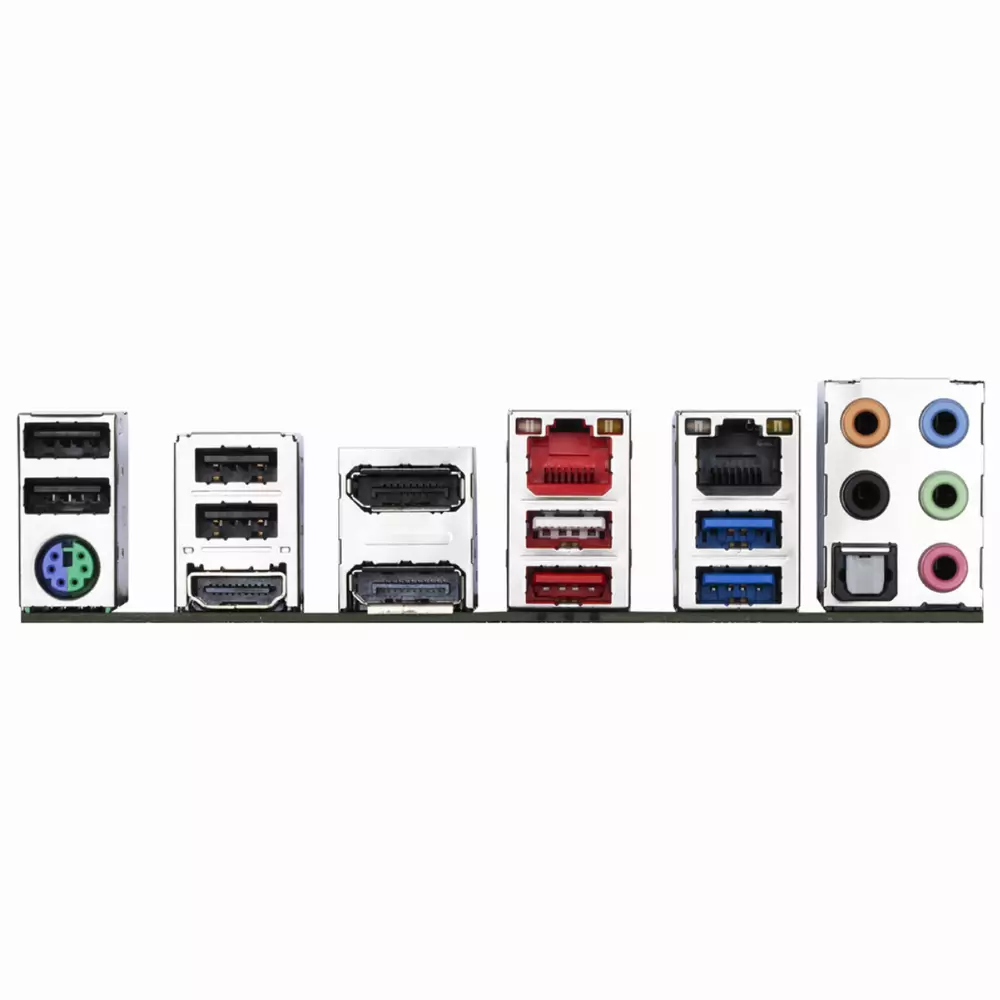

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x HDMI port 2 x DisplayPorts 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
| Графика | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| Мулти GPU технология | NVIDIA 2-Way SLI Technology;AMD 3-Way CrossFireX Technology |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 30.5 cm x 24.4 cm |
| Поколение процесор | 10-то поколение |
| Гаранция | 36 месеца |
