Дънна платка GIGABYTE X570 AORUS ELITE

Name: Дънна платка GIGABYTE X570 AORUS ELITE
Brand: Gigabyte
SKU: 15489
Price: 219.39 EUR
Availability: OutOfStock

Код: 15489

☆☆☆☆☆ 0 ревюта

219.39 €

Спечели 219 точки

Изчерпан

Уведоми ме при наличност

Ще ти изпратим имейл веднага щом продуктът е отново наличен.

✅ Готово! Ще ти пишем, щом е наличен.

CPU сокет: AM4
Чипсет (MB): AMD X570 MB
Форм фактор: ATX
Поддържана памет: DDR4
Брой слотове за памет: 4

Виж всички характеристики

Пълни характеристики

Производител: Gigabyte
CPU сокет: AM4
Чипсет (MB): AMD X570
Форм фактор: ATX
Поддържани процесори: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
Поддържана памет: DDR4
Брой слотове за памет: 4
Максимален капацитет RAM памет: 128 GB
Честота памет (MHz): до 4000MHz (O.C)
Поддръжка на двуканална памет: Да
Вградено аудио: Realtek® ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Вграден LAN: Intel GbE LAN chip (10/100/1000 Mbit)
Интерфейс SATA: 6 x SATA3 6.0 Gb/s
Поддръжка на RAID: 0,1,10
Разширителни слотове: Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
· 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen™ processors only.
2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
* For 3rd Generation AMD Ryzen™ processors only.
Конектор захранване: 1 x 24-pin
1 x 8-pin
Графика: Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB
Мулти GPU технология: AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology
BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Размери: 30.5 cm x 24.4 cm
Поколение процесор: 2-ро поколение
3-то поколение
4-то поколение
Гаранция: 36 месеца
ОС: Support for Windows 10 64-bit
М2 слот: 3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET):
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
USB портове: 4 x USB 3.2 Gen 1 ports on the back panel
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

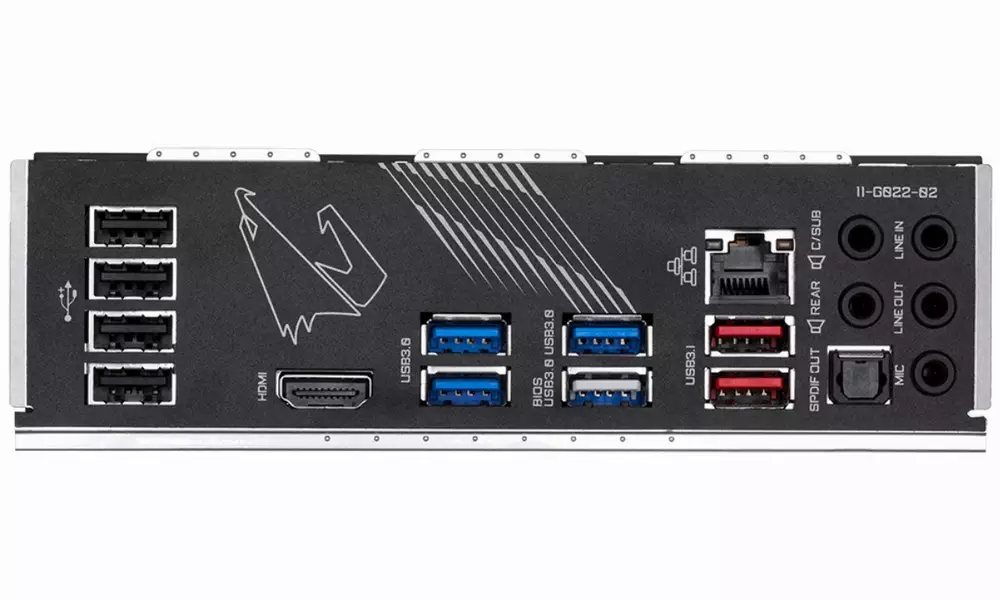

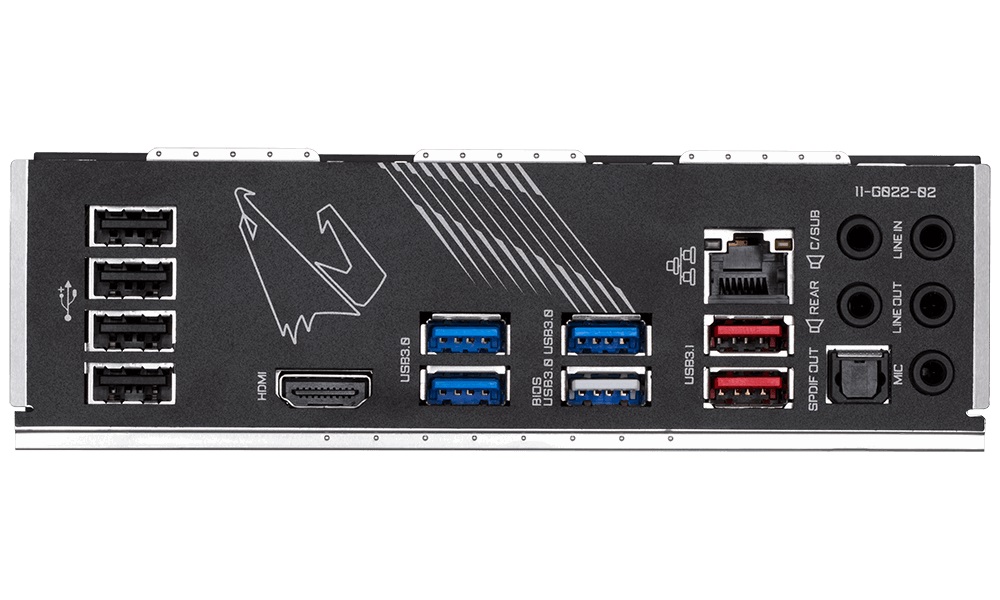

Заден I/O панел: 4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
