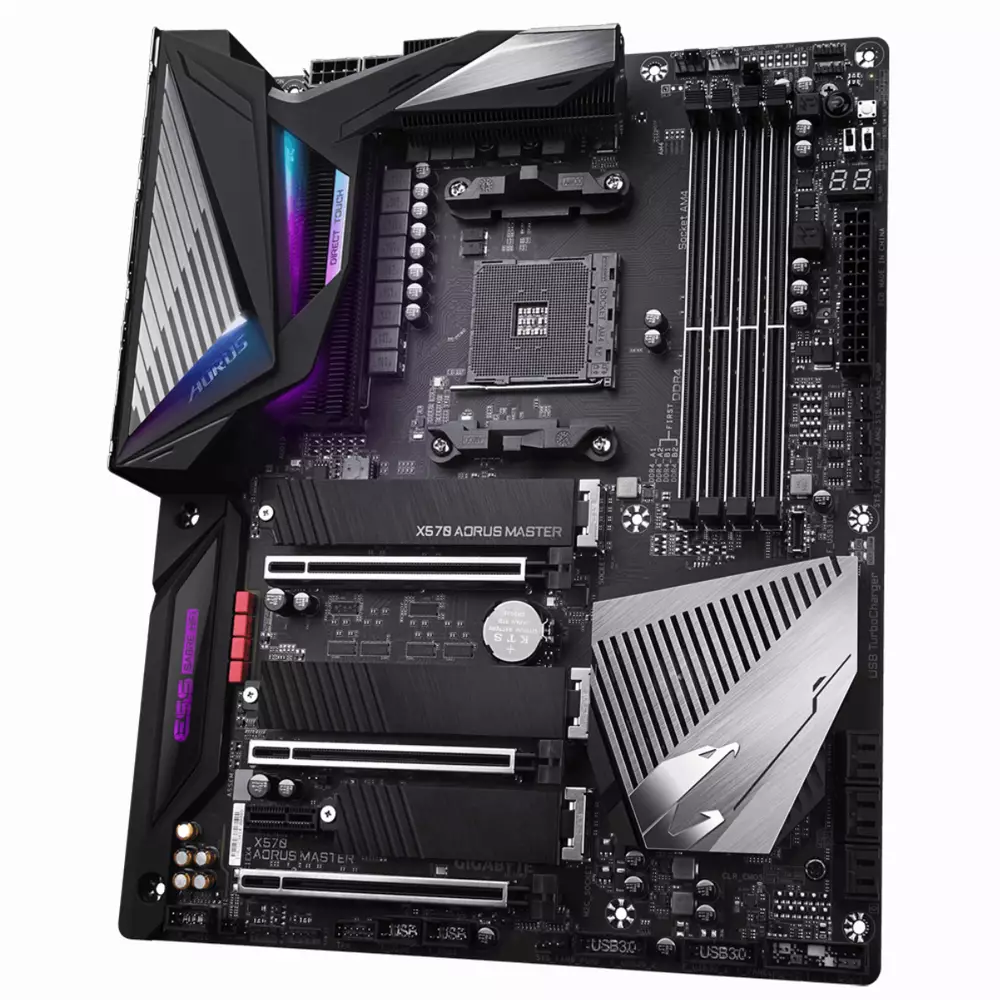

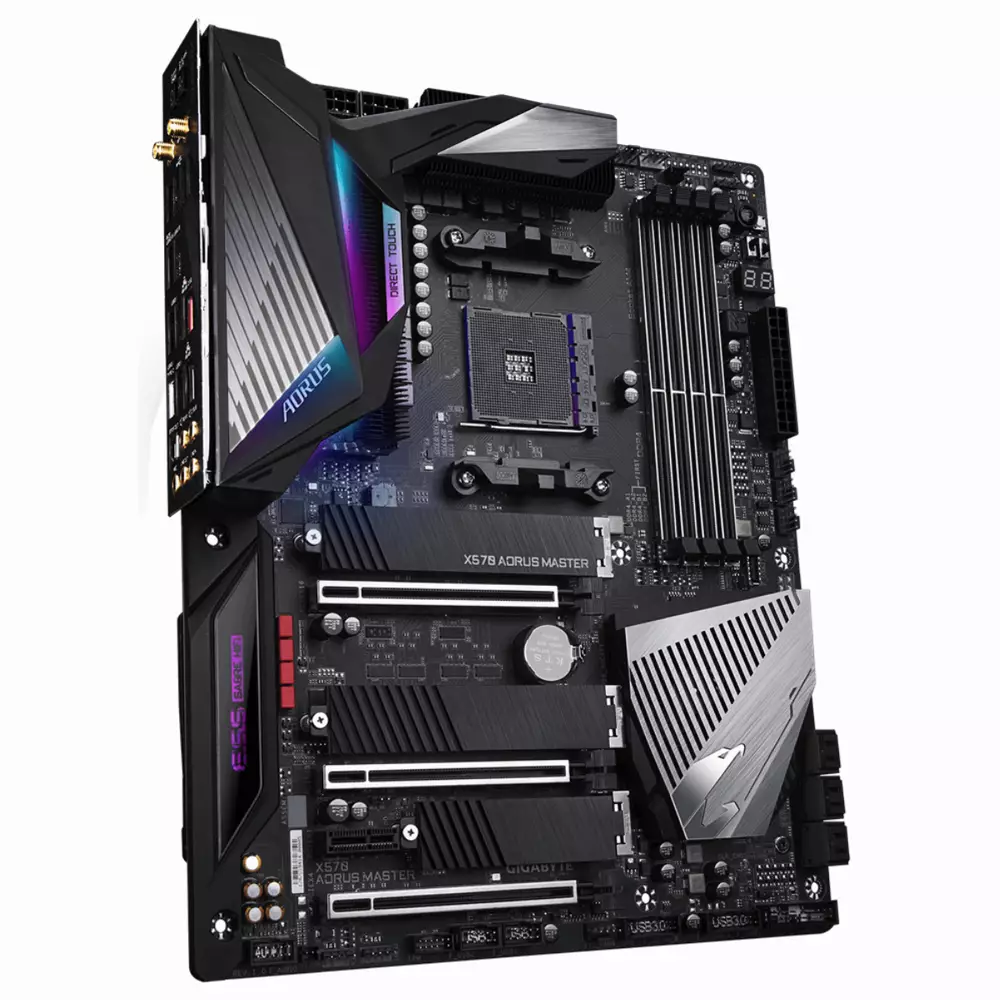

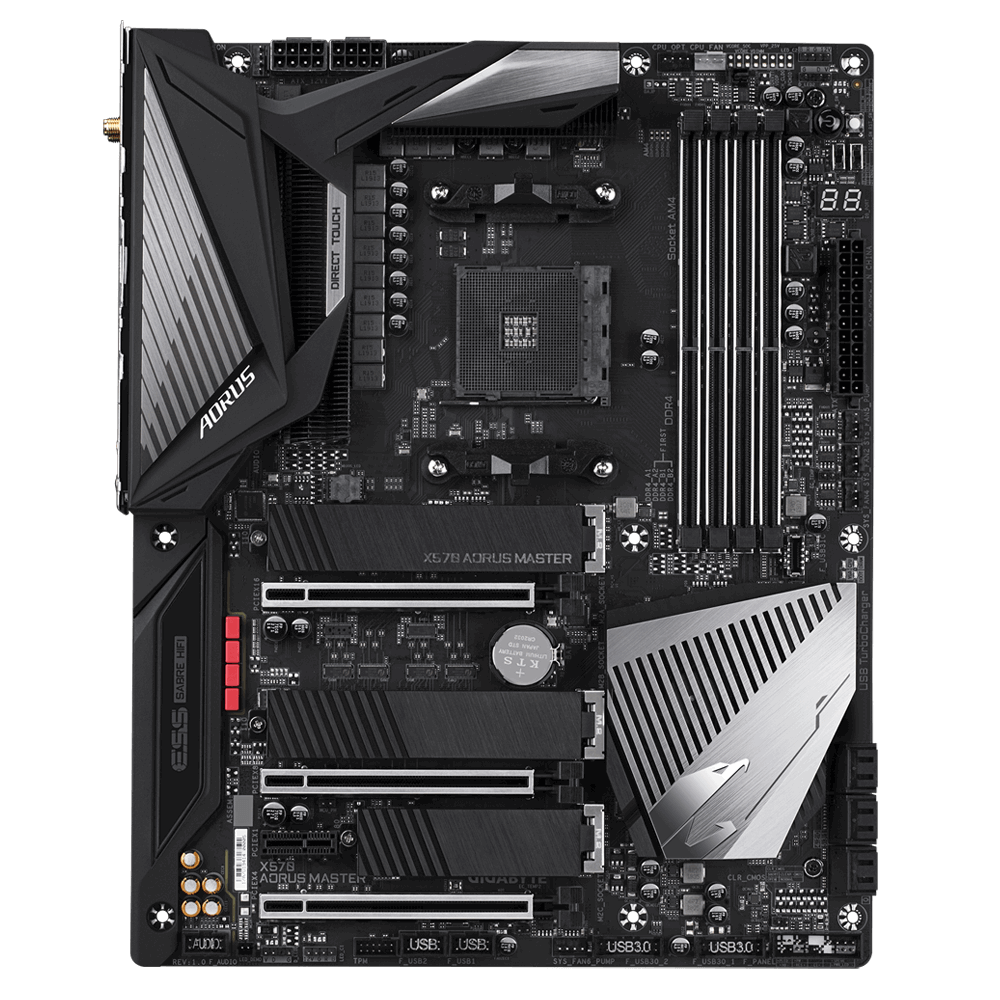

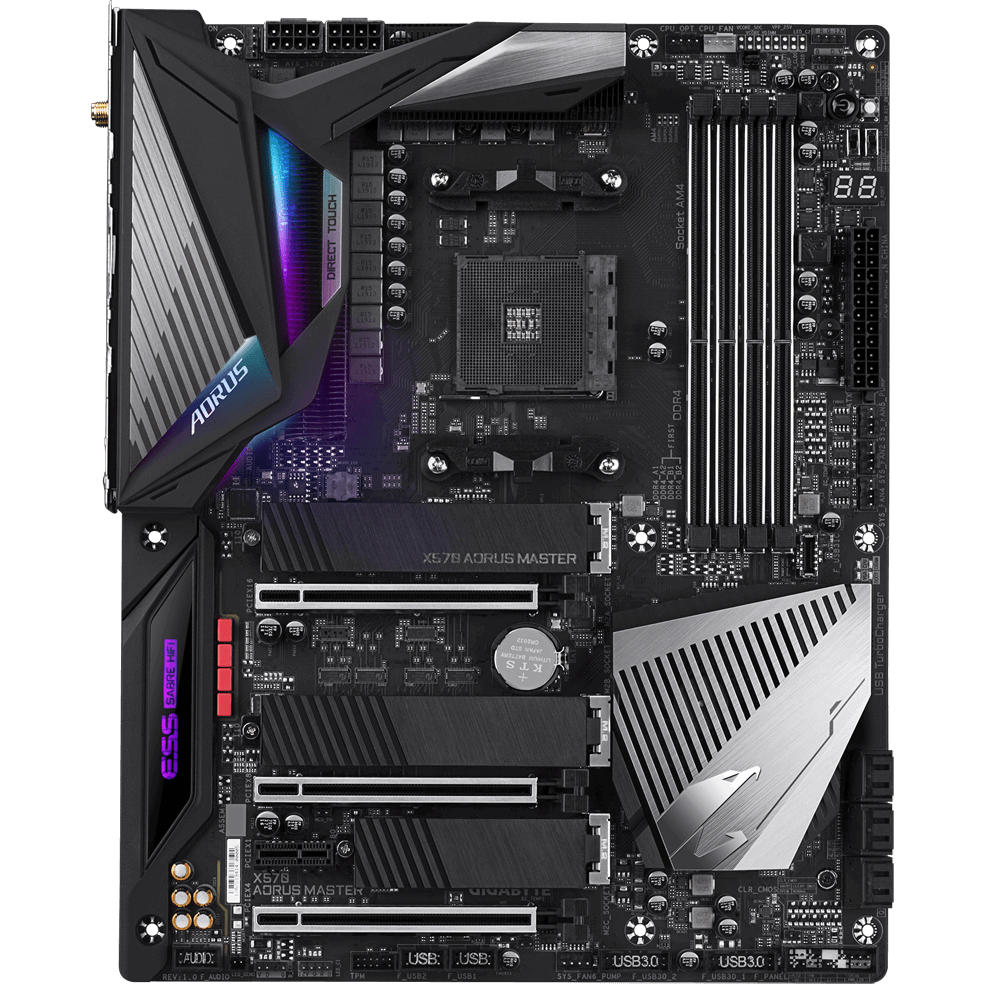

Дънна платка GIGABYTE X570 AORUS Master
| Производител | Gigabyte |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X570 |
| Форм фактор | ATX |
| Поддържани процесори | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™ / 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics / AMD Ryzen™ with Radeon™ Vega Graphics |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | 4400(O.C.)/4300(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.) 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.) 3200/2933/2667/2400/2133 |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1220-VB |
| Вграден Wi-Fi | Wi-Fi 802.11ax |
| Bluetooth версия | Bluetooth V5.0 |
| Вграден LAN | Realtek® RTL8125-CG 2.5G LAN |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 2 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSD support) |
| Разширителни слотове | Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only. |
| Конектор захранване | 1 x 24-pin 2 x 8-pin |
| USB портове | 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB heade 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

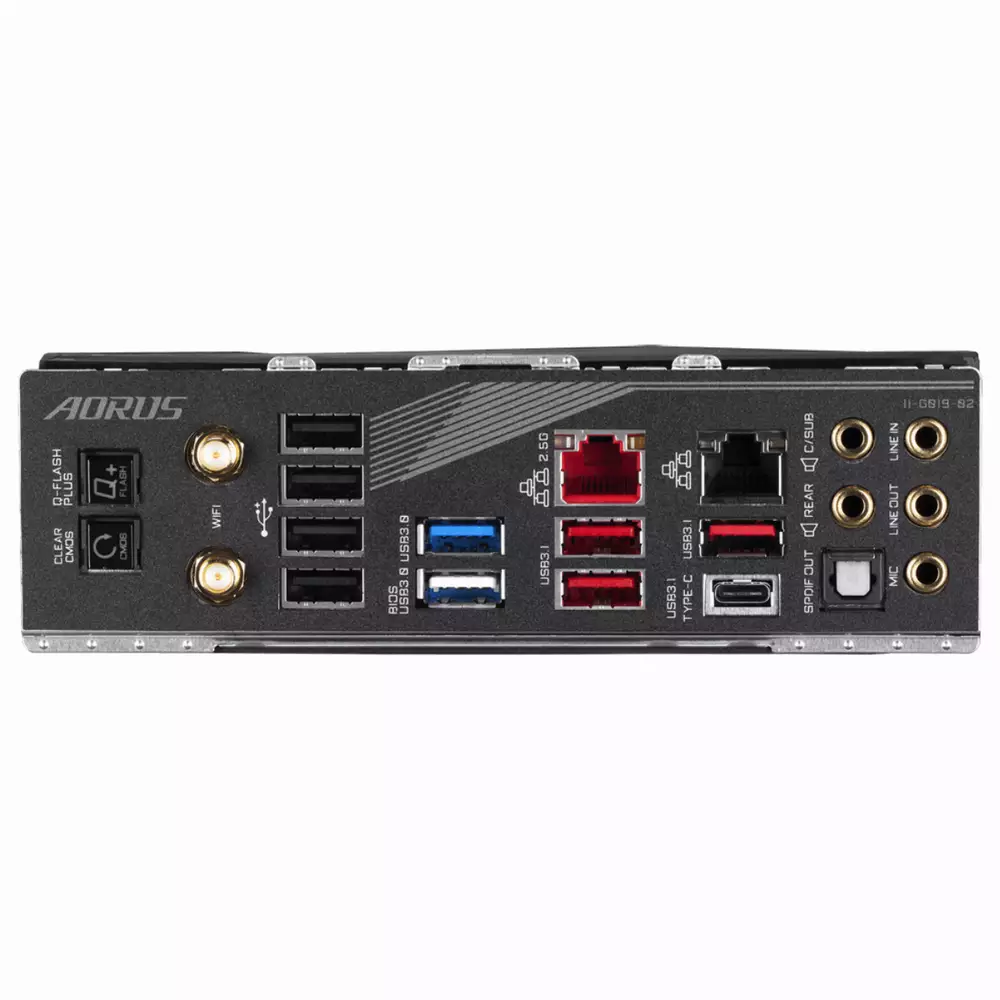

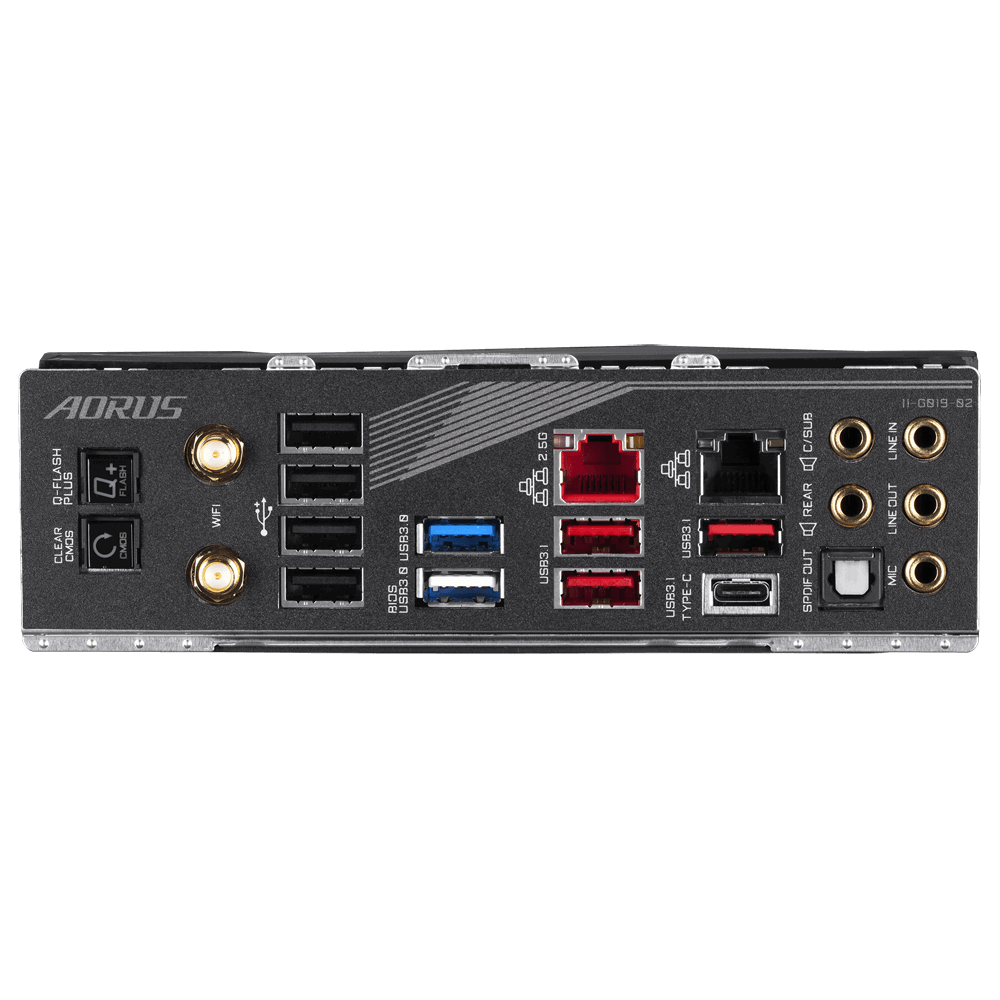

| Заден I/O панел | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
| Мулти GPU технология | NVIDIA Quad-GPU SLI Technology;NVIDIA 2-Way SLI Technology;AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology |
| Bios | BIOS:2 x 128 Mbit flash Use of licensed AMI UEFI BIOS: Support for DualBIOS™ PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0 |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | 5-то поколение 2-ро поколение 3-то поколение 4-то поколение |
| Гаранция | 36 месеца |
