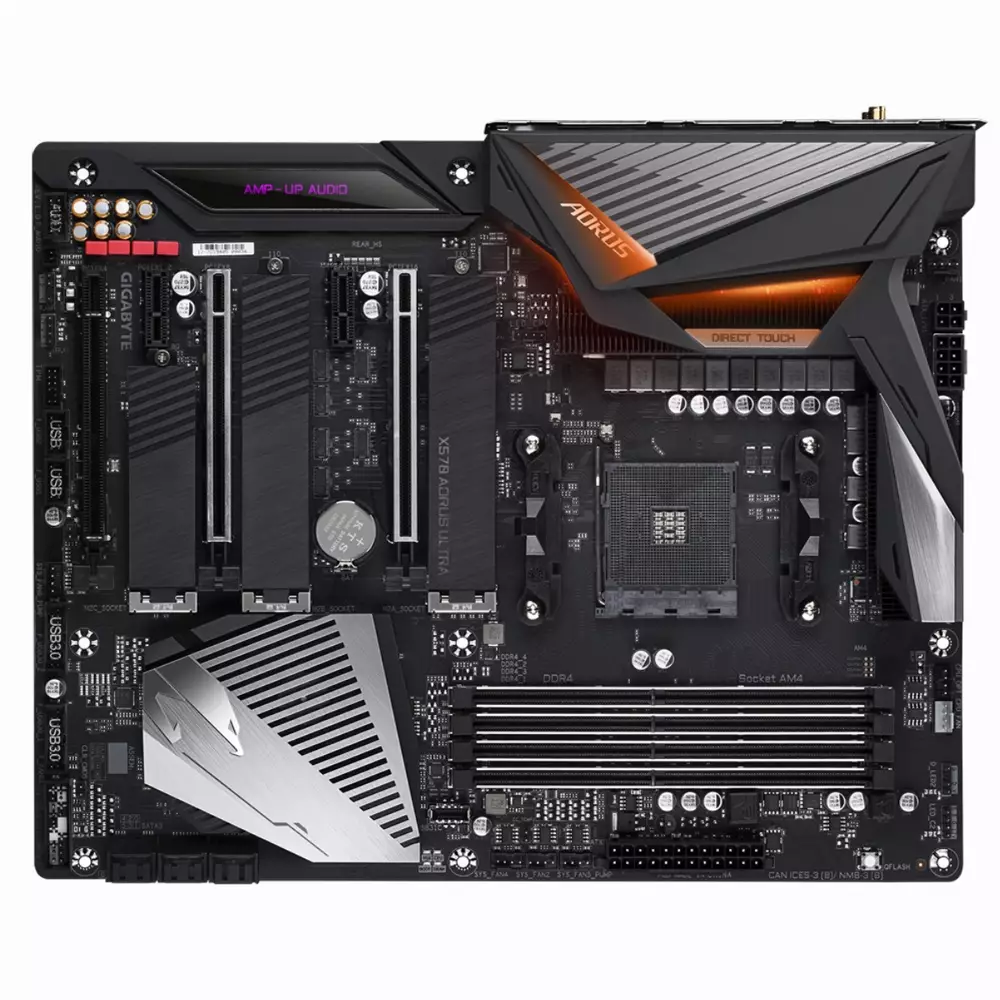

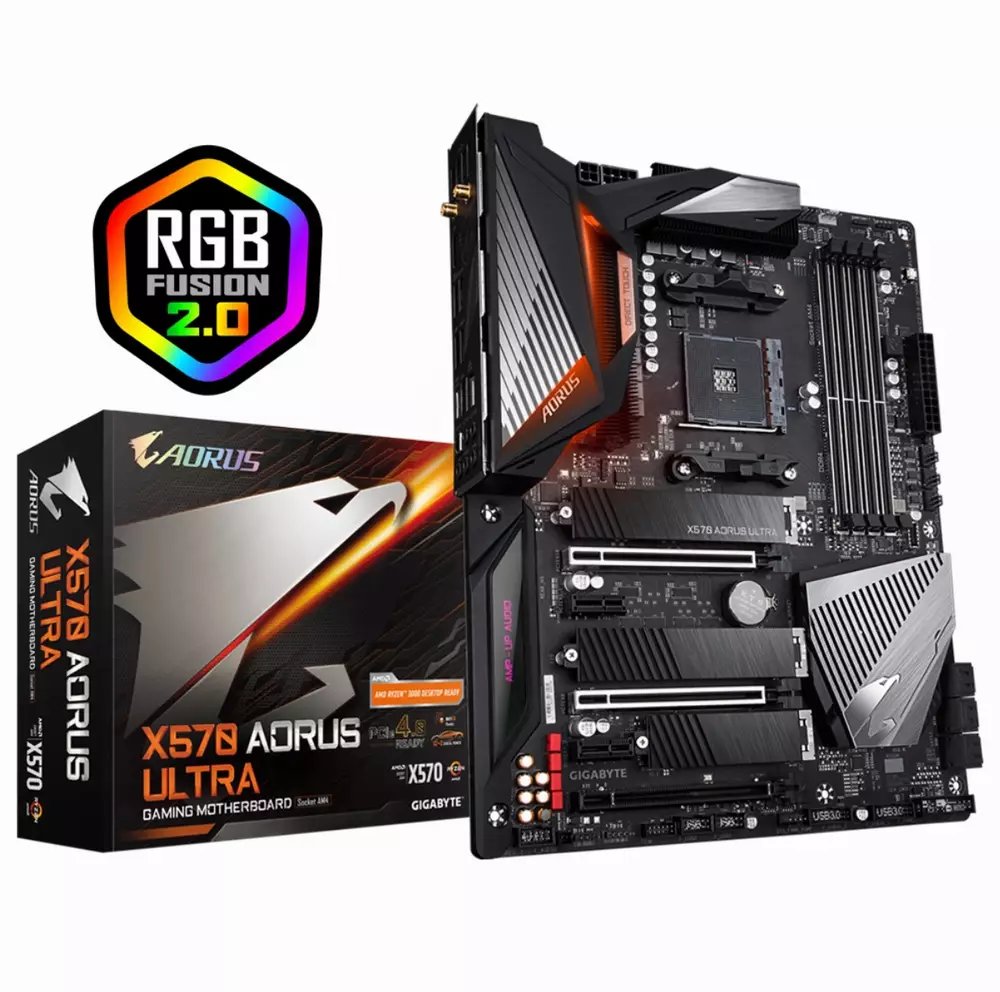

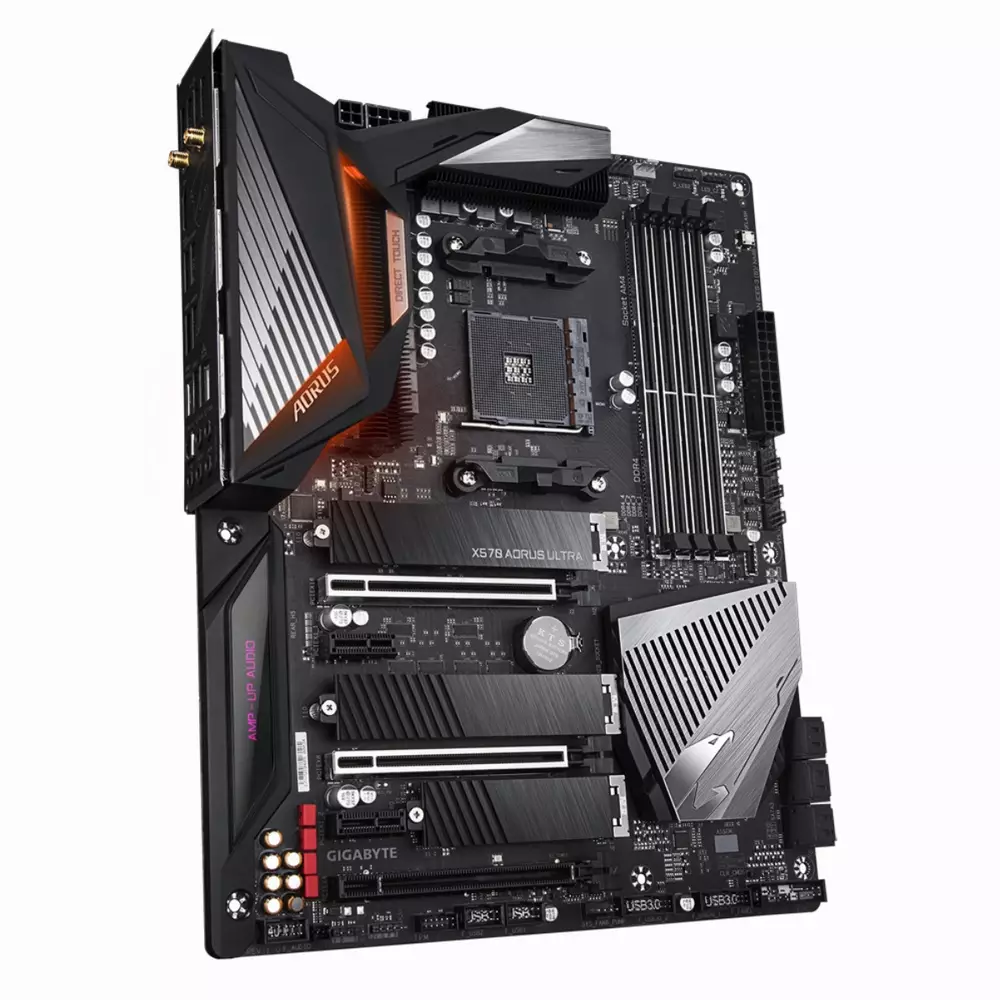

Дънна платка Gigabyte X570 AORUS ULTRA

341.39/ 667.70 лв.
Спечели 341 точки с тази покупка
Изчерпан
Код: 15214
Производител
Gigabyte
CPU сокет
AM4
Чипсет (MB) AMD X570
Форм фактор ATX
Поддържани процесори
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
Поддържана памет
DDR4
Брой слотове за памет 4
Максимален капацитет RAM памет 128 GB
Честота памет (MHz)
До 4400(O.C.)
Поддръжка на двуканална памет Да
Вградено аудио
Realtek ALC1220
Вграден LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Интерфейс SATA 6 x SATA3 6.0 Gb/s
Поддръжка на RAID 0,1,10
М2 слот
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
For 3rd Generation AMD Ryzen processors only.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET)
For 3rd Generation AMD Ryzen processors only.
Разширителни слотове
Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and
Конектор захранване
1 x 24-pin
1 x 8-pin
1 x 4-pin
USB портове
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
* For 3rd Generation AMD Ryzen processors only.
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Заден I/O панел
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
* For 3rd Generation AMD Ryzen™ processors only.
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Графика
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB
* For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Мулти GPU технология Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies; Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Bios
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Размери 30.5 cm x 24.4 cm
Други
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
OS
Support for Windows 10 64-bit
Поколение процесор
2-ро поколение
5-то поколение
3-то поколение
4-то поколение
Гаранция 36 месеца
