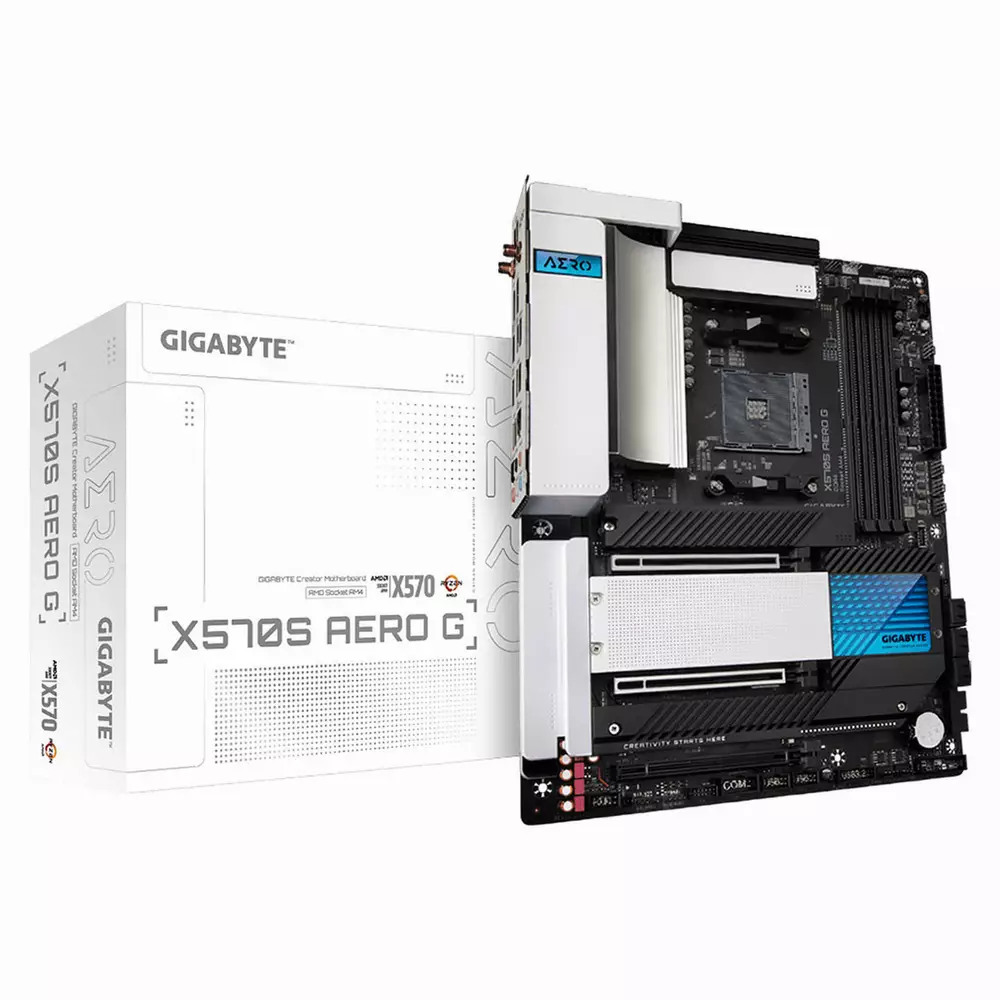

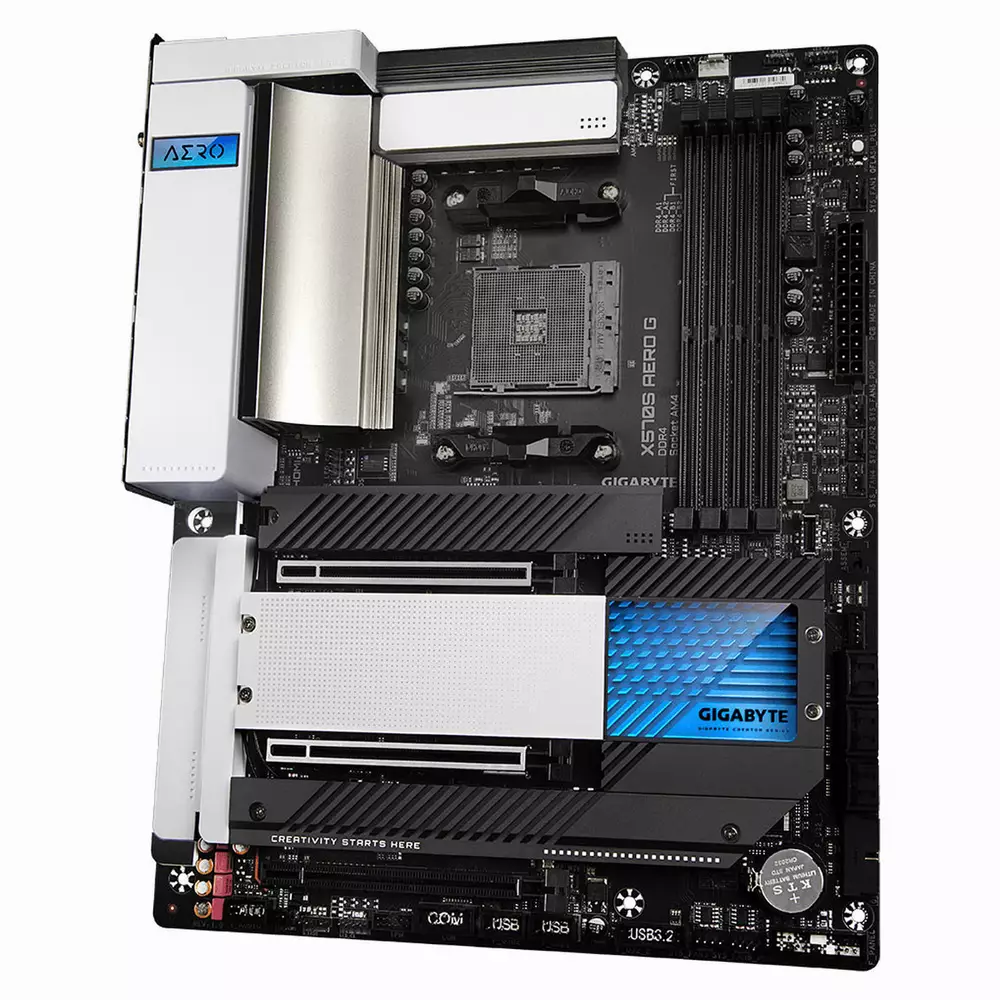

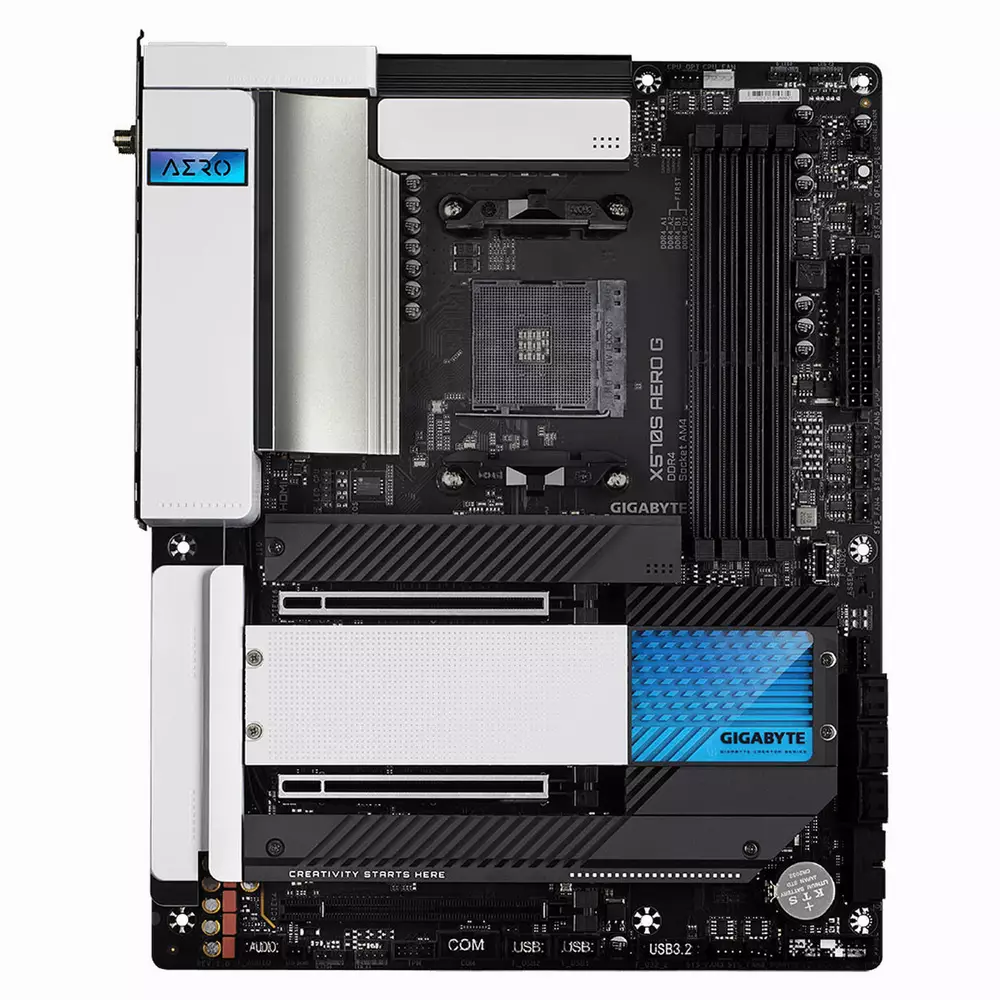

Дънна платка Gigabyte X570S AERO G
| Производител | Gigabyte |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X570 |
| Форм фактор | ATX |
| Поддържани процесори | AMD Socket AM4 support for: AMD Ryzen 5000 Series Processors AMD Ryzen 5000 G-Series Processors AMD Ryzen 4000 G-Series Processors AMD Ryzen 3000 Series Processors AMD Ryzen 3000 G-Series Processors AMD Ryzen 2000 Series Processors AMD Ryzen 2000 G-Series Processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | До 5400MHz (O.C) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek S1220A 8-channel high definition audio CODEC |
| Вграден Wi-Fi | Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
| Bluetooth версия | Bluetooth V5.2 |
| Вграден LAN | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 4 x M.2 connector M key, type 2242/2280/22110 SATA and PCIe 4.0 x4/x2 SSDs SATA and PCIe 3.0 x4/x2 SSDs |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

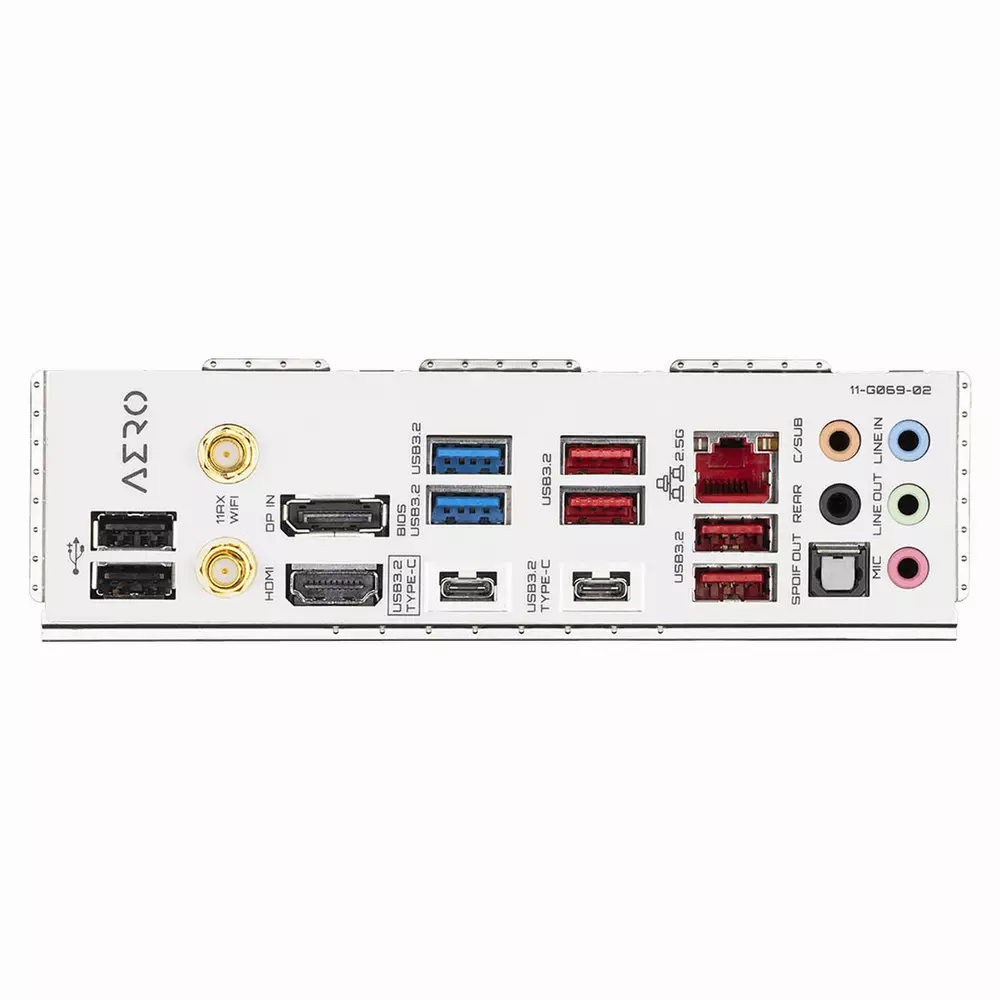

| Заден I/O панел | 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort In port 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port, with USB 3.2 Gen 1 support 4 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Мулти GPU технология | AMD Quad-GPU CrossFire and 2-Way AMD CrossFire |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10, Microsoft Windows 11 |
| Поколение процесор | 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
Все още няма ревюта за този продукт. Бъди първи!
