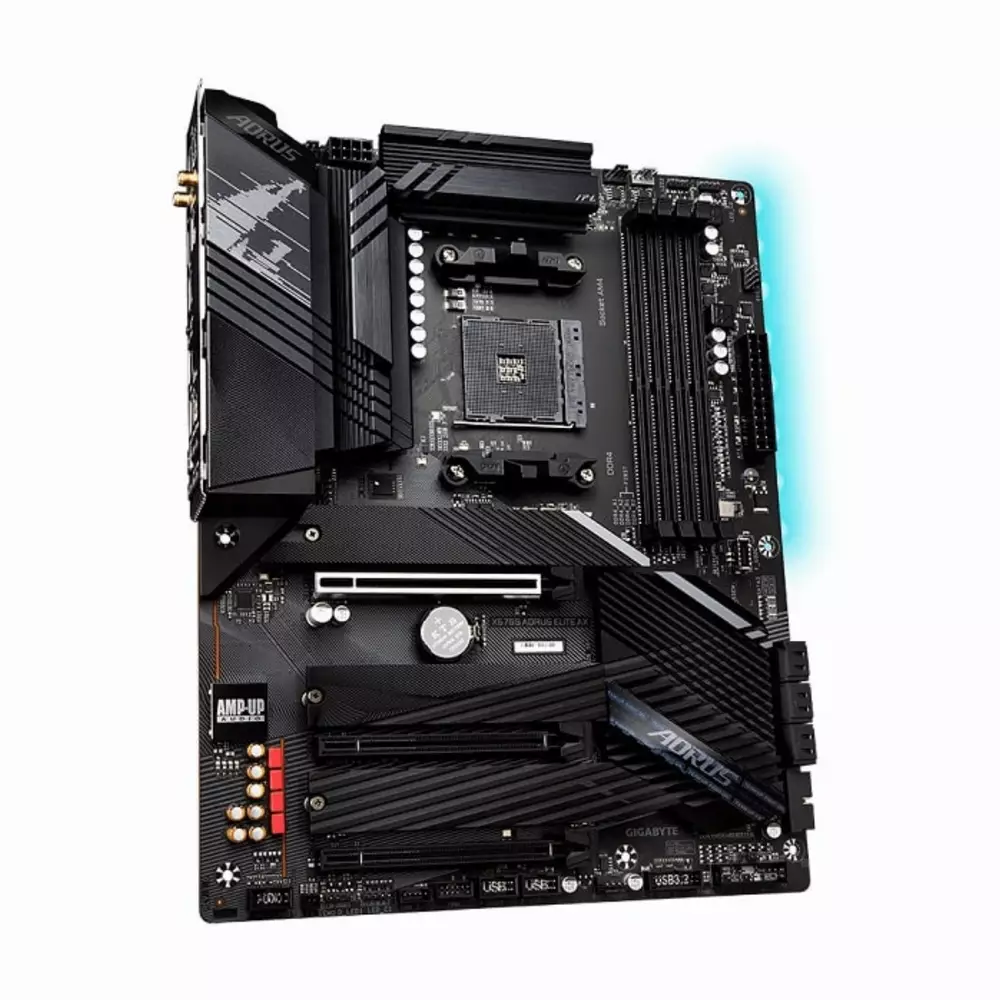

Дънна платка Gigabyte X570S AORUS ELITE AX AM4
| Производител | Gigabyte |
| Продуктов код | X570S AORUS ELITE AX 1.1 |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X570 |
| Форм фактор | ATX |
| Поддържани процесори | AMD AM4 socket: Ready for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | До 5400MHz (O.C) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC1220-VB codec 7.1-channel High Definition Audio DTS:X Ultra |
| Вграден Wi-Fi | WiFi 6E |
| Bluetooth версия | Bluetooth V5.2 |
| Вграден LAN | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| Разширителни слотове | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x4 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode * The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode. |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | 4 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

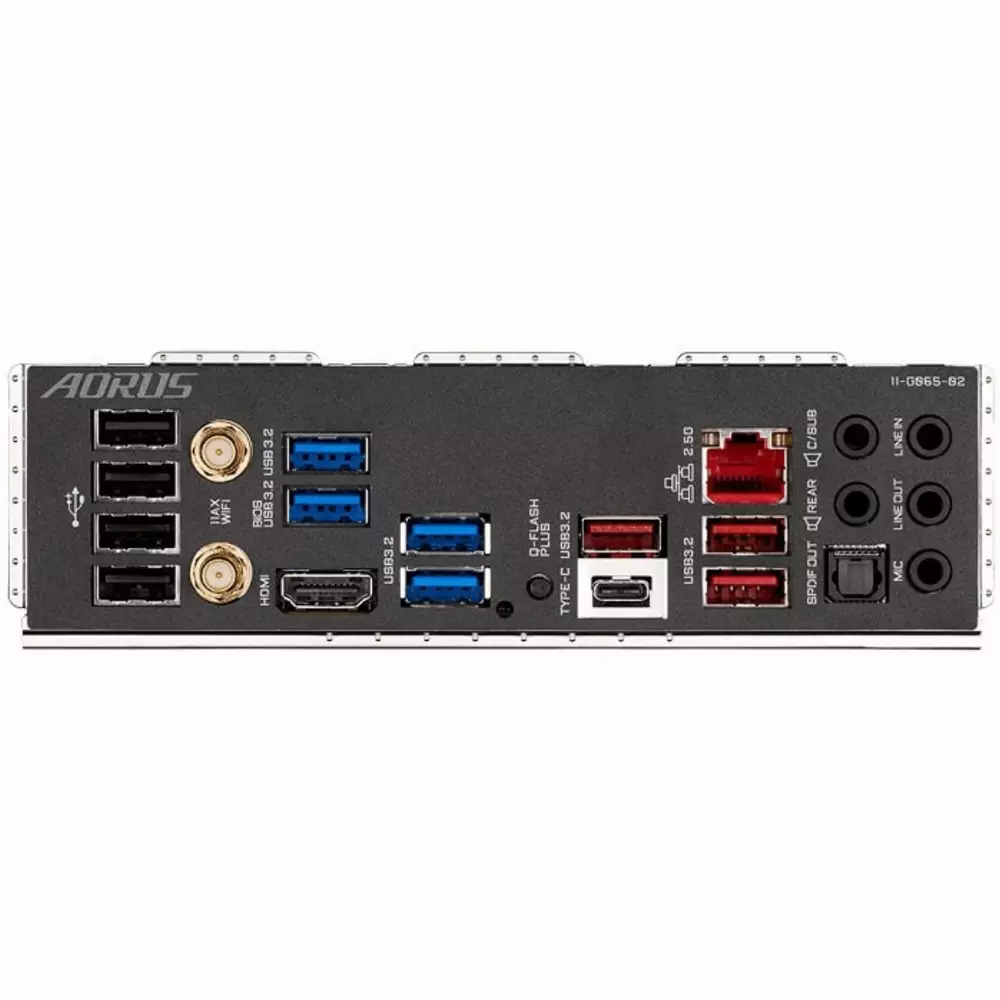

| Заден I/O панел | 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Графика | 1 x HDMI 2.1 Port |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10, Microsoft Windows 11 |
| Поколение процесор | 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
Все още няма ревюта за този продукт. Бъди първи!
