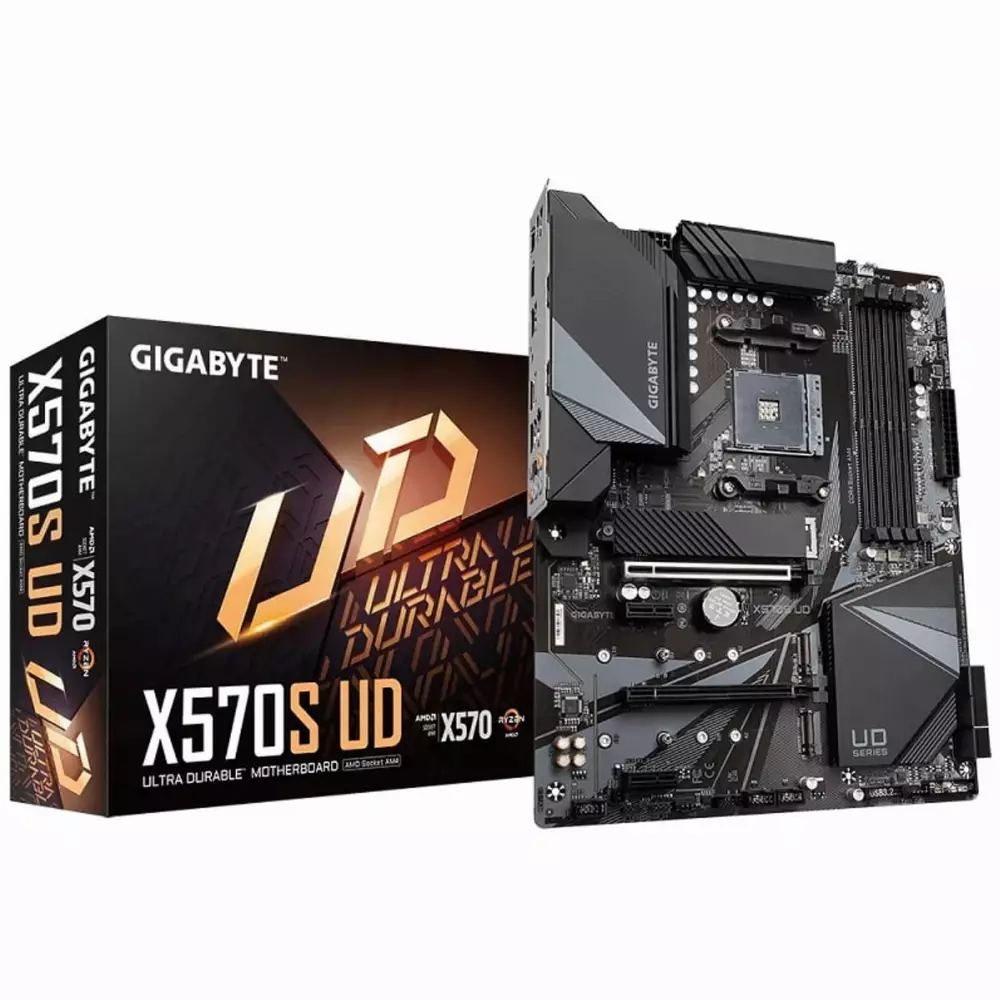

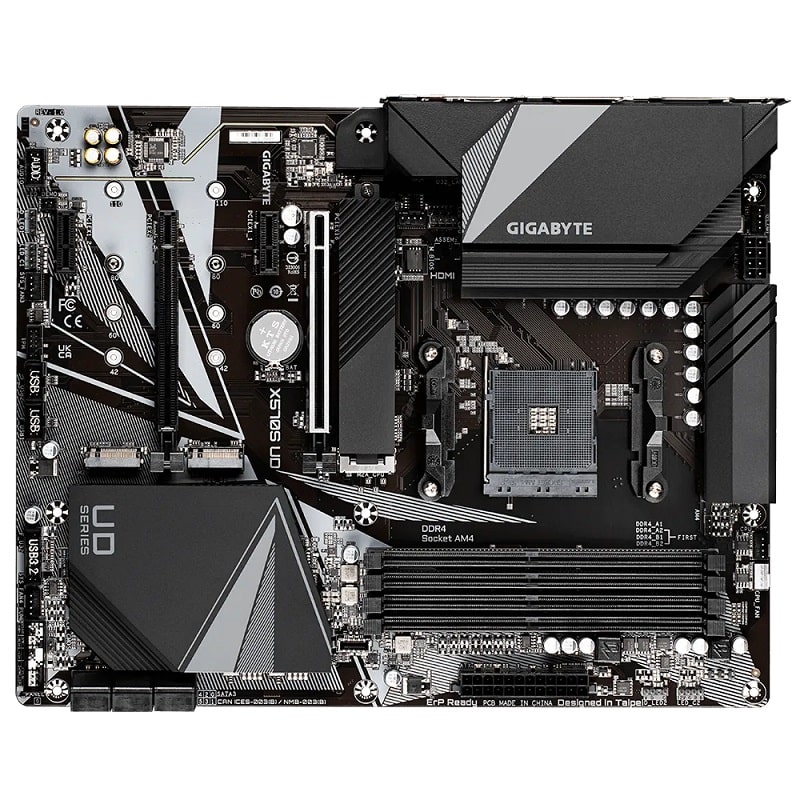

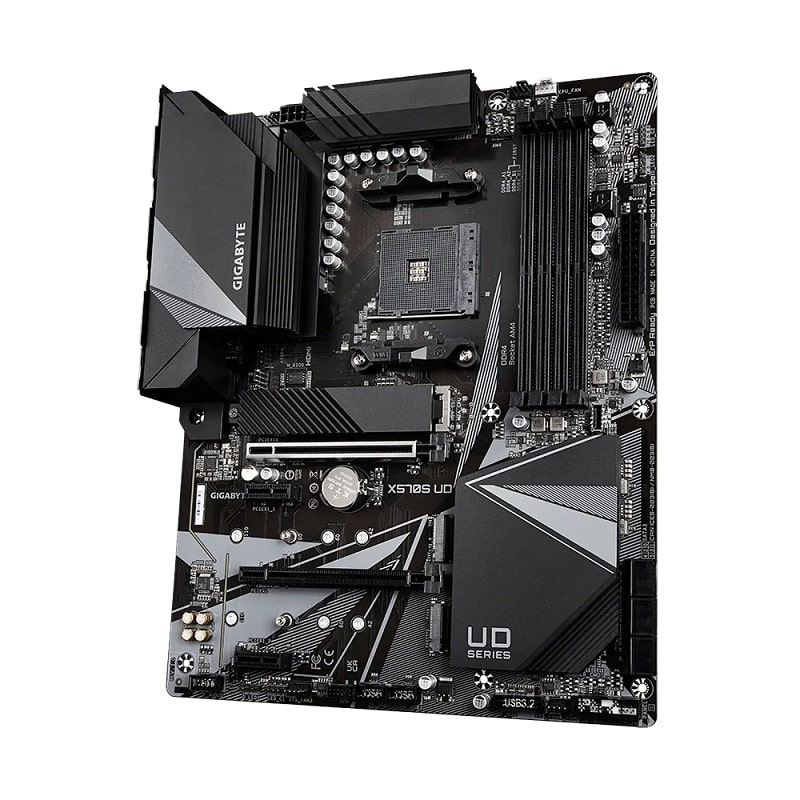

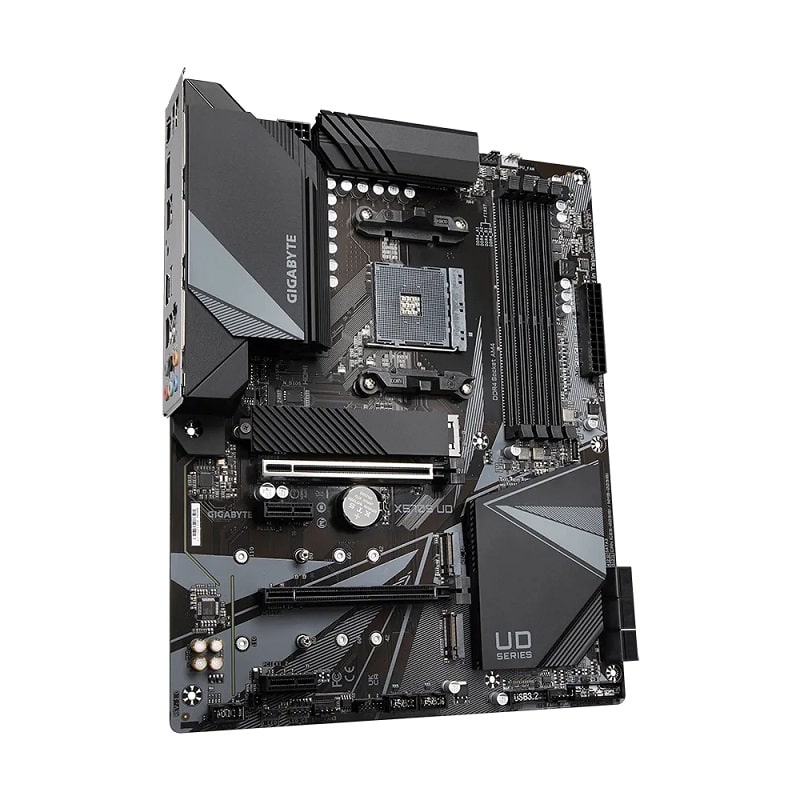

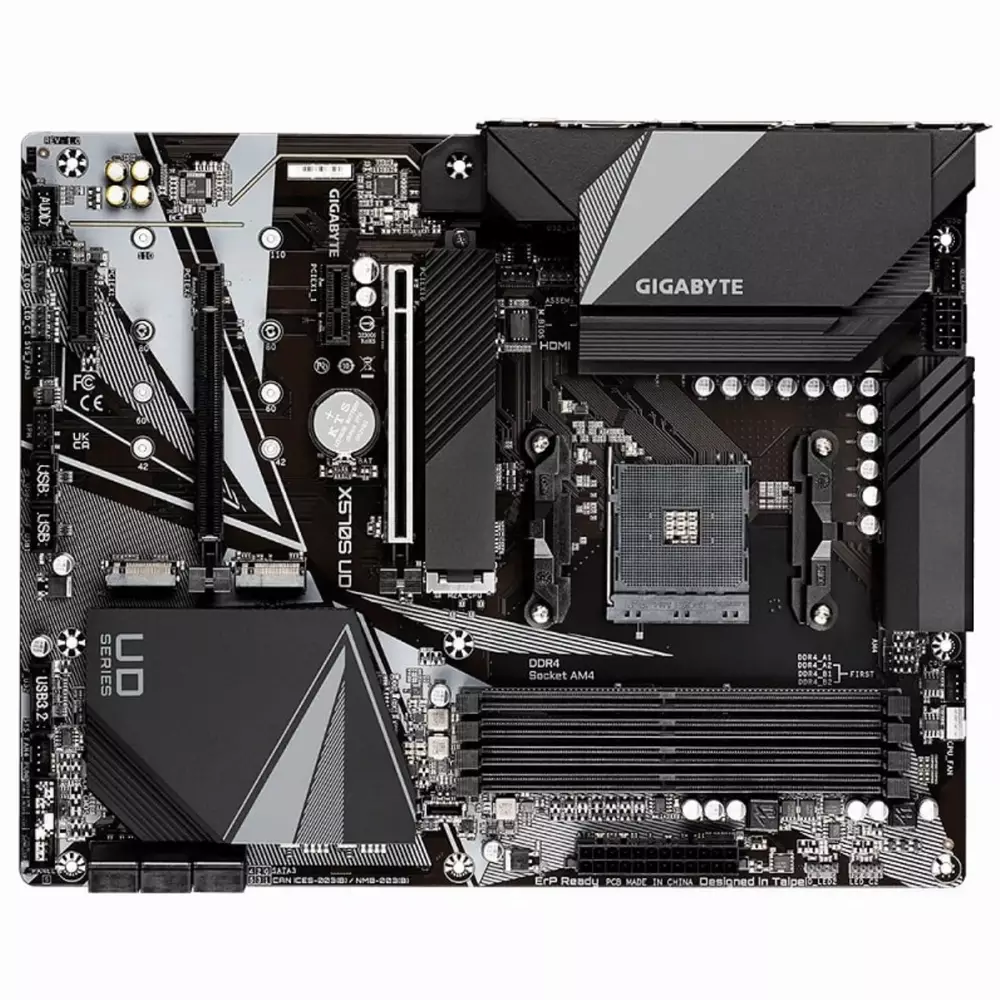

Дънна платка Gigabyte X570S UD AM4
| Производител | Gigabyte |
| Продуктов код | X570S UD 1.0 |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X570 |
| Форм фактор | ATX |
| Поддържани процесори | AMD AM4 socket: Ready for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 5100MHz (O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® Audio CODEC |
| Вграден Wi-Fi | Не |
| Bluetooth версия | Не |
| Вграден LAN | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 3 x M.2 PCIe 4.0/3.0 x4/x2/SATA connector Socket 3, M key, type 2260/2280/22110 |
| Разширителни слотове | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot. 2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |

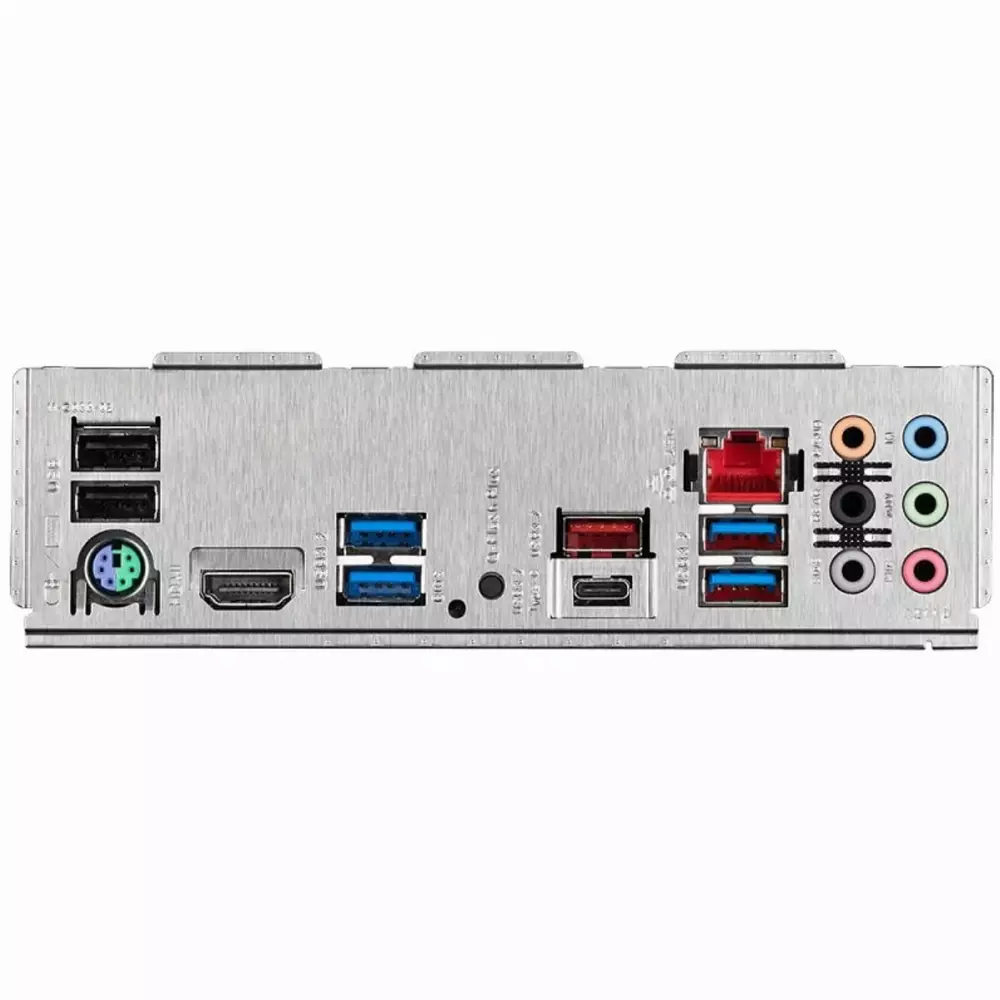

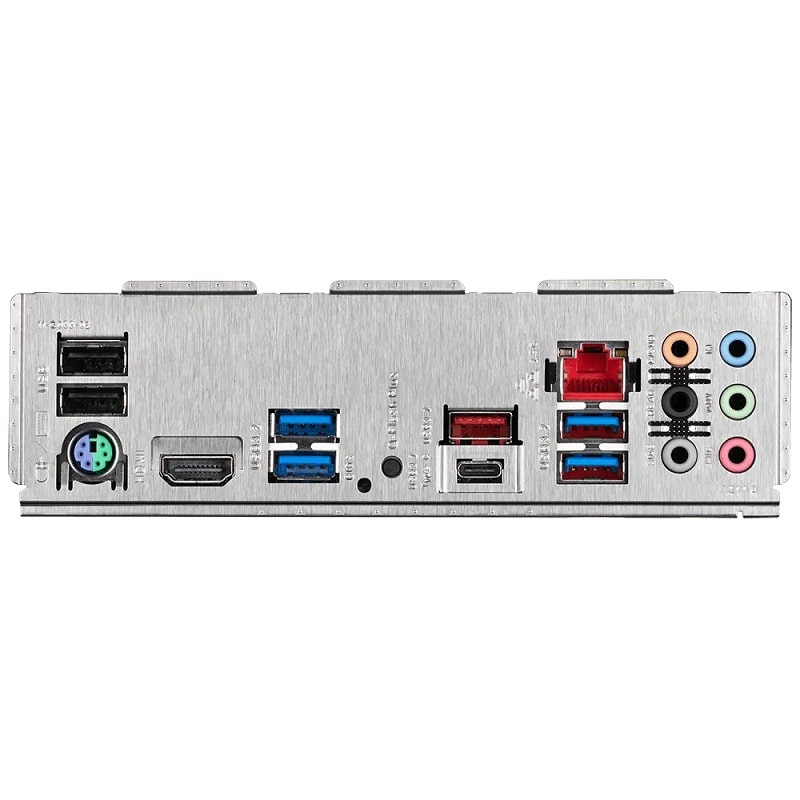

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x Q-Flash Plus button 1 x RJ-45 port 6 x audio jacks |
| Графика | 1 x HDMI 2.1 |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10, Microsoft Windows 11 |
| Поколение процесор | 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
