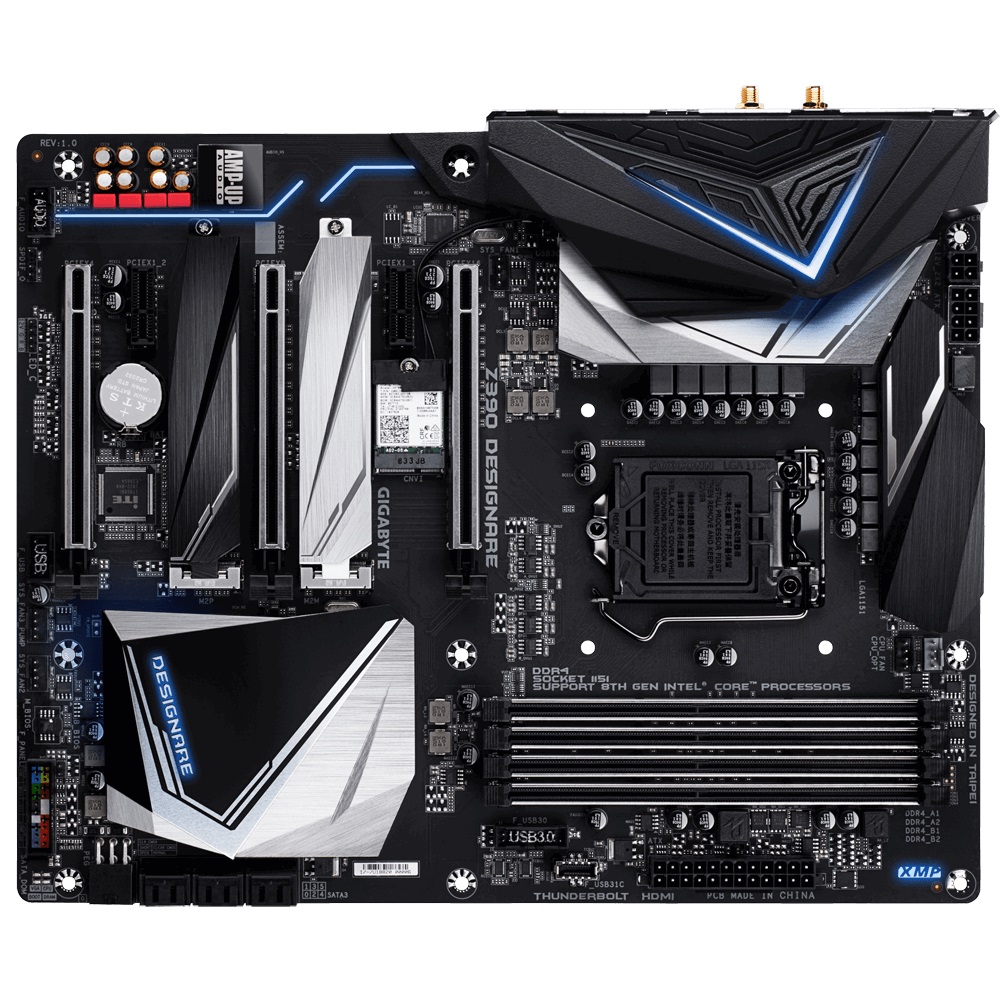

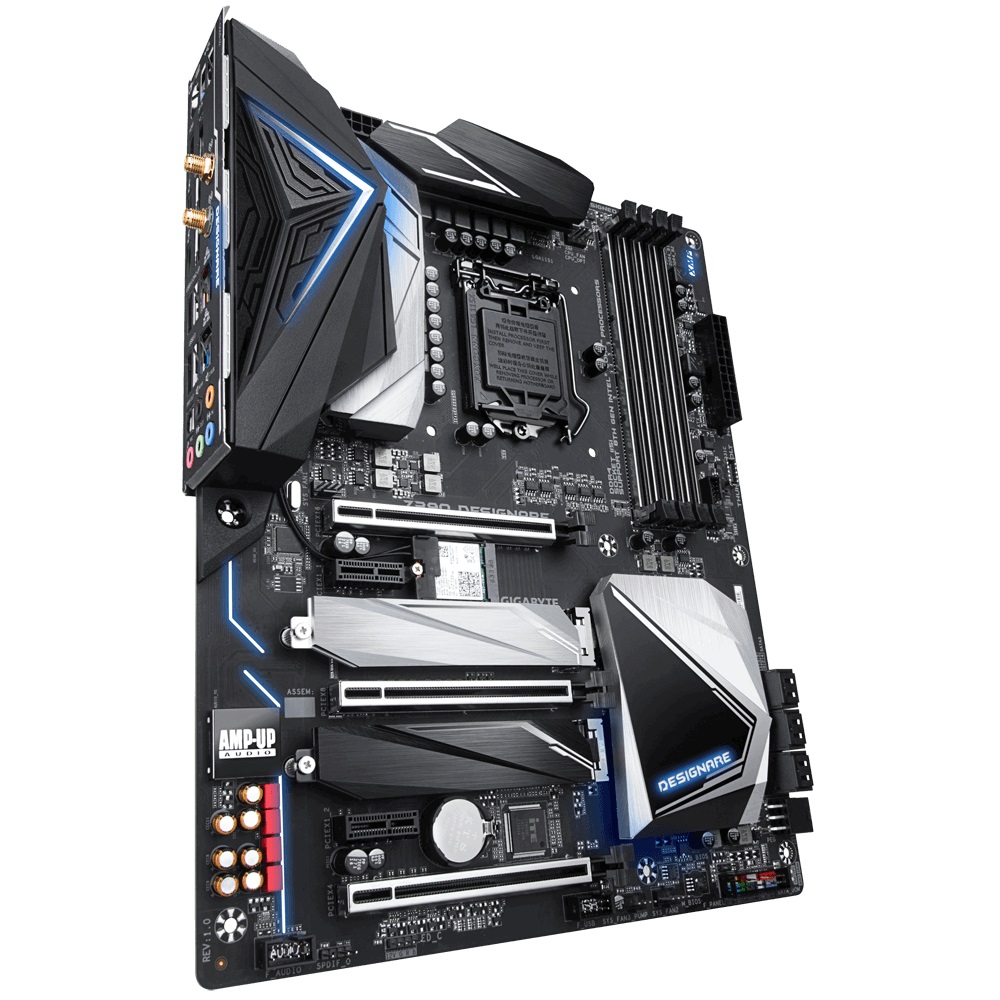

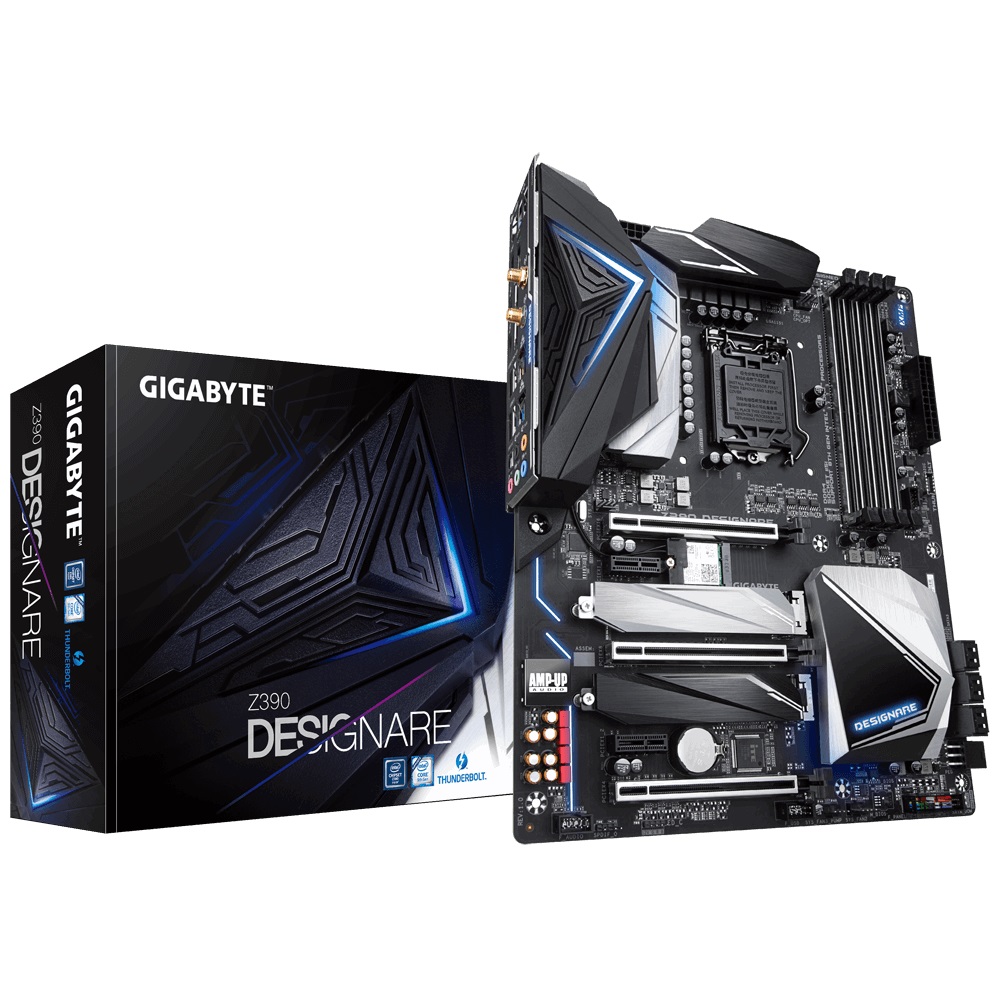

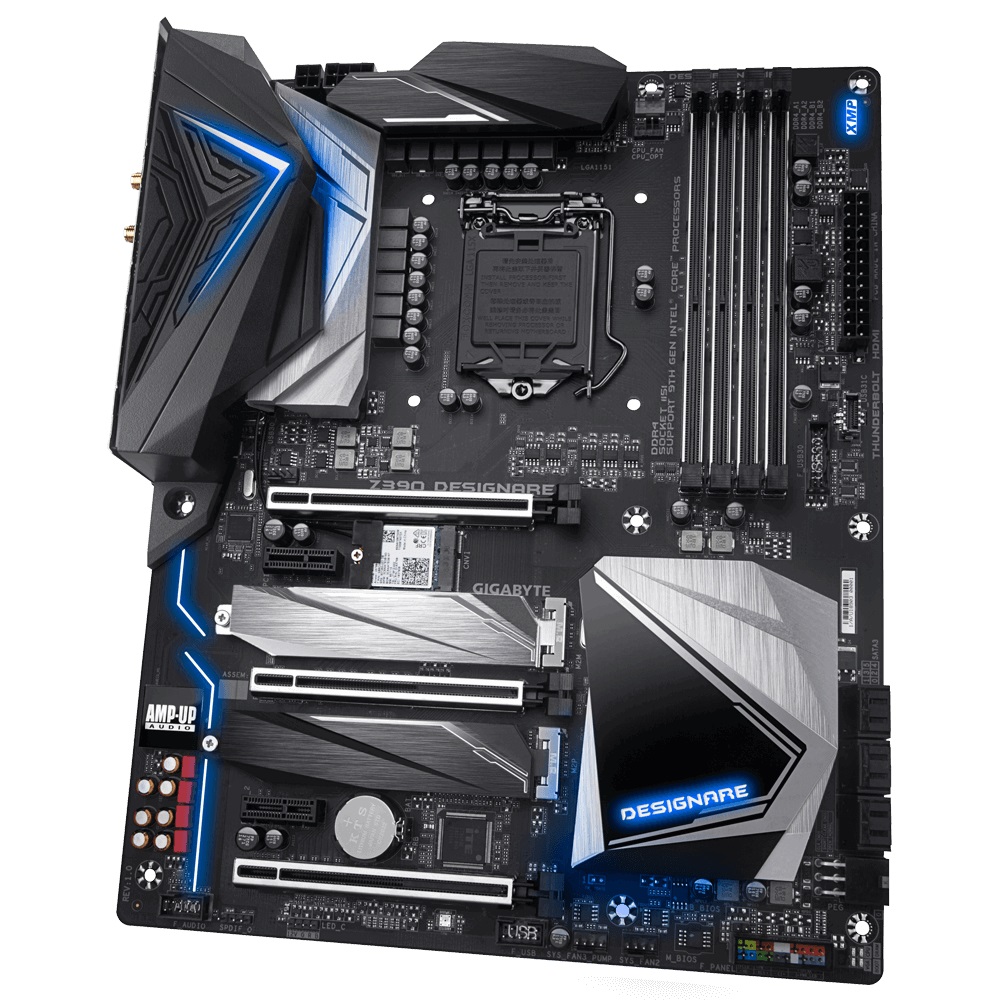

Дънна платка GIGABYTE Z390 DESIGNARE (WI-FI)
| Производител | Gigabyte |
| CPU сокет | LGA 1151 |
| Чипсет (MB) | Intel Z390 |
| Форм фактор | ATX |
| Поддържани процесори | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 4266MHz (O.C) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Вграден Wi-Fi | Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |
| Bluetooth версия | Bluetooth V5.0 |
| Вграден LAN | 2 x Intel® GbE LAN chips (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | Chipset+Intel® Thunderbolt™ 3 Controller: 2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support Chipset: 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 3.1 Gen 1 Hub: 4 x USB 3.1 Gen 1 ports on the back panel |
| Заден I/O панел | 1 x PS/2 keyboard/mouse port 1 x DisplayPort In port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 2 x USB 3.1 Gen 2 Type-A ports (red) 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks |
| Графика | Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller: 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz * Supports up to 7680x3840@60 Hz if connected to an external graphics card for display output. * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.2 version. Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1 GB Actual support may vary by CPU |
| Мулти GPU технология | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Размери | 30.5 cm x 24.4 cm |
| Други | Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 8-мо поколение 9-то поколение |
| Гаранция | 36 месеца |
