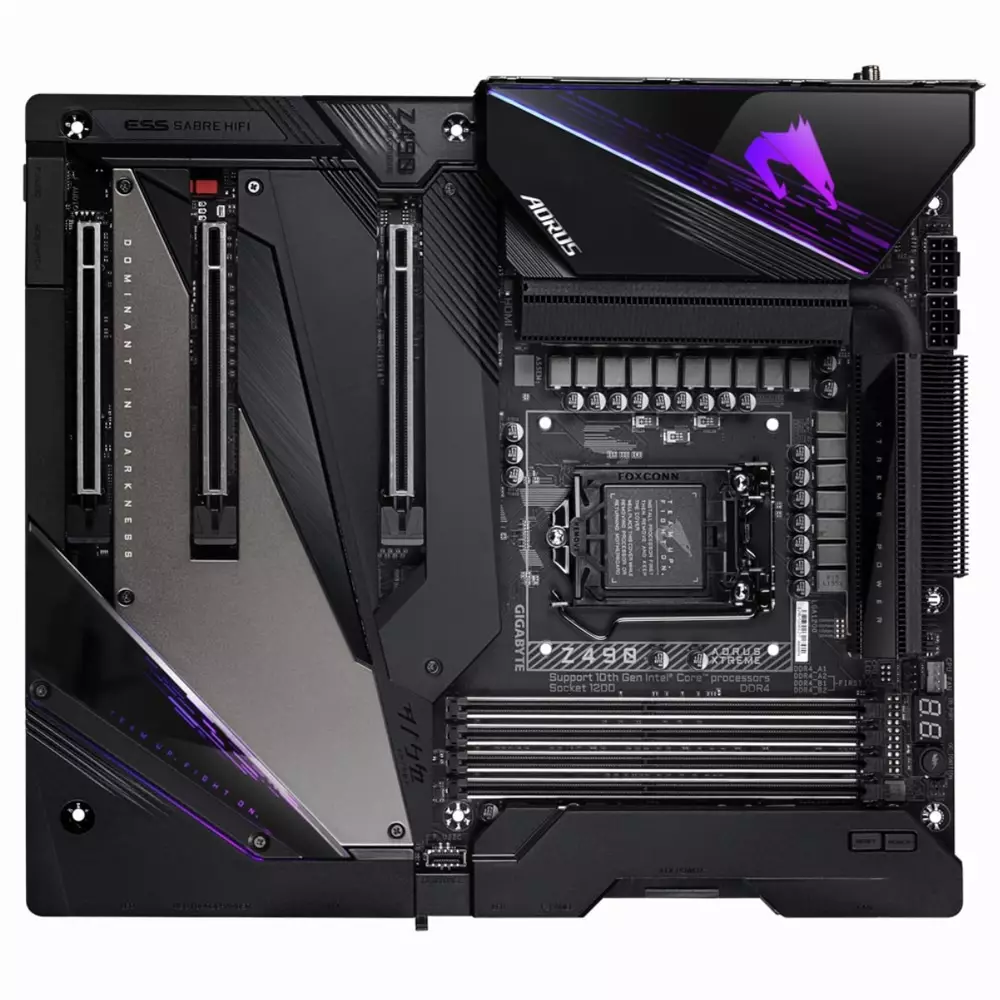

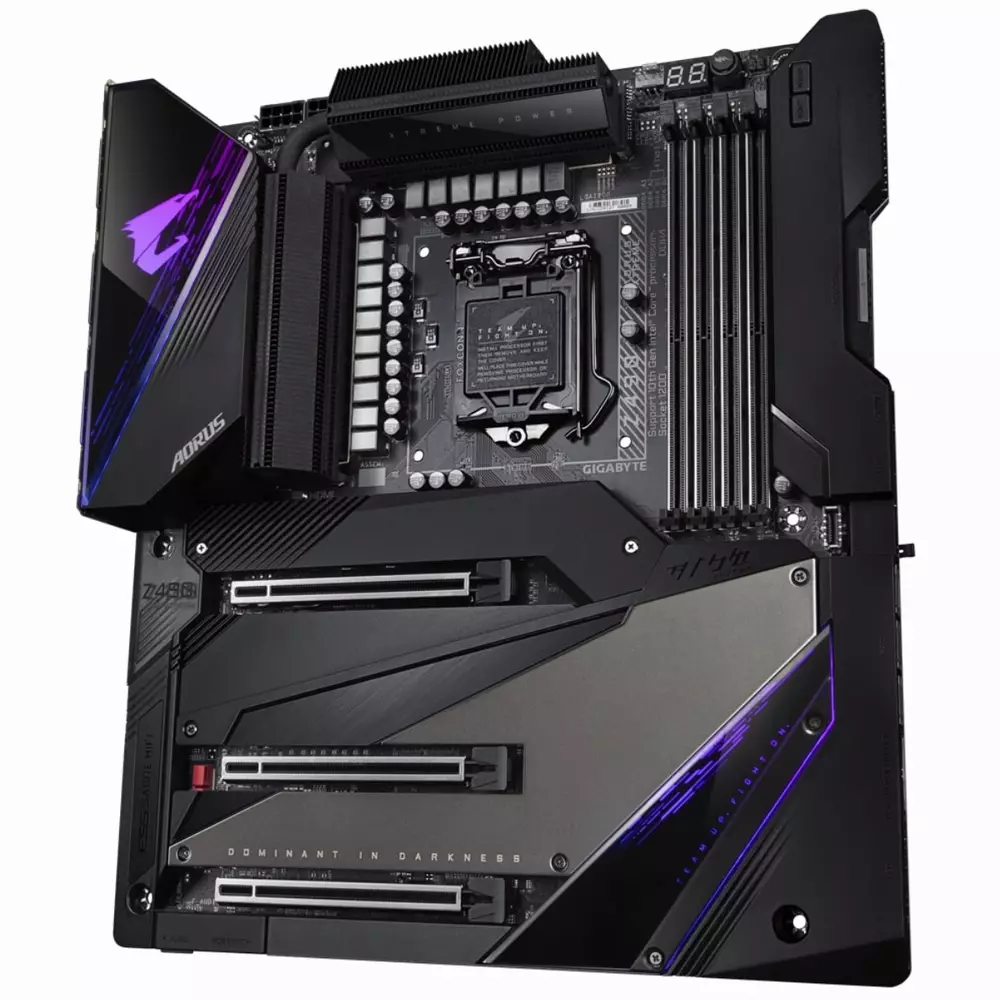

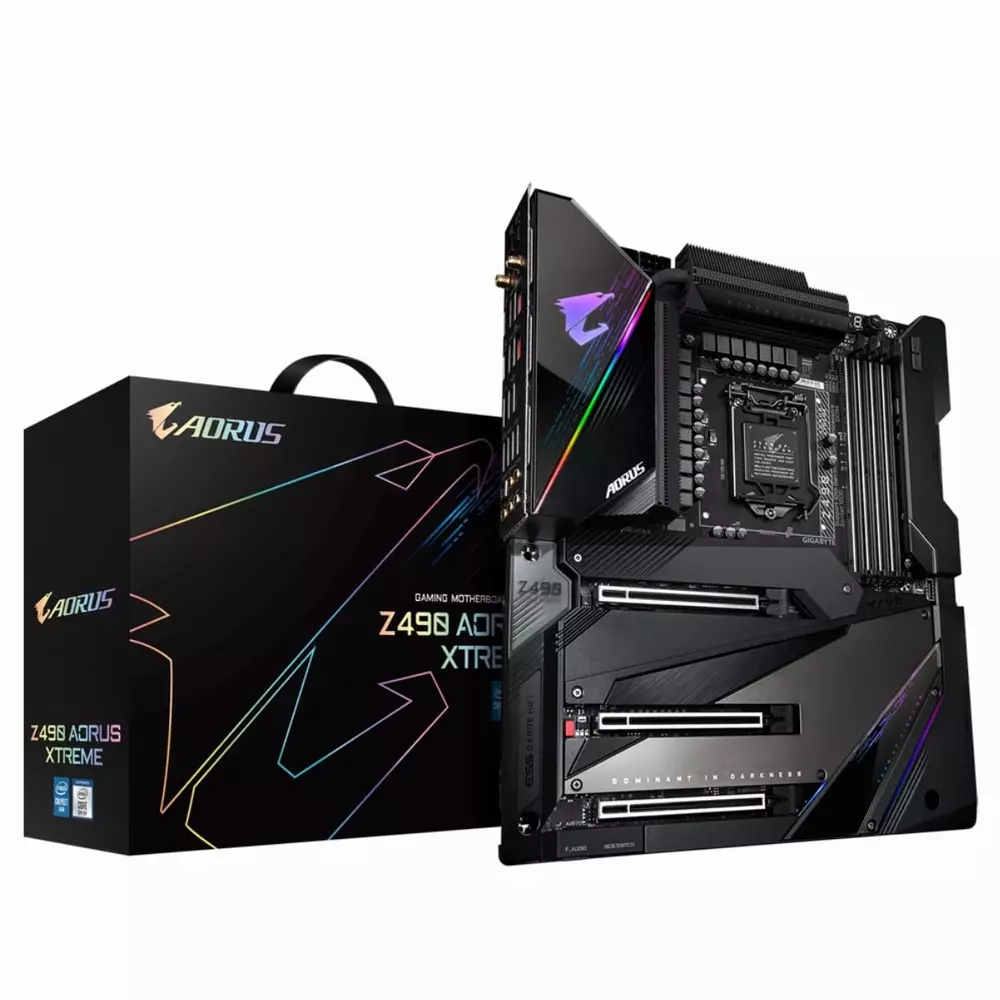

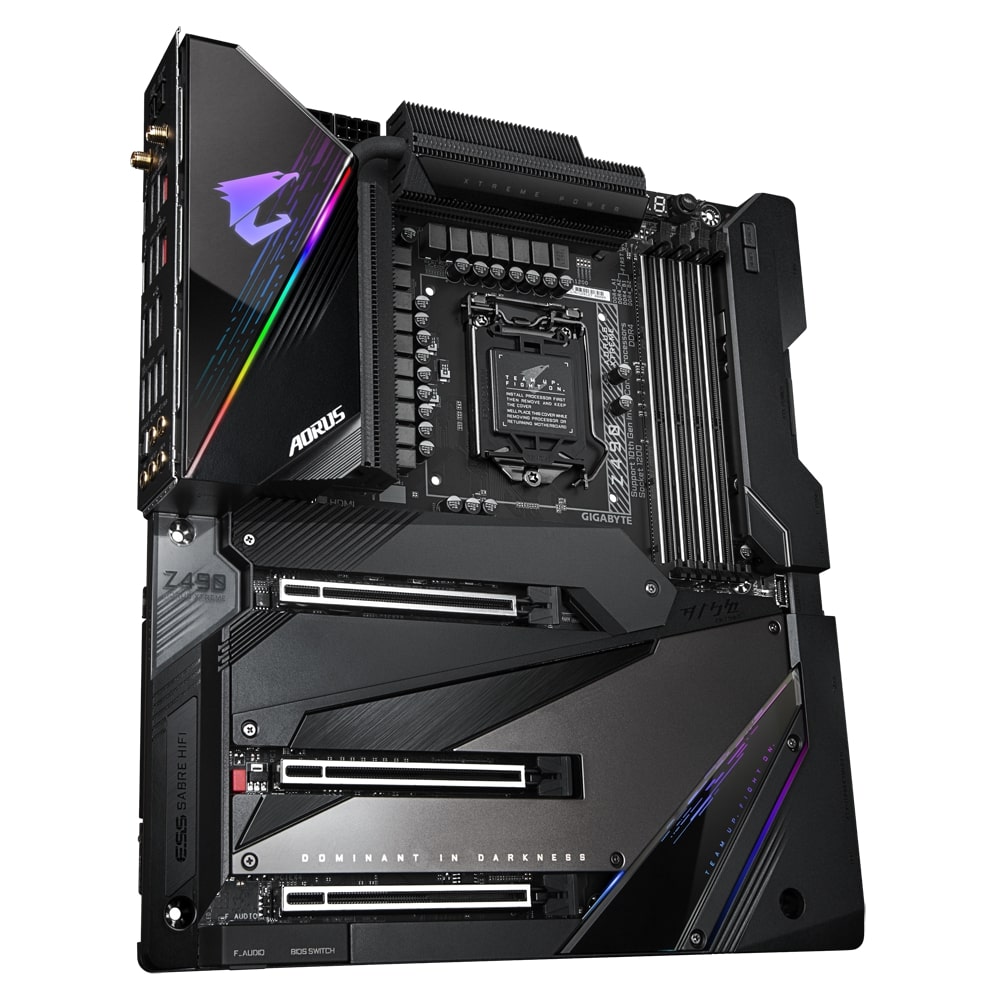

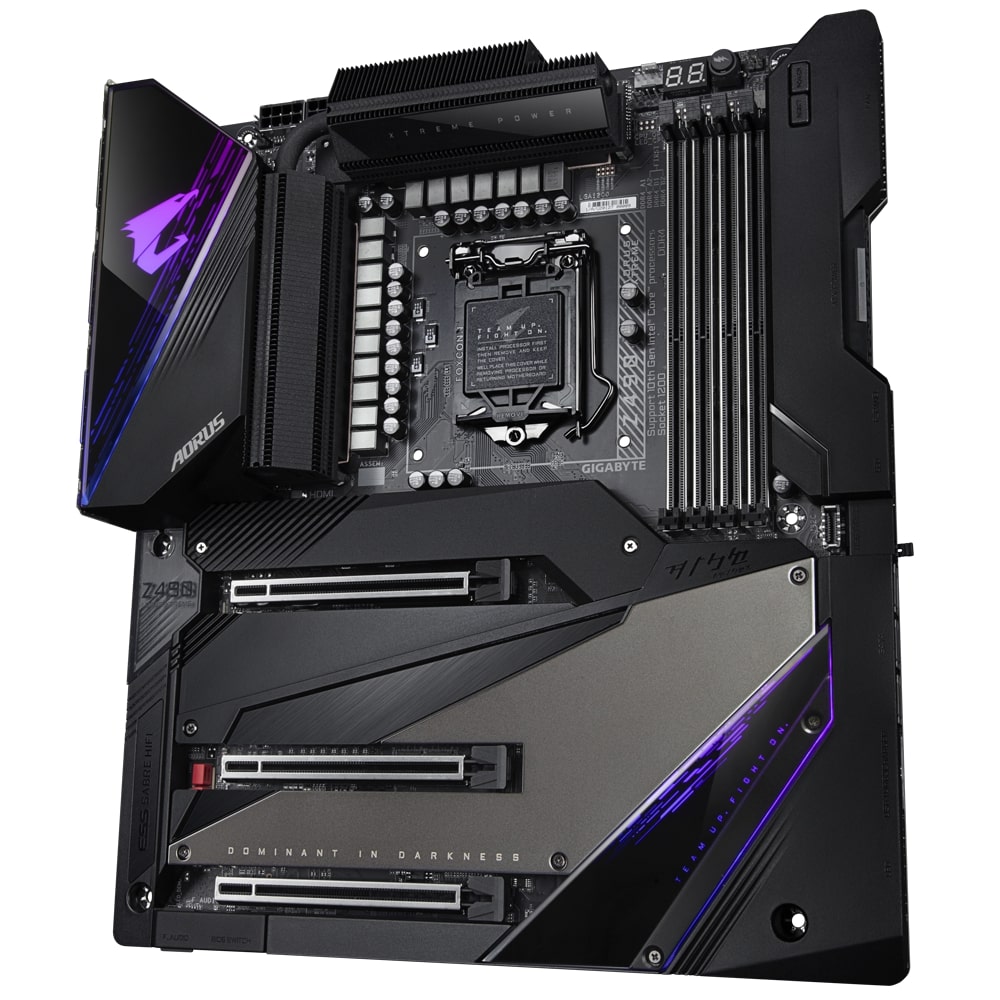

Дънна платка GIGABYTE Z490 AORUS EXTREME

Характеристики

LGA 1200
Intel Z490 MB
Extended ATX
DDR4
Слотове за RAM: 4

Пълни характеристики

762.²² € / 1490.⁷⁷ лв.

Спечели 762 точки с тази покупка

Изчерпан

Код: 19796

Производител	Gigabyte
Продуктов код	Z490 AORUS EXTREME
CPU сокет	LGA 1200
Чипсет (MB)	Intel Z490 Express Chipset
Форм фактор	Extended ATX
Поддържани процесори	Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket
Поддържана памет	DDR4
Брой слотове за памет	4
Максимален капацитет RAM памет	128 GB
Честота памет (MHz)	до 5000MHz (O.C.)
Поддръжка на двуканална памет	Да
Вградено аудио	Realtek® ALC1220-VB codec+ESS ES9218P DAC (front panel audio) Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio) Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Вграден Wi-Fi	Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth версия	Bluetooth V5.1
Вграден LAN	1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
Интерфейс SATA	6 x SATA3 6.0 Gb/s
Поддръжка на RAID	0, 1, 5, 10
М2 слот	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
Разширителни слотове	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_PCH connector. The PCIEX4 slot operates at up to x2 mode when an M.2 SSD is installed in the M2P_PCH connector. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) Supports up to ASPM L1.2 power management protocols.
Конектор захранване	1 x 24-pin 1 x 8-pin
USB портове	Chipset+Intel® Thunderbolt™ 3 Controller: 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)

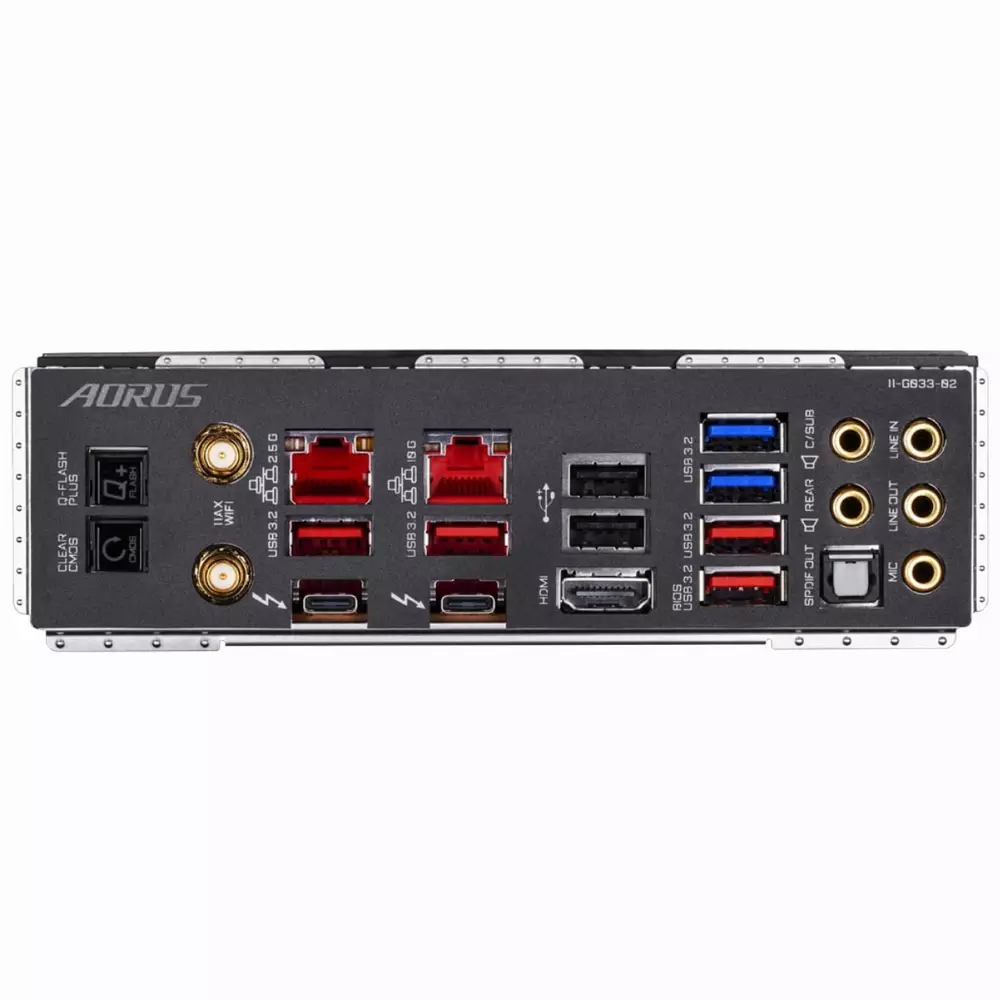

Заден I/O панел	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support) 4 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
Графика	Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller: 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Мулти GPU технология	NVIDIA Quad-GPU SLI Technology;NVIDIA 2-Way SLI Technology;AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology
Bios	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Размери	30.5cm x 27.1cm
Други	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
OS	Microsoft Windows 10 64-bit
Поколение процесор	10-то поколение 11-то поколение
Гаранция	36 месеца

Все още няма ревюта за този продукт. Бъди първи!
