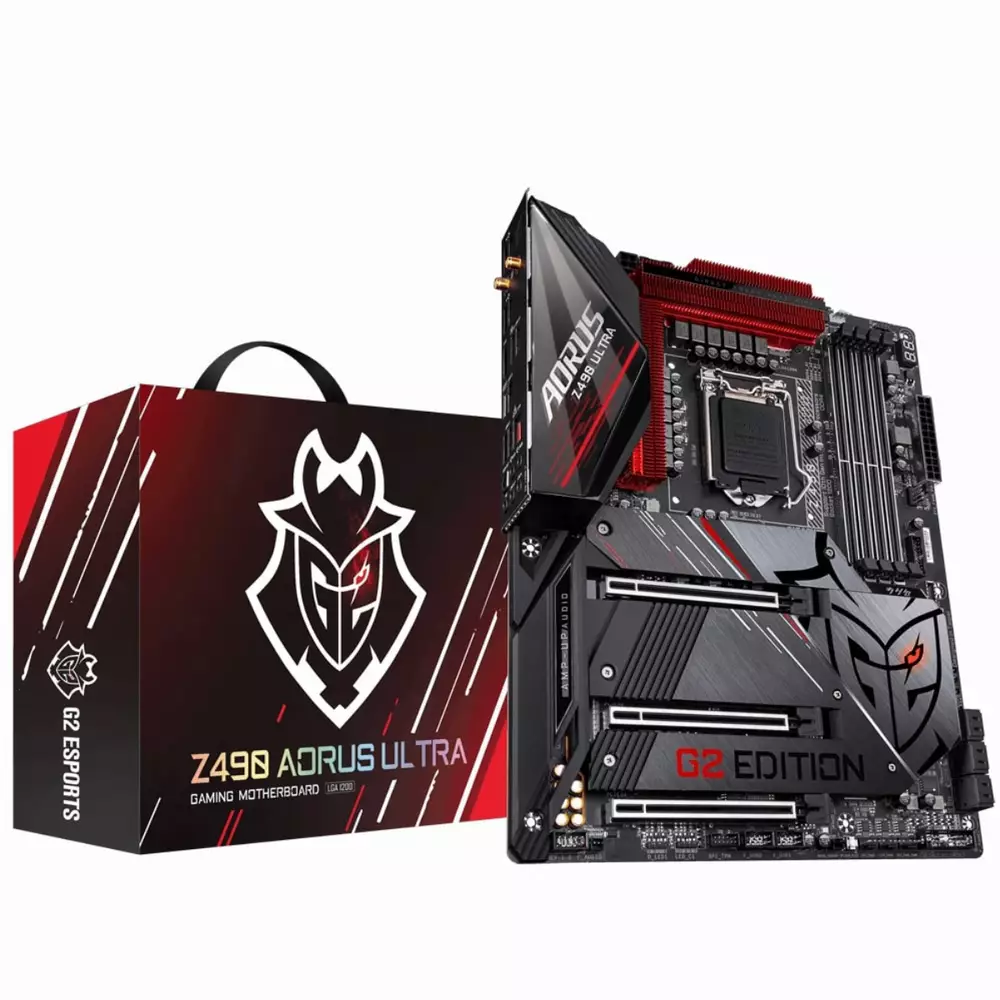

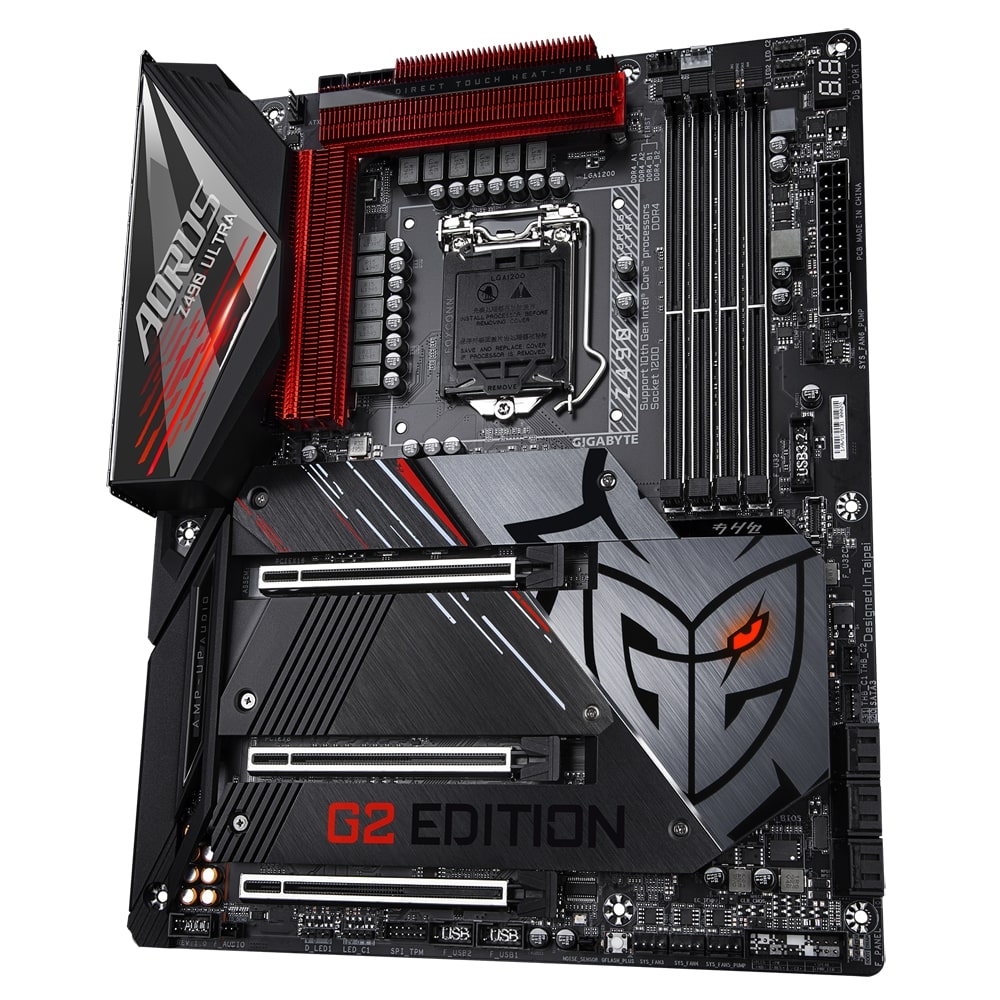

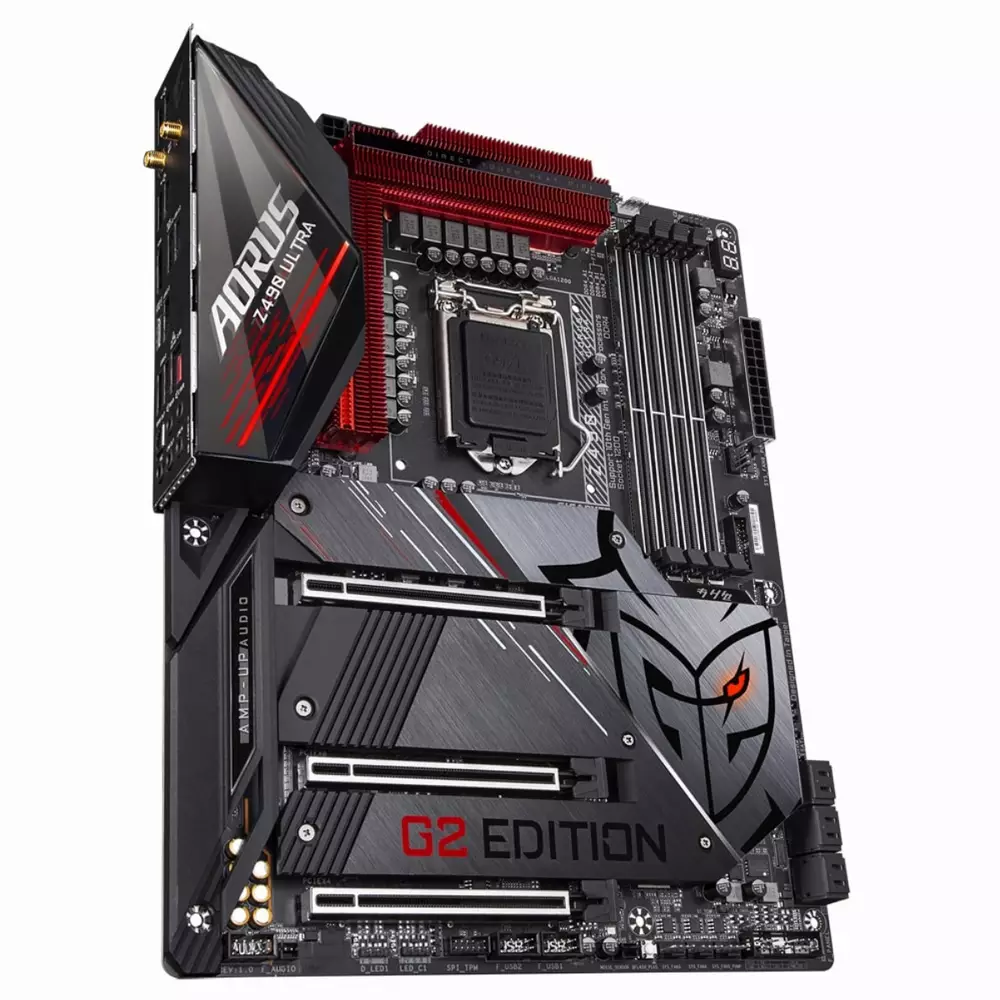

Дънна платка Gigabyte Z490 AORUS ULTRA G2
| Производител | Gigabyte |
| Продуктов код | Z490 AORUS ULTRA-GU |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel Z490 |
| Форм фактор | ATX |
| Поддържани процесори | Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 5000MHz (O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC1220-VB codec 7.1-channel High Definition Audio DTS:X Ultra |
| Вграден Wi-Fi | Intel® Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth версия | Bluetooth V5.0 |
| Вграден LAN | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

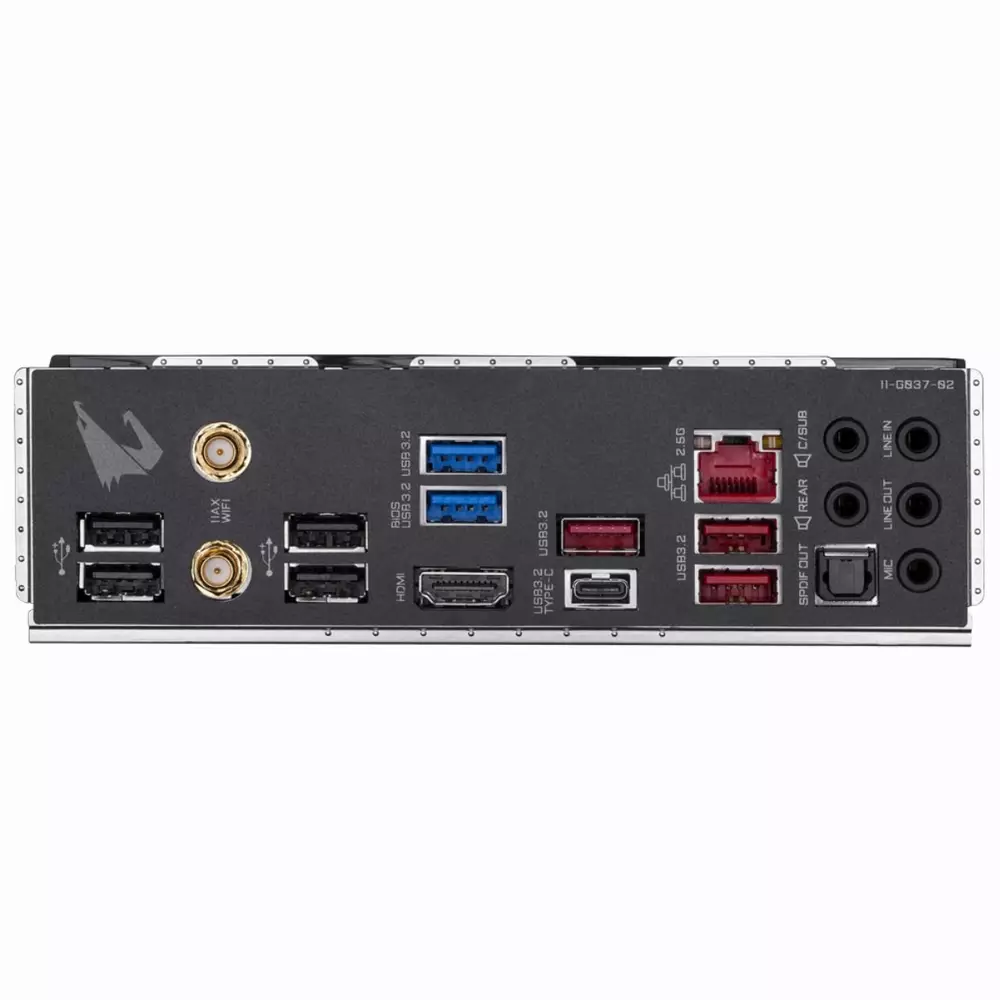

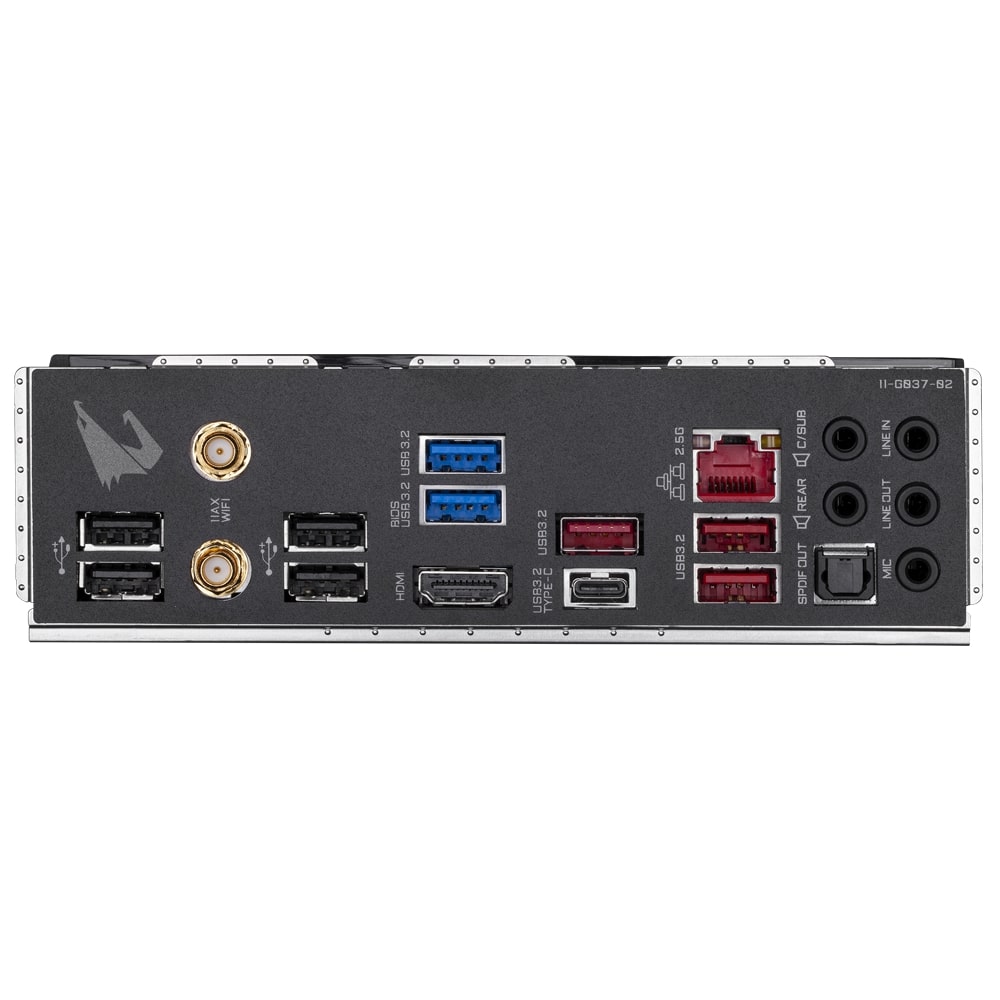

| Заден I/O панел | 1 x HDMI port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB |
| Мулти GPU технология | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies; Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies; |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 30.5 cm x 24.4 cm |
| Други | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 9-то поколение 10-то поколение |
| Гаранция | 36 месеца |
Все още няма ревюта за този продукт. Бъди първи!
