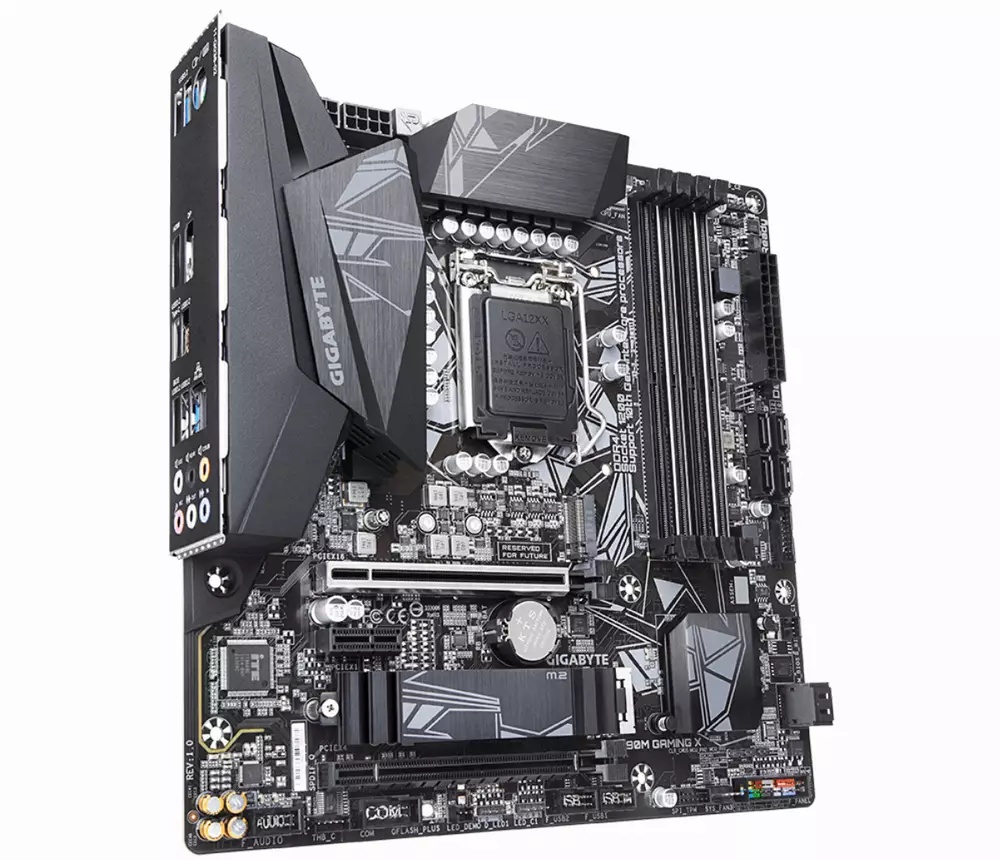

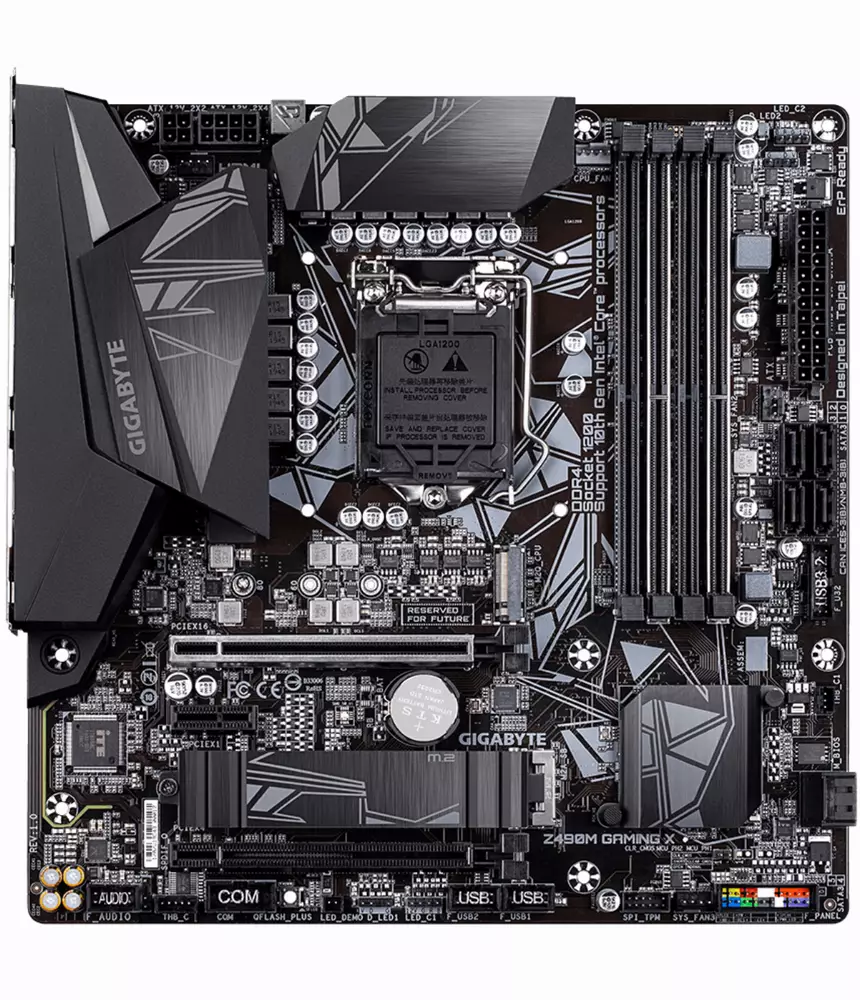

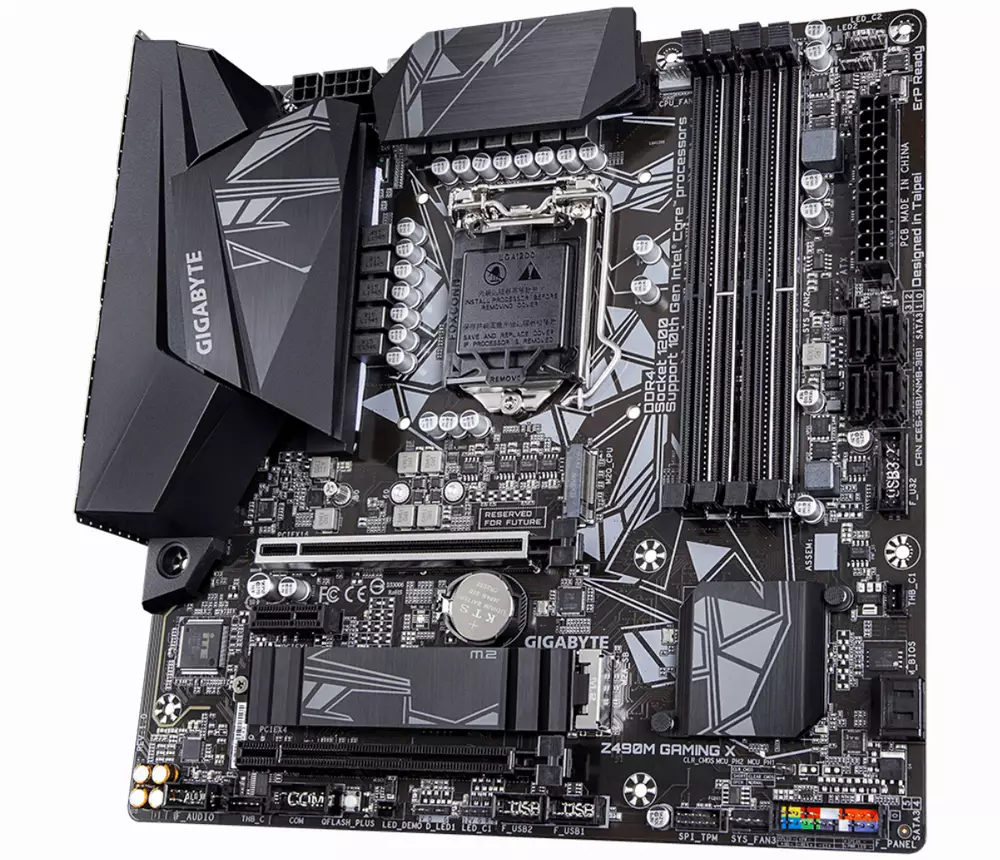

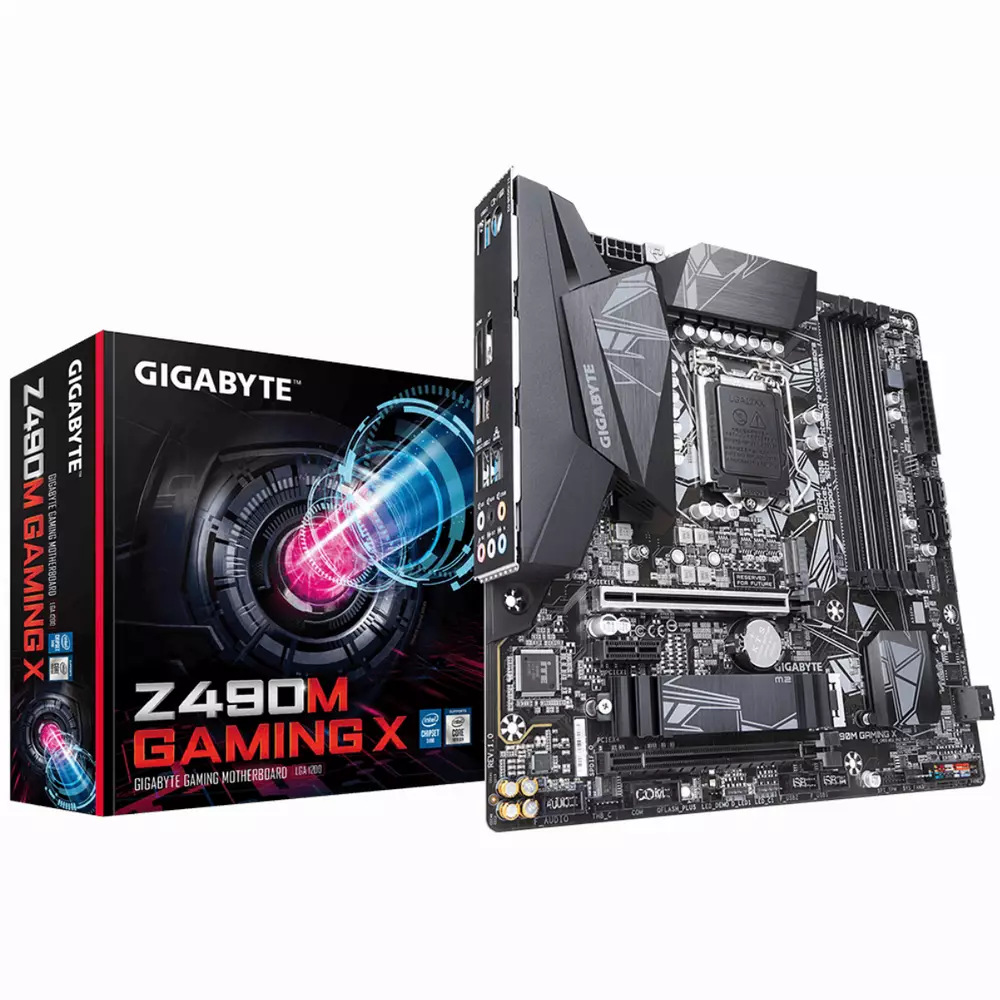

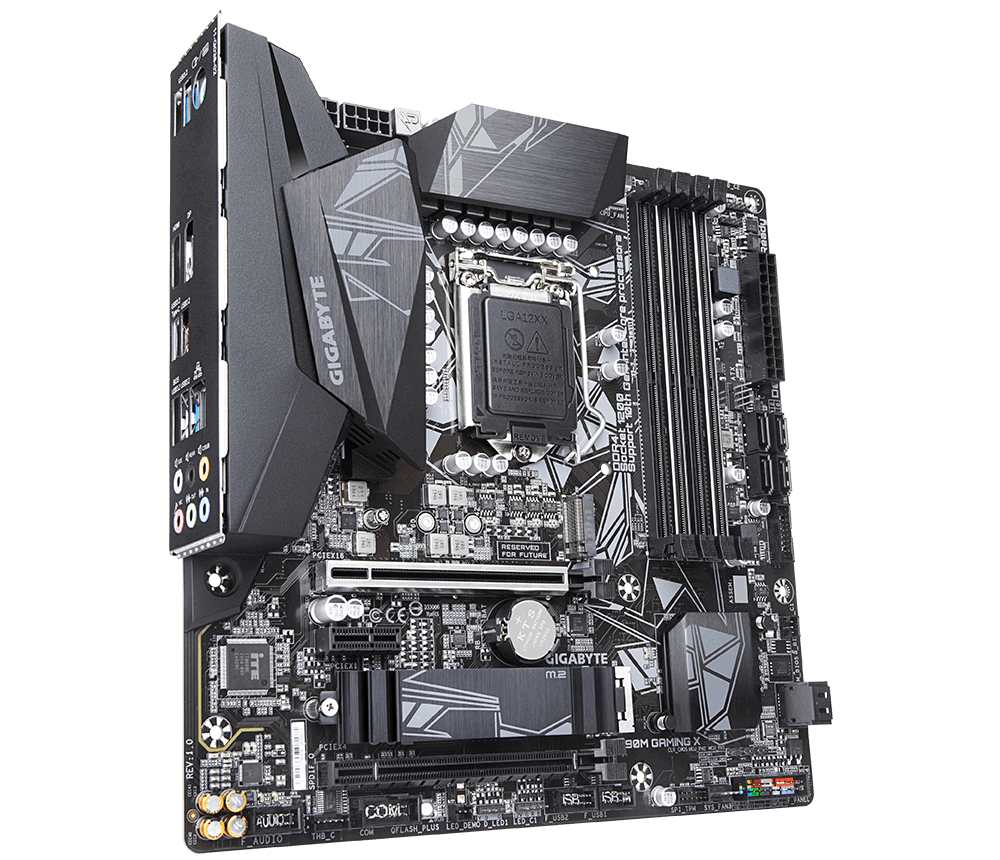

Дънна платка GIGABYTE Z490M GAMING X
| Производител | Gigabyte |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel Z490 |
| Форм фактор | ATX |
| Поддържани процесори | Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | 4400(O.C)/4266(O.C)/4133(O.C)/4000(O.C)/3866(O.C)/3800(O.C) 3733(O.C)/3600(O.C)/3466(O.C)/3400(O.C)/3200/3000/2933/2800/2666/2400/2133 |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1200 |
| Bluetooth версия | Bluetooth V5.0 |
| Вграден LAN | Intel GbE LAN chip (1000 Mbit/100 Mbit) |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |

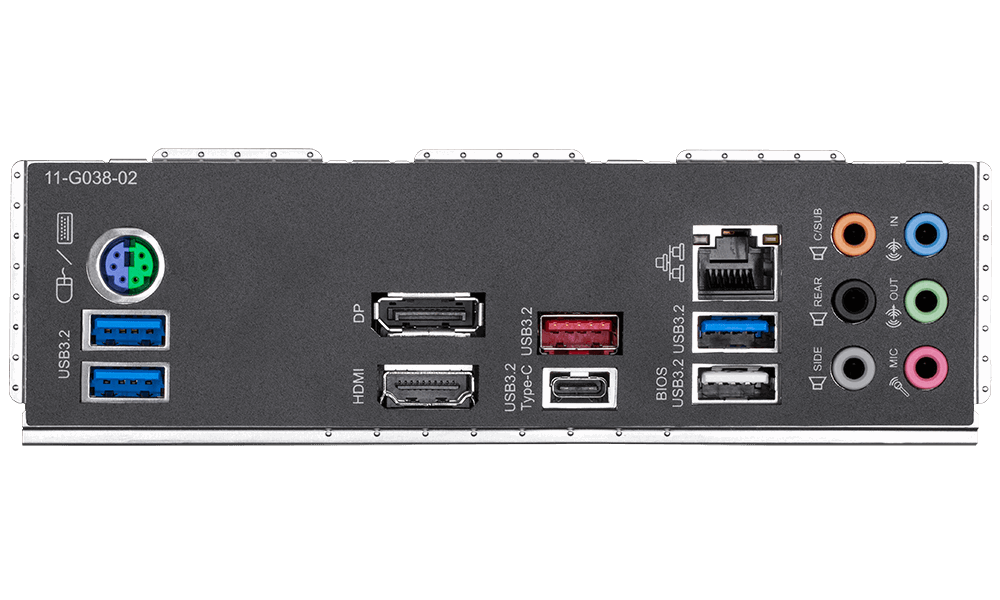

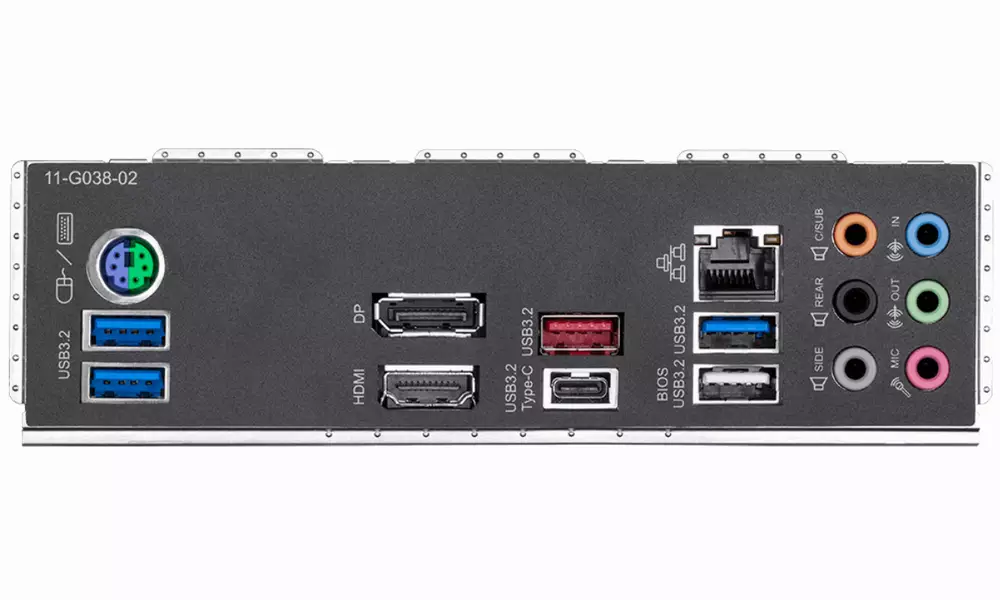

| Заден I/O панел | 1 x PS/2 keyboard/mouse port 4 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x RJ-45 port 6 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB |
| Мулти GPU технология | NVIDIA 2-Way SLI Technology;AMD 3-Way CrossFireX Technology |
| Размери | 24.4cm x 24.4cm |
| Поколение процесор | 10-то поколение |
| Гаранция | 36 месеца |
