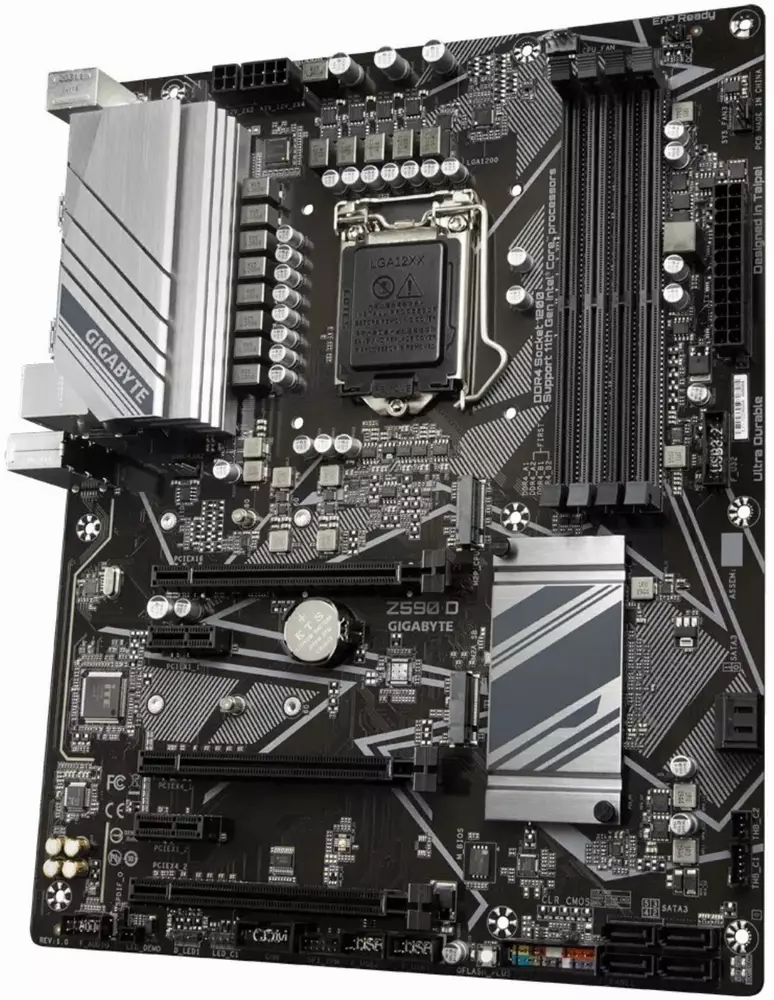

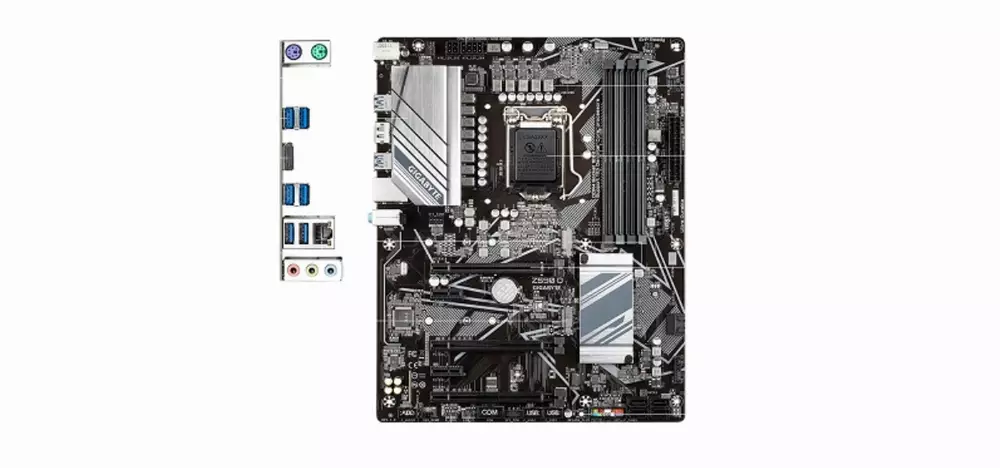

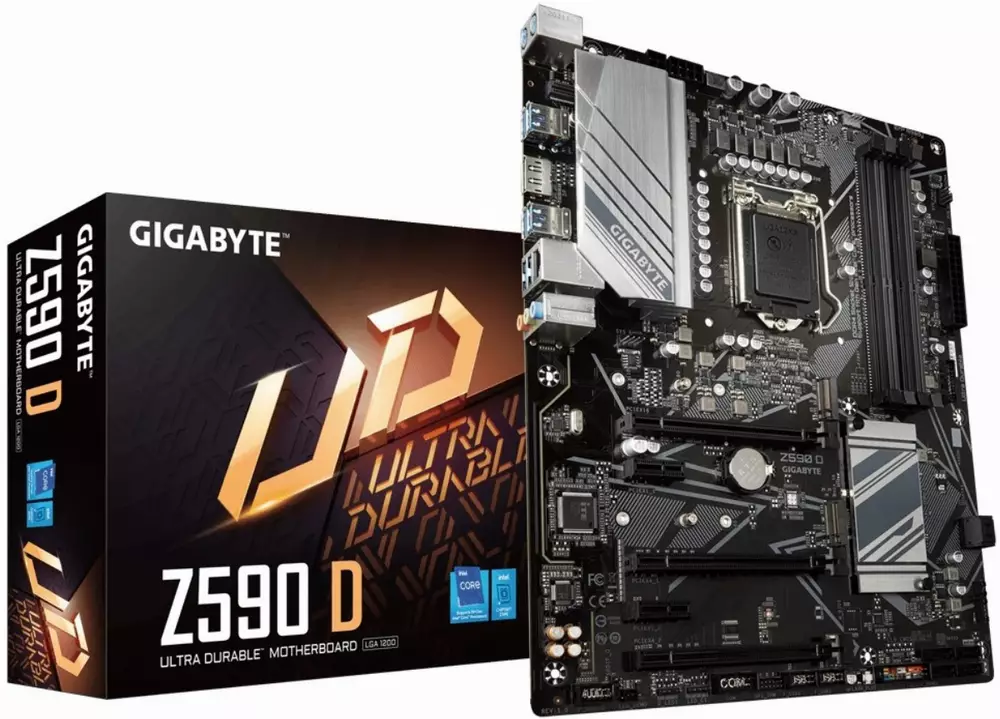

Дънна платка GIGABYTE Z590 D
| Производител | Gigabyte |
| Продуктов код | GB Z590 D |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel |
| Форм фактор | ATX |
| Поддържани процесори | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 4500MHz+ (OC) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® Audio CODEC |
| Вграден LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Интерфейс SATA | 6 x SATA2 3.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
| Разширителни слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2) (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | 8 x USB 3.2 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |

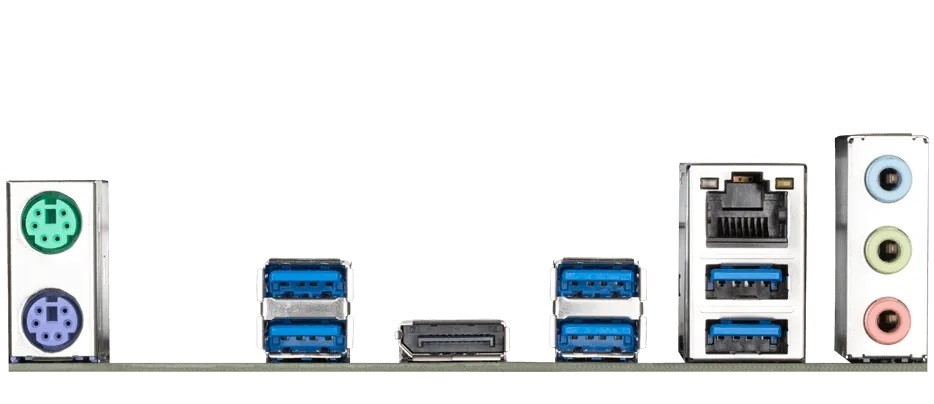

| Заден I/O панел | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x DisplayPort 6 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| Графика | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Мулти GPU технология | AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Размери | 30.5 cm x 24.4 cm |
| OS | Support for Windows 10 64-bit |
| Гаранция | 36 месеца |
