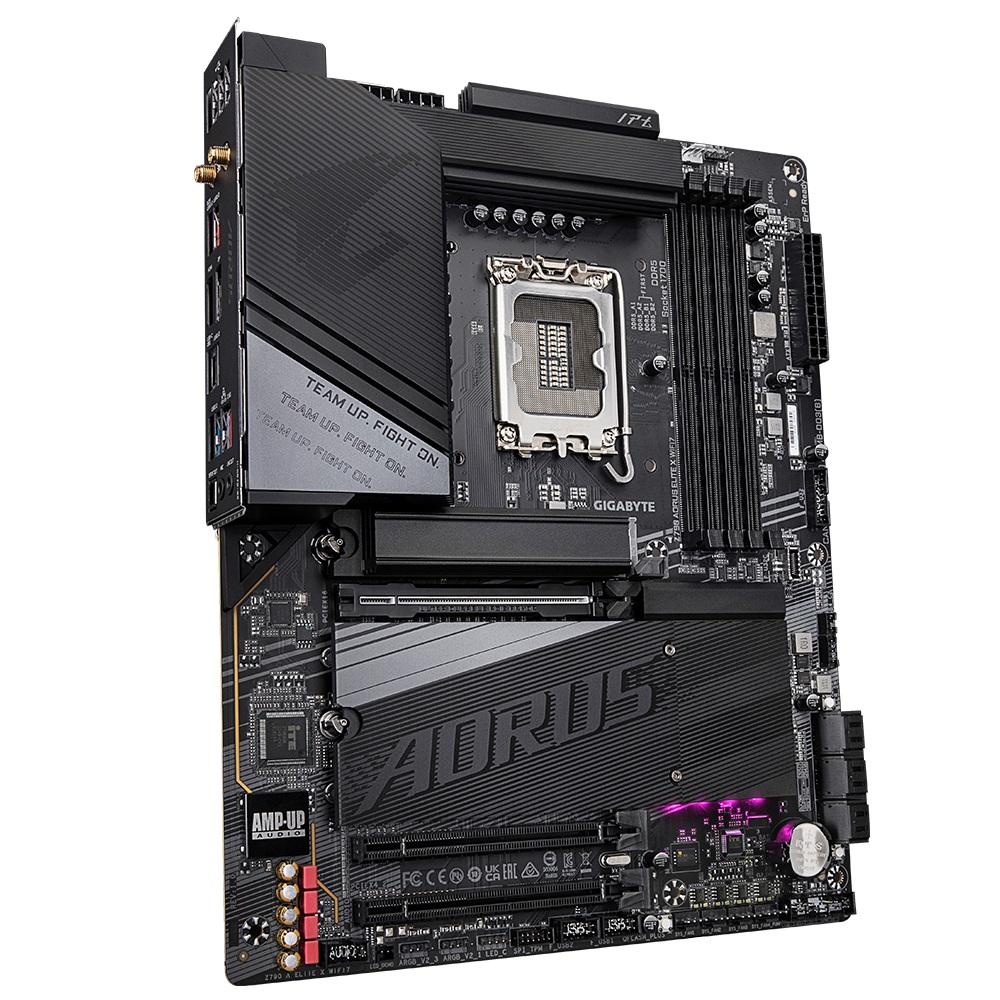

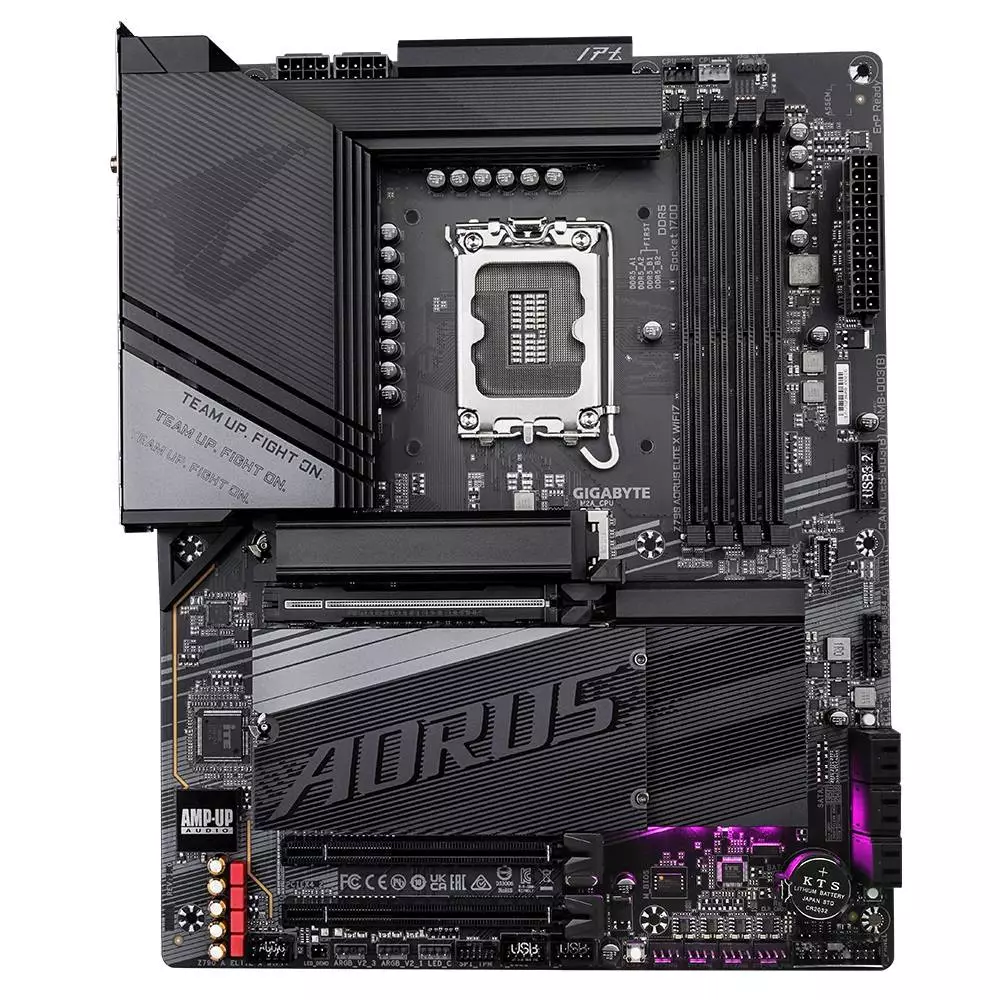

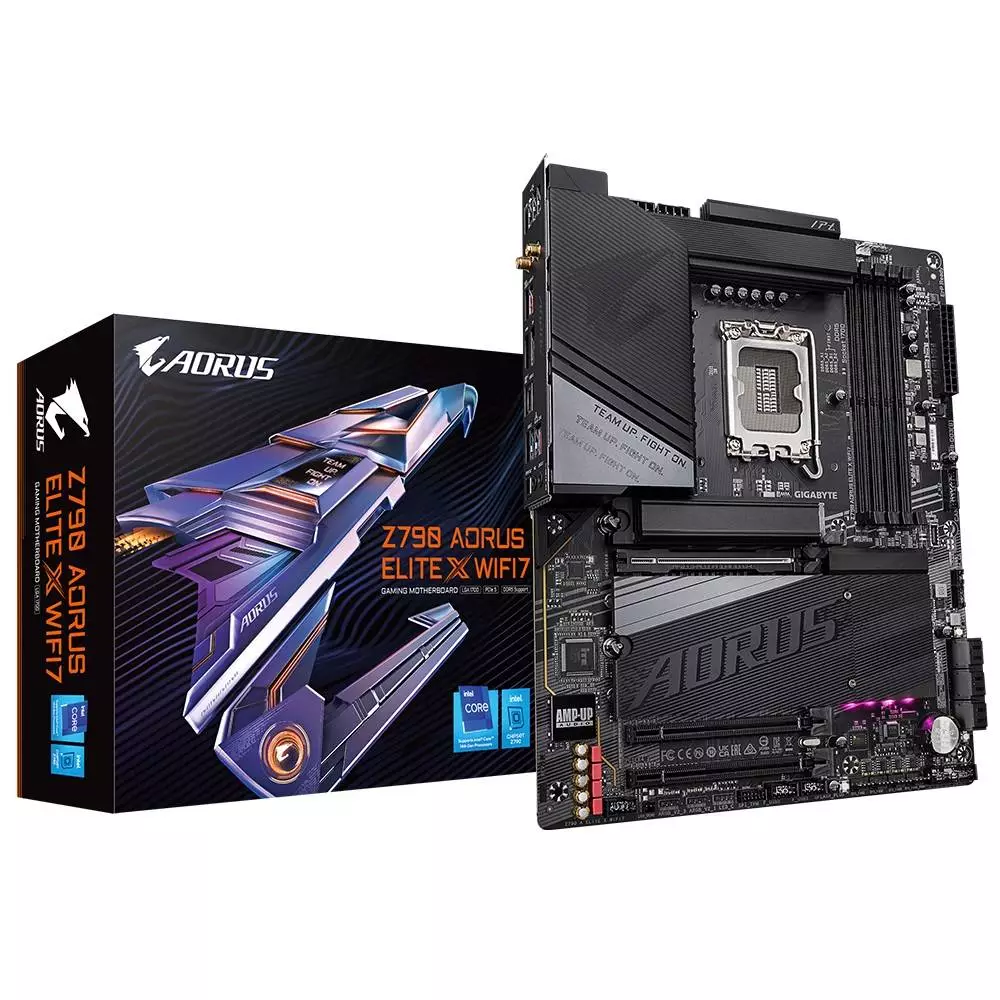

Motherboard Gigabyte Z790 AORUS ELITE X WIFI7 LGA1700

Motherboard Gigabyte Z790 AORUS ELITE X WIFI7 LGA1700

Name: Motherboard Gigabyte Z790 AORUS ELITE X WIFI7 LGA1700
Brand: Gigabyte
SKU: 44038
Price: 296.83 EUR
Availability: OutOfStock

Code: 44038

☆☆☆☆☆ 0 reviews

296.83 €

Earn 296 points

Out of stock

Notify me when available

We will send you an email as soon as the product is back in stock.

✅ Done! We will write to you as soon as it is available.

CPU socket: LGA 1700
Chipset (MB): Intel Z790 MB
Form factor: ATX
Supported memory: DDR5
Number of memory slots: 4

View all specifications

Full specifications

Manufacturer: Gigabyte
CPU socket: LGA 1700
Chipset (MB): Intel Z790
Form factor: ATX
Supported processors: Supports 14 th Gen & 13 th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
Supported memory: DDR5
Number of memory slots: 4
Maximum RAM capacity: 192 GB
Memory frequency (MHz): Up to 8266 MHz (O.C)
Support for dual-channel memory: Yes
Built-in audio: Realtek® ALC1220-VB
Built-in Wi-Fi: Wi-Fi 7
Bluetooth version: Bluetooth V5.3
Built-in LAN: Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
SATA interface: 6 x SATA3 6.0 Gb/s
RAID support: 0, 1, 5, 10
M2 slot: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
Expansion slots: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Power connector: 1 x 24-pin
2 x 8-pin
Graphics: 1 x HDMI port
1 x DisplayPort
Processor generation: 12th generation
13th generation
14th generation
Warranty: 36 months
OS: Support for Windows 10 and 11 64-bit
USB ports: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

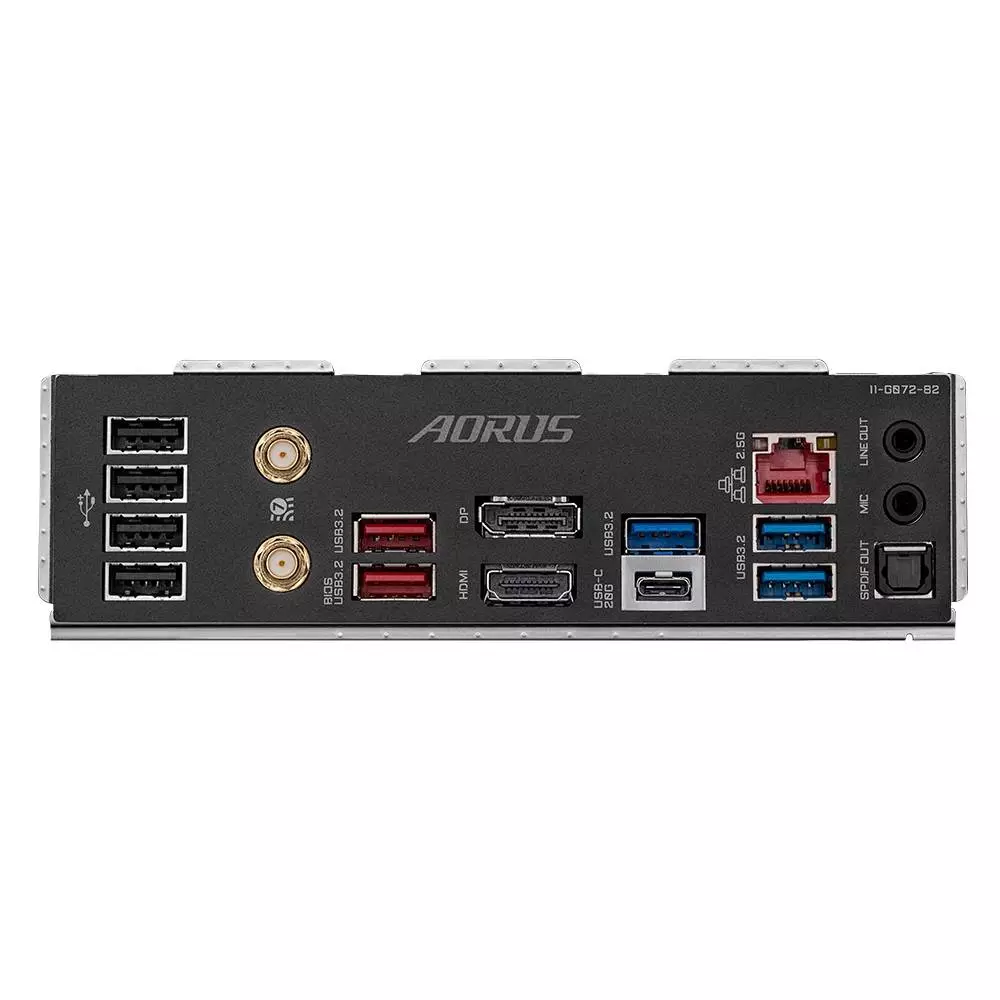

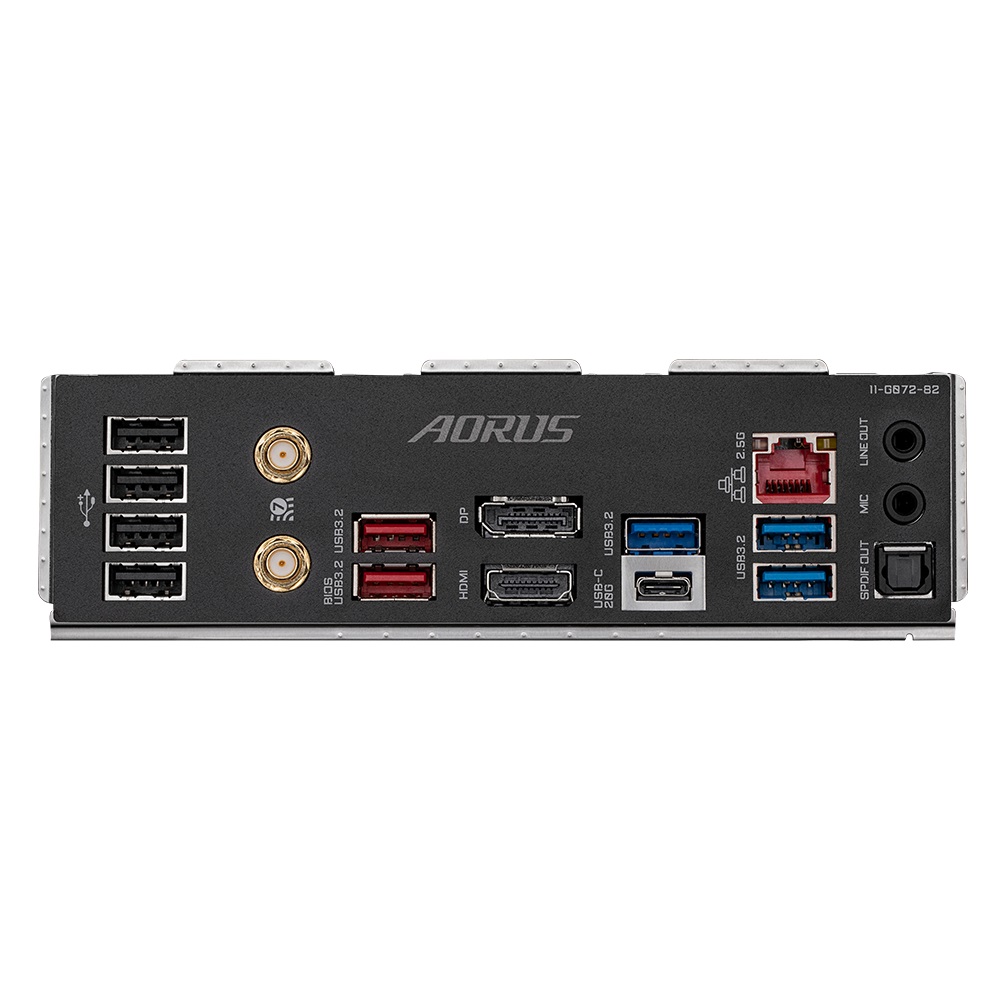

Rear I/O panel: 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) jk
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
