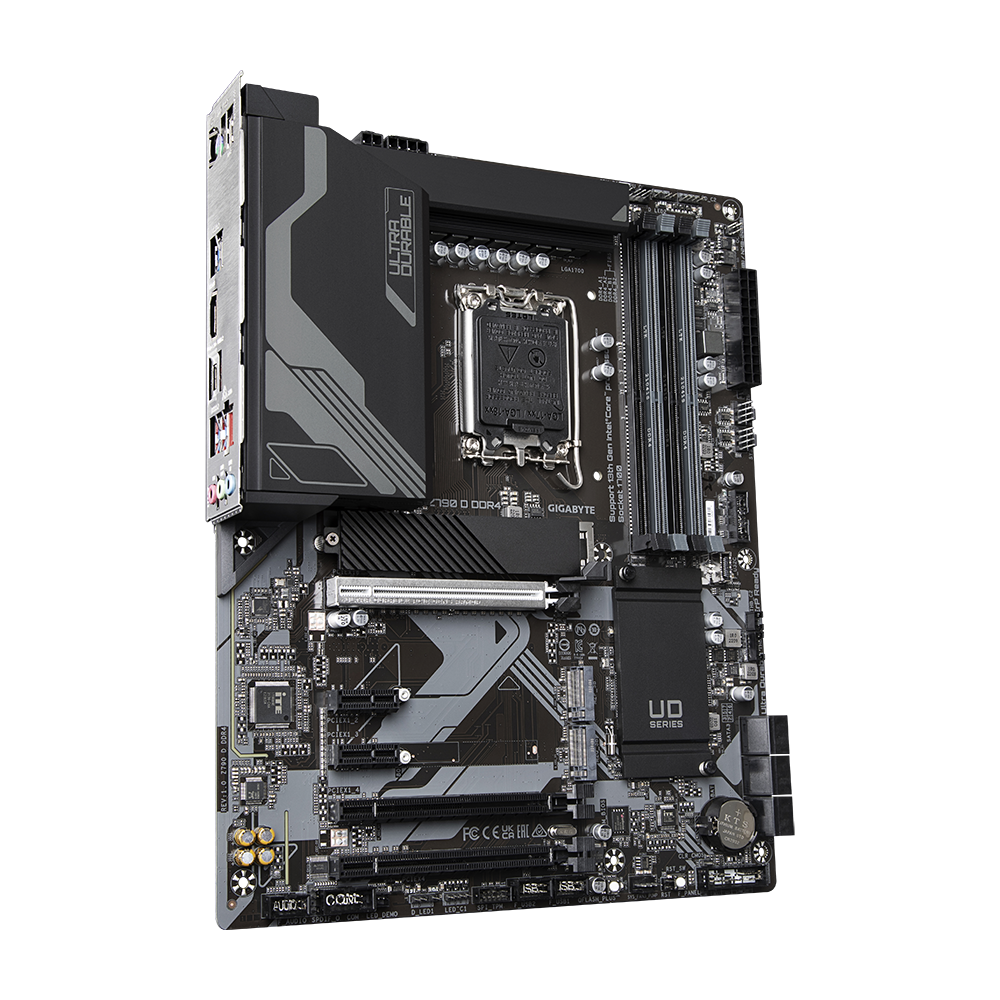

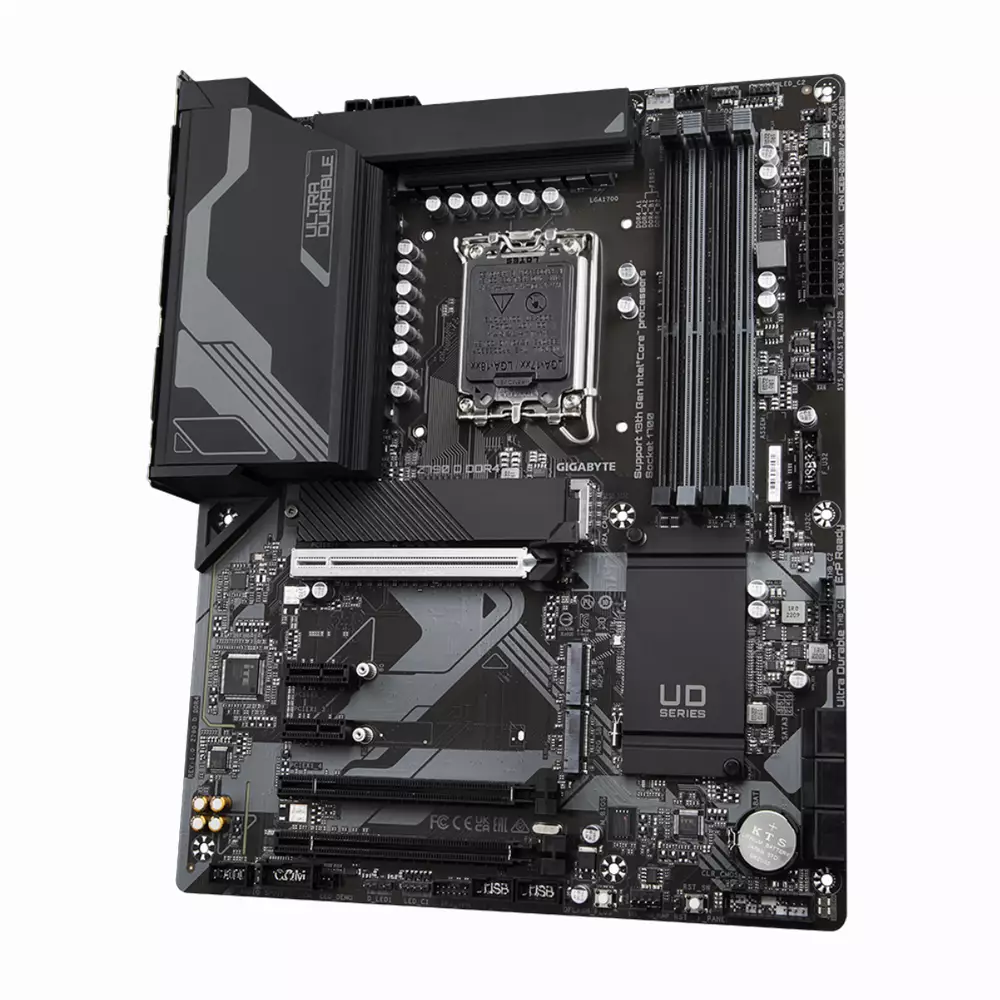

Gigabyte Z790 D LGA1700 DDR4 Motherboard
Code: 34976
209.70 €
Earn 209 points
Out of stock
Notify me when available
We will send you an email as soon as the product is back in stock.
✅ Done! We will write to you as soon as it is available.
- CPU socket
- LGA 1700
- Chipset (MB)
- Intel Z790 MB
- Form factor
- ATX
- Supported memory
- DDR4
- Number of memory slots
- 4
Full specifications
- Manufacturer
-
Gigabyte
- CPU socket
-
LGA 1700
- Chipset (MB)
- Intel Z790
- Form factor
- ATX
- Supported processors
-
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supported memory
-
DDR4
- Number of memory slots
- 4
- Maximum RAM capacity
- 128 GB
- Memory frequency (MHz)
-
up to 5333MHz (OC)
- Support for dual-channel memory
- Yes
- Built-in audio
-
Realtek® Audio CODEC
- Built-in Wi-Fi
-
No
- Bluetooth version
- No
- Built-in LAN
-
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- SATA interface
- 6 x SATA 6Gb/s
- RAID support
- 0, 1, 5, 10
- M2 slot
-
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
- Expansion slots
-
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
- Power connector
-
1 x 24-pin1 x 8-pin1 x 4-pin
- Dimensions
- 30.5 cm x 24.4 cm
- Processor generation
-
12th generation13th generation14th generation
- Warranty
- 36 months
- OS
-
Microsoft Windows 10, Microsoft Windows 11
- USB ports
-
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

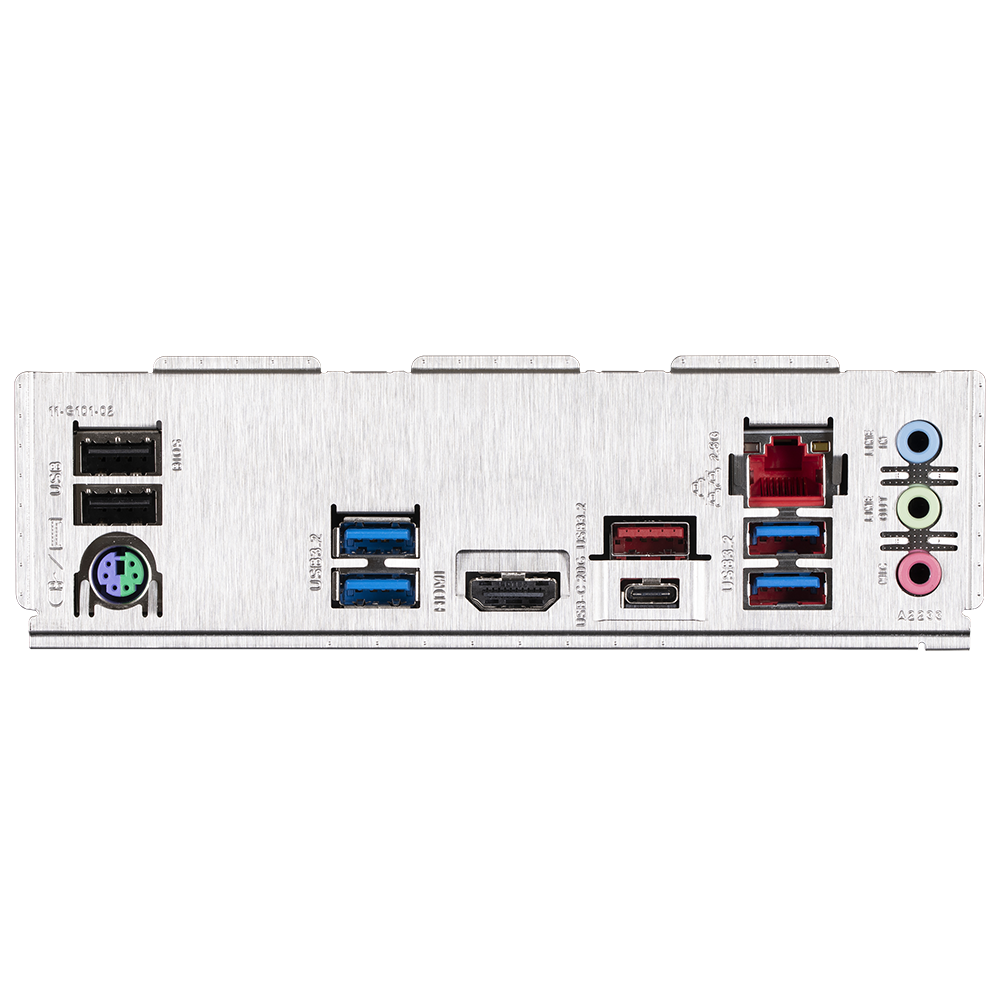

- Rear I/O panel
-
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x HDMI 2.0 port1 x RJ-45 port3 x audio jacks
