Дънна платка MSI H270 GAMING M3

92.59/ 181.09 лв.
Спечели 92 точки с тази покупка
Изчерпан
Код: 15254
Производител
MSI
CPU сокет
LGA 1151
Чипсет (MB) Intel H270
Форм фактор ATX
Поддържани процесори
Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 * This function will be supported depend on the CPU.
Поддържана памет
DDR4
Брой слотове за памет 4
Максимален капацитет RAM памет 64 GB
Честота памет (MHz)
До 3800 (O.C.)
Поддръжка на двуканална памет Да
Вградено аудио
Realtek ALC1220
Вграден LAN
Killer E2500 LAN chip (10/100/1000 Mbit)
Интерфейс SATA 6 x SATA3 6.0 Gb/s
М2 слот
2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready for all M.2 slots
- Supports Intel® Smart Response Technology for Intel Core™ processors (optional)
Разширителни слотове
• 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)*
• 4 x PCIe 3.0 x1 slots
* The PCI_E4 slot will be unavailable when an M.2 SSD module has been installed in the M.2_2 slot.
** The PCI_E2 slot will be unavailable when an expansion card has been installed in the PCI_E5 slot.
** The PCI_E3 slot will be unavailable when an expansion card has been installed in the PCI_E6 slot.
Конектор захранване
1 x 24-pin
1 x 8-pin
USB портове
ASMedia® ASM2142 Chipset
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
Intel® H270 Chipset
8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

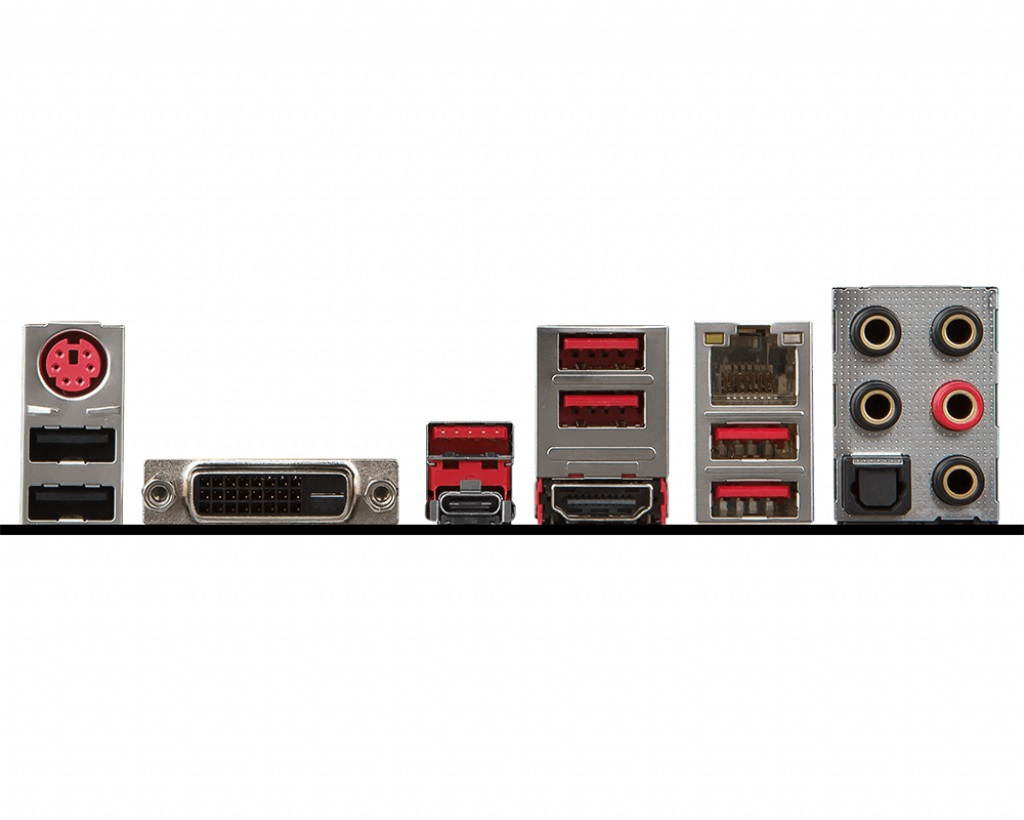

Заден I/O панел
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector.
Графика
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz.
Мулти GPU технология AMD 2-Way CrossFireX Technology
Bios
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
Размери 30.4 cm x 24.3 cm
OS
Windows 10
Поколение процесор
6-то поколение
7-мо поколение
Гаранция 36 месеца
