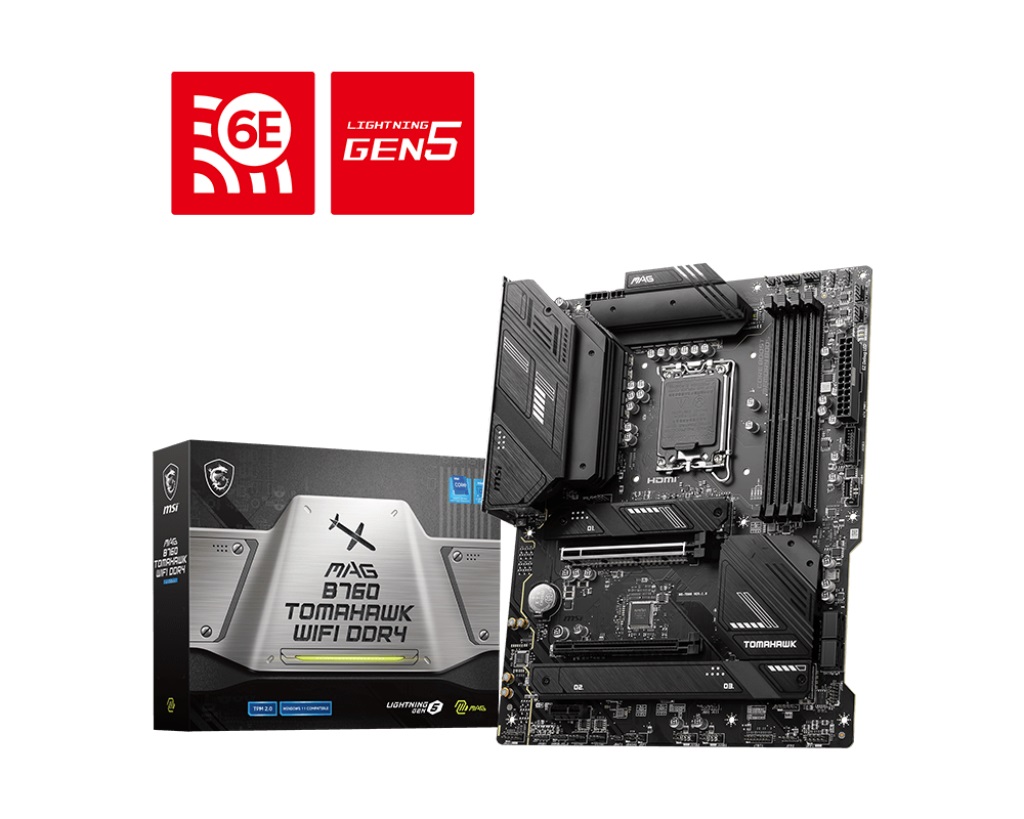

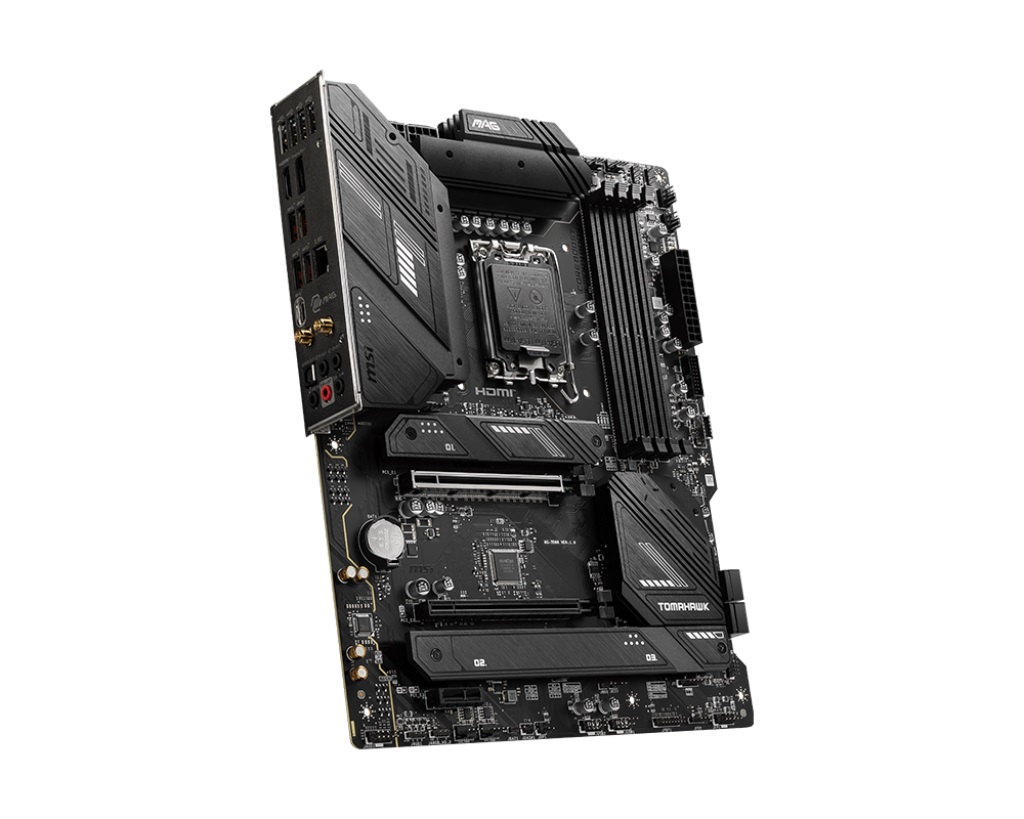

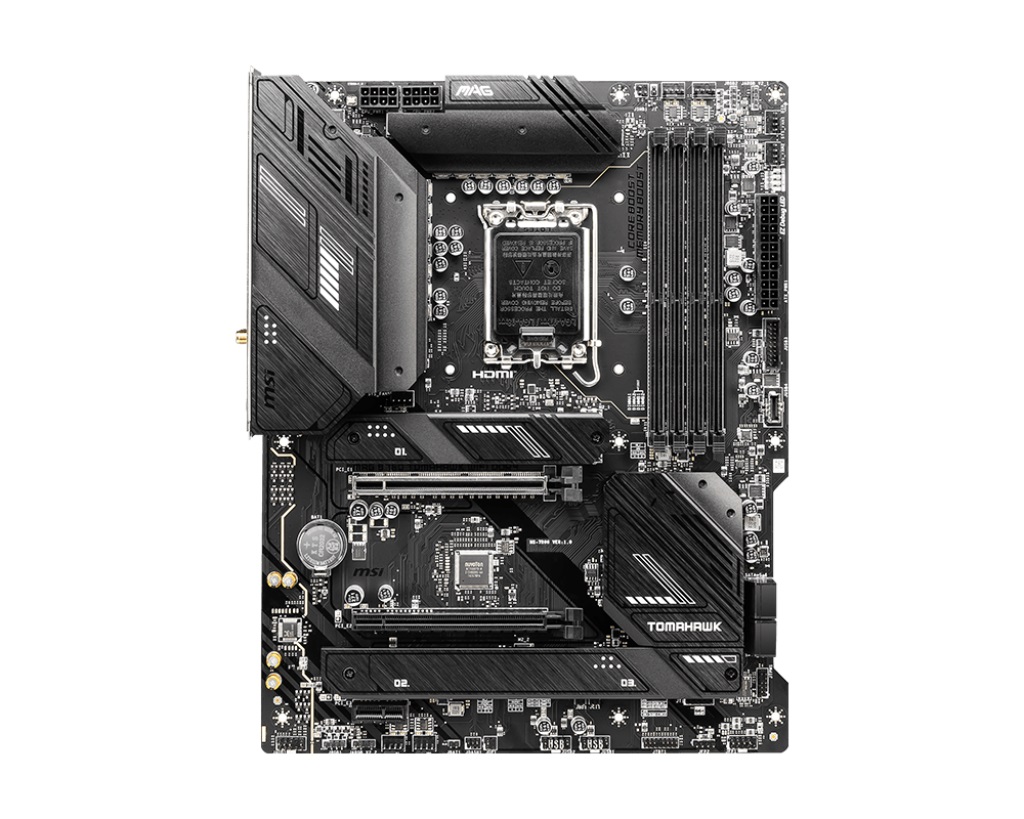

Motherboard MSI MAG B760 TOMAHAWK WIFI DDR4 LGA1700
Code: 34331
187.64 €
Earn 187 points
Out of stock
Notify me when available
We will send you an email as soon as the product is back in stock.
✅ Done! We will write to you as soon as it is available.
- CPU socket
- LGA 1700
- Chipset (MB)
- Intel B760 MB
- Form factor
- ATX
- Supported memory
- DDR4
- Number of memory slots
- 4
Full specifications
- Manufacturer
-
MSI
- Product Code
- 911-7D96-001
- CPU socket
-
LGA 1700
- Chipset (MB)
- Intel B760
- Form factor
- ATX
- Supported processors
-
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- Supported memory
-
DDR4
- Number of memory slots
- 4
- Maximum RAM capacity
- 128 GB
- Memory frequency (MHz)
-
up to 5333MHz (OC)
- Support for dual-channel memory
- Yes
- Built-in audio
-
Realtek ALC897 Codec7.1-Channel High Definition Audio
- Built-in Wi-Fi
-
Wi-Fi 6E
- Bluetooth version
- Bluetooth V5.3
- Built-in LAN
-
Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- SATA interface
- 4 x SATA3 6.0 Gb/s
- RAID support
- 0, 1, 5, 10
- M2 slot
-
3 x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- Expansion slots
-
2 x PCI-E x16 slotSupports x16/x41 x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
- Power connector
-
1 x 24-pin2 x 8-pin
- Graphics
-
1 x DisplayPort 1.41 x HDMI 2.1
- Dimensions
- 30.5 cm x 24.4 cm
- Processor generation
-
14th generation13th generation12th generation
- Warranty
- 36 months
- OS
-
Microsoft Windows 10, Microsoft Windows 11
- USB ports
-
4 x USB 2.0 (Rear)4 x USB 2.0 (Front)2 x USB 3.2 Gen1 Type A (Front)4 x USB 3.2 Gen2 Type A (Rear)1 x USB 3.2 Gen2 Type C (Front)1 x USB 3.2 Gen2x2 Type C (Rear)
- Rear I/O panel
-
USB 2.0DisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI 2.1 PortUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUT
