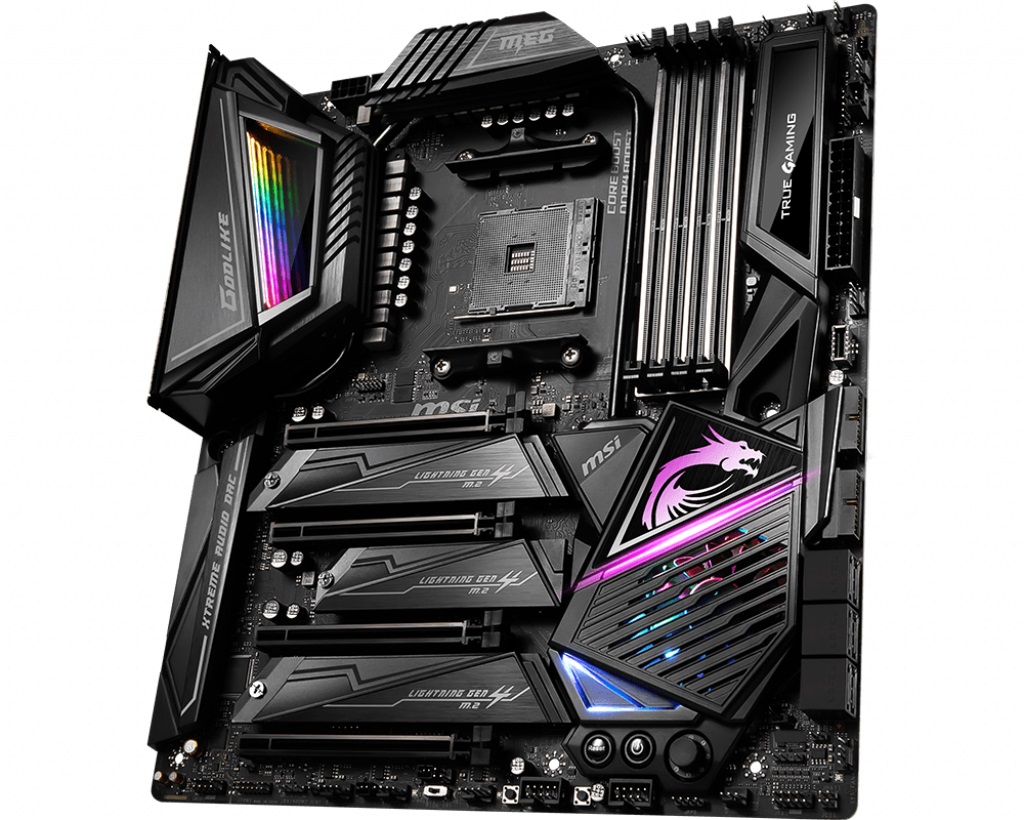

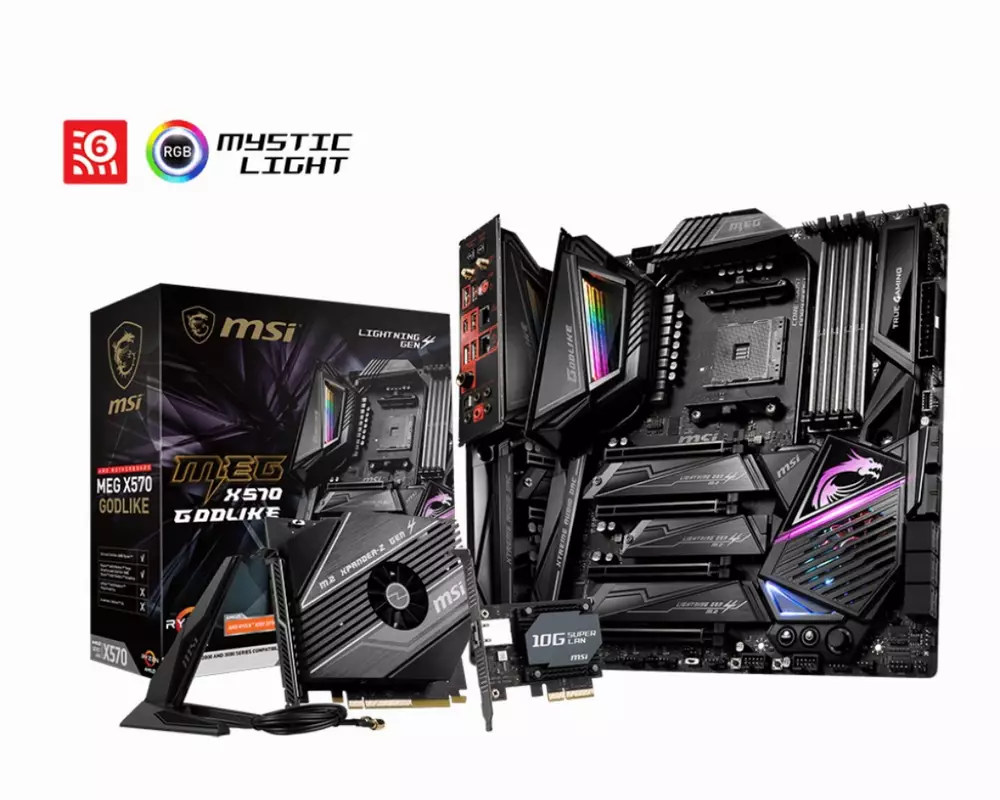

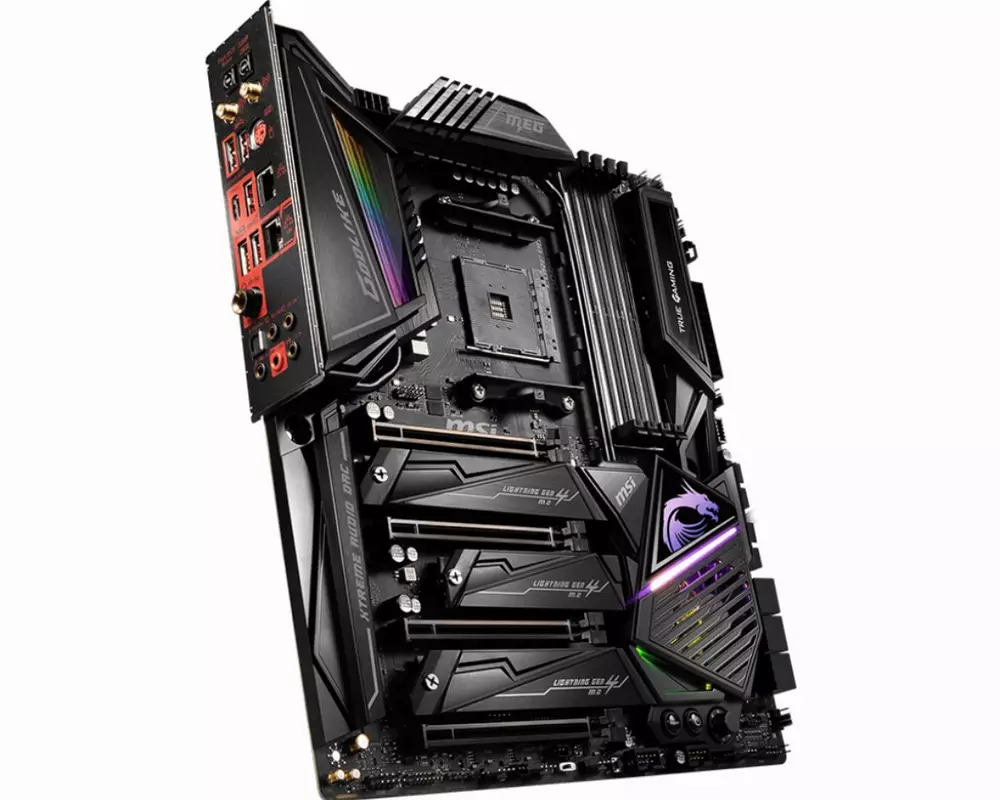

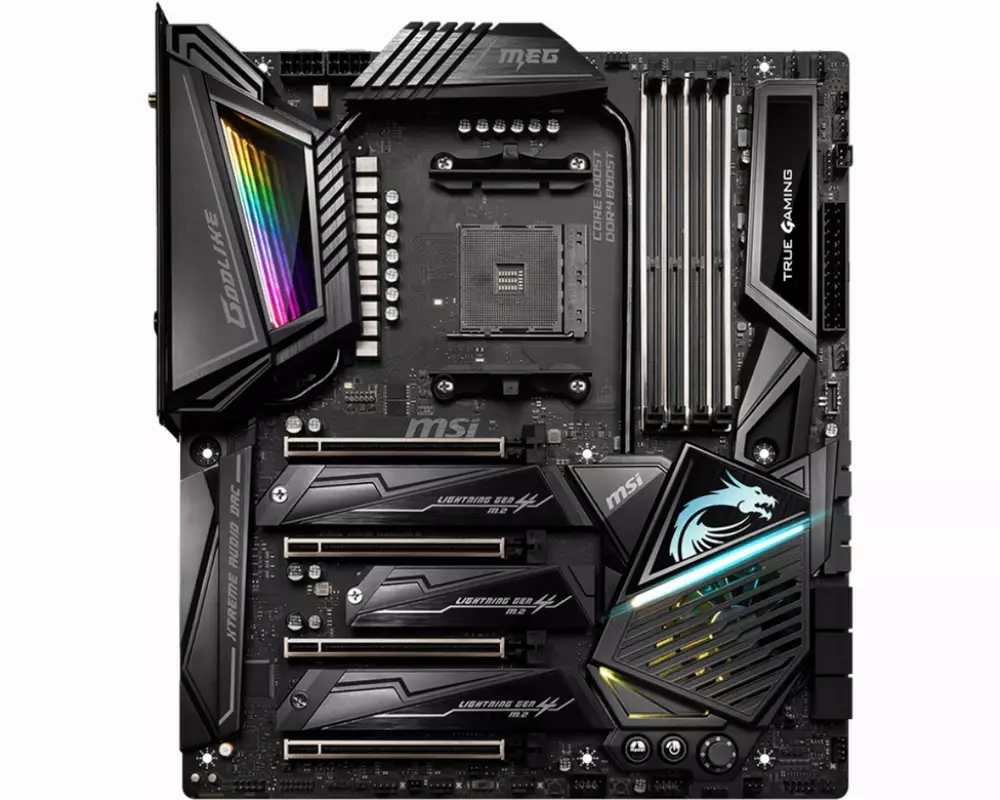

Дънна платка MSI MEG X570 GODLIKE
| Производител | MSI |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X570 |
| Форм фактор | Extended ATX |
| Поддържани процесори | Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 5000+(O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | 2x Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output ESS® E9018 Codec Supports 6.3mm Gold-plated stereo headphone out |
| Вграден Wi-Fi | Killer Wi-Fi 6 AX1650 Chipset |
| Bluetooth версия | Bluetooth V5.1 |
| Вграден LAN | 1x Killer E2600 Gigabit LAN Controller 1x Killer E3000 2.5 Gbps LAN Controller |
| Интерфейс SATA | 4x SATA 6Gb/s ports (SATA1-SATA4);3x M.2 slots (Key M) PCIe 4.0 x4;ASMedia ASM1061 2x SATA 6Gb/s ports;(SATA5, SATA6);Supports RAID 0, RAID 1 and RAID 10 |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 3x M.2 slots (Key M) M2_1 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices M2_3 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/ 2260/ 2280/ 22110 storage devices |
| Разширителни слотове | 3x PCIe 4.0/3.0 x16 slot (PCI_E1~3) 1x PCIe 4.0/3.0 x16 slot (PCI_E4, supports x4 mode) |
| Конектор захранване | 1 x 24-pin 2 x 8-pin |
| USB портове | AMD X570 Chipset 3 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors) 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 4 x USB 2.0 (High-speed USB) ports through the internal USB connectors AMD Processor 2 x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |

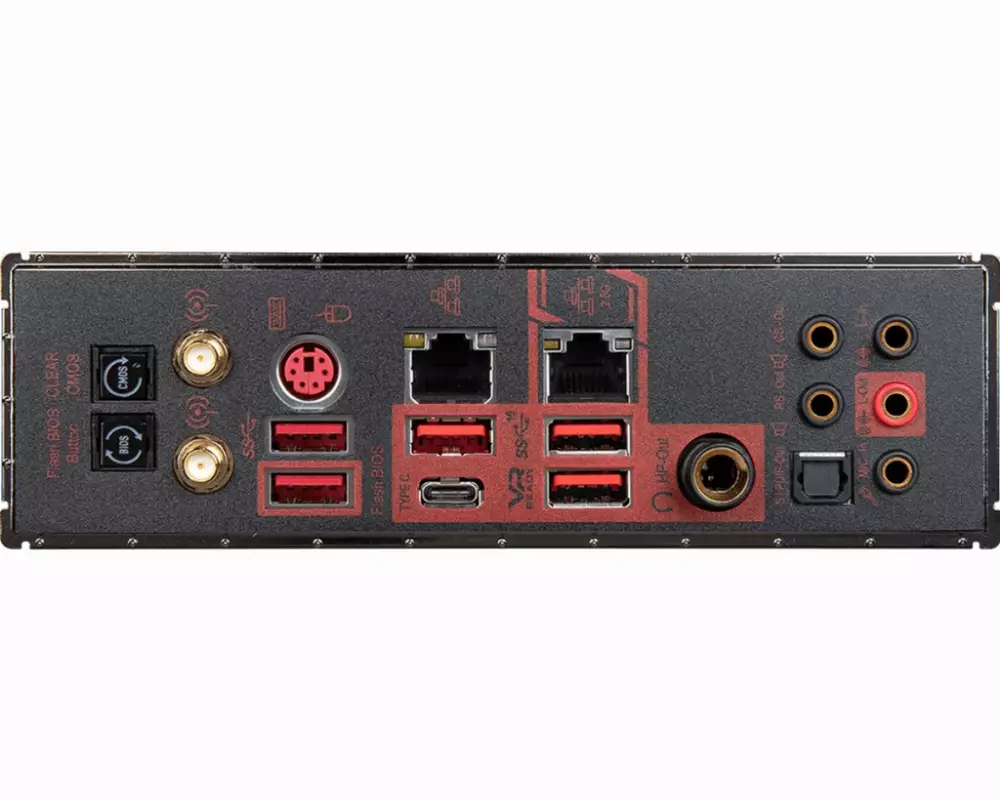

| Заден I/O панел | Clear CMOS Button Wi-Fi /Bluetooth Antenna Connectors PS/2 GAMING Device Port Killer 2.5G + Killer Gigabit LAN HD Audio Connectors Flash BIOS Button USB 3.2 Gen1 Ports USB 3.2 Gen2 Ports Type-A+C USB 3.2 Gen2 Ports 6.3mm headphone Optical S/PDIF-Out |
| Графика | Supports 2-Way NVIDIA® SLI™ Technology Supports 4-Way AMD® CrossFire™ |
| Мулти GPU технология | Supports 2-Way NVIDIA SLI Technology; Supports 4-Way AMD CrossFire™ Technology |
| Размери | 30.5 cm x 27.2 cm |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 5-то поколение 2-ро поколение 3-то поколение 4-то поколение |
| Гаранция | 36 месеца |
