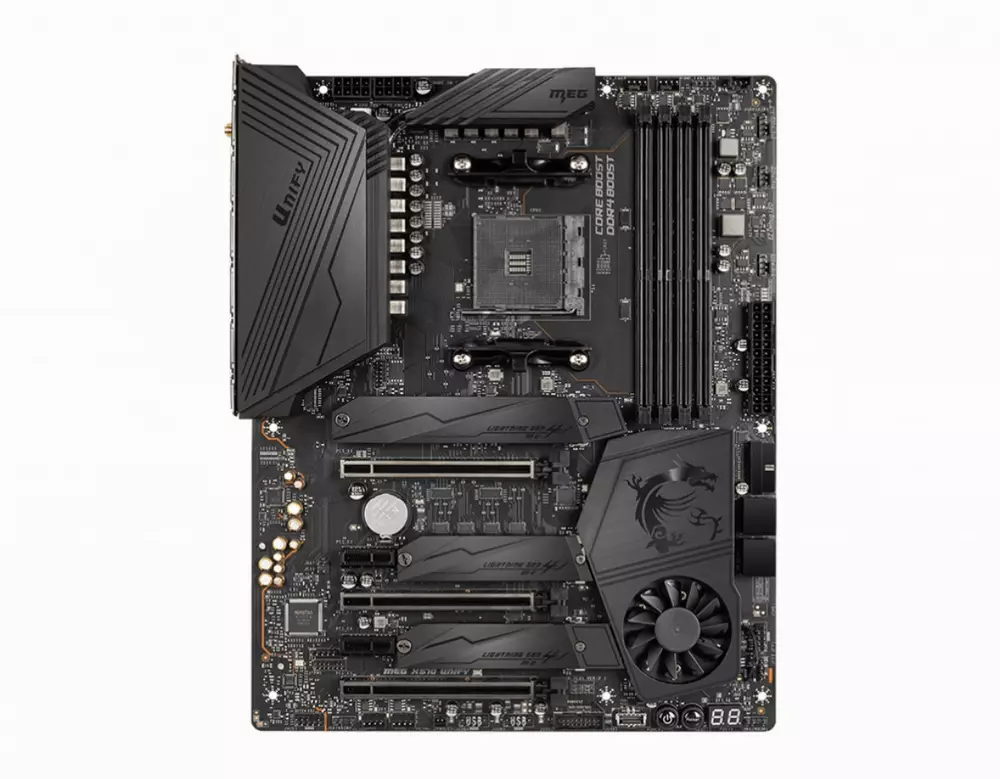

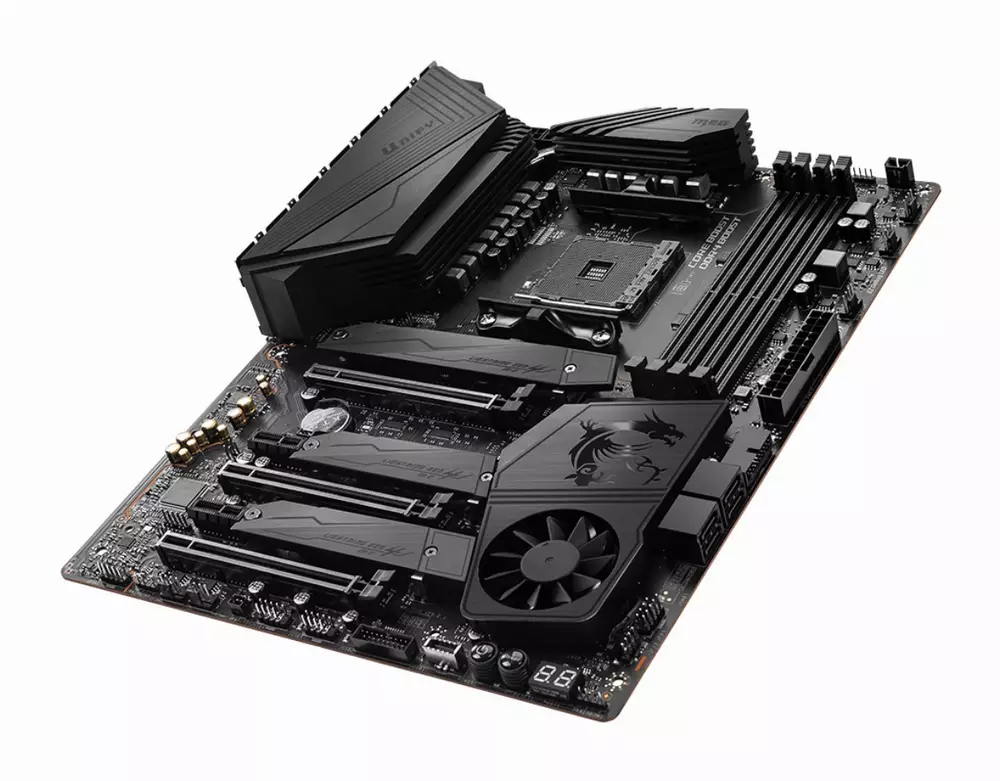

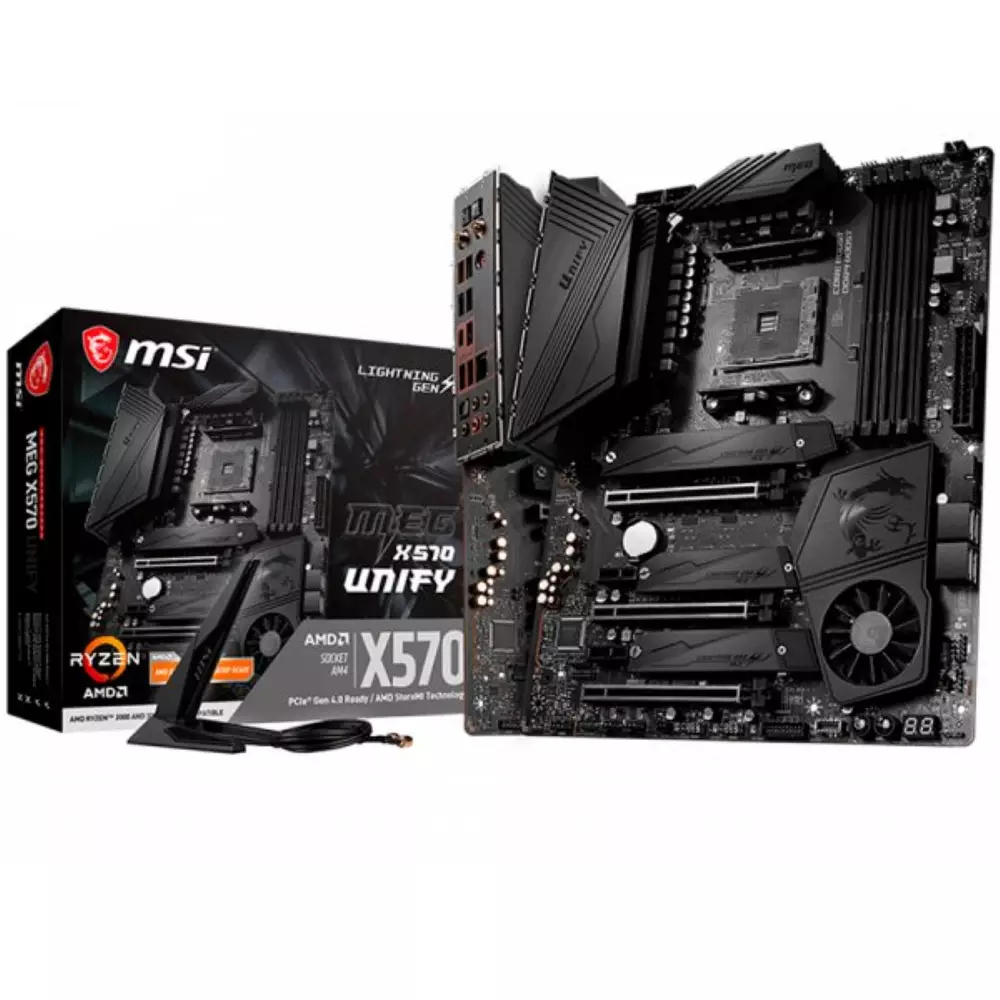

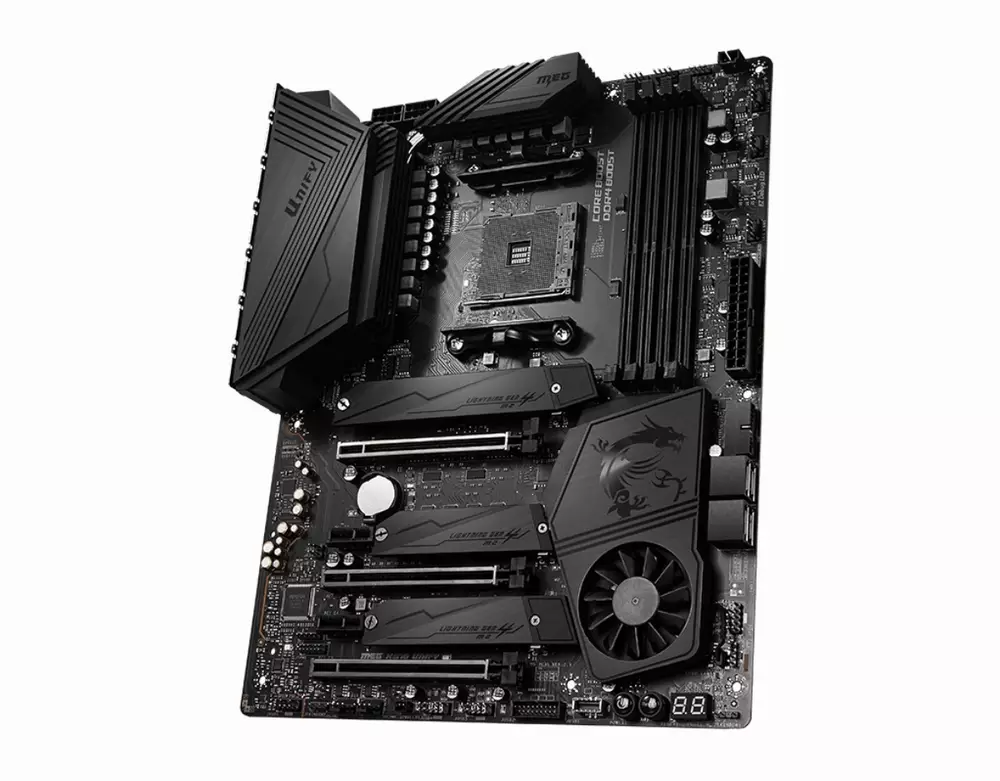

Дънна платка MSI MEG X570 UNIFY
| Производител | MSI |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X570 |
| Форм фактор | ATX |
| Поддържани процесори | Supports AMD Ryzen 5000 Series/ 2nd and 3rd Gen AMD Ryzen / Ryzen 4000 G-Series / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 5000MHz (O.C.) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC1220 |
| Вграден Wi-Fi | Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
| Bluetooth версия | Bluetooth V5.1 |
| Вграден LAN | Realtek® RTL8125-CG 2.5G LAN |
| Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 3 x M.2 slots (M2_2/ M2_3, Key M) |
| Разширителни слотове | 2 x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes Ryzen 4000 G-Series support PCIe 3.0 x16/x0, x8/x8 modes Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode) 2 x PCIe 4.0/ 3.0 x1 slots |
| Конектор захранване | 1 x 24-pin 2 x 8-pin |
| USB портове | 3 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) 2 x USB 3.2 Gen2 (3rd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |

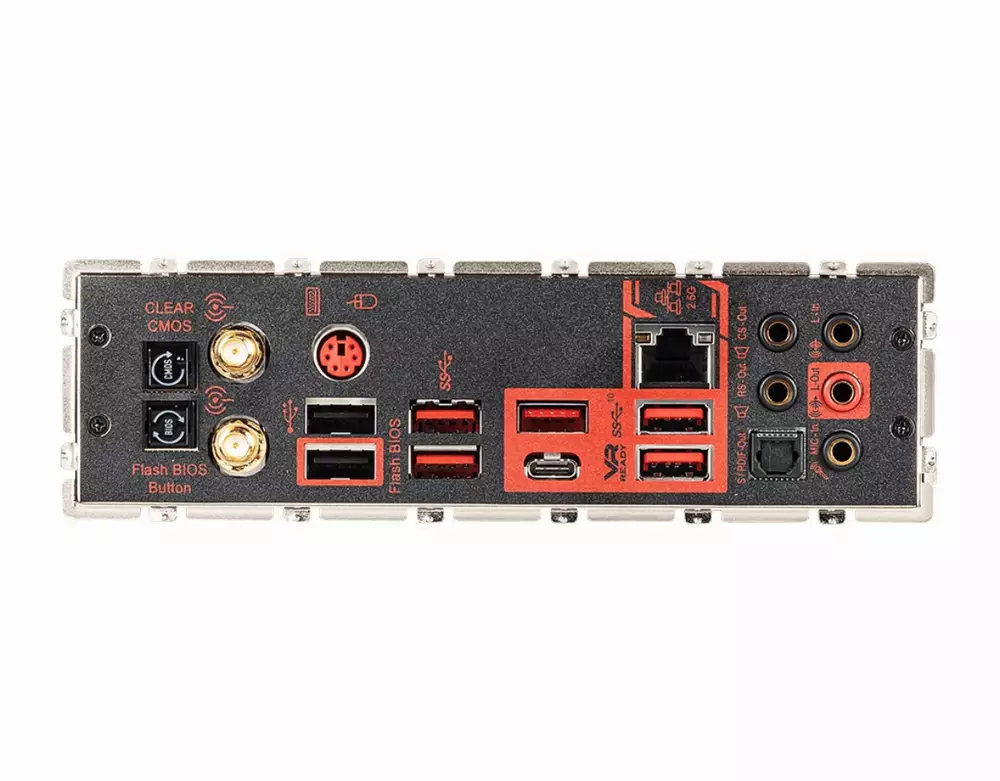

| Заден I/O панел | Clear CMOS Button Wi-Fi /Bluetooth Antenna Connectors PS/2 GAMING Device Port Realtek 2.5G LAN HD Audio Connectors Flash BIOS Button USB 2.0 Ports USB 3.2 Gen1 Ports USB 3.2 Gen2 Ports Type A+C USB 3.2 Gen2 Ports |
| Мулти GPU технология | NVIDIA 2-Way SLI Technology;AMD 3-Way CrossFireX Technology |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
