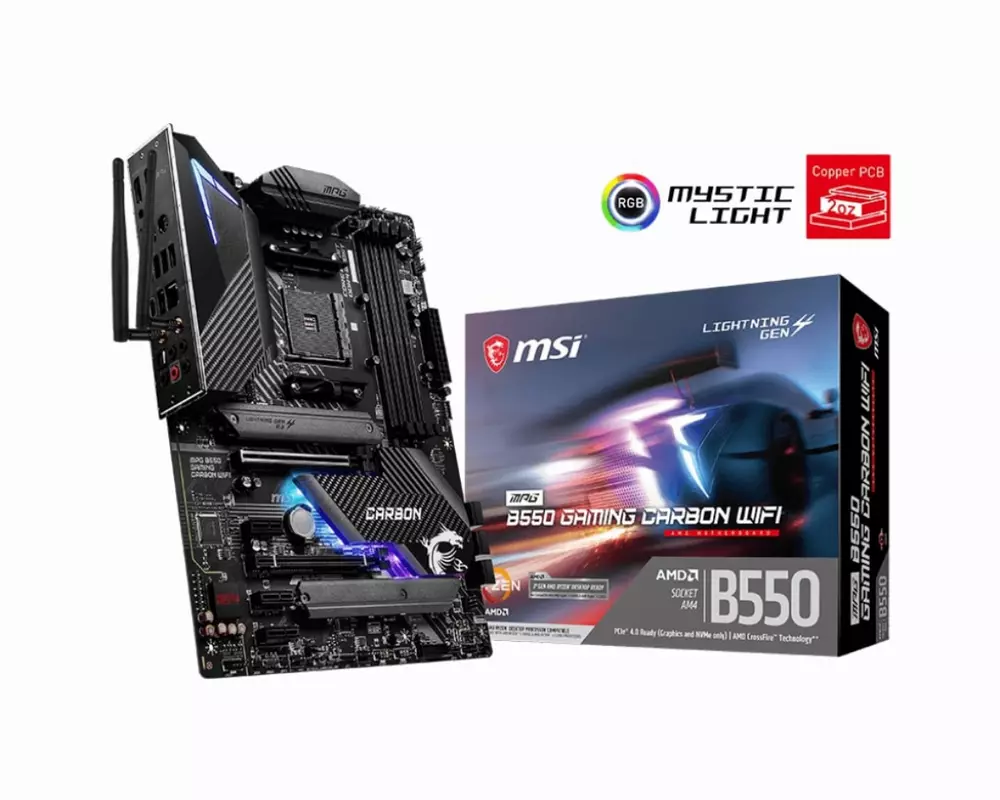

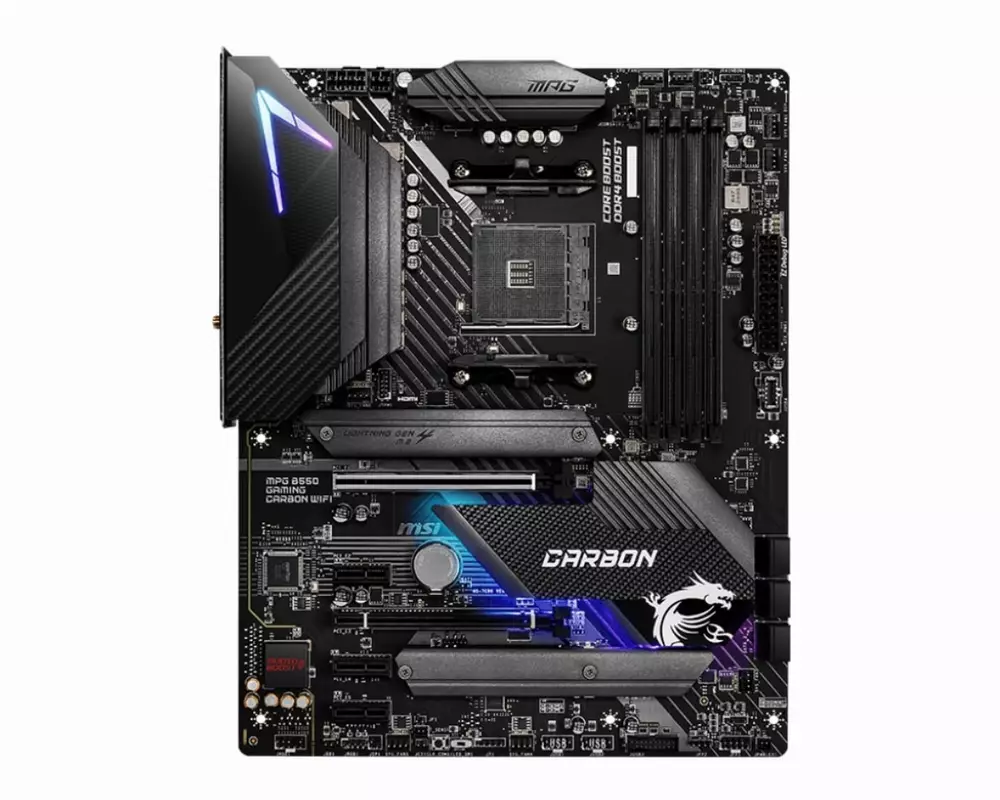

Дънна платка MSI MPG B550 GAMING CARBON WIFI
| Производител | MSI |
| Продуктов код | MSI MPG B550 GAMIN CARBON WIFI |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD B550 |
| Форм фактор | ATX |
| Поддържани процесори | AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 5100MHz (O.C.) by A-XMP OC MODE |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Вграден Wi-Fi | Intel® AX200 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1 |
| Bluetooth версия | Bluetooth V5.1 |
| Вграден LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | AMD B550 Chipset 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| Разширителни слотове | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)* 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed** 3x PCIe 3.0 x1 slots *The supported specification depends on installed processor. **When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |

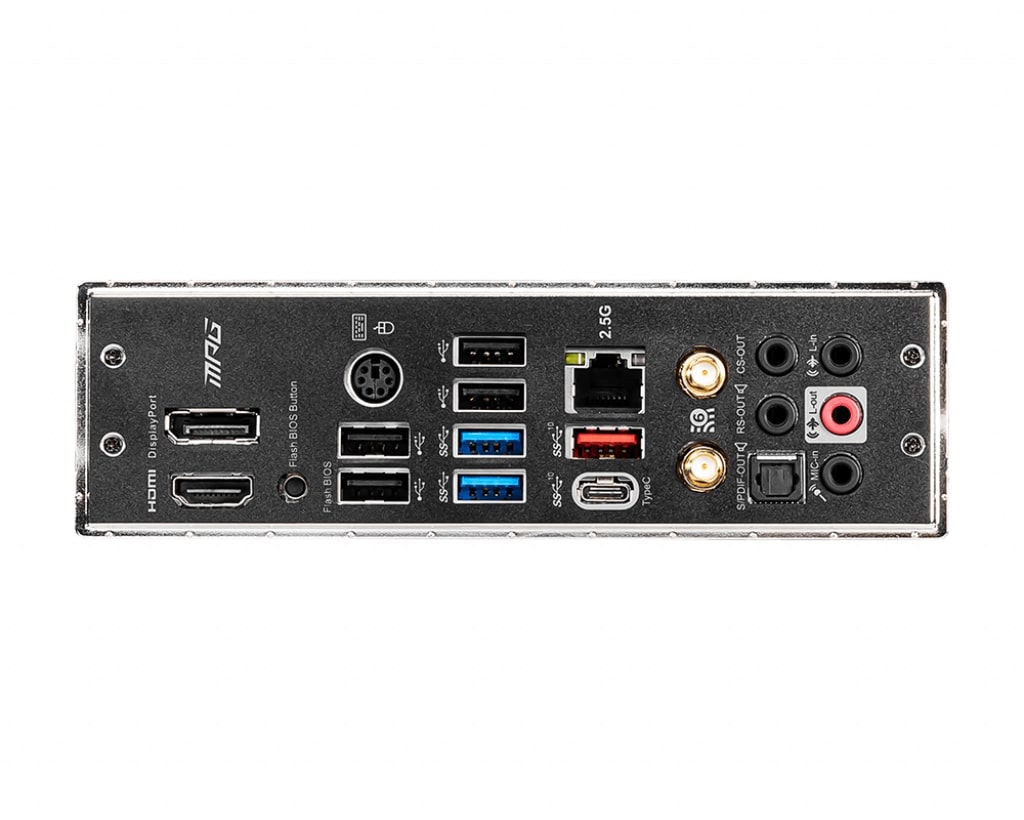

| Заден I/O панел | DisplayPort PS/2 Combo Port USB 2.0 2.5G LAN HD Audio Connectors HDMI Flash BIOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A+C) Wi-Fi / Bluetooth Optical S/PDIF OUT |
| Графика | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz* 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz** Maximum shared memory of 16GB *Available for the processor with integrated graphics. **Graphics specifications may vary depending on the CPU installed. |
| Мулти GPU технология | AMD 2-Way CrossFireX Technology |
| Размери | 30.4 cm x 24.4 cm |
| Други | 1x EZ LED Control switch 4x EZ Debug LED |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
