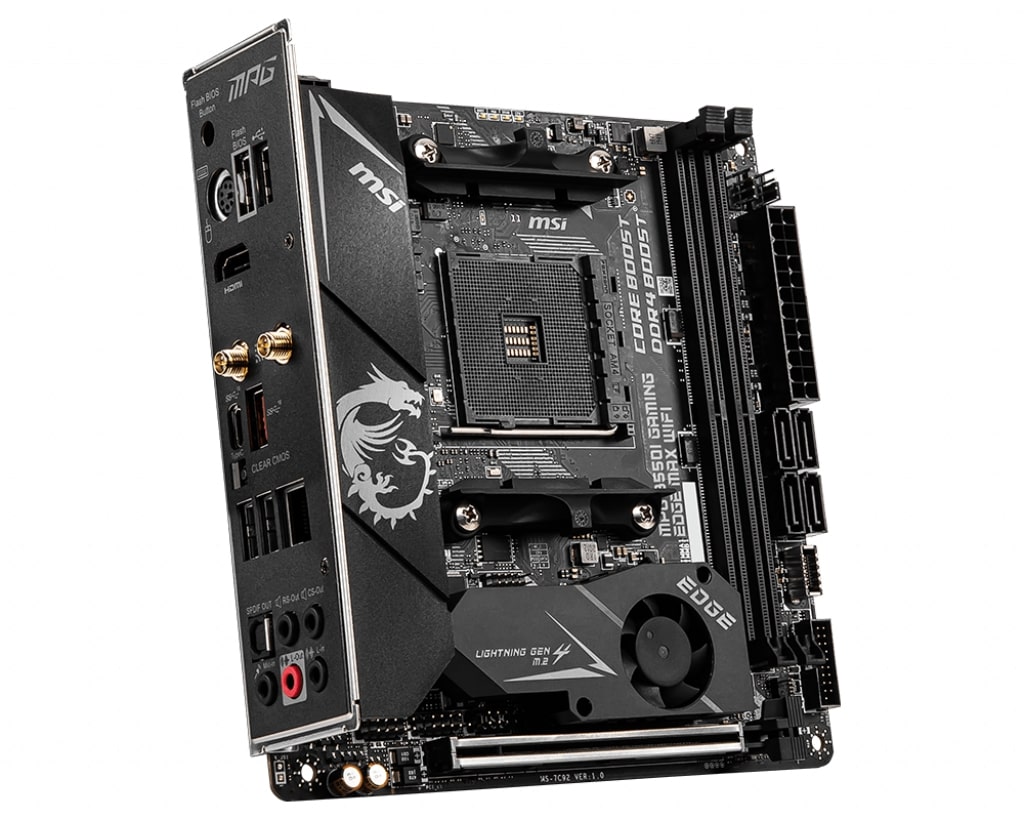

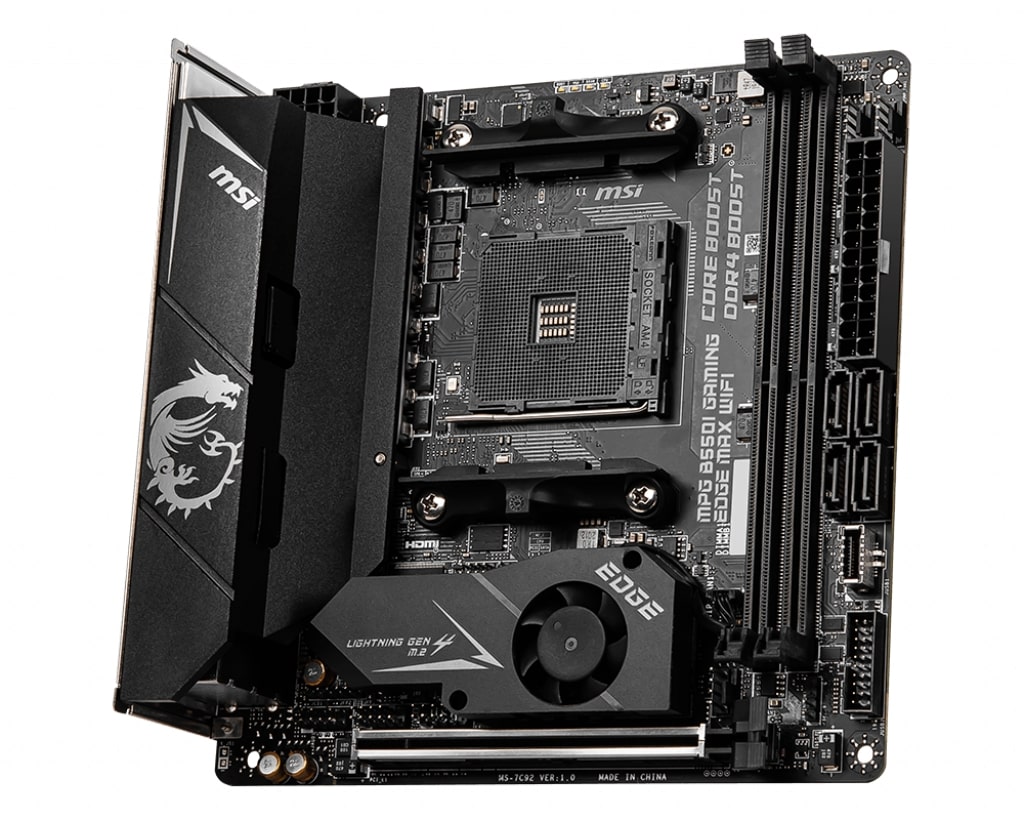

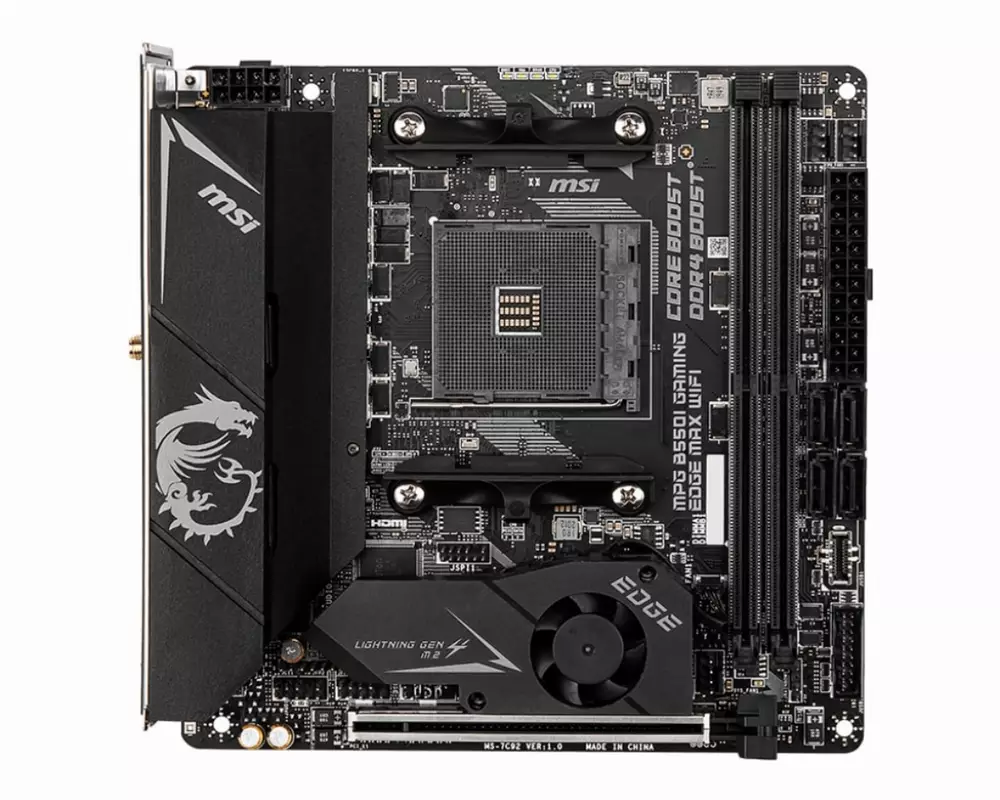

Дънна платка MSI MPG B550I GAMING EDGE WIFI
| Производител | MSI |
| Продуктов код | MSI MPG B550I GAMING EDGE WIFI |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD B550 |
| Форм фактор | Mini ITX |
| Поддържани процесори | AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 2 |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет (MHz) | до 4600MHz (O.C) by A-XMP OC MODE |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Вграден Wi-Fi | Intel® AX200 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1 |
| Bluetooth версия | Bluetooth V5.1 |
| Вграден LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Интерфейс SATA | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | AMD B550 Chipset 2x M.2 slots [Key M] M2 1 slot [from AMD Processor] Supports PCIe 4.0/3.0 x4* Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot [from AMD B550 chipset] Supports PCIe 3.0x4 Supports 2280 storage devices *The supported specification depends on installed processor. |
| Разширителни слотове | 1x PCIe 4.0 / 3.0 x16 slot* *The supported specification depends on installed processor. |
| Конектор захранване | 1 x 24-pin 1 x 8-pin |
| USB портове | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector] 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector] AMD Processor 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Заден I/O панел | USB 2.0 WiFi / Bluetooth USB 3.2 Gen 2 10Gbps(Type-A) 2.5G LAN HD Audio Connectors Flash BIOS Button PS/2 Combo Port HDMI 2.1 USB 3.2 Gen 2 10Gbps(Type-C) Clear CMOS USB 3.2 Gen 1 5Gbops(Type-A) Optical S/PDIF OUT |
| Графика | 1x HDMI 2.0:/ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz* Maximum shared memory of 2048 MB *Available for the processor with integrated graphics. |
| Размери | 17.0cm x 17.0cm |
| OS | Microsoft Windows 10 64-bit |
| Поколение процесор | 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
