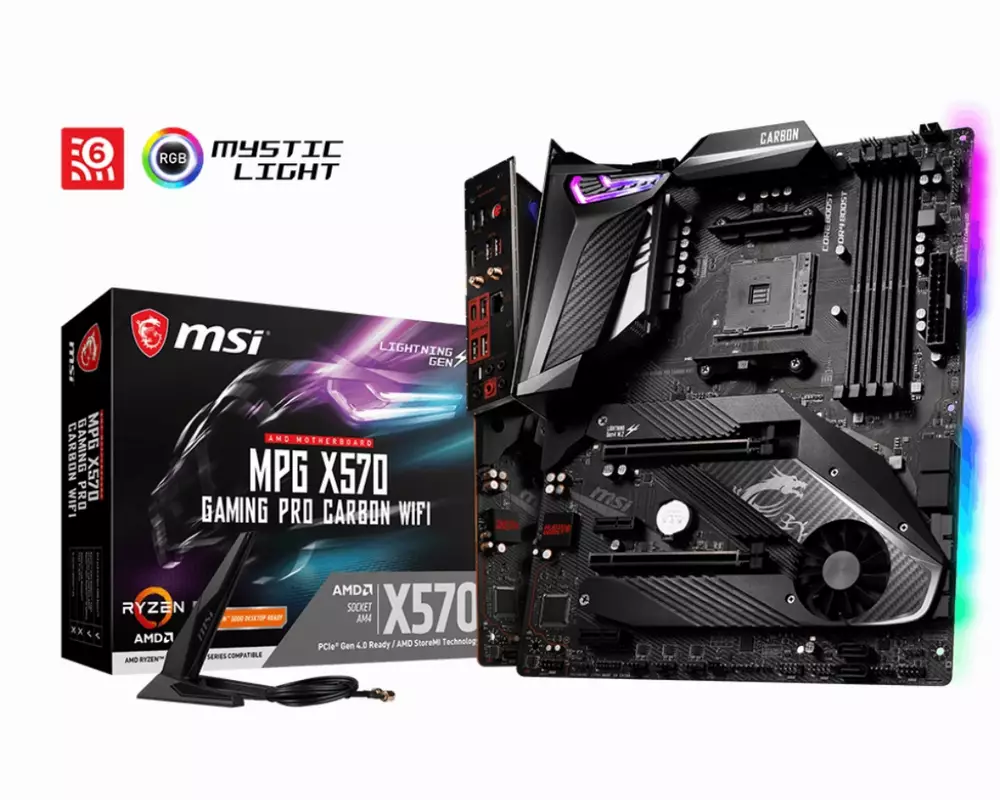

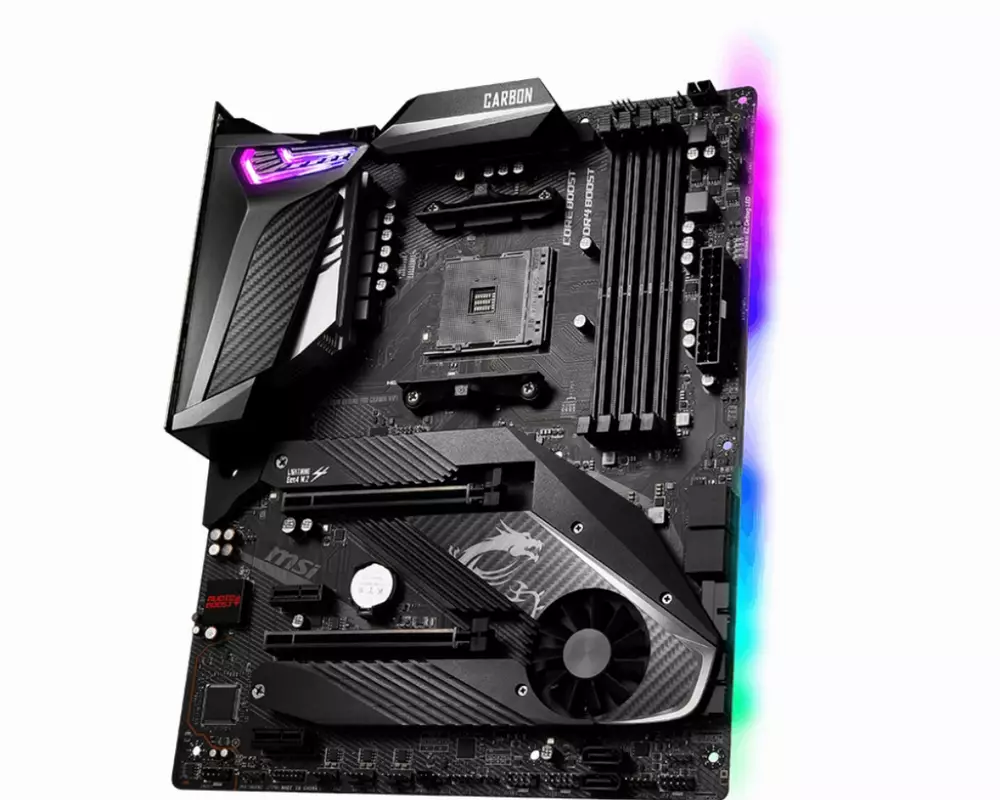

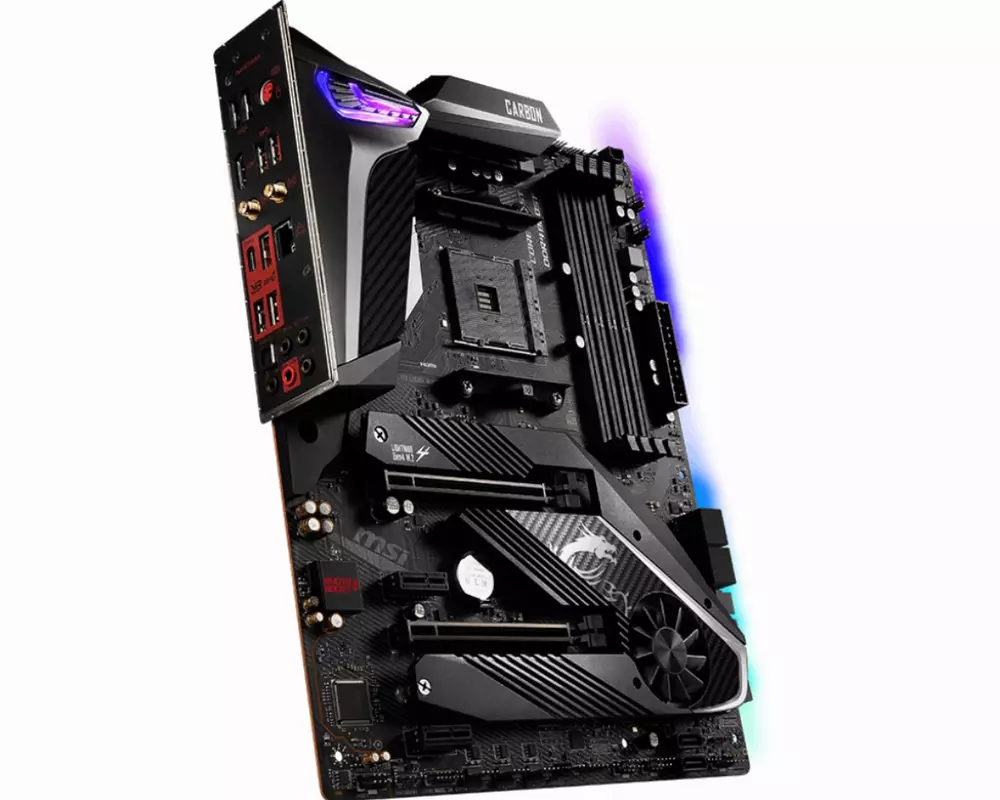

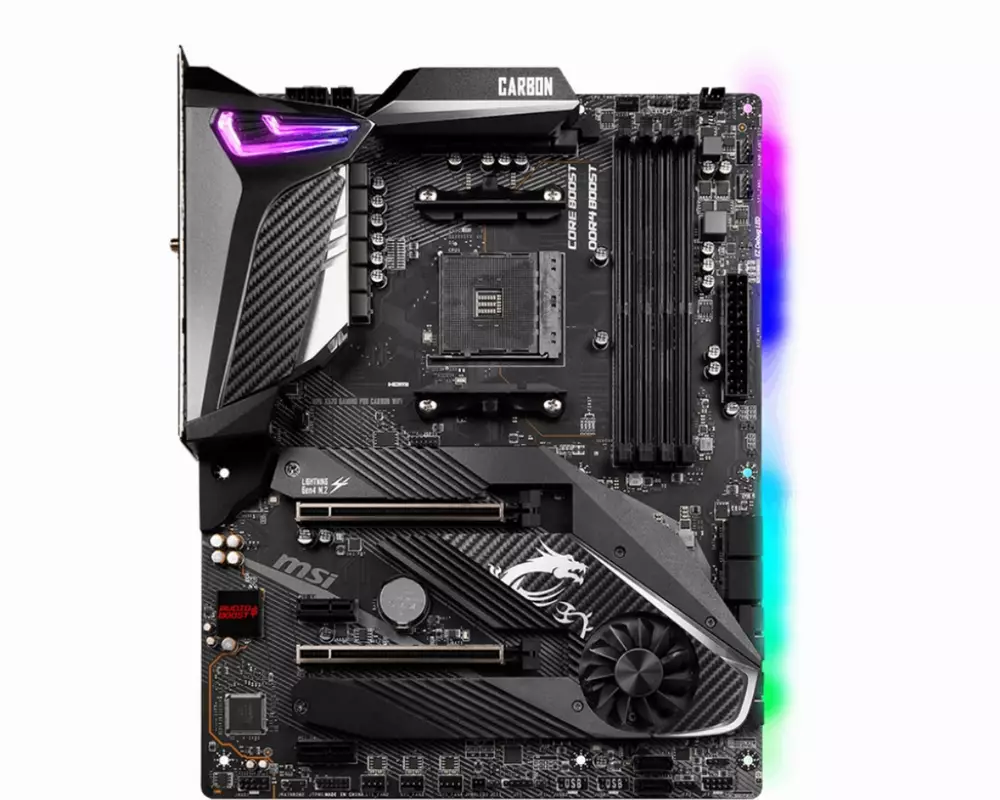

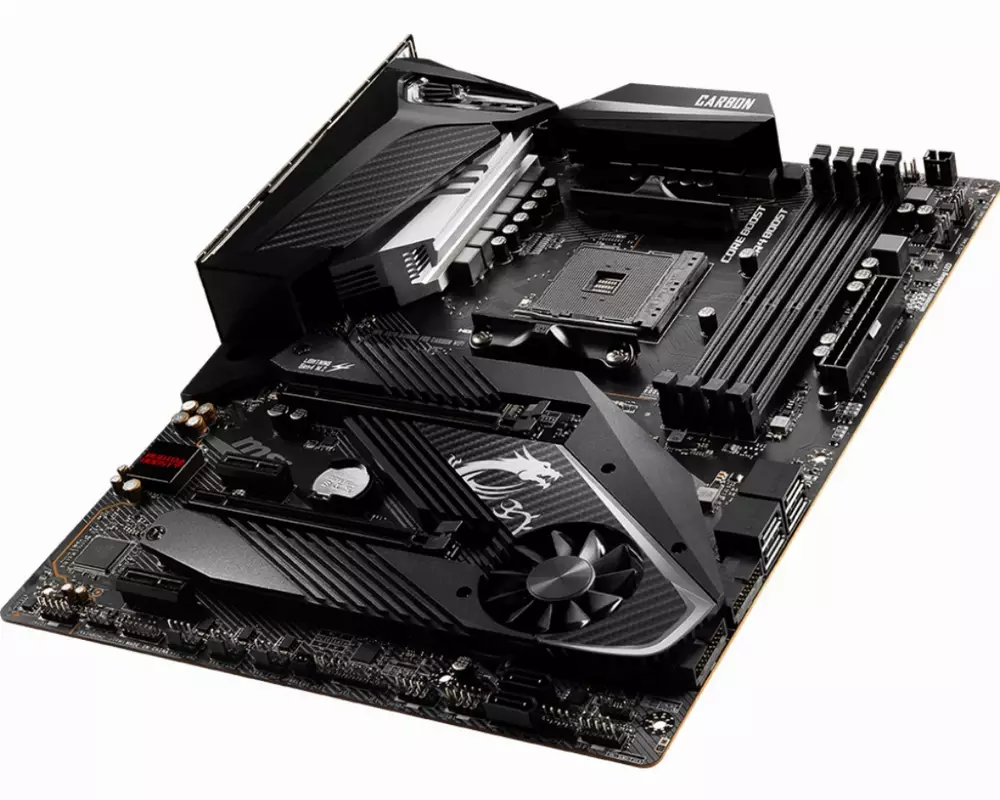

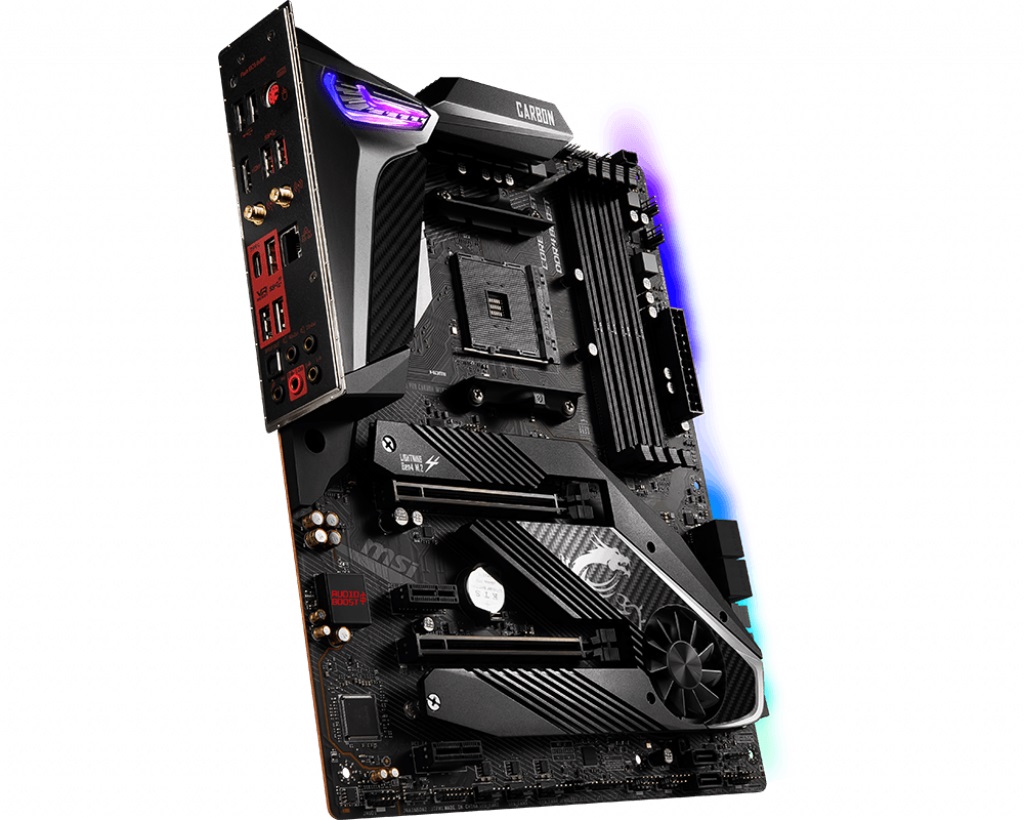

Дънна платка MSI MPG X570 GAME PRO CARBON (WI-FI)

252.71/ 494.26 лв.
Спечели 252 точки с тази покупка
Изчерпан
Код: 15252
Производител
MSI
CPU сокет
AM4
Чипсет (MB) AMD X570
Форм фактор ATX
Поддържани процесори
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Поддържана памет
DDR4
Брой слотове за памет 4
Максимален капацитет RAM памет 128 GB
Честота памет (MHz)
до 4400MHz+ (OC)
Поддръжка на двуканална памет Да
Вградено аудио
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
Вграден Wi-Fi
Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO
Bluetooth версия
Bluetooth V5.1
Вграден LAN
1x Intel® I211AT Gigabit LAN controller
Интерфейс SATA 6 x SATA3 6.0 Gb/s
Поддръжка на RAID 0,1,10
М2 слот
2x M.2 slots (Key M)
M2_1 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices
M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
Разширителни слотове
1x PCIe 4.0/3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2x PCIe 3.0 x1 slots
Конектор захранване
1 x 24-pin
1 x 8-pin
1 x 4-pin
USB портове
AMD® X570 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
4 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
2 x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Заден I/O панел
Keyboard / Mouse
USB 3.2 Gen1 Type-A
Wireless / Bluetooth
LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen2 Type-A + C
USB 3.2 Gen2 Type-A
Optical S/PDIF out
Графика
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
Мулти GPU технология AMD 2-Way CrossFireX Technology
Размери 30.4 cm x 24.3 cm
Други
Intel® Wi-Fi 6 AX200
The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5.1
OS
Support for Windows 10 64-bit
Поколение процесор
2-ро поколение
3-то поколение
4-то поколение
5-то поколение
Гаранция 36 месеца
