Motherboard MSI MPG X870I EDGE TI EVO WIFI - 911-7E50-001

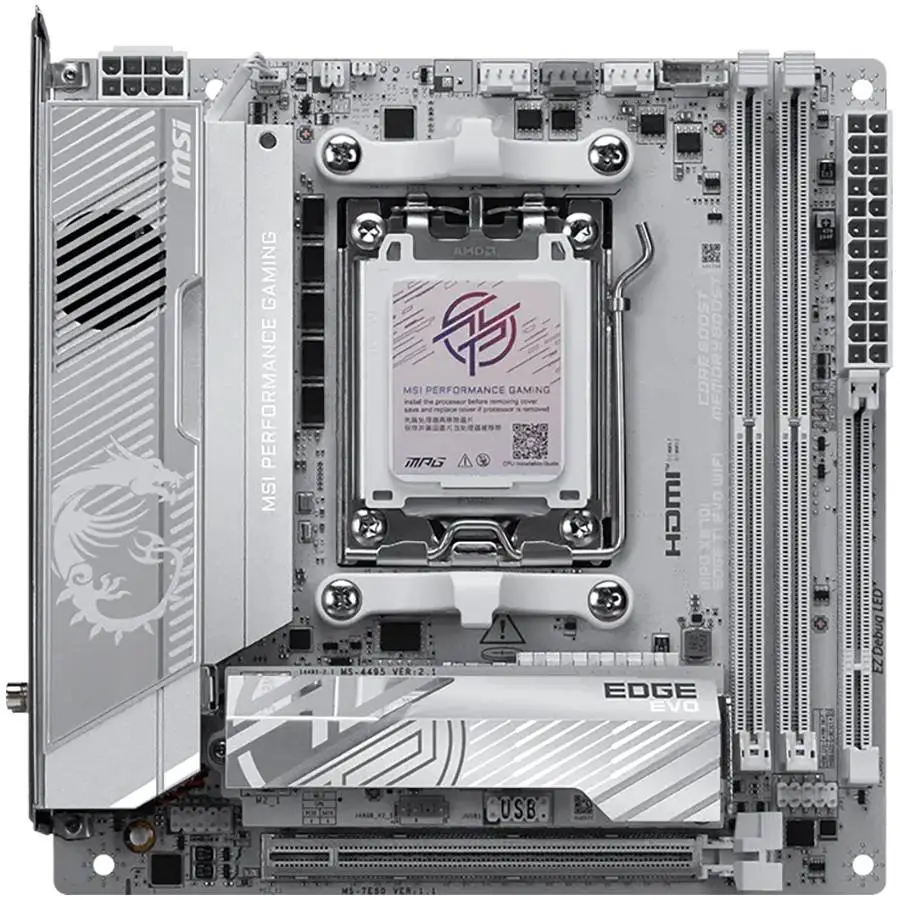

MSI MPG X870I EDGE TI EVO WIFI is a Mini ITX motherboard for AM5, aimed at compact yet serious gaming and enthusiast configurations. It is based on the AMD X870 chipset and supports Ryzen 9000, 8000, and 7000 Series processors, giving you a clear upgrade path forward. The combination of DDR5 memory up to 8400+ MHz (OC) and PCIe 5.0 x16 slot provides a platform for high-end GPUs and fast RAM in a very small form factor. The built-in Wi‑Fi 7, Bluetooth 5.4, and rich USB options make the board convenient for a modern SFF build without compromises.

What you get

With an AM5 socket and X870 chipset, you can combine current Ryzen processors from the 7000, 8000, and 9000 series, so your Mini ITX case is not a compromise in performance. The two DDR5 slots supporting up to 128 GB and speeds up to 8400+ MHz (OC) are sufficient for heavy gaming, streaming, and working with multiple applications simultaneously. The PCIe x16 slot operates in PCIe 5.0 mode for Ryzen 9000/7000, which is ideal for future generations of GPUs, while the lower Ryzen 8000 series uses PCIe 4.0 with different lane widths depending on the model. The built-in Wi‑Fi 7 and 2.5G LAN (via the RJ-45 connector) allow you to choose between wired and modern wireless connections without the need for additional cards. The many USB ports, including USB-C 20Gbps (Front) and 2x USB-C 40Gbps (Rear), provide enough speed for external SSDs, docking stations, and peripherals.

• AM5 socket supporting Ryzen 9000, 8000, and 7000 Series means long platform life and easy CPU upgrades.
• Mini ITX form factor allows for very compact builds without losing access to high-end processors and GPUs.
• Two slots for DDR5 memory with a capacity of up to 128 GB and speeds up to 8400+ MHz (OC) are more than sufficient for gaming and productivity in an SFF configuration.
• The main PCIe x16 slot supports PCIe 5.0 x16 for Ryzen 9000/7000, as well as PCIe 4.0 modes for Ryzen 8000, allowing you to maximize your GPU's performance based on the processor.
• Integrated Wi‑Fi 7 (802.11be) and Bluetooth 5.4 eliminate the need for separate wireless cards and provide you with the latest standards for networking and peripherals.
• There are 2 x SATA3 6.0 Gb/s for classic SSD/HDD, making it easy to combine fast NVMe (via PCIe) with mass storage.

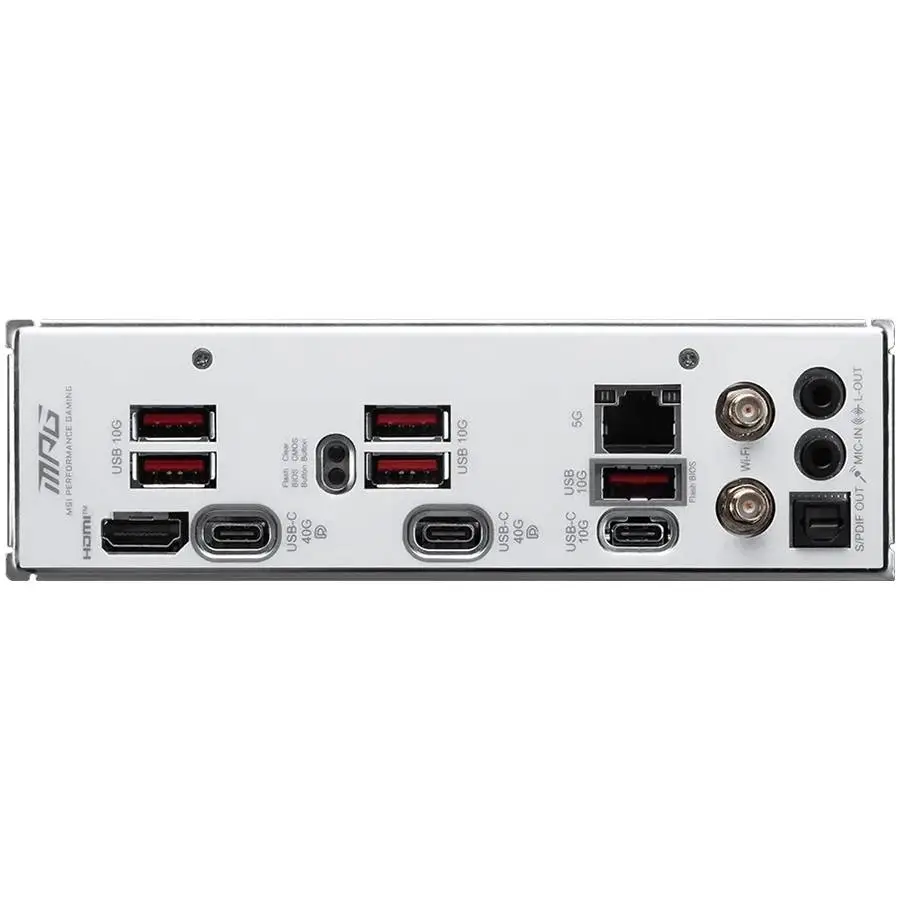

• Rich rear I/O: 2x USB 40Gbps Type-C (Rear), 2x USB 3.2 Gen 2x2 Type-C, HDMI 2.1, optical S/PDIF, RJ-45, and buttons for Clear CMOS and BIOS Flashback for easy updates and troubleshooting.
• Front I/O support with USB 20Gbps Type-C and several USB 5Gbps/2.0 ports is convenient if your case has a modern front panel.
• The FP card slot supports MSI 5-in-1 XPANDER, giving you an expansion option despite the compact Mini ITX format.

Who is this suitable for?

This board is for you if you want a powerful AM5 build in a small case – an SFF gaming machine, a compact streaming system, or a stylish everyday desktop with the option for a strong GPU. It is also suitable for enthusiasts who care about the latest wireless connectivity and fast USB-C devices. However, if you plan to use many PCIe expansion cards or a large number of SATA devices, a classic ATX/mATX platform will be more flexible.

The strongest aspect here is the combination of Mini ITX format with AM5, high-speed DDR5 support, PCIe 5.0 for GPUs, and modern connectivity with Wi‑Fi 7 and 40Gbps USB-C. You get a compact platform that can comfortably handle high-end hardware and remain relevant for a long time.
