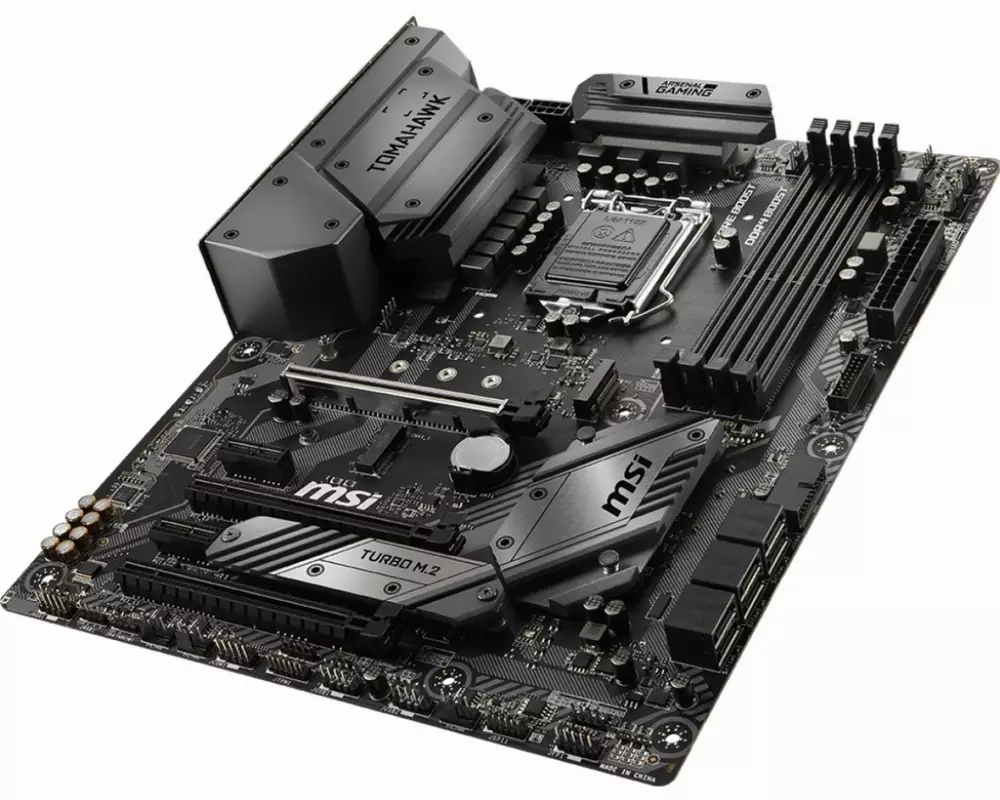

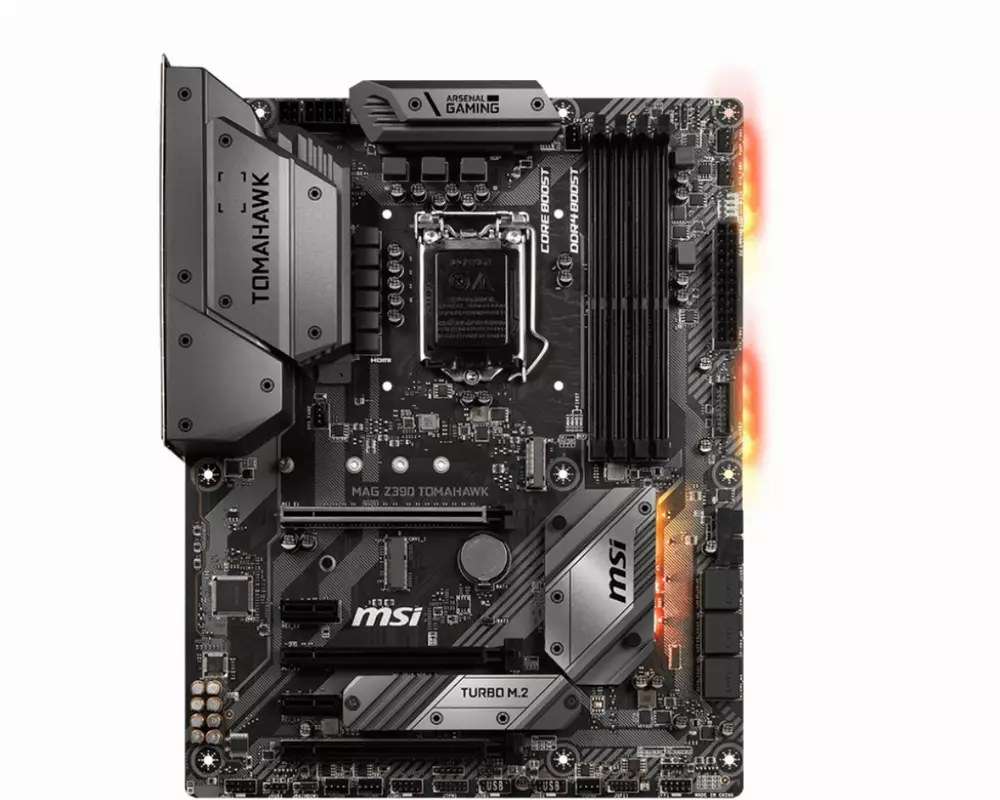

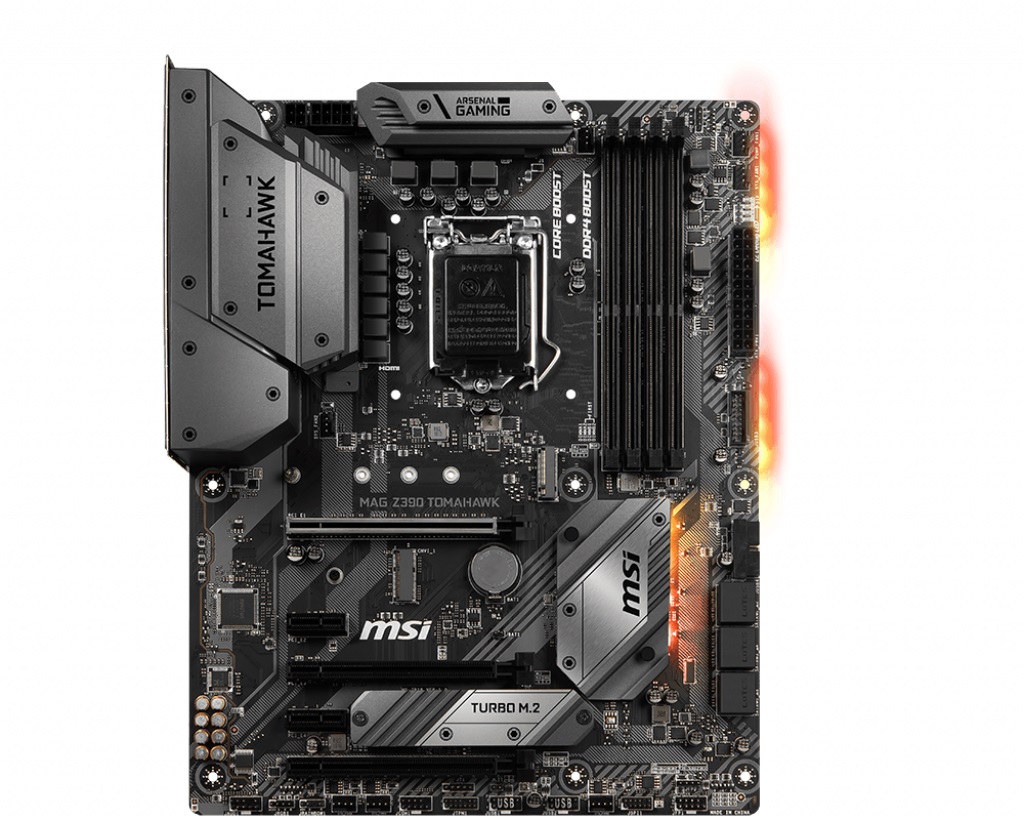

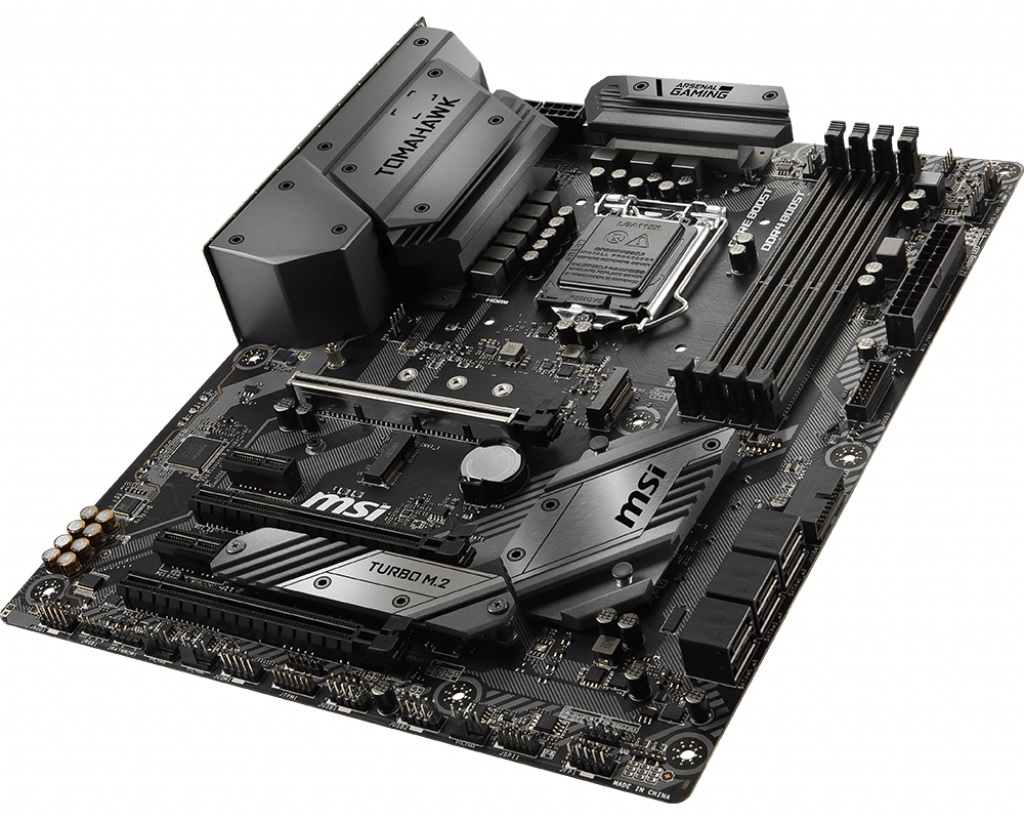

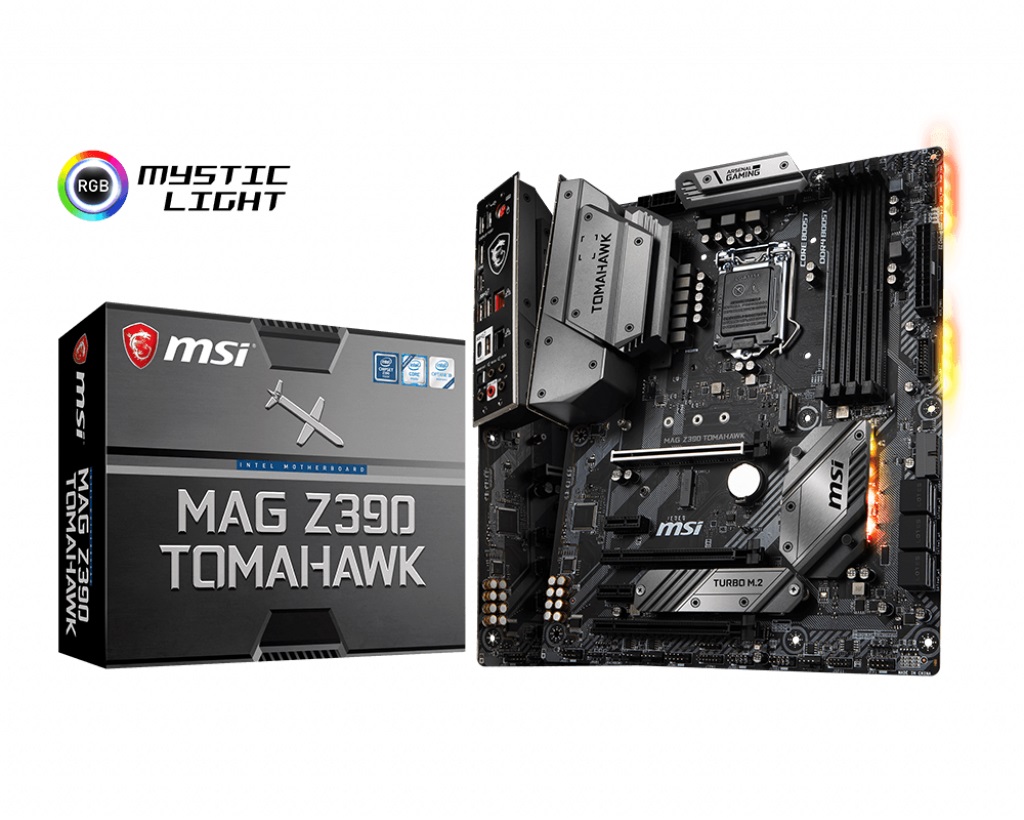

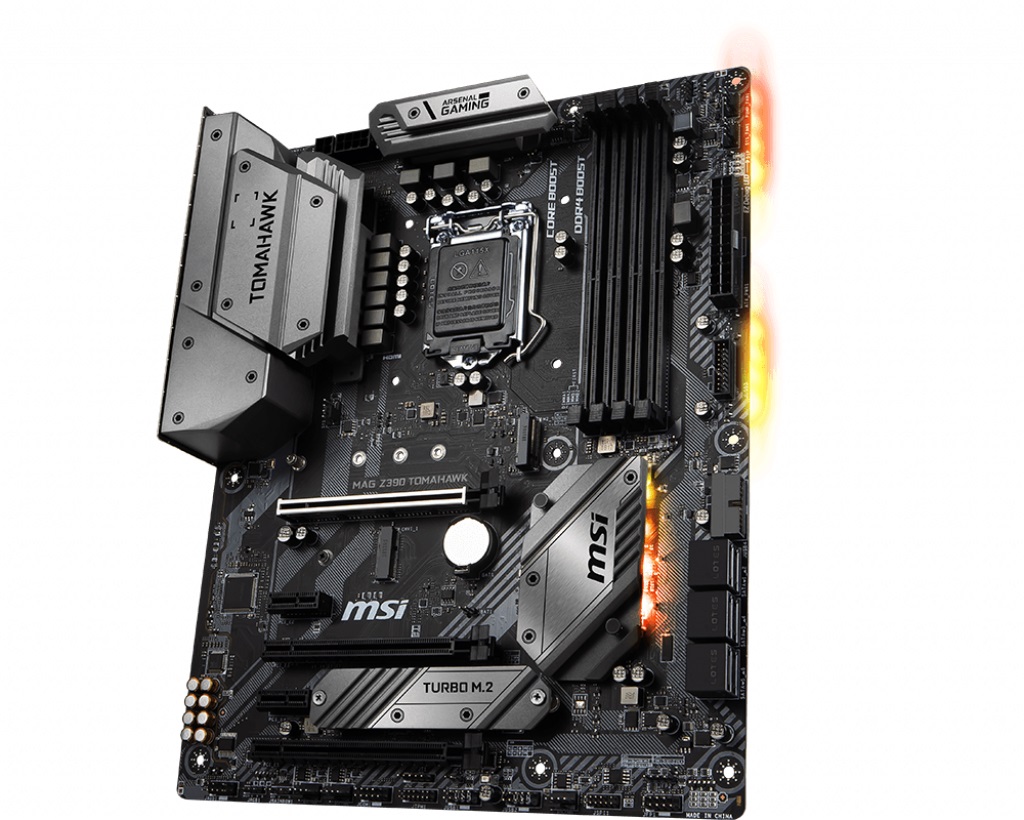

Дънна платка MSI MPG Z390 TOMAHAWK
| Производител | MSI |
| CPU сокет | LGA 1151 |
| Чипсет (MB) | Intel Z390 |
| Форм фактор | ATX |
| Поддържани процесори | Supports Intel Core 9000 Series family/ 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 4400MHz+ (OC) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC892 Codec: 7.1-Channel High Definition Audio Supports S/PDIF output |
| Вграден LAN | 1 x Intel® I219-V Gigabit LAN controller 1 x Intel® I211-AT Gigabit LAN controller |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready |
| Разширителни слотове | 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes) 2 x PCIe 3.0 x1 slots 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | Intel® Z390 Chipset 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |

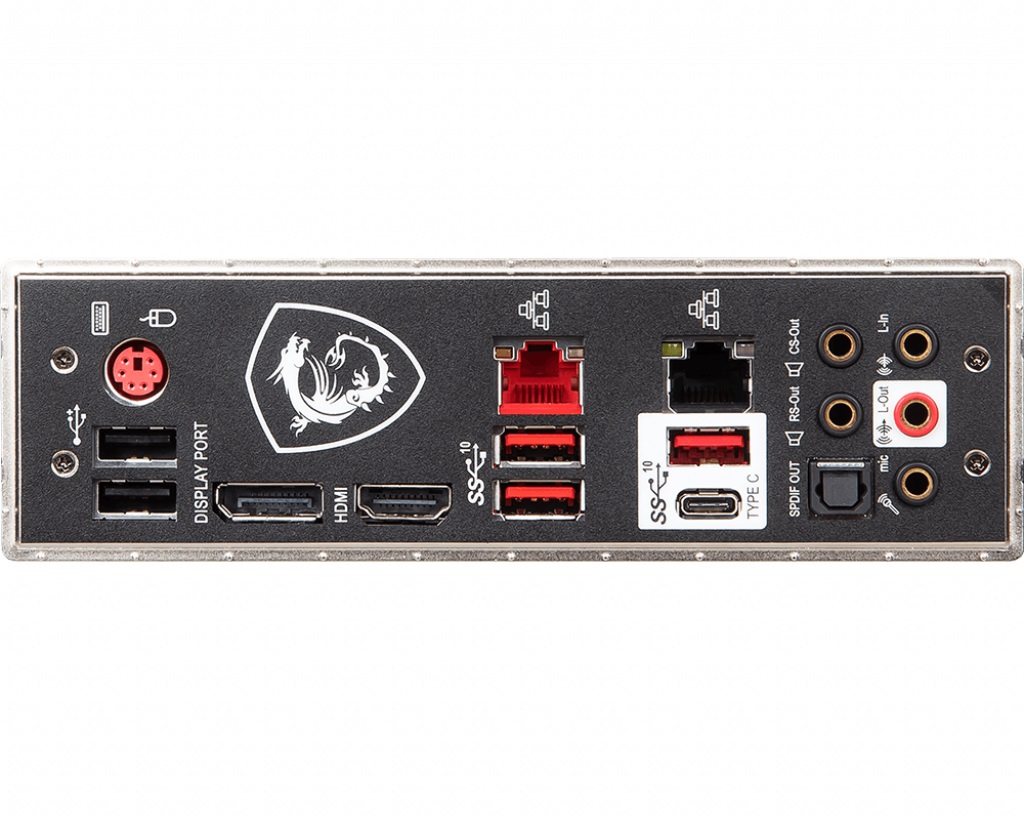

| Заден I/O панел | PS/2 Combo Port LAN Port HD Audio Connectors USB 2.0 Port DisplayPort HDMI Port USB 3.1 Gen2 Type A USB 3.1 Gen2 Type A+C Optical S/PDIF OUT |
| Графика | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz Supports 2-Way AMD® CrossFire™ Technology |
| Мулти GPU технология | AMD 2-Way CrossFireX Technology |
| Размери | 30.4 cm x 24.3 cm |
| Други | Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices 9 mounting holes. |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 8-мо поколение 9-то поколение |
| Гаранция | 36 месеца |
