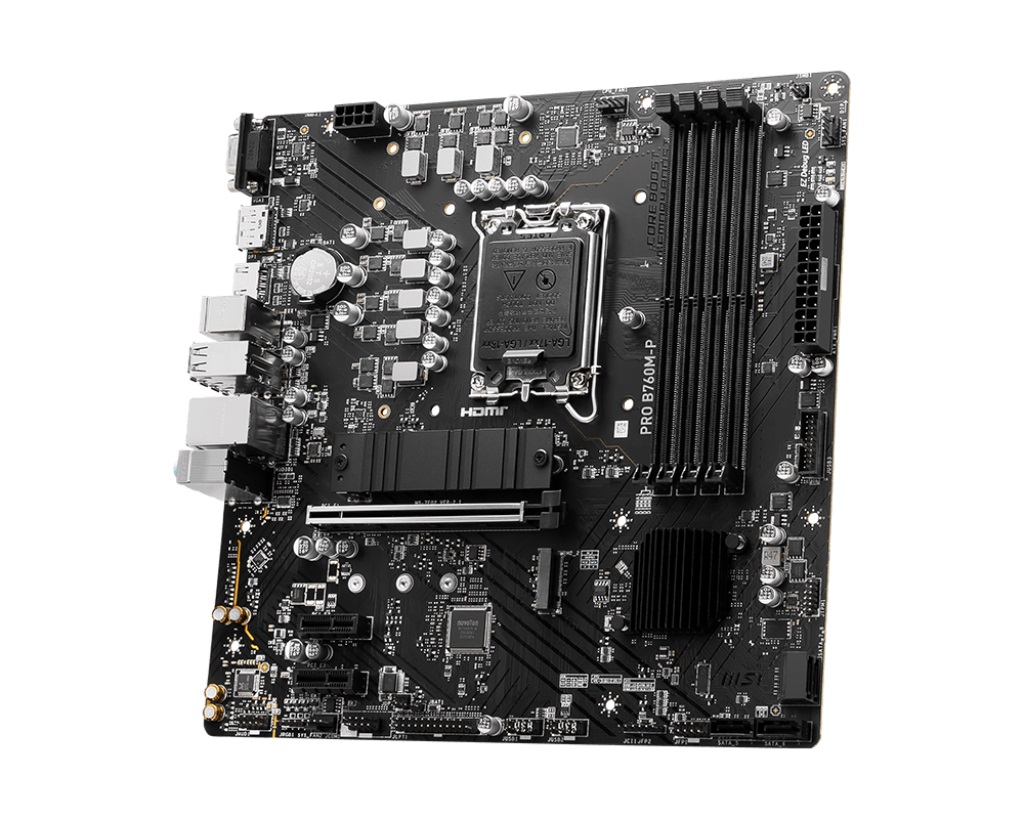

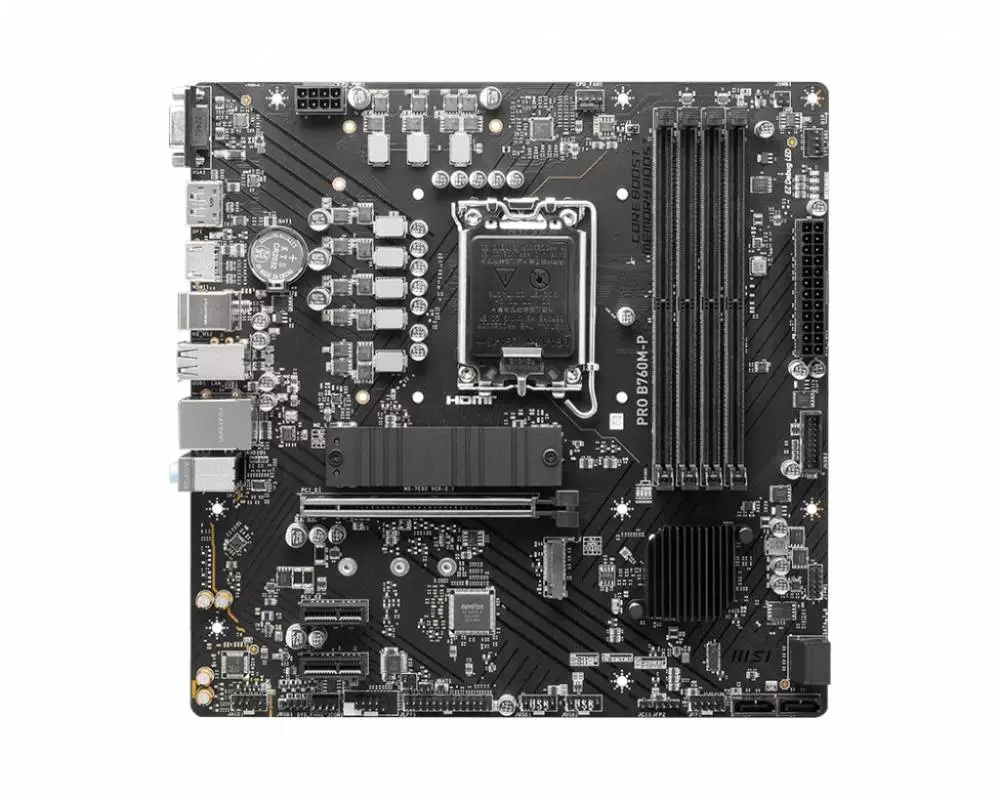

MSI PRO B760M-P DDR5 LGA1700 Motherboard

MSI PRO B760M-P DDR5 is a compact Micro ATX motherboard for LGA1700, aimed at stable mid-range configurations with the new Intel processors. It combines the current Intel B760 chipset with DDR5 support and a decent set of M.2, SATA, and PCIe slots. You get 4 RAM slots with a maximum of up to 128 GB DDR5 and official support for high frequencies up to 6800+ MHz (OC), which is sufficient for serious gaming and work. The Micro ATX form factor gives you the balance between compactness and enough expansions.

What you get

With an LGA1700 socket and Intel B760 chipset, you can use 13th and 12th generation Intel Core, Pentium Gold, and Celeron processors – from budget office machines to solid gaming builds. The four DDR5 DIMM slots with dual-channel mode and a maximum of 128 GB RAM leave you plenty of room for future upgrades, while the high OC frequencies up to 6800+ MHz help for better responsiveness in games and faster applications. The two M.2 slots, both with PCIe 4.0 x4 support (with the second also able to operate in SATA mode), allow you to use NVMe SSDs for fast boot and operation, plus more space for games and projects. The four SATA3 ports with RAID 0/1/5/10 options are convenient if you want to combine several drives for more capacity or data redundancy. Realtek ALC897 7.1 audio and the gigabit LAN chip cover the standard needs for gaming, music, and online work without the need for additional cards.

• Socket LGA1700 and chipset Intel B760 provide compatibility with 13th and 12th generation Intel Core, Pentium Gold, and Celeron processors for flexible configurations.
• Four DDR5 memory slots with dual-channel support and a maximum of 128 GB allow for serious multitasking and future upgrades.
• Support for RAM frequencies up to 6800+ MHz (OC) helps for lower latency and better performance in demanding applications and games.
• Two M.2 slots: M.2_1 (from CPU) PCIe 4.0 x4 and M.2_2 (from chipset) PCIe 4.0 x4 / SATA provide fast NVMe storage and flexibility in choosing SSDs.
• Four SATA3 6.0 Gb/s ports with RAID 0/1/5/10 are convenient for disk arrays – either for speed or data security.
• Expansion slots – 1 x PCIe 4.0 x16 (from CPU) and 2 x PCIe 4.0 x1 (from chipset) – cover your needs for GPU and additional cards.

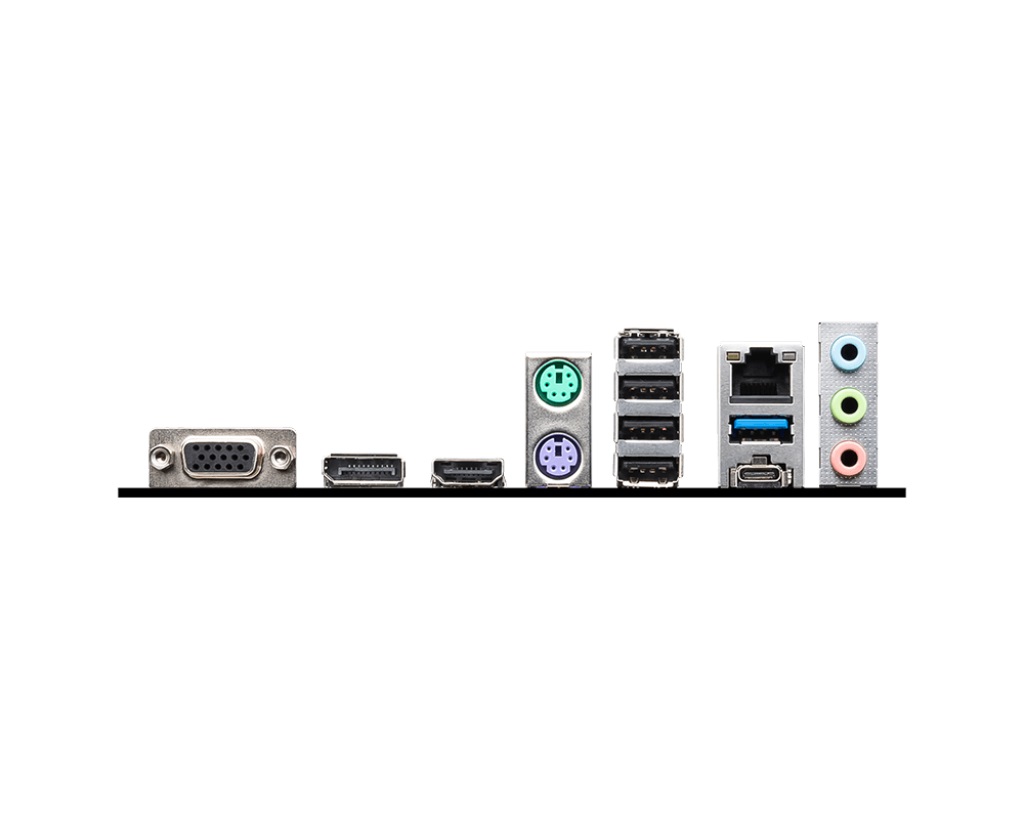

• Plenty of USB: a total of 8 x USB 2.0 (4 rear / 4 front), 3 x USB 3.2 Gen1 Type-A (1 rear / 2 front) and 1 x USB 3.2 Gen2 Type-C (rear) for peripherals, external drives, and fast transfer.
• Integrated audio Realtek ALC897 7.1-Channel and gigabit LAN Realtek RTL8111H (10/100/1000) cover everyday gaming, movies, and online work without additional hardware.

Who it is suitable for

This motherboard is a good choice for mid-range gaming builds and productive machines where you want DDR5, PCIe 4.0, and enough expansions in a compact Micro ATX chassis. It is also suitable for an office/home computer with the prospect of upgrading to a stronger CPU and more RAM. It is not the best option if you are looking for built-in Wi-Fi or extremely many PCIe slots for specialized cards.

The combination of LGA1700, DDR5, two PCIe 4.0 M.2 slots, and a decent set of USB ports makes MSI PRO B760M-P DDR5 a balanced platform for current and future builds without unnecessary extras to pay for.
