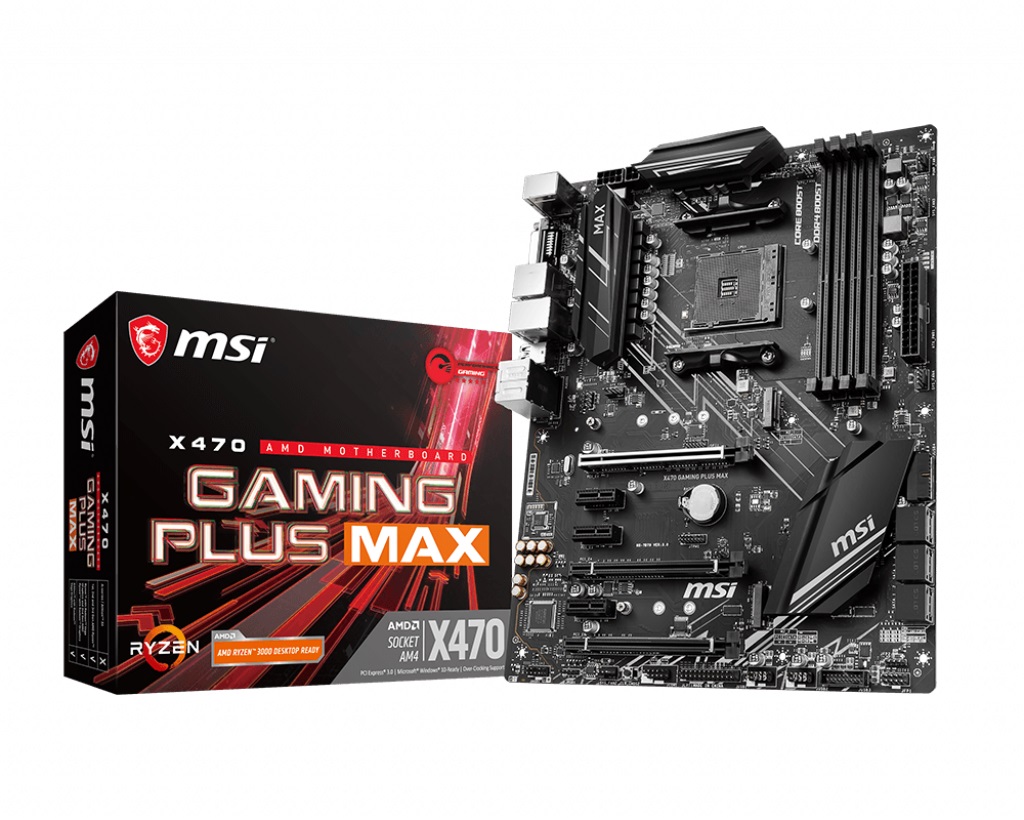

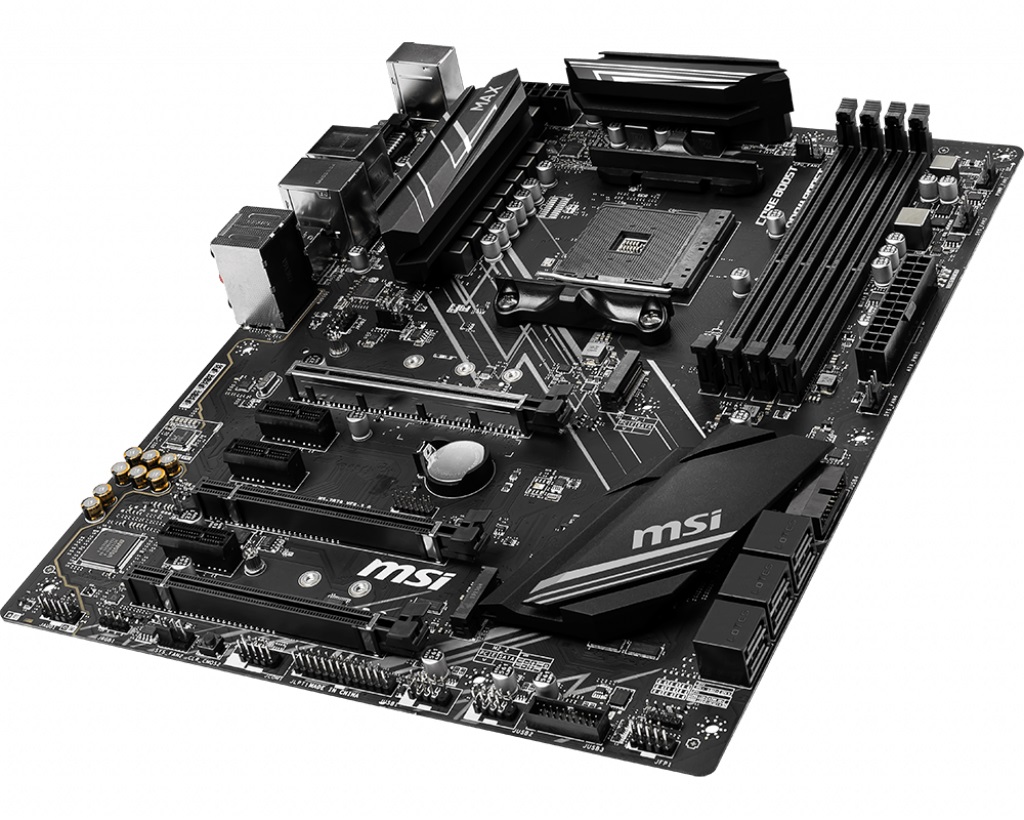

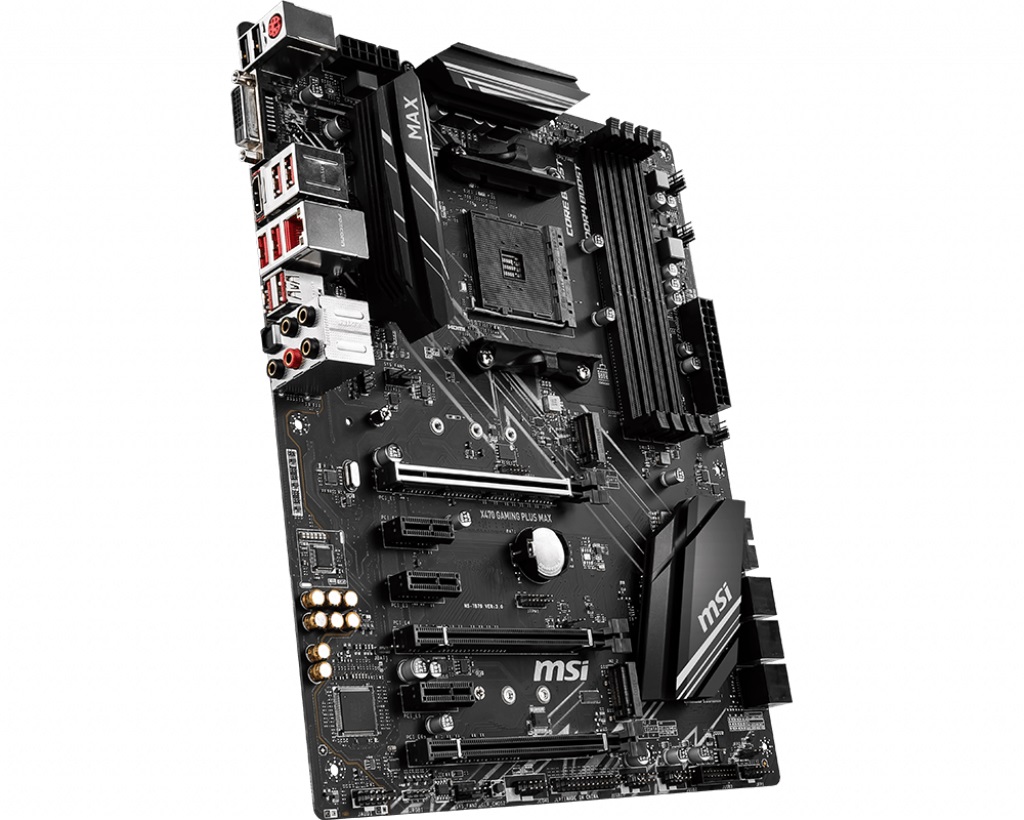

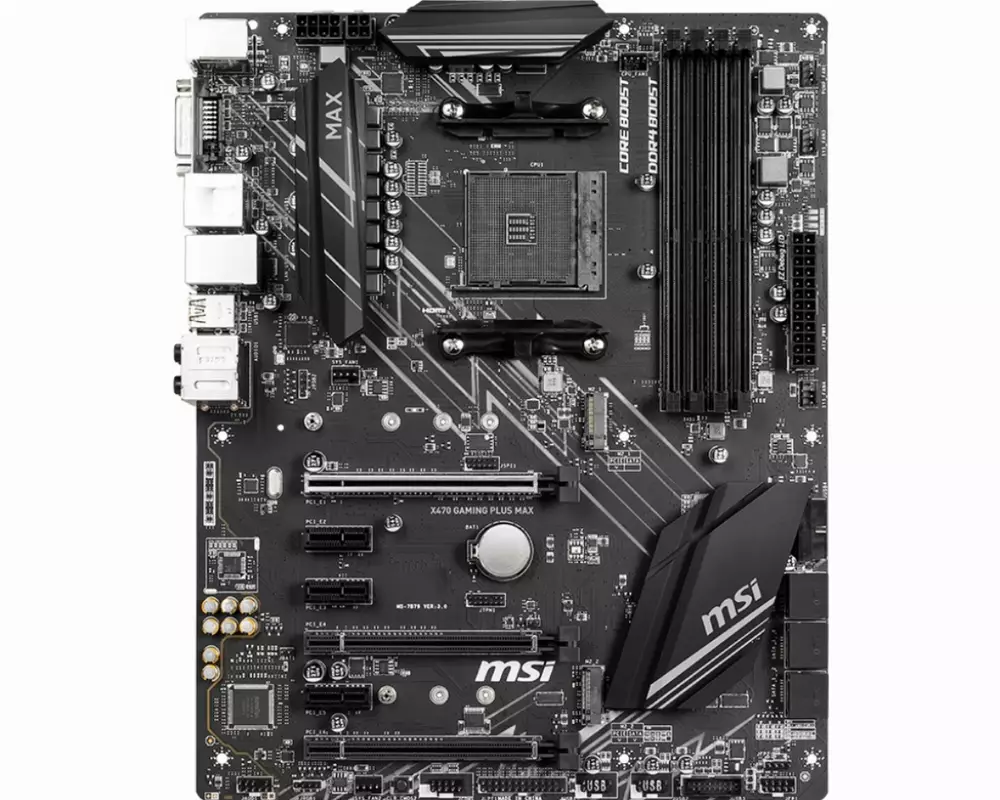

Дънна платка MSI X470 GAMING PLUS MAX
| Производител | MSI |
| Продуктов код | X470 GAMING PLUS MAX |
| CPU сокет | AM4 |
| Чипсет (MB) | AMD X470 |
| Форм фактор | ATX |
| Поддържани процесори | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 4133MHz (O.C) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Вграден LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| М2 слот | 2 x M.2 slot (Key M)1 M2_1 slot (from AMD® processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors) or PCIe 3.0x2 (Athlon™ with Radeon™ Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| Разширителни слотове | 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1 3 x PCIe 2.0 x1 slots |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | ASMedia® ASM1143 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel AMD® X470 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD® CPU 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |

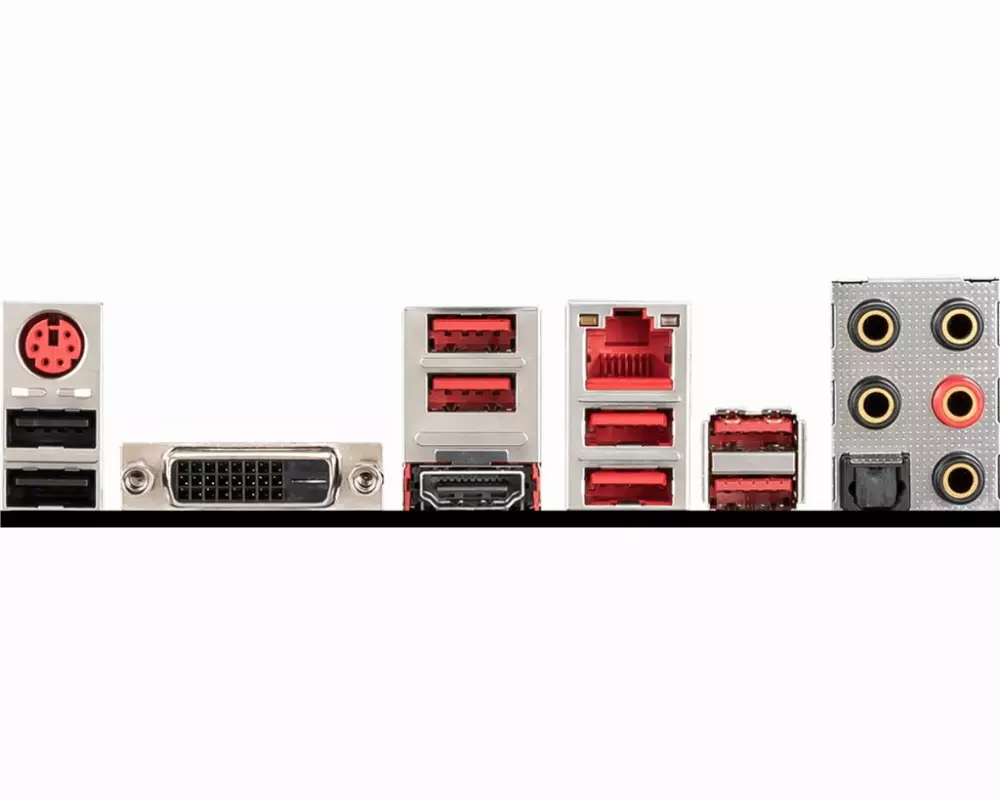

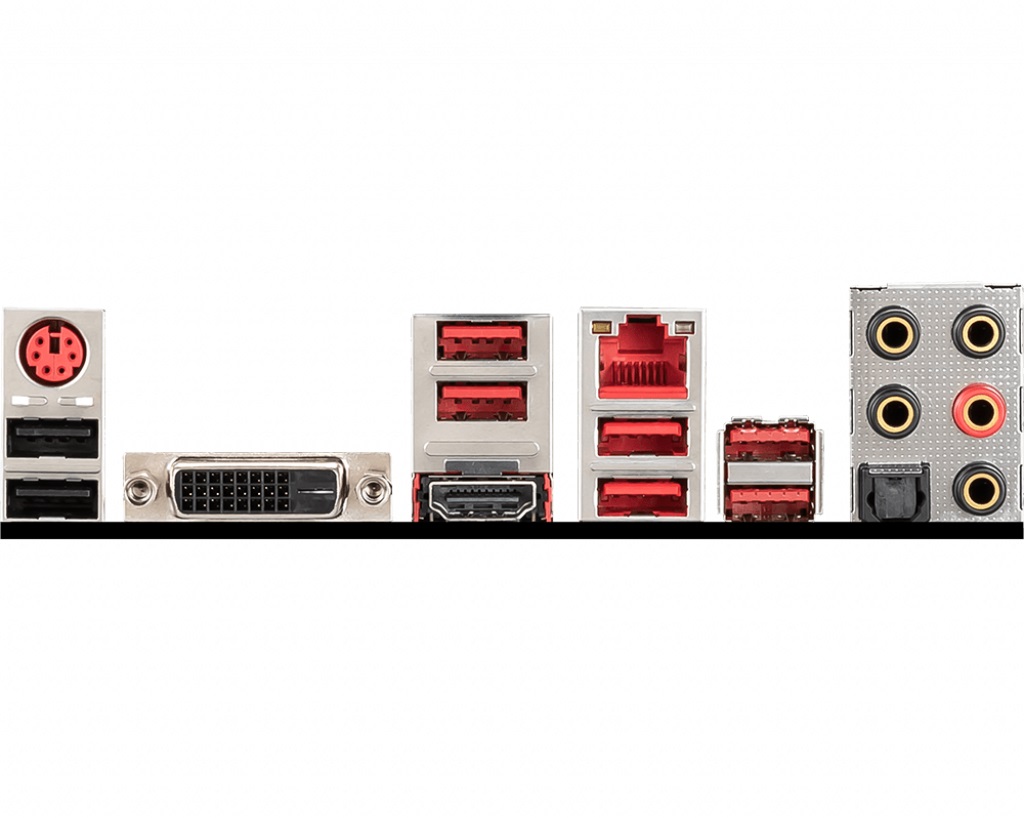

| Заден I/O панел | PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Optical S/PDIF OUT |
| Графика | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1 |
| Размери | 30.5 cm x 24.4 cm |
| OS | Support for Windows 10 64-bit |
| Поколение процесор | 1-во поколение 2-ро поколение 3-то поколение 4-то поколение 5-то поколение |
| Гаранция | 36 месеца |
