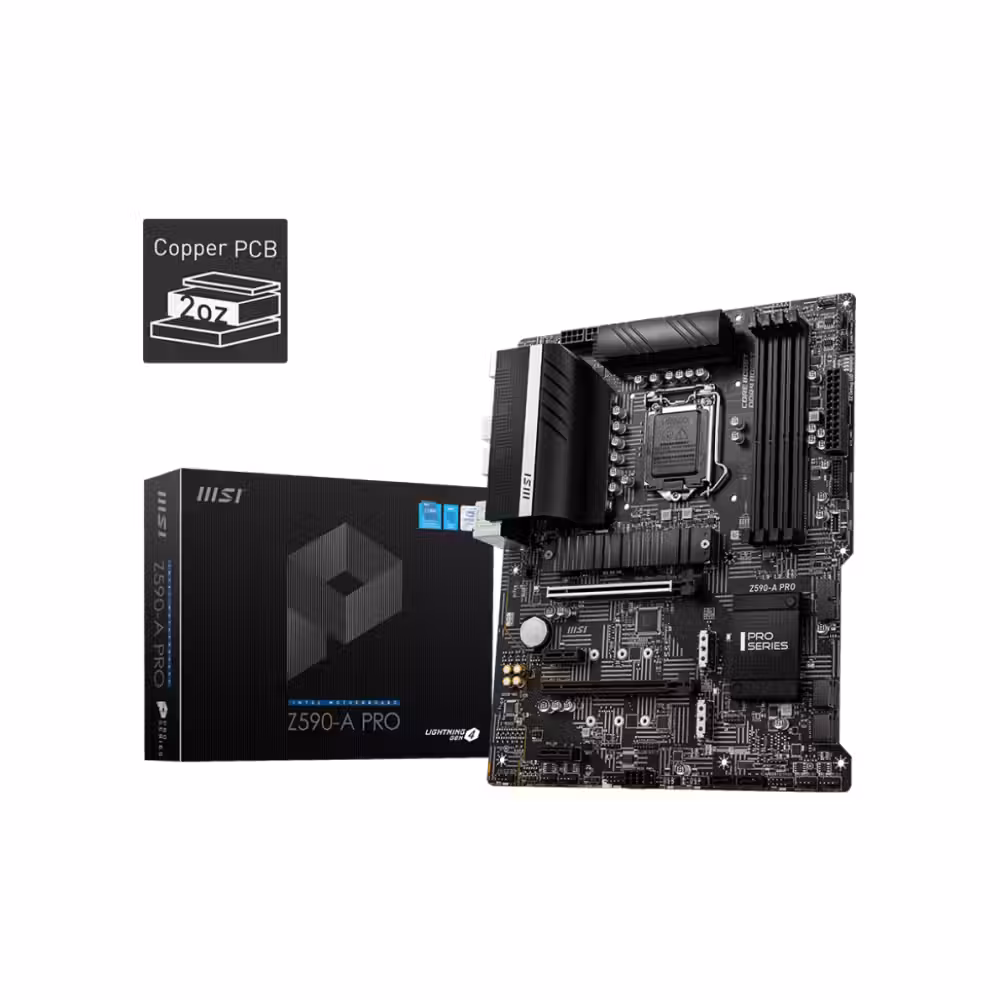

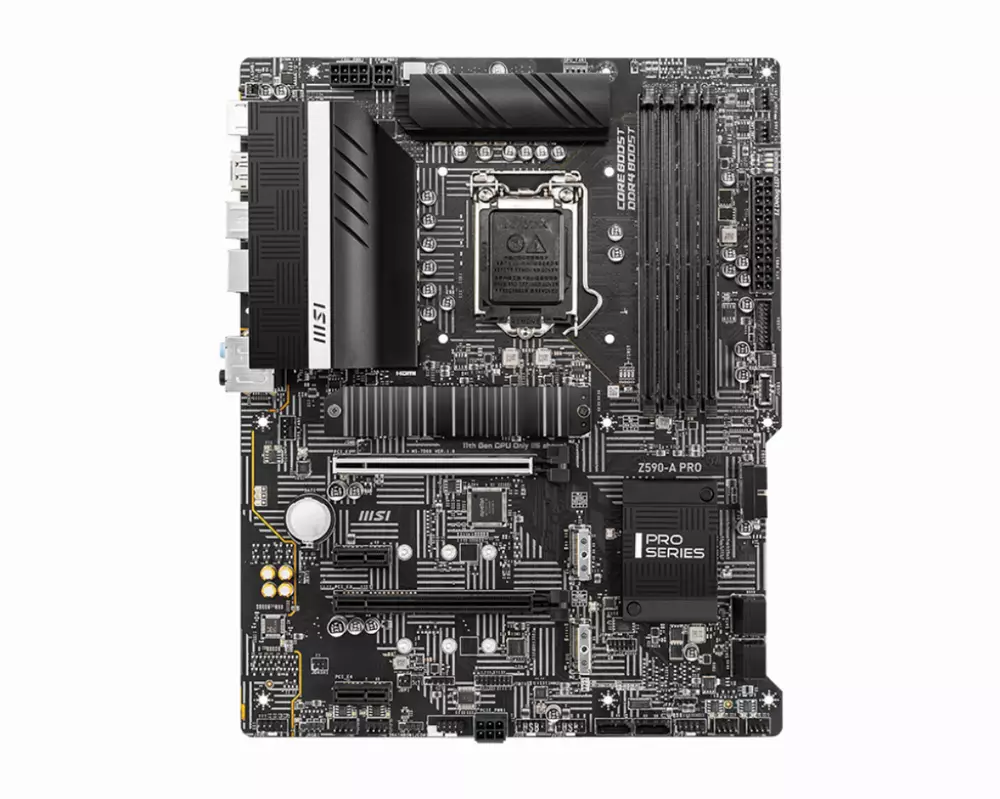

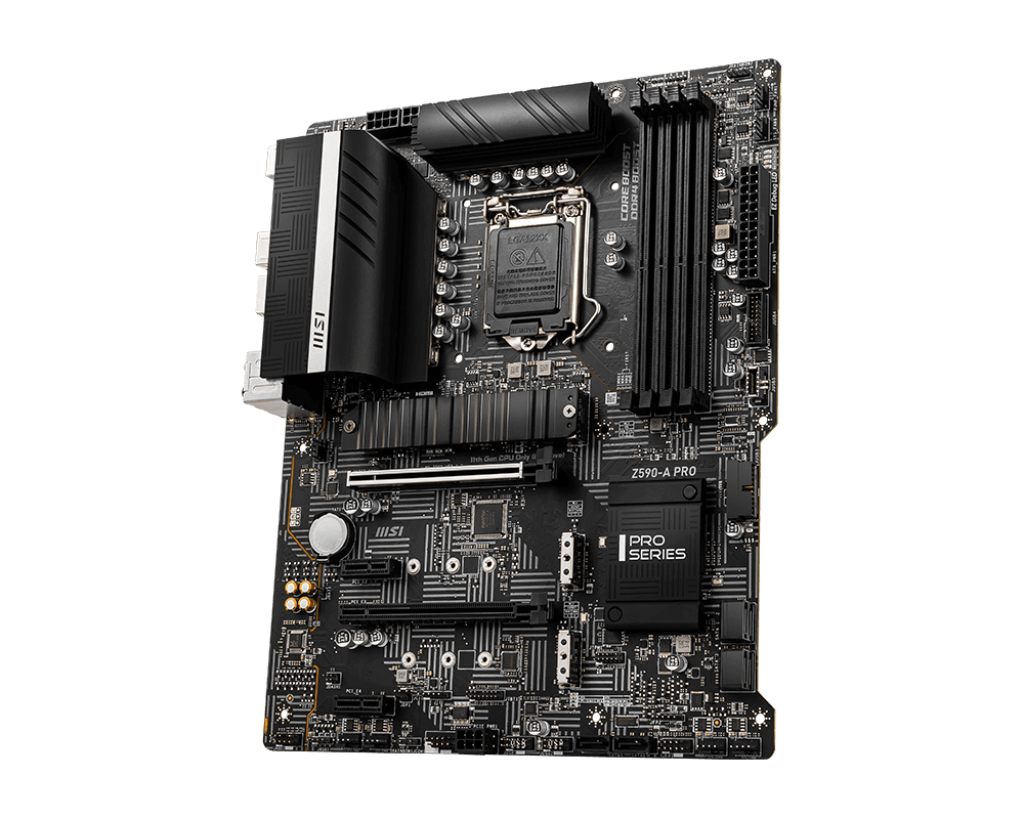

Дънна платка MSI Z590 PRO LGA1200
| Производител | MSI |
| CPU сокет | LGA 1200 |
| Чипсет (MB) | Intel Z590 |
| Форм фактор | ATX |
| Поддържани процесори | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) |
| Поддържана памет | DDR4 |
| Брой слотове за памет | 4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет (MHz) | до 5333MHz (OC) |
| Поддръжка на двуканална памет | Да |
| Вградено аудио | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Вграден Wi-Fi | Не |
| Bluetooth версия | Не |
| Вграден LAN | Intel I225-V 2.5Gb Ethernet |
| Интерфейс SATA | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0, 1, 5, 10 |
| М2 слот | 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slots (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core ™ processors PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Разширителни слотове | 2 x PCIe x16 slots 2 x PCIe 3.0 x1 slots (from Z590 chipset) Support x16/ x4 Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU Supports up to PCIe 3.0 |
| Конектор захранване | 1 x 24-pin 1 x 8-pin 1 x 4-pin |
| USB портове | 1 x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2 x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6 x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors) 4 x USB 2.0 Type-A ports on the back panel 4 x USB 2.0 ports are available through the internal USB 2.0 connectors |

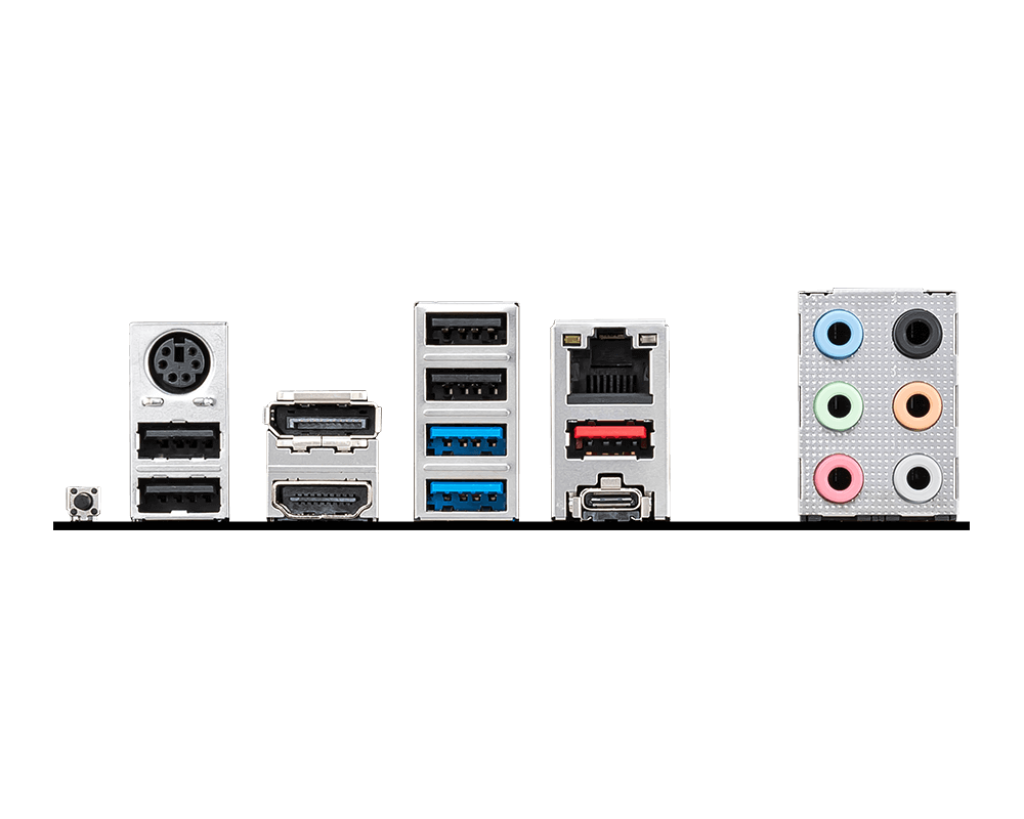

| Заден I/O панел | Keyboard / Mouse DisplayPort USB 2.0 LAN port Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
| Графика | 1 x HDMI port, 1 x DisplayPort 1.4 port |
| Мулти GPU технология | NVIDIA 2-Way SLI Technology;AMD 3-Way CrossFireX Technology |
| Размери | 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10, Microsoft Windows 11 |
| Поколение процесор | 10-то поколение 11-то поколение |
| Гаранция | 36 месеца |
